Lincoln 1133-000-U 56" Electric Impinger Conveyor Oven - 240v/3ph
Typically ships in 10 - 12 weeks
Selected Voltage: 240V, 3 Phase
208V, 3 Phase |
240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Lincoln 1133-000-U Description

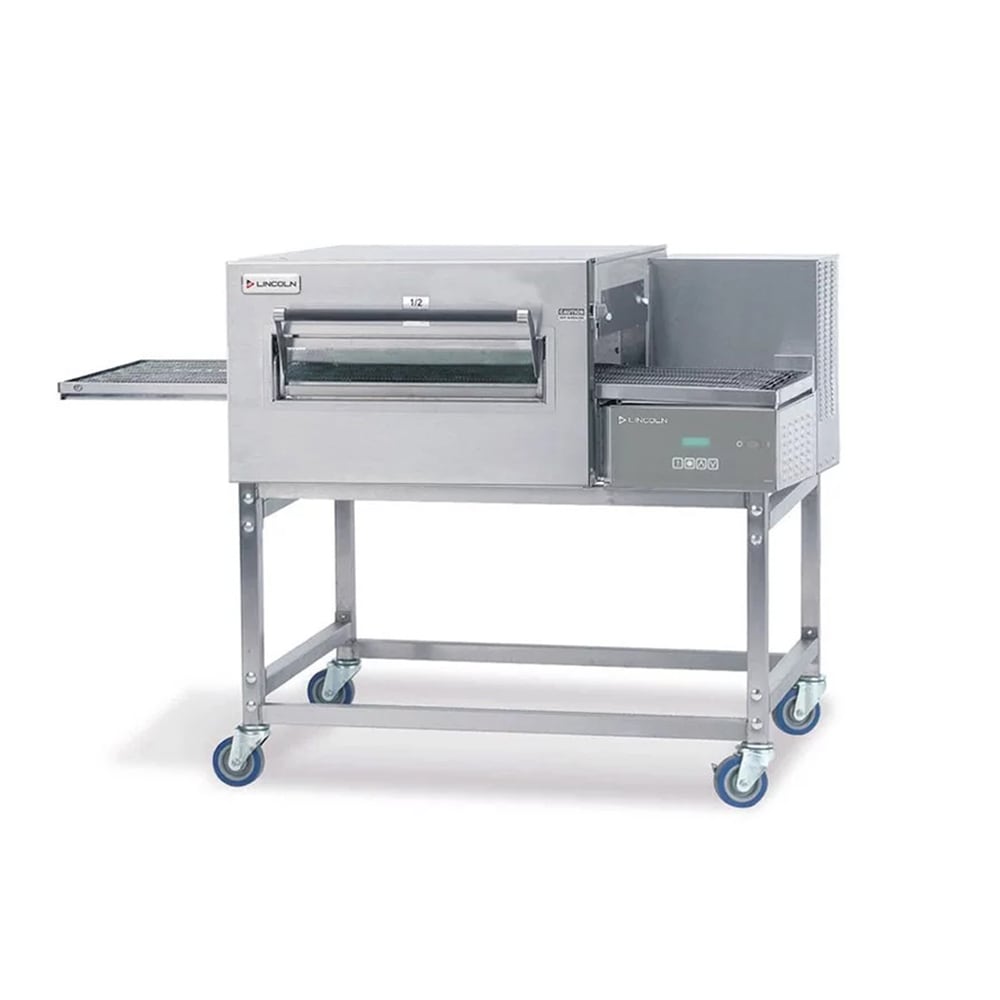

To ease operation, the Lincoln 1133-000-U Impinger® II Express conveyor pizza oven features a digital control panel with an on/off switch, microprocessor-controlled conveyor speed, and a fluorescent display that provides readouts of temperature, belt speed, and diagnostic messages. With these controls, operators can set temperature from 250 to 575 degrees Fahrenheit and cook time between 1 and 30 minutes. To prevent inadvertent adjustment during operation, these settings can be locked. Once temperatures and cook time are set, this unit directs high-velocity jets of heated air from above and below the 18-inch-deep conveyor belt, penetrating cold air halos and expediting baking.
The Lincoln 1133-000-U single-deck conveyor oven measures 56 inches wide by 39 inches deep by 42 inches high and features a rugged stainless steel front, top, and sides that resist rusting and corroding throughout use. This front-loading unit's glass access door is built with a cool-to-the-touch handle that lets operators smoothly insert contents midway onto the 56-inch-wide by 18-inch-deep conveyor. To accommodate specific kitchen layouts, this conveyor can be reversed, and it can be paused to allow products longer cook times. The removable front door provides access into the unit for simplified cleaning. To increase production while saving floorspace, this unit can be stacked with two other Impinger II ovens.
Product Details
- Part of the Impinger II Express series
- Single-deck model
- Uses air impingement to reduce baking times
- FastBake™ technology optional
- Operating temperature range: 250-575 degrees F
- Cooking time adjustable from 1-30 minutes
- Stainless steel top, front, and sides
- 28 1/4-in. wide baking chamber
- Digital control panel with on/off switch
- Microprocessor-controlled bake time/conveyor speed
- Lockable control settings
- Fluorescent lit temperature, speed, and diagnostic message display
- Glass access door
- Cool-to-the-touch handle
- Fingers, conveyor, and glass access door are removable for cleaning
- Reversible conveyor with product-stop mechanism
- Can be stacked 3 units high
- 6-in. minimum clearance required between rear of oven and combustible surfaces
- Minimum right-side clearance from other cooking equipment: 24 in.
Dimensions & Utilities
- Conveyor: 56 in. W x 18 in. D
- Overall: 56 in. W x 39 in. D x 42 in. H
- 25 A, 10 kW
- 240 V/60 Hz/3 ph
Product Features
*Free shipping on Lincoln 1133-000-U within the 48 contiguous states.
From The Manufacturer
Lincoln Impinger® II Conveyor Oven, electric, front loading, single-deck, single conveyor belt, glass access window, now with easyTouch™ controls, FastBake™ technology optional, NSF, UL, CSA, 240v/60/3, 25.0 amps, 10.0 kW
*Image may not depict product color, inclusions or accessories.

Stackable
This item can be safely stacked

Lincoln 1133-000-U Specifications
Spec Attribute | Spec Value |
---|---|
Manufacturer | Lincoln |
Belt Length (in) | 56 |
Belt Width (in) | 18 |
Controls | Touch Screen |
Heat | Electric |
Hertz | 60 |
kW | 10 |
Overall Length (in) | 56 |
Overall Width (in) | 39 |
Size | Single |
Voltage | 240 |
Warranty | 1-year Limited Against Defects in Material & Workmanship |
Series | Lincoln Impinger® II |
Phase | 3 |
Rating | Best |
Product | Conveyor Ovens |
Product Type | Cooking Equipment |
Installation Type | Floor Model |
Maximum Pizza Diameter | 16" |
Certifications | NSF |
Certifications | UL |
Certifications | Stackable |
Heating Style | Impingement |
Weight | 365.00 |
