Lincoln 1131-000-U 56" Electric Impinger Conveyor Oven - 120-240v/1ph
Typically ships in 10 - 12 weeks
$16,235.00 /Each
Login or call for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Attention: Order by 04-01-2026 to save before the price increases!
Lincoln 1131-000-U Description
The Lincoln 1131-000-U conveyor oven features digital controls with an on/off switch as well as a fluorescent display that indicates belt speed, temperature, and diagnostic messages. Employees can adjust the cook time between 1 and 30 minutes and set its temperature range between 250 and 575 degrees Fahrenheit. With the optional FastBake™ technology, cook times are lowered without losing quality or increasing noise output. To extend its service life in high-volume kitchens, this unit's top, front, and sides are constructed of stainless steel—a strong, easy-to-clean metal that resists rust and corrosion.
A single-deck, front-loading model, the Lincoln 1131-000-U conveyor oven measures 56 inches wide by 39 inches deep by 42 inches high. The direction of its conveyor can be reversed to accommodate different kitchen layouts. To increase output without taking up more space in compact environments, this unit is stackable up to three units high. Its glass access door has a cool-touch handle to ensure comfortable, safe operation.
- Part of the Lincoln Impinger® II collection
- Front-loading, single-deck unit
- 18-in.-wide single conveyor belt
- Front, top, and sides made of rugged stainless steel
- FastBake technology (optional)
- 28-in.-wide baking chamber
- Stackable up to 3 units high
- Front removable fingers
- Temperature range: 250-575 degrees F
- Cook time range: 1-30 minutes
- Conveyor direction is reversible
- Digital controls with on/off switch
- Glass access door with cool-touch handle
- Microprocessor-controlled bake time and conveyor switch
- Fluorescent display indicates temperature, belt speed, and diagnostic messages
- 56 in. W x 39 in. D x 42 in. H
- 42 A, 10 kW
- 120/240 V/60 Hz/1 ph

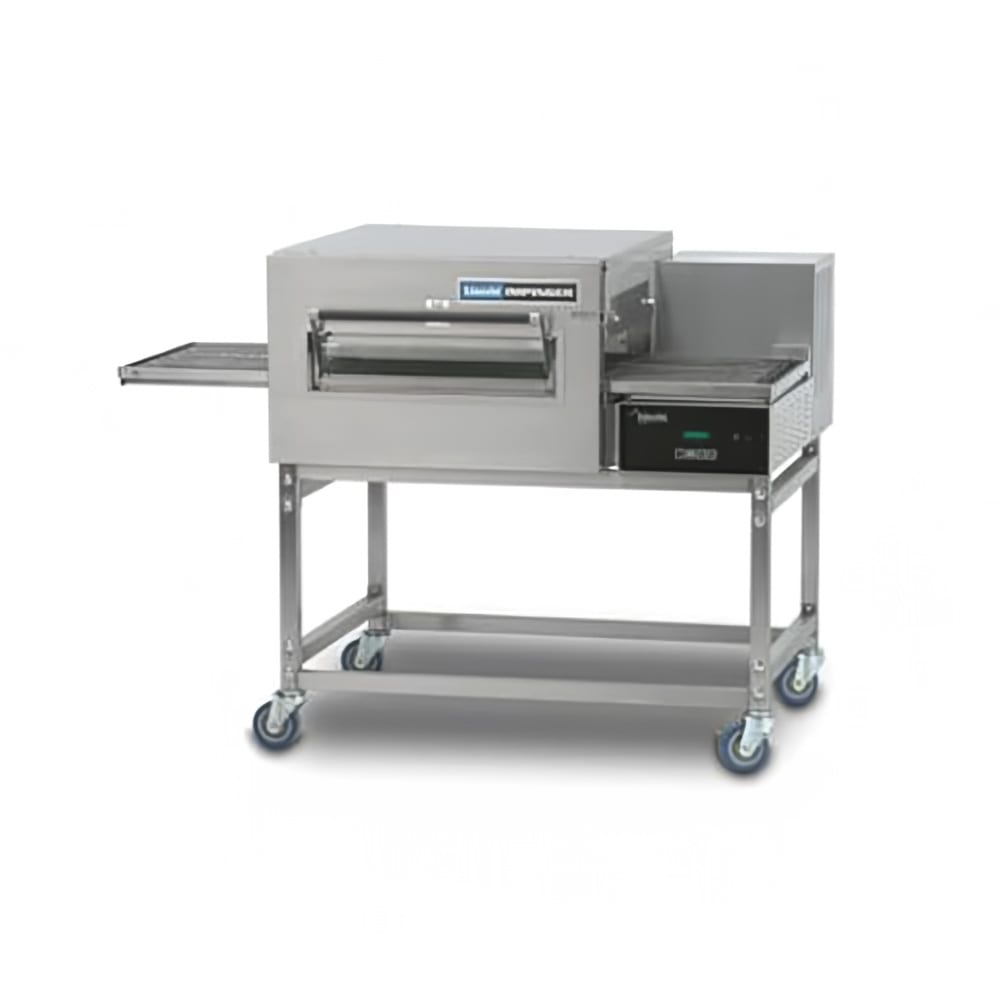

*Image may not depict product color, inclusions or accessories.
*Free shipping on Lincoln 1131-000-U within the 48 contiguous states.
From The Manufacturer
Lincoln Impinger® II Conveyor Oven, electric, front loading, single-deck, single conveyor belt, glass access window, now with easyTouch™ controls, FastBake™ technology optional, NSF, UL, CSA, 120/240v/60/1, 42.0 amps, 10.0 kW
Lincoln 1131-000-U Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Lincoln |
| Belt Length (in) | 56 |
| Belt Width (in) | 18 |
| Controls | Touch Screen |
| Heat | Electric |
| Heating Style | Impingement |
| Hertz | 60 |
| Installation Type | Floor Model |
| kW | 10 |
| Maximum Pizza Diameter | 16" |
| Overall Length (in) | 56 |
| Overall Width (in) | 46.5 |
| Phase | 1 |
| Product | Conveyor Ovens |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | Lincoln Impinger® II |
| Size | Single |
| Voltage | 120/240 |
| Warranty | 1-year Limited Against Defects in Material & Workmanship |
| Weight | 365.00 |
