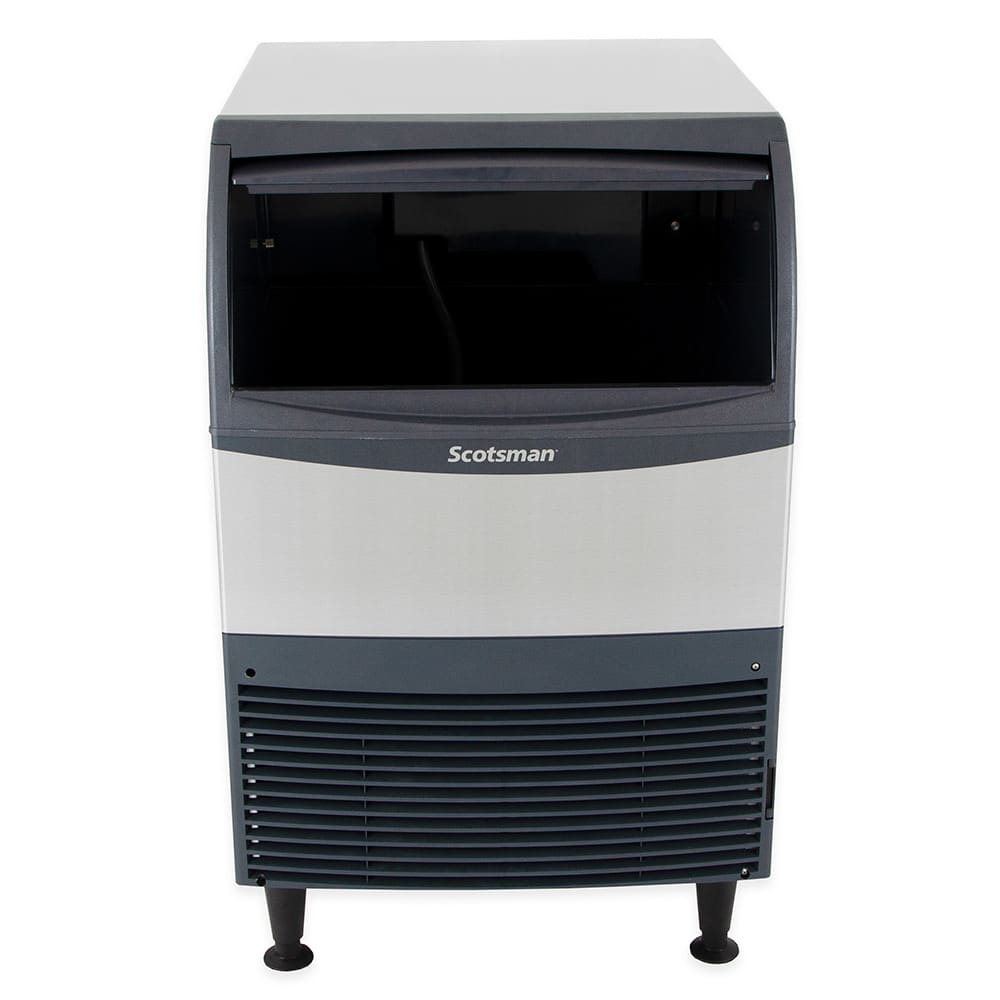

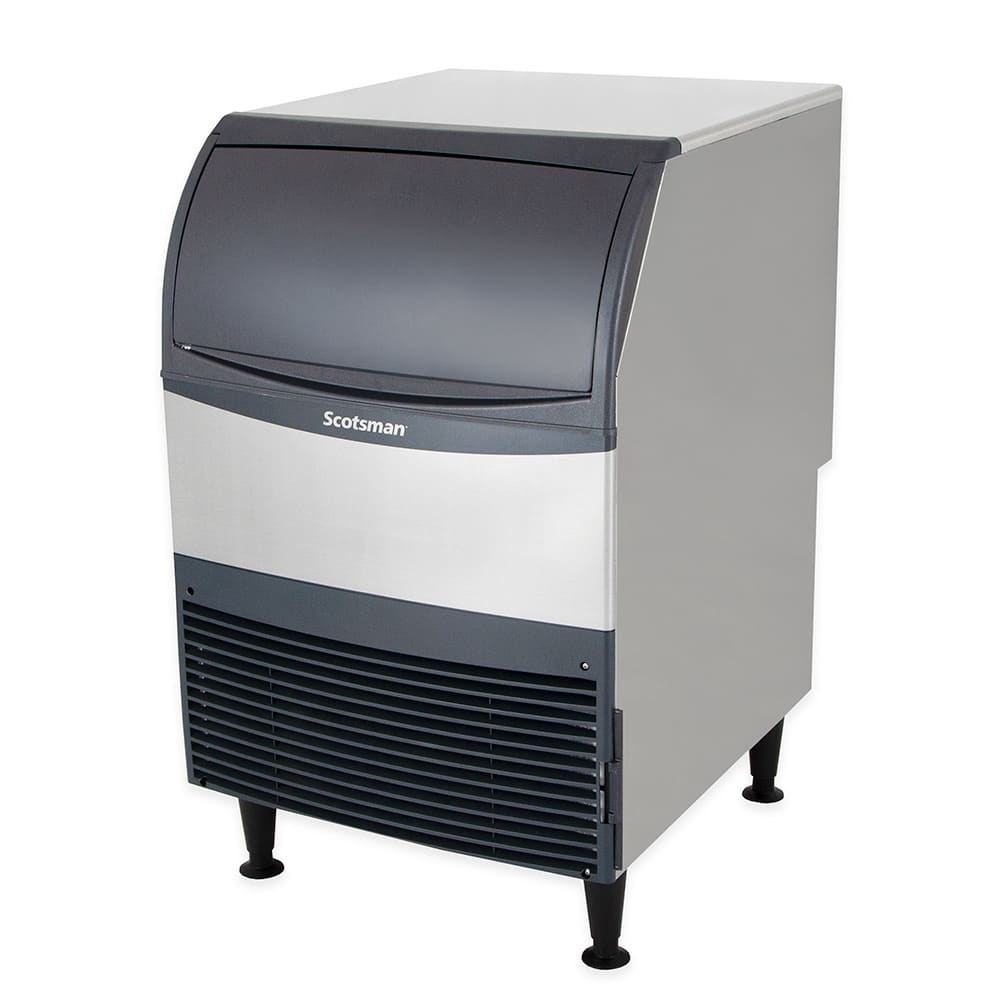

Scotsman UN324AX-1 28 1/2"W Nugget Undercounter Ice Machine - 340 lbs/day, Air Cooled
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $13,803.00
$5,659.00 /Each
Selected Compressor Type: Air Cooled
Scotsman UN324AX-1 Description
The Scotsman UN324AX-1 undercounter nugget ice machine can produce 340 pounds of nugget ice in 24 hours, but this amount decreases in warmer conditions. Nugget ice is soft, chewable, and it can be used in frozen drinks, fountain beverages, healthcare establishments, and more. The unit has an 80-pound-capacity storage bin—made accessible because the lid slides back—while the included ice scoop prevents contact between ice and hands.
This Scotsman UN324AX-1 undercounter ice maker is simple to operate with its intuitive control panel. A QR code is included for checking service information and warranty history of the unit. It has a stainless steel evaporator that withstands heavy use and an external air filter that is accessible from the front for cleaning.
- 340-lb. maximum daily ice production
- 266-lb. AHRI-certified daily ice production
- 80-lb. storage bin capacity
- Makes chewable nugget ice
- User-friendly control panel for intuitive operation
- Air-cooled condensing unit

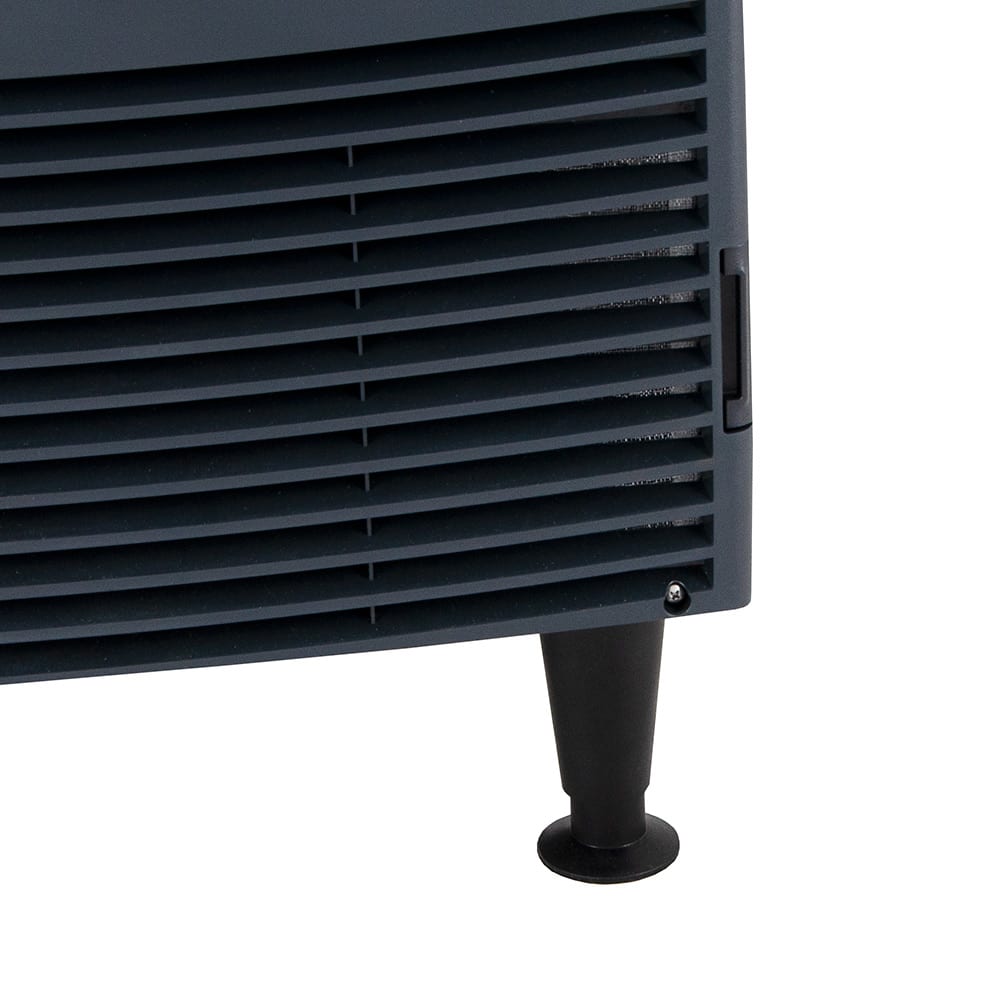

- External air filter is front accessible for convenient cleaning
- Stainless steel evaporator is durable for high-volume settings
- Uses R290 refrigerant
- Reliable, low-maintenance, greaseless bearing
- Unique QR code provides information for servicing and warranty history
- Convenient, slide-back bin door
- Ice scoop is included
- 3,000-BTU heat transfer capacity
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- 24 in. W x 28 1⁄2 in. D x 39 in. H
- 5.47 kW
- 115 V/60 Hz/1 ph, cord
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman UN324AX-1 within the 48 contiguous states.
From The Manufacturer
Undercounter Ice Maker with Bin, nugget style, air cooled, 24" width, self contained condenser, production capacity up to 340 lb production/24 hours at 70°/50° (266 lb AHRI certified at 90°/70°), 80 lb bin storage capacity, H2 Nugget Ice, sealed maintenance-free bearings, stainless steel auger & evaporator, front facing removable air filter, recessed utility chase, unit specific QR code, ice scoop, includes 6" adjustable legs, R290 refrigerant,115v/60/1-ph, includes 5.5' power cord with NEMA 5-15P plug, cULus, NSF, ENERGY STAR®
Watch a video about this product
Scotsman UN324AX-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 340 |
| Also Known As | UN324A-1 |
| Bin Capacity (lb) | 80 |
| Compressor Type | Air Cooled |
| Depth (in) | 28.5 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 39 |
| Hertz | 60 |
| Ice Type | Nugget |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Essential Ice™ |

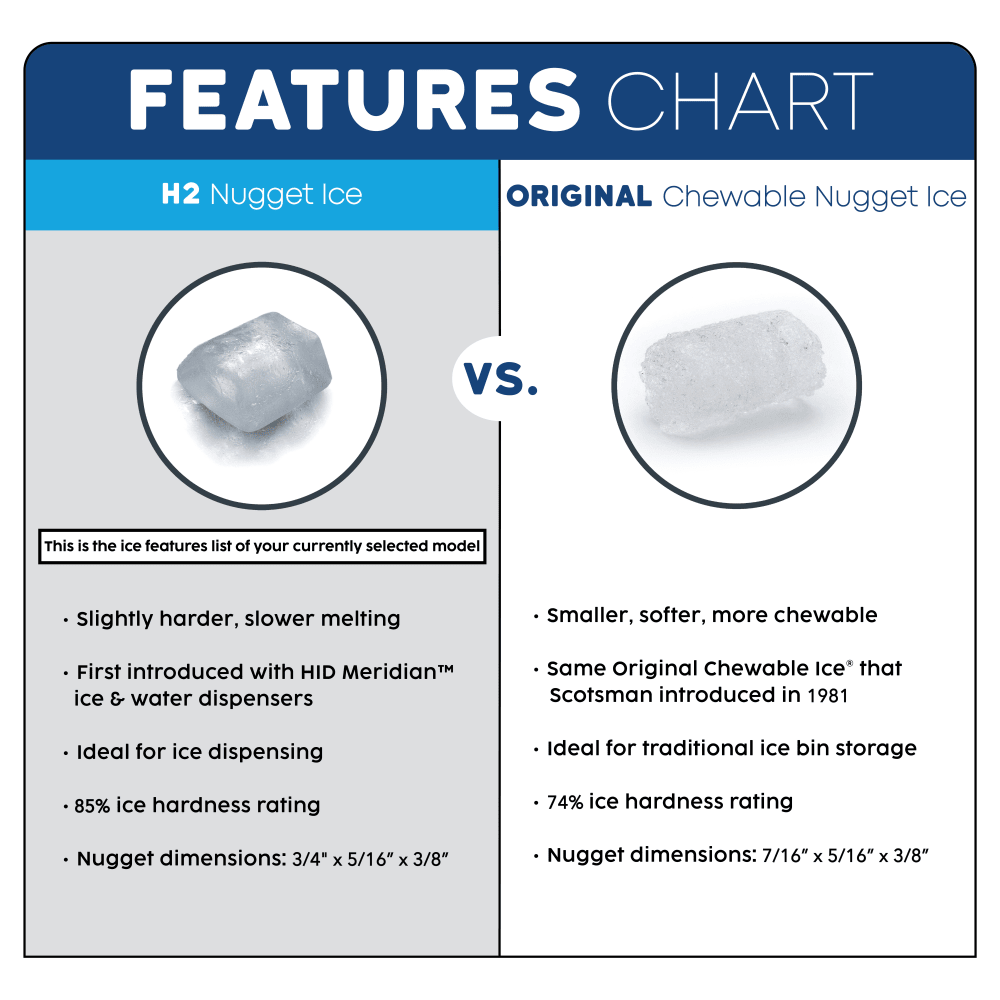

| Special Features | H2 Harder Nugget Ice |
| Special Features | Sealed, Maintenance-Free Bearings |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 24 |
| Weight | 210.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Scotsman UN324AX-1 Scotsman UN324AX-1 28 1/2"W Nugget Undercounter Ice Machine - 340 lbs/day, Air Cooled Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $5,659.00 / Each | $7,315.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| Ice Type | Nugget | Nugget |
| 24 Hr. Production (lb) | 340 | 300 |
| Bin Capacity (lb) | 80 | 80 |
| Width (in) | 24 | 24 |
| Compressor Type | Air Cooled | Air Cooled |
| Drain Type | Gravity | |
| Rating | Best | Best |
| Special Features | H2 Harder Nugget Ice | |
| Series | Essential Ice™ | F Series |
| Suggested Use | Commercial | Commercial |
| Front Style | Lift Door | |
| Depth (in) | 28.5 | 26 |
| Height (in) | 39 | 39 |
| Design | Standard Height | |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Voltage | 115 | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Compressor & Condenser Parts |
