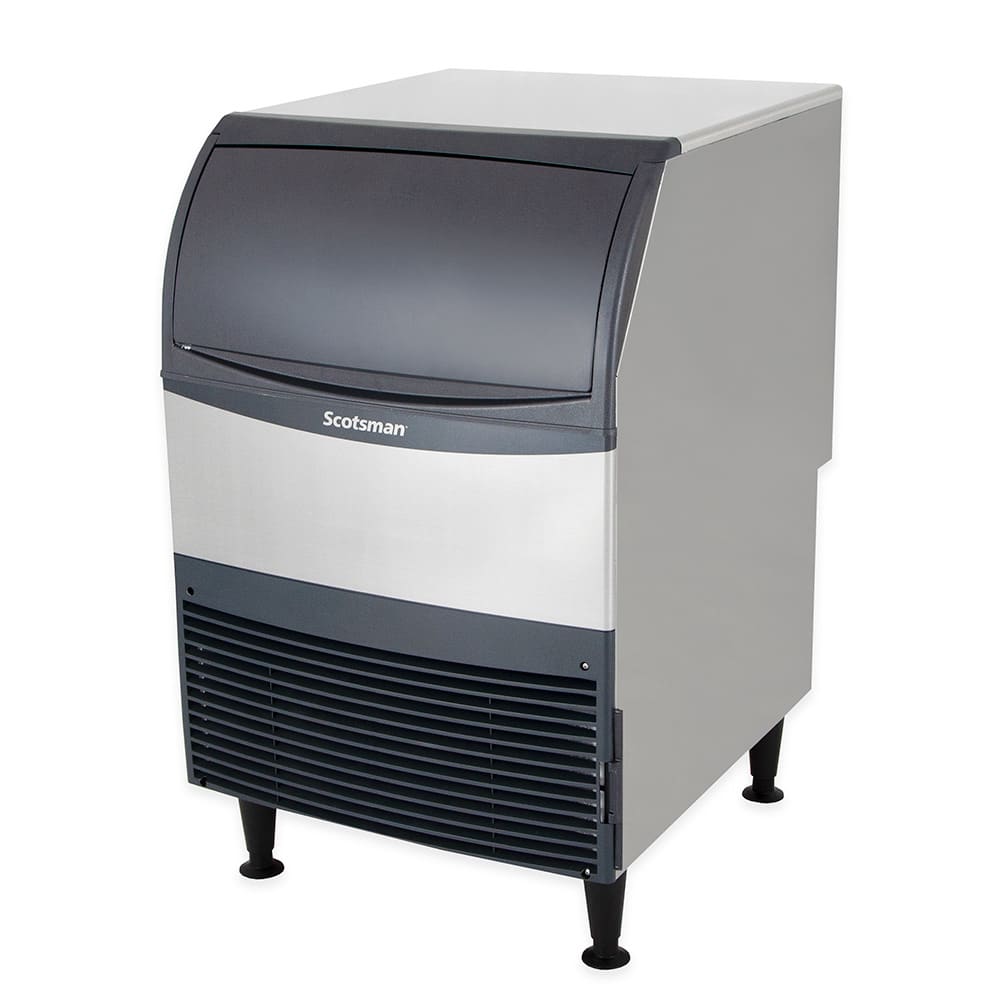

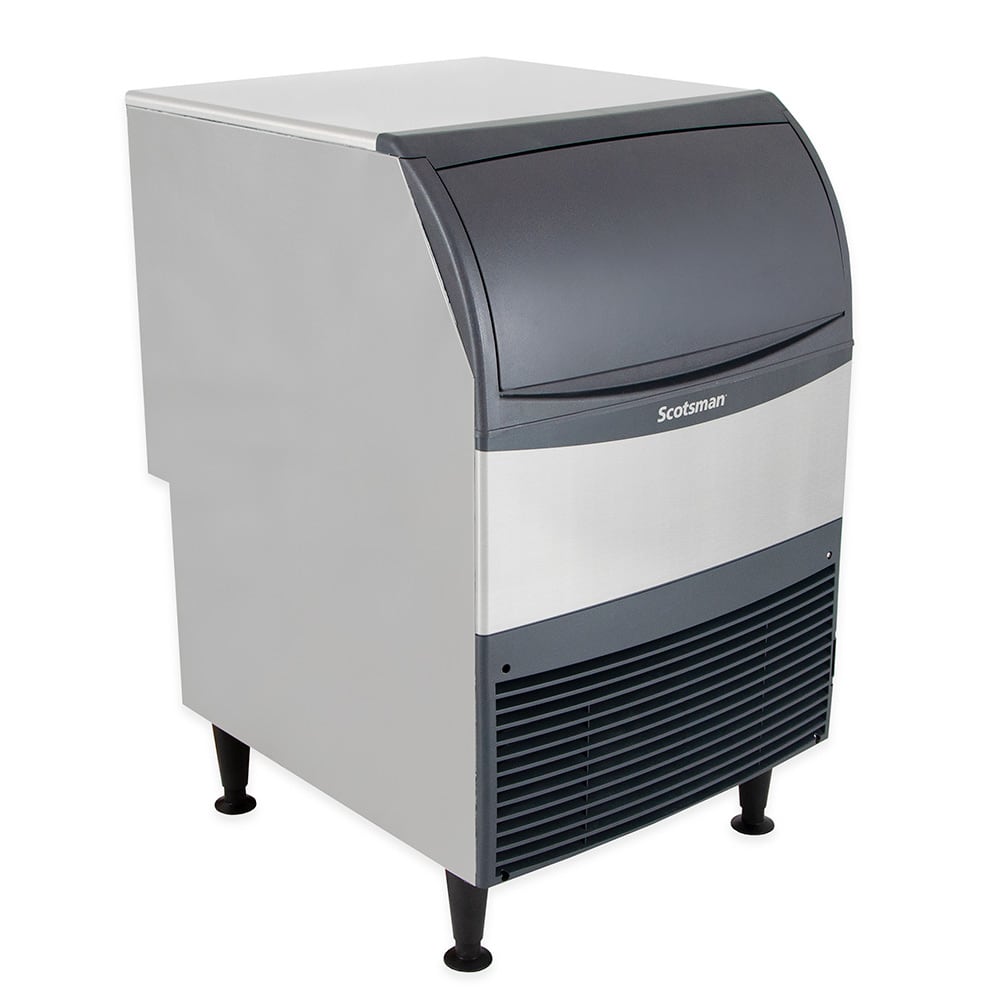

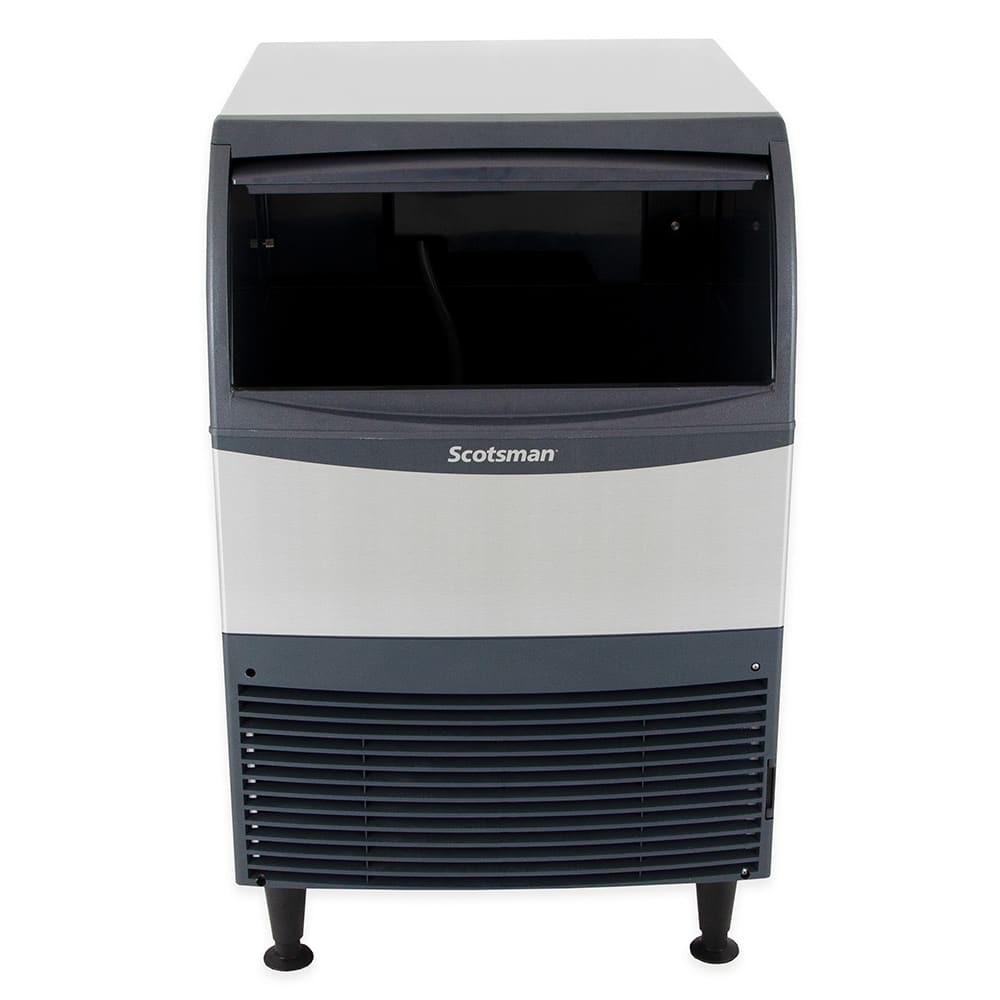

Scotsman UN324W-1 28 1/2"W Nugget Undercounter Ice Machine - 340 lbs/day, Water Cooled

Made of durable stainless steel, the Scotsman UN324W-1 undercounter ice maker is suitable for use in high-volume commercial foodservice operations. This unit resists corrosion, dents, and scratches, and it's easy to clean, which lowers labor requirements while streamlining workflow. The ice maker's self-contained condenser facilitates installation, and its slide-back bin enhances ice access. Because this unit is designed with a gravity drain, it's optimal for kitchens equipped with a location that accepts water runoff. The ice maker measures 24 inches wide by 28¹/₂ inches deep by 39 inches tall overall.

The Scotsman UN324W-1 commercial undercounter ice maker produces as much as 340 pounds of nugget ice in 24 hours under ambient conditions—a soft and chewable ice optimal for blended beverages, such as smoothies and margaritas. This compact unit can store as much as 80 pounds of ice. Its 6-inch legs can be adjusted to level the ice maker on uneven floors, and for facilitated maintenance, this unit comes with a QR code that gives operators access to warranty history and service manuals. With its water-cooled configuration, the ice maker cools itself by pumping cool water near the condenser coils.

Product Details

• 340-lb. maximum daily ice production
• 281-lb. AHRI-certified daily ice production
• 80-lb. maximum ice storage capacity

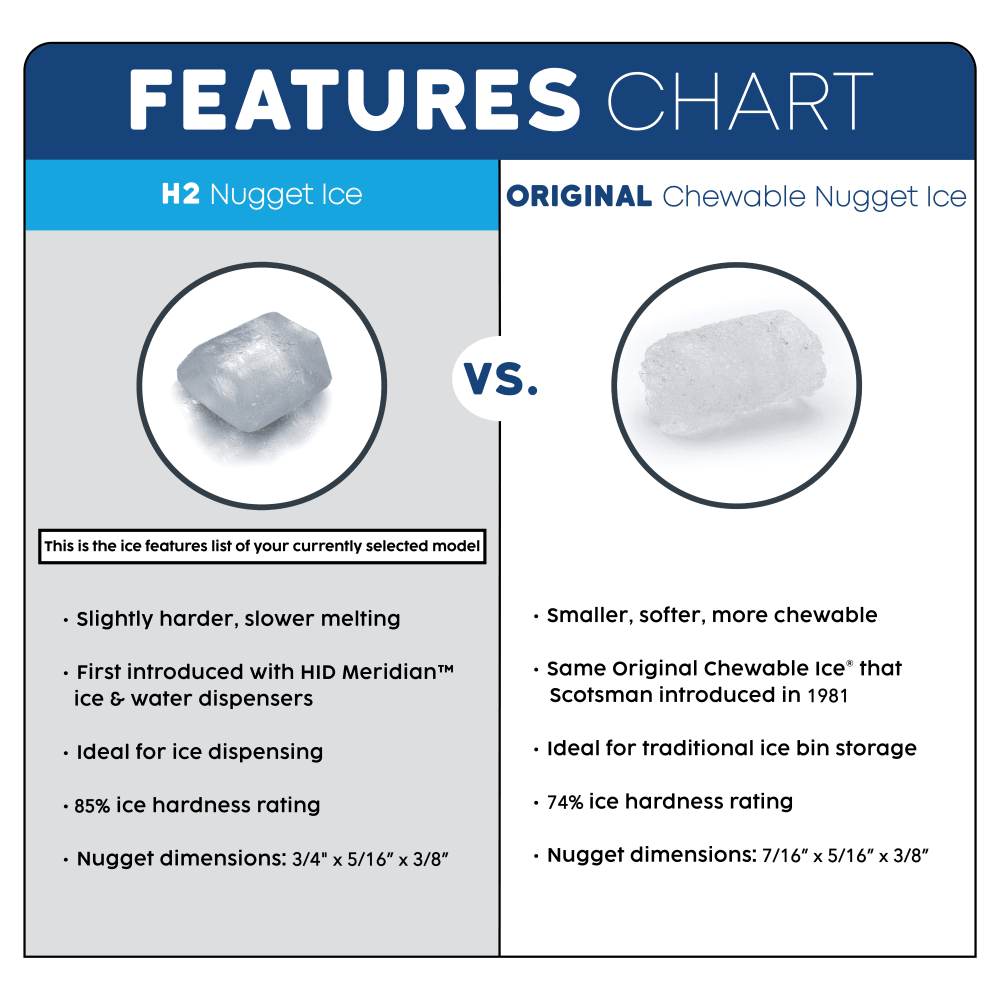

• Produces soft nugget ice
• Undercounter unit
• Heavy-duty stainless steel construction
• Stainless steel evaporator
• Slide-back bin
• QR code provides access to service manuals

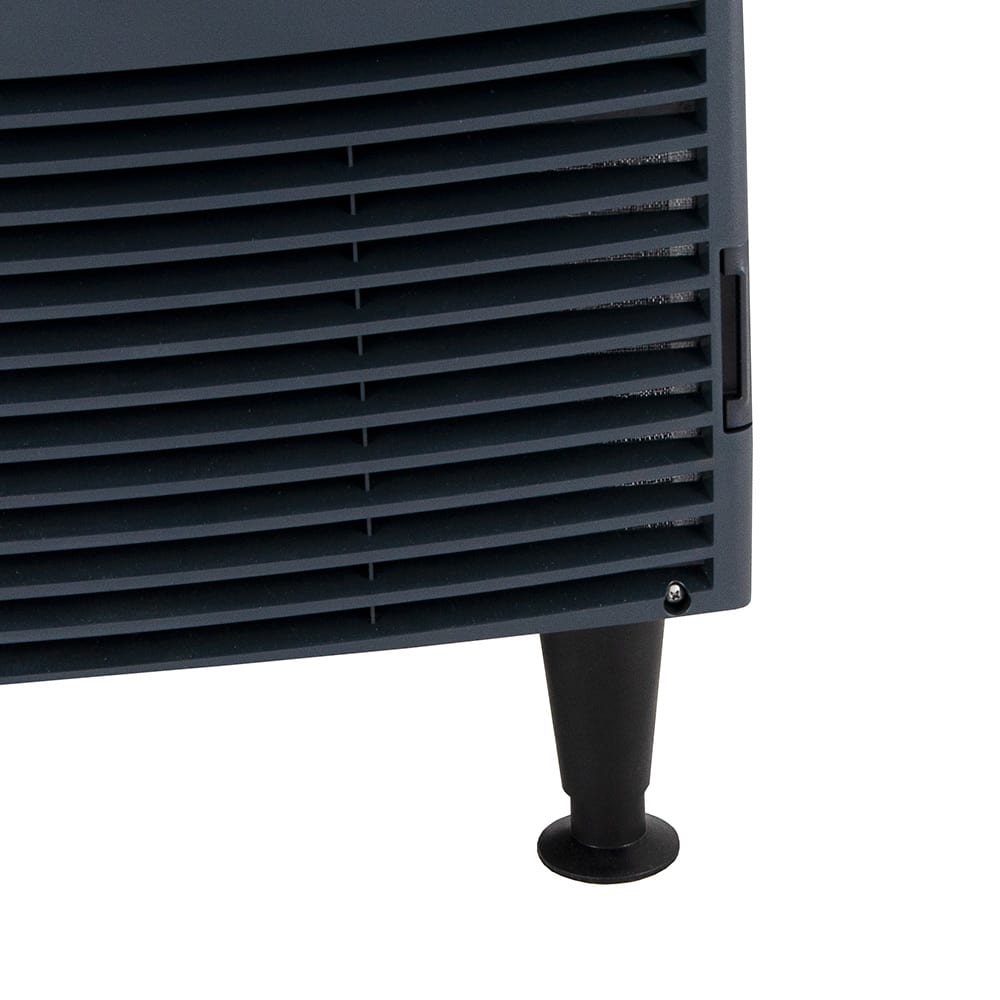

• 6-in. legs enable leveling on uneven floors
• Water cooled
• Self-contained condenser facilitates maintenance
• R-134A refrigerant
• Ideal incoming water pressure: 10-80 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming air temperature: 50-100 degrees F
• 3,000-BTU heat transfer capacity

Dimensions & Utilities

• 24 in. W x 28¹/₂ in. D x 39 in. H
• 4.55 kW
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on Scotsman UN324W-1 within the 48 contiguous states.

From The Manufacturer

Undercounter Ice Maker with Bin, nugget style, water cooled, 24" width, self contained condenser, production capacity up to 340 lb production/24 hours at 70°/50° (281 lb AHRI certified at 90°/70°), 80 lb bin storage capacity, H2 Nugget Ice, sealed maintenance-free bearings, stainless steel auger & evaporator, recessed utility chase, unit specific QR code, ice scoop, includes 6" adjustable legs, 115v/60/1-ph, includes 5.5' power cord with NEMA 5-15P plug, cULus, NSF, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor

Scotsman UN324W-1 Specifications

Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries.
