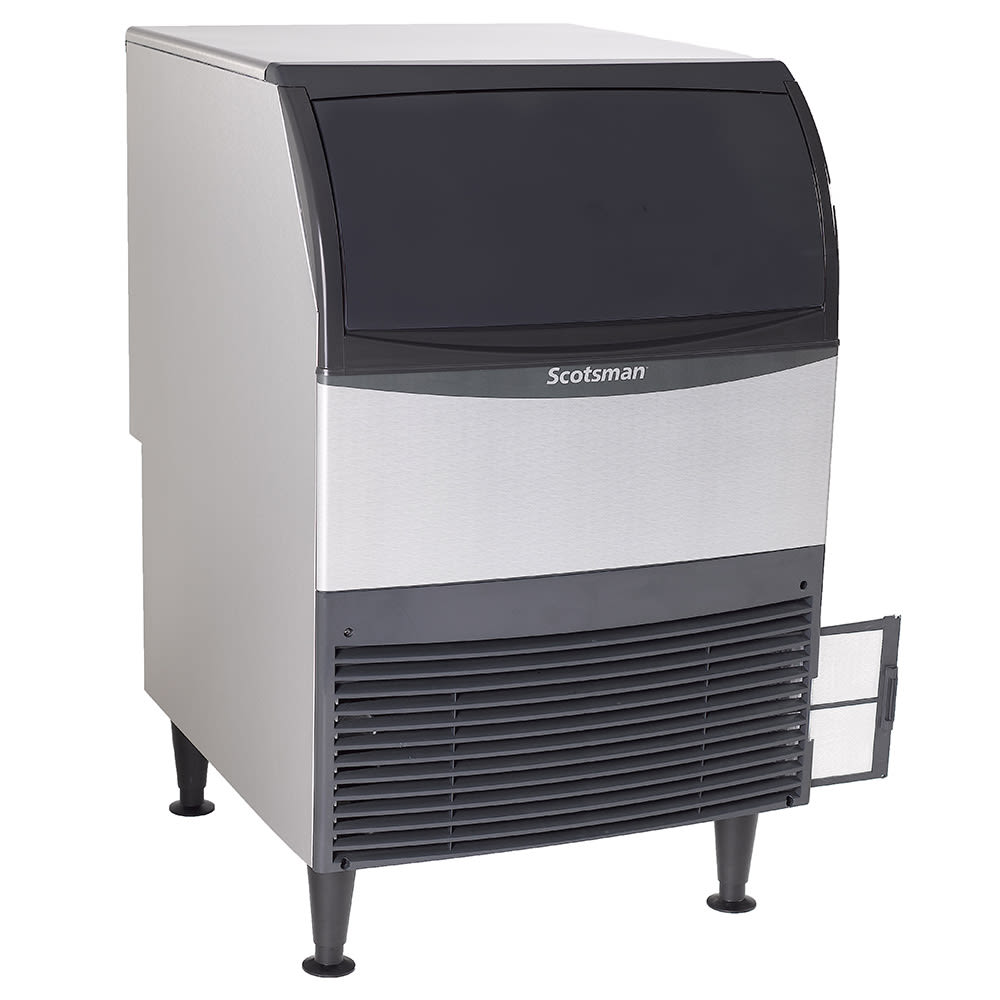

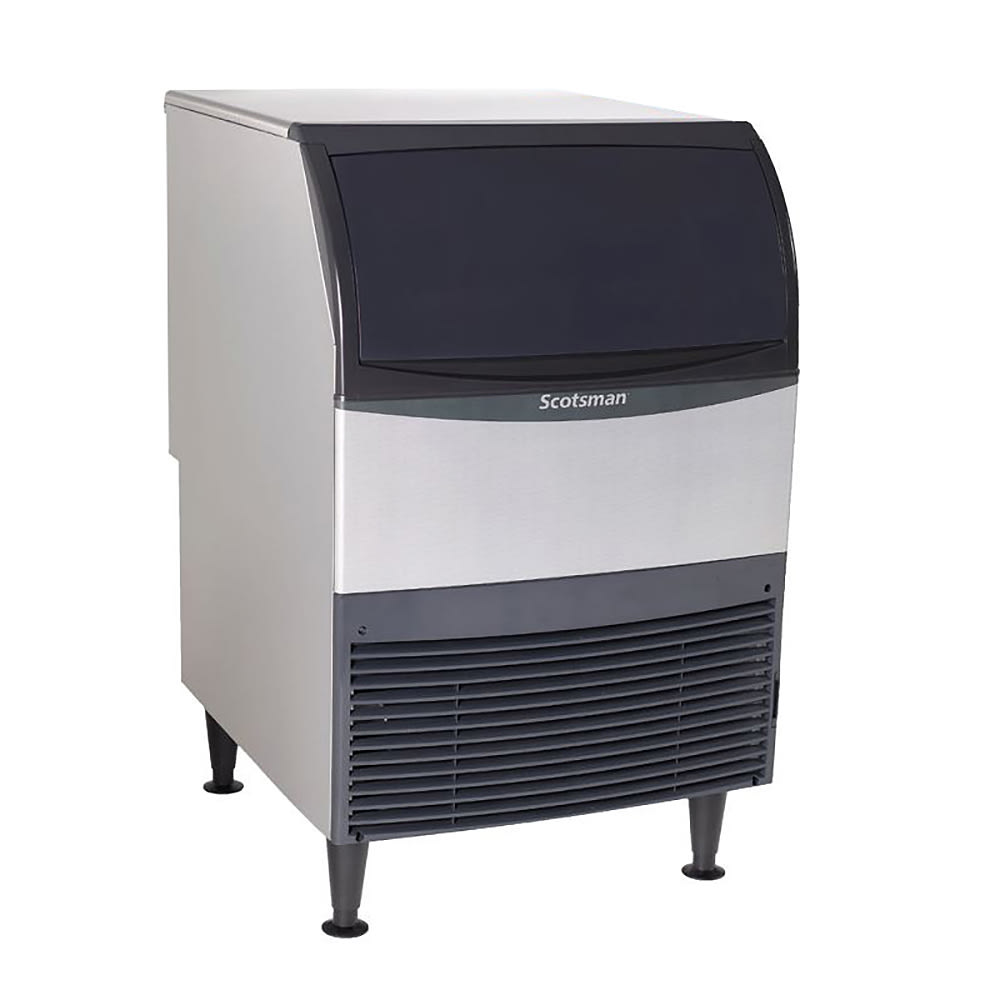

Scotsman UC2024SAX-1 24"W Half Cube Undercounter Ice Machine w/ Filter - 227 lbs/day, Air Cooled, Gravity Drain, 115v
Typically ships in 4 - 6 weeks
Retail Price: $6,761.00
$2,772.00 /Each
Selected Compressor Type: Air Cooled
Selected Ice Type: Half Cube
Scotsman UC2024SAX-1 Description
With the Scotsman UC2024SAX-1/AP1-P undercounter ice machine, users can produce as much as 227 pounds of ice each day for their bar or restaurant. Its bin accommodates 80 pounds of ice at a time. To scoop ice from the bin, users can push back the ergonomic door.
The Scotsman UC2024SAX-1/AP1-P ice maker has an air-cooled condenser that uses R290 refrigerant. This refrigeration system breathes from the front, so operation doesn't require side clearances. Its recessed utility chase removes rear clearance requirements, so users can install the unit where convenient. The AP1-P water filter comes standard with this unit.
- 227-lb. maximum daily ice production
- 174-lb. AHRI-certified daily ice production
- Produces small-cube ice
- Ice size: 7⁄8 in. L x 7⁄8 in. W x 3⁄8 in. H
- Storage bin holds 80 lbs.

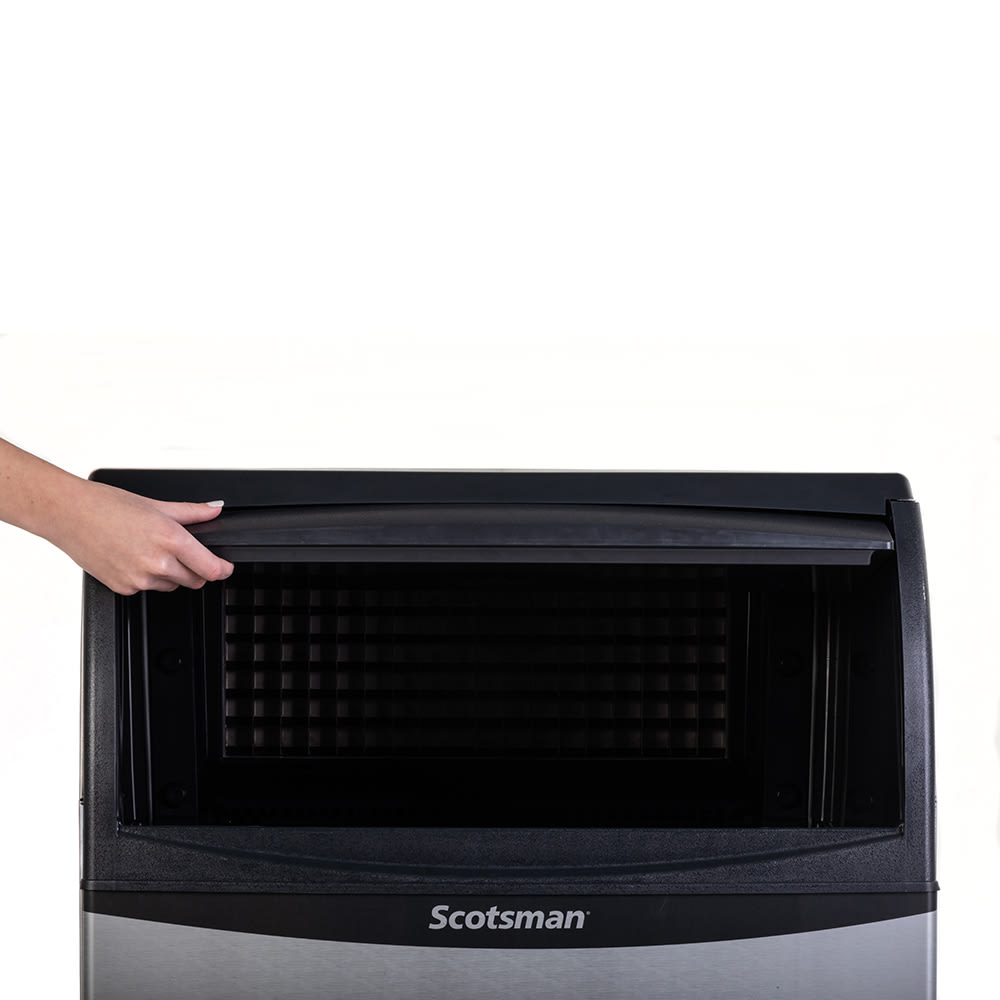

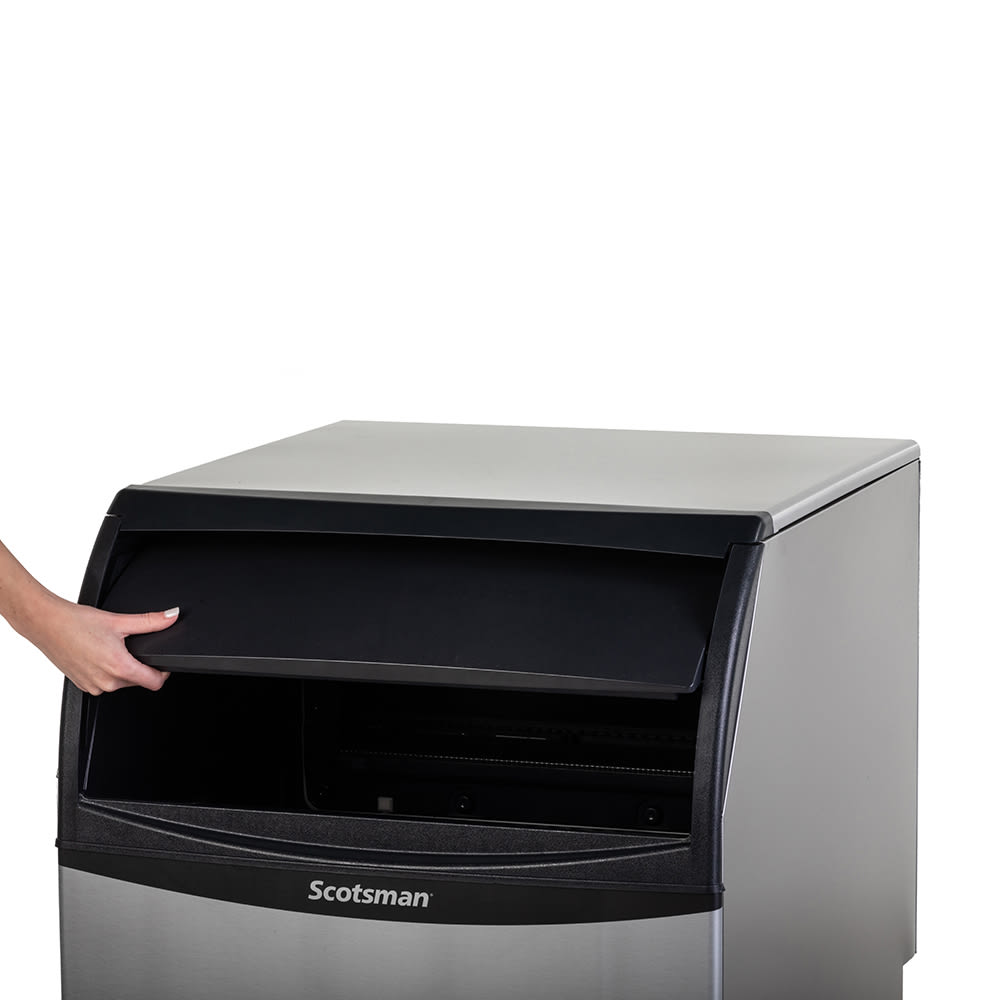

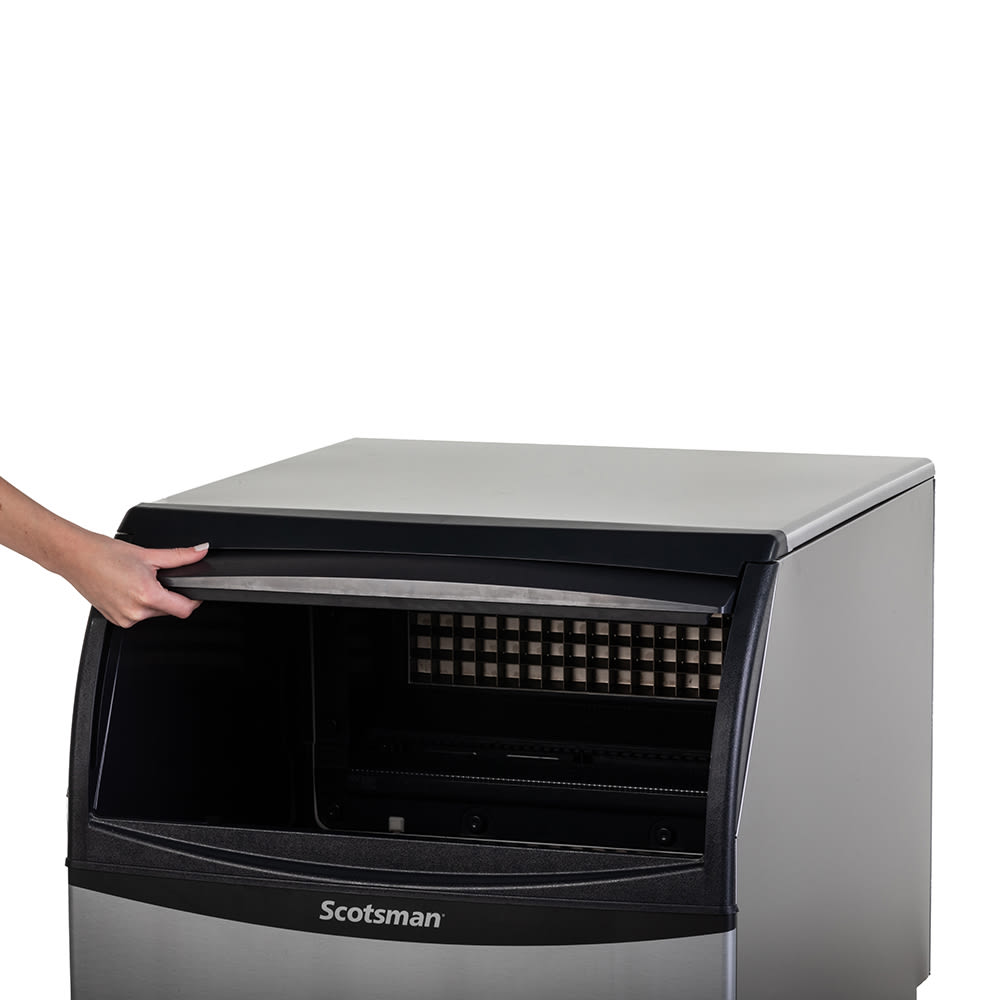

- Ergonomic bin door slides back

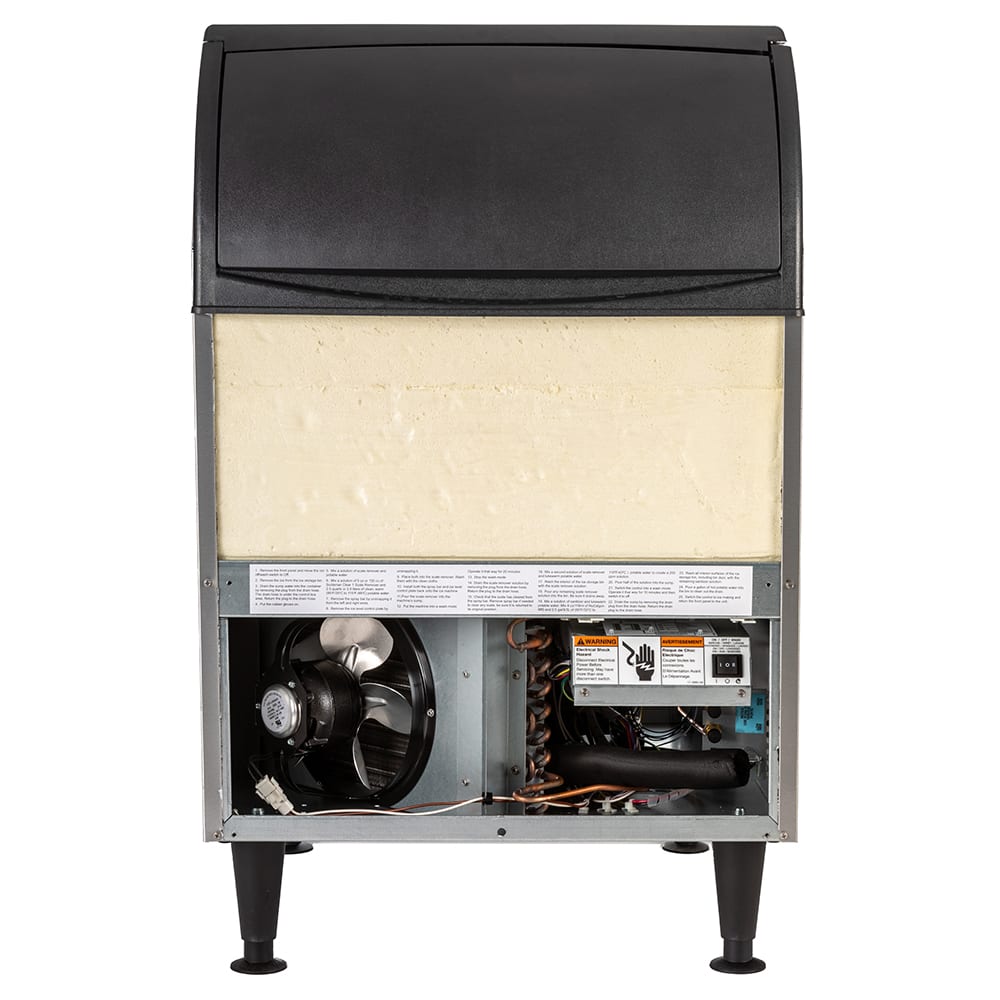

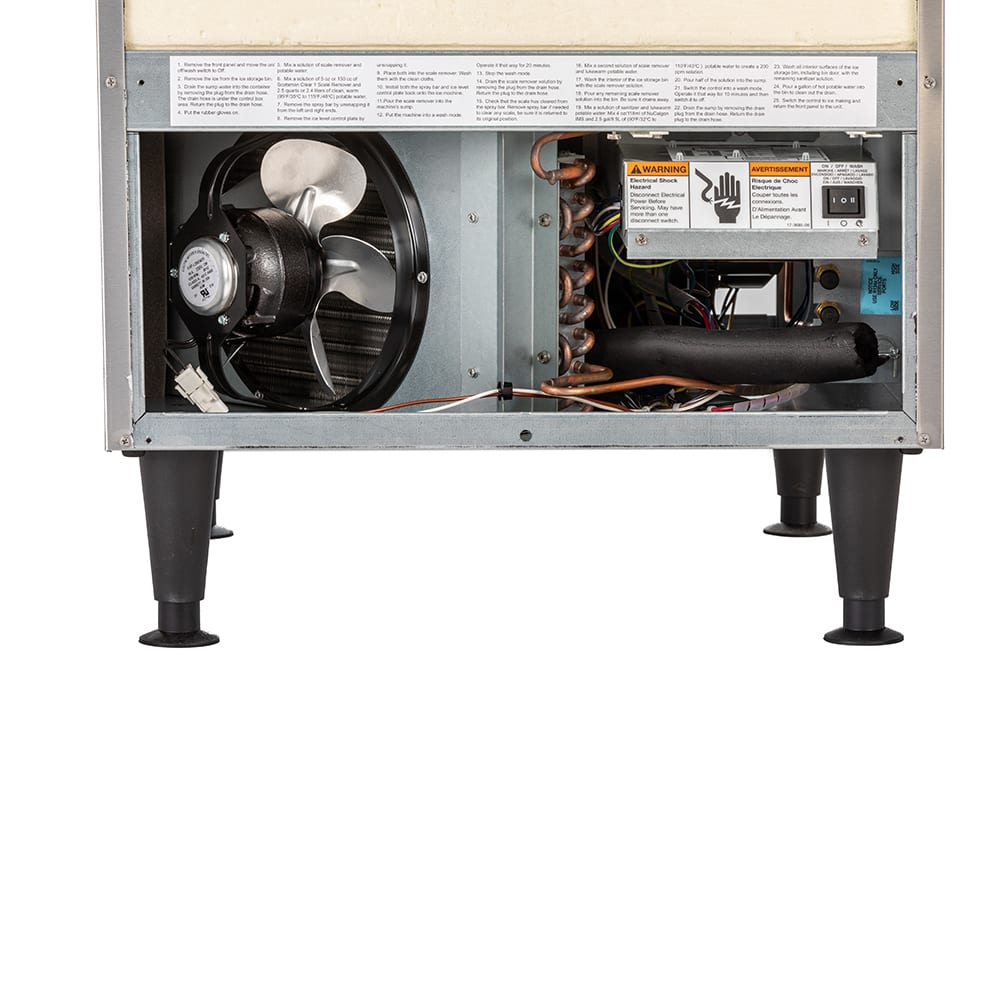

- Self-contained, air-cooled condenser is simple to install and maintain
- Front-breathing design doesn't require side clearances

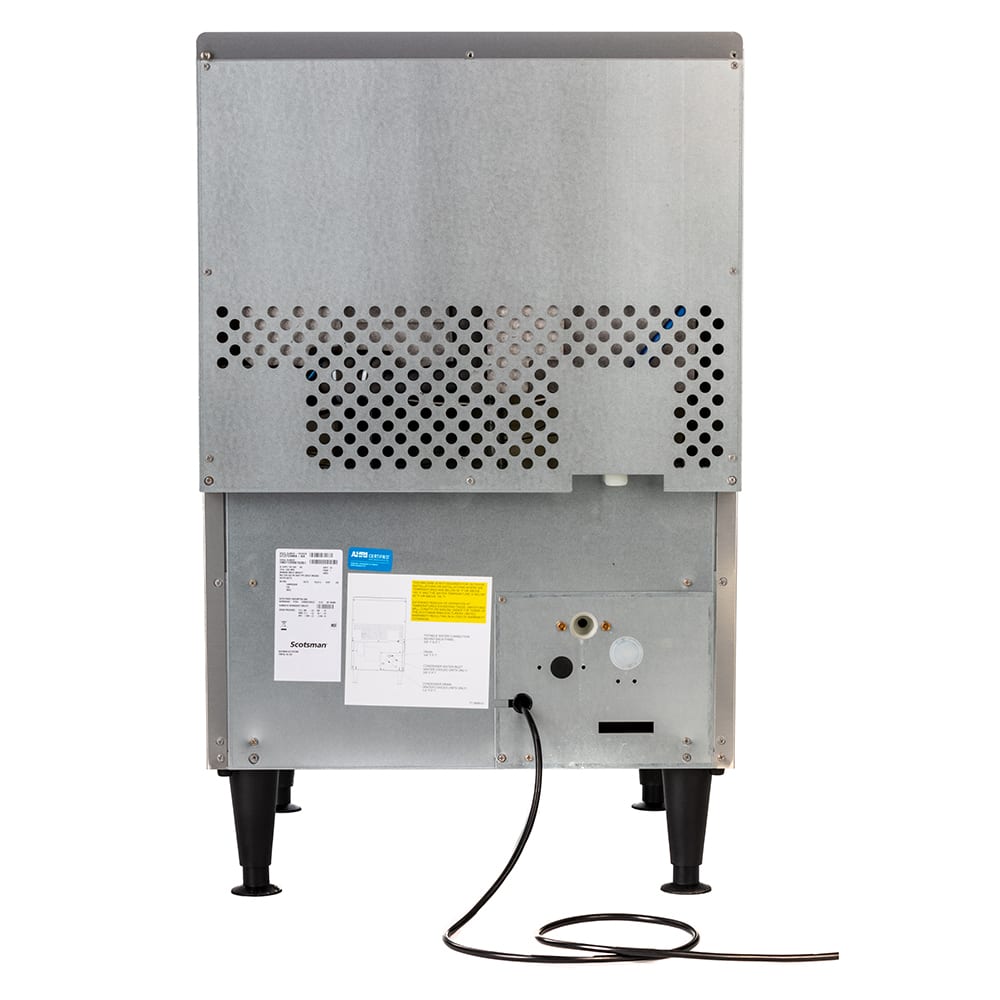

- Utility chase is recessed to reduce clearance requirements
- Cools with R290 refrigerant
- AP1-P water filter included
- Air filter is accessible from the front for cleaning
- Side panels have durable, aluminum alloy construction
- Mounted on 6-in. legs
- Comes with an ice scoop
- 3,900-BTU heat transfer capacity
- 24 in. W x 28 1⁄2 in. D x 39 in. H
- 15 A, 6.14 kW
- 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman UC2024SAX-1 within the 48 contiguous states.
From The Manufacturer
Undercounter Ice Maker With Bin, cube style, air-cooled, 24" width, self-contained condenser, production capacity up to 227 lb/24 hours at 70°/50° (166 lb AHRI certified at 90°/70°), 80 lb bin storage capacity, small cube size, front facing removable air filter, recessed utility chase, unit specific QR code, ice scoop included, 6" adjustable legs, R290 refrigerant,115v/60/1-ph, includes 5.5’ power cord with NEMA 5-15P plug, NSF, cULus, ENERGY STAR®, engineered and assembled in USA
AquaPatrol™ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF
Watch a video about this product
Scotsman UC2024SAX-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 227 |
| Also Known As | UC2024SA-1 |
| Bin Capacity (lb) | 80 |
| Compressor Type | Air Cooled |
| Depth (in) | 28.5 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 39 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Includes | AP1-P Filtration |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Special Features | Inline Water Filter Included |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Suggested Use | Home/Office |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 24 |
| Weight | 150.00 |
Important Prop 65 information for California residents.
- Scotsman CU1526SA1A
Compare to Similar Items
| Attributes |
Scotsman UC2024SAX-1 Scotsman UC2024SAX-1 24"W Half Cube Undercounter Ice Machine w/ Filter - 227 lbs/day, Air Cooled, Gravity Drain, 115v Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $2,772.00 / Each | $3,320.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 4 - 6 weeks | IN STOCK: Ships in 1 Business Day |
| Ice Type | Half Cube | Crescent Cube |
| 24 Hr. Production (lb) | 227 | 163 |
| Bin Capacity (lb) | 80 | 78 |
| Width (in) | 24 | 23.75 |
| Compressor Type | Air Cooled | Air Cooled |
| Drain Type | Gravity | Gravity |
| Rating | Best | Best |
| Special Features | Inline Water Filter Included | Alert System |
| Suggested Use | Commercial | Commercial |
| Front Style | Lift Door | Lift Door |
| Depth (in) | 28.5 | 28 |
| Height (in) | 39 | 39 |
| Design | Standard Height | ADA Height |
| Refrigerant | R290 (Hydrocarbon) | R134a |
| Voltage | 115 | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts |
- 5
- 4
- 3
- 2
- 1
Review this product!
Working good
Working very good
It's great to hear it's performing well for you. Reliable ice production makes all the difference in a busy setting. Thanks for taking a moment to share your feedback-we appreciate it!
Great ice machine!
I love the ice maker itself but after installation, it would've been very helpful to recommend the cleaning solution and sanitizer solution it calls for after the first round of ice has been produced! Just waiting on those to clean and sanitize properly so I can actually use the ice! But LOVE the ice machine!
Thanks for sharing your feedback! We're glad you're loving the ice machine, and we appreciate your suggestion about recommending the required cleaning and sanitizer solutions during installation.
The unit produces 227 lbs. per 24 hours.
Yes, it has an 80-lb. storage bin.
It produces small cube ice measuring 7⁄8 in.
No. It uses a front-breathing design with no side clearance.
A recessed utility chase removes rear clearance requirements.
The unit uses an air-cooled self-contained condenser.
Yes, it uses R290 hydrocarbon refrigerant for cooling.
The unit has a front-facing removable air filter.
The unit has a slide-back door for bin access.
It can produce up to 227 lb. of ice per 24 hours.
Its storage bin holds 80 lb. of ice.
It makes half cube ice.
It measures 24 in. W x 28 1/2 in. D x 39 in. H.
It uses an air-cooled condensing system.
It requires 115 V electrical service.
It requires 1-phase electrical service.
Yes, it uses a gravity drain connection.
It uses R290 refrigerant.
Yes, it includes a storage bin with an 80-lb. capacity.
Its listed certifications include AHRI, cULus Classified, C-UL US, cULus Listed, ENERGY STAR, NSF, and UL.
Yes, the air filter can be removed for cleaning.
Yes, it includes a water filter.
Yes, it requires clearance behind the unit.
Yes, it has adjustable feet.
It requires 15 A.
It uses a NEMA 5-15P plug.
It requires a 3/8-in. water line connection.
Yes, it vents through the front.
Yes, it includes a power cord and plug.
