Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries.

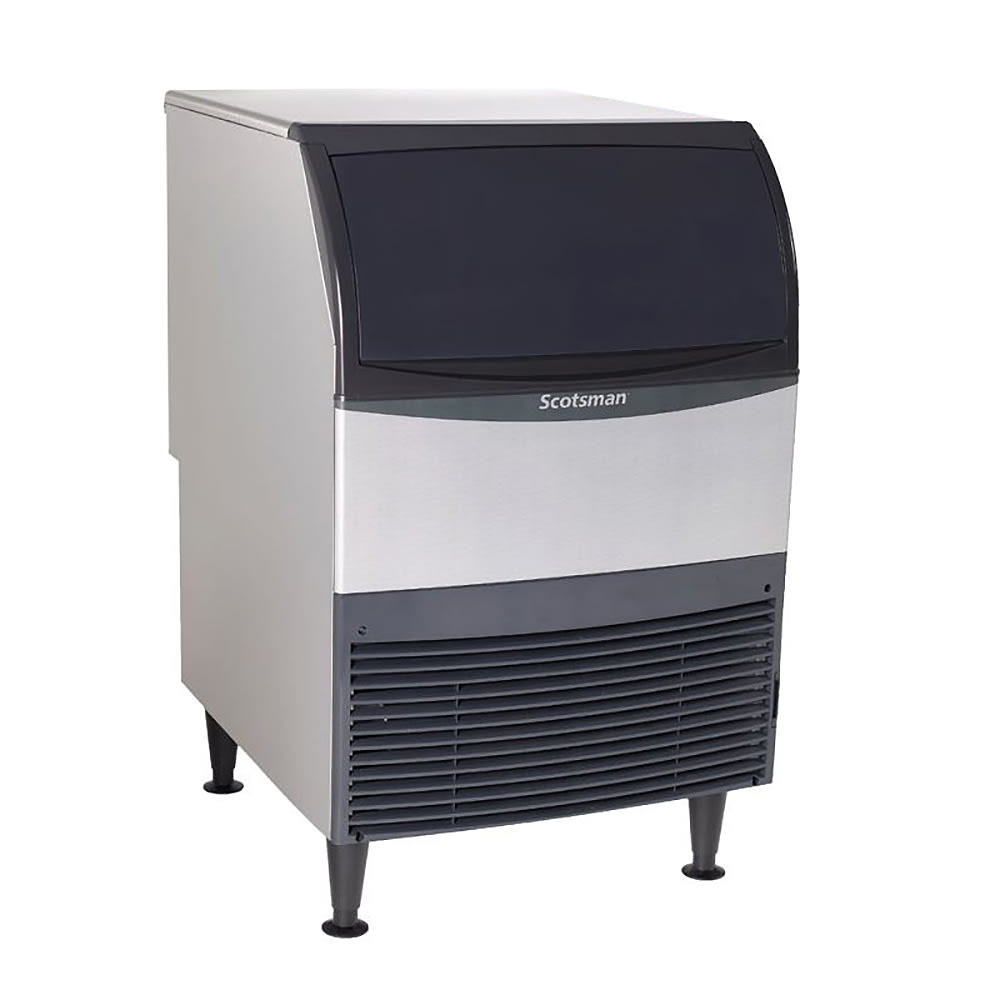

Scotsman UC2024MA-1 24"W Full Cube Undercounter Ice Machine - 227 lbs/day, Air Cooled, Gravity Drain, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
Free Shipping Item
Retail Price: $6,564.00
$2,691.00 /Each
Selected Compressor Type: Air Cooled
Selected Ice Type: Full Cube
White Glove Delivery
Contact your sales rep for availability
Scotsman UC2024MA-1 Description

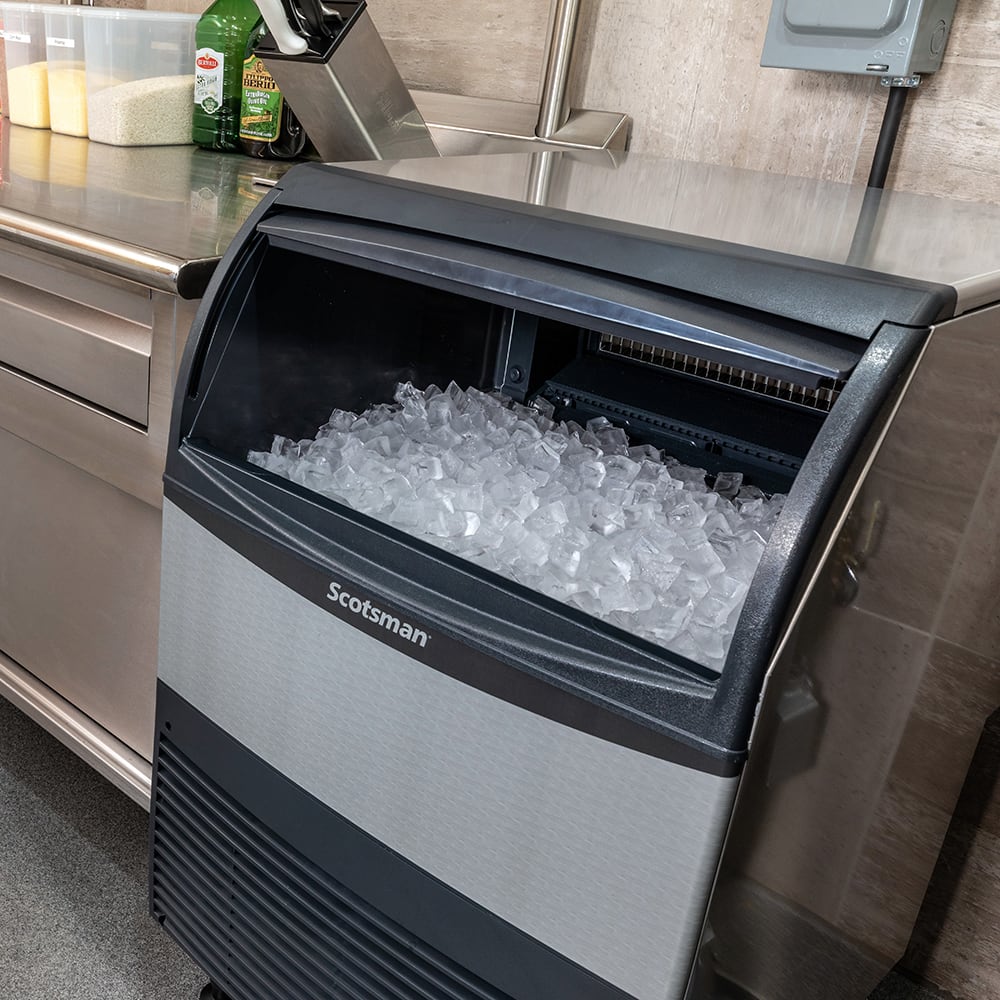

The Scotsman UC2024MA-1 undercounter ice maker can produce 227 pounds of ice in ideal conditions. Its storage bin houses 80 pounds. This ice maker creates 7⁄8-inch full-cube ice that melts slowly to enhance drink presentation in bars.

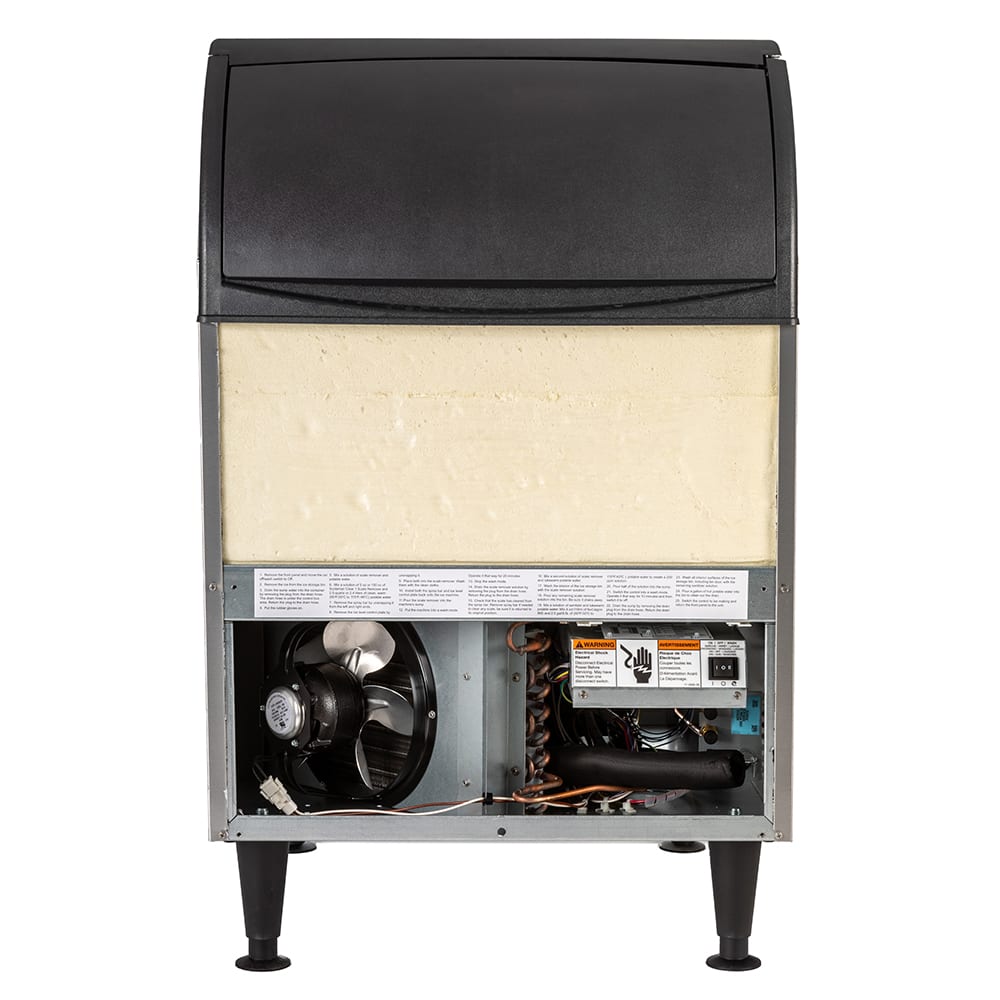

This Scotsman UC2024MA-1 ice maker has a self-contained condenser for simple installation. Its system breathes from the front, so it doesn't require side or rear clearances and can be installed in tight spaces. To clean the air filter, users can remove it from the front.
Product Details
- Produces medium-cube ice
- Ice size: 7⁄8 in. L x 7⁄8 in. W x 7⁄8 in. H

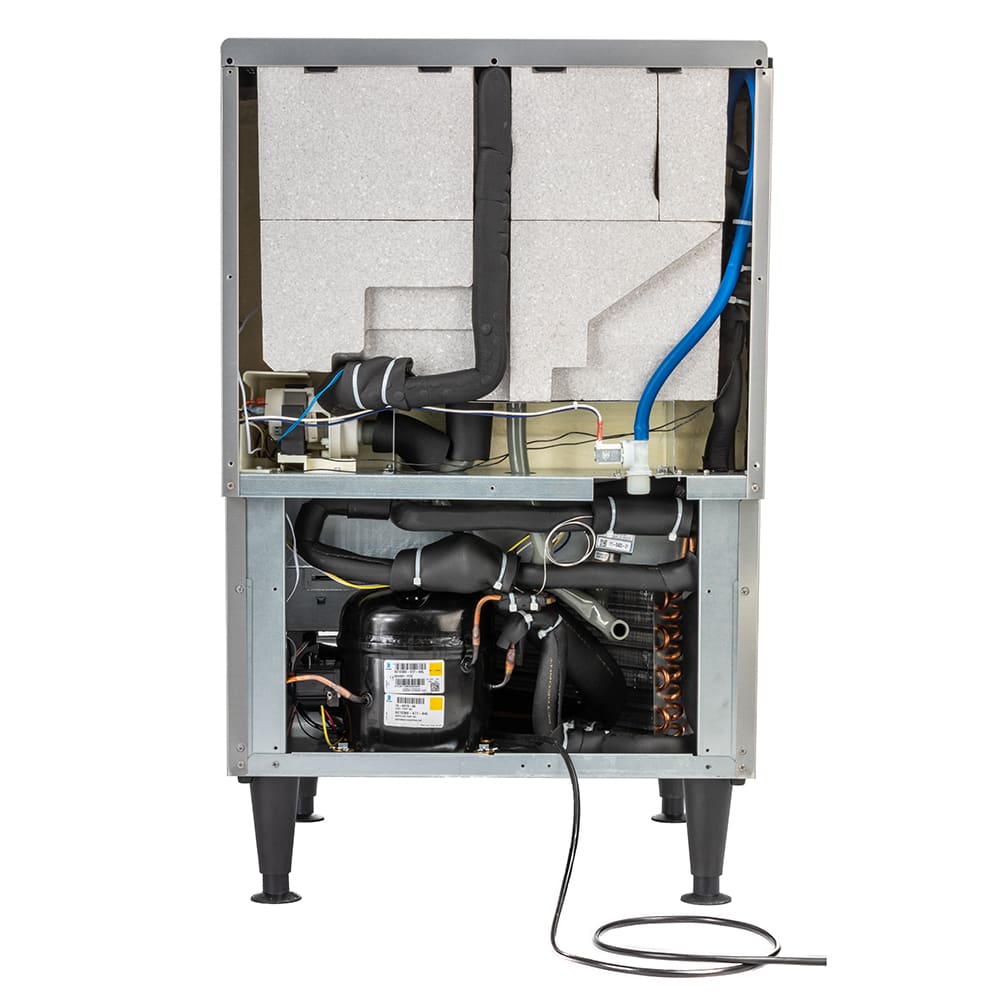

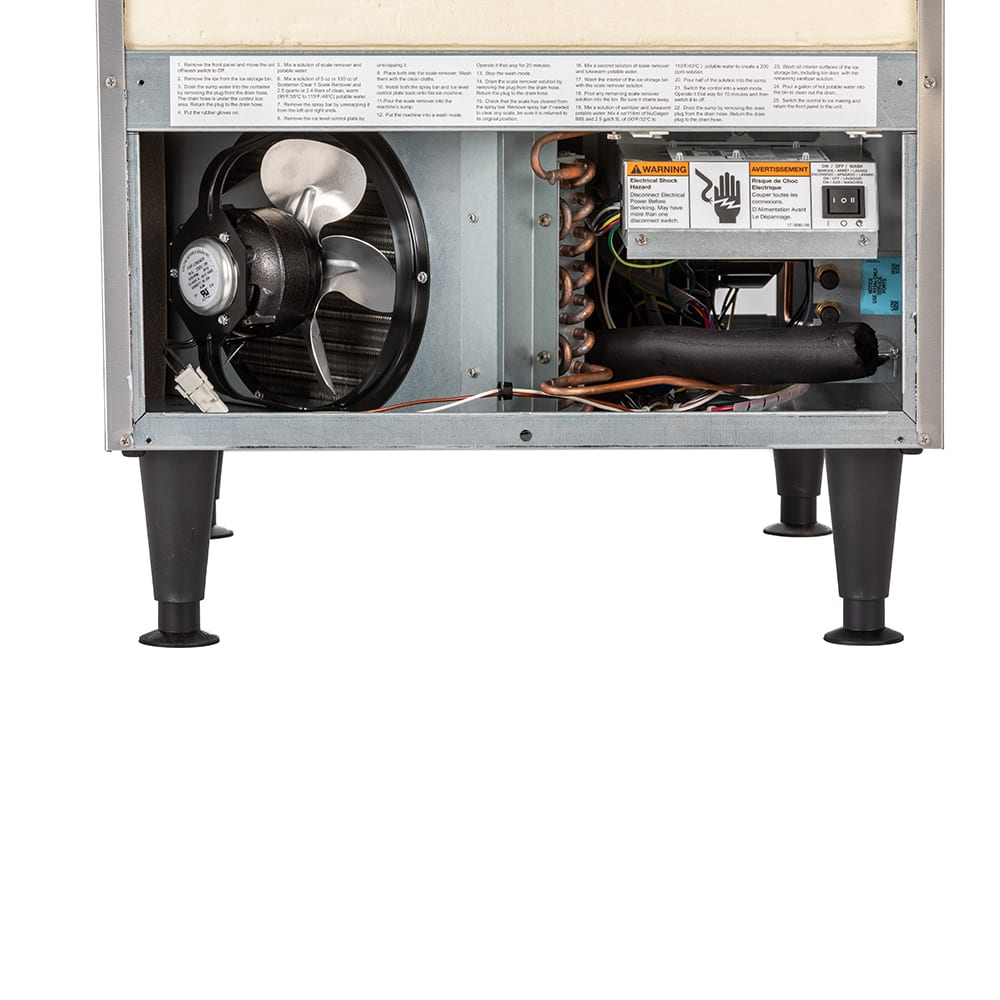

- Self-contained condenser is air cooled and front breathing
- Uses R-134A refrigerant
- 227-lb. maximum daily ice production
- 174-lb. AHRI-certified daily ice production

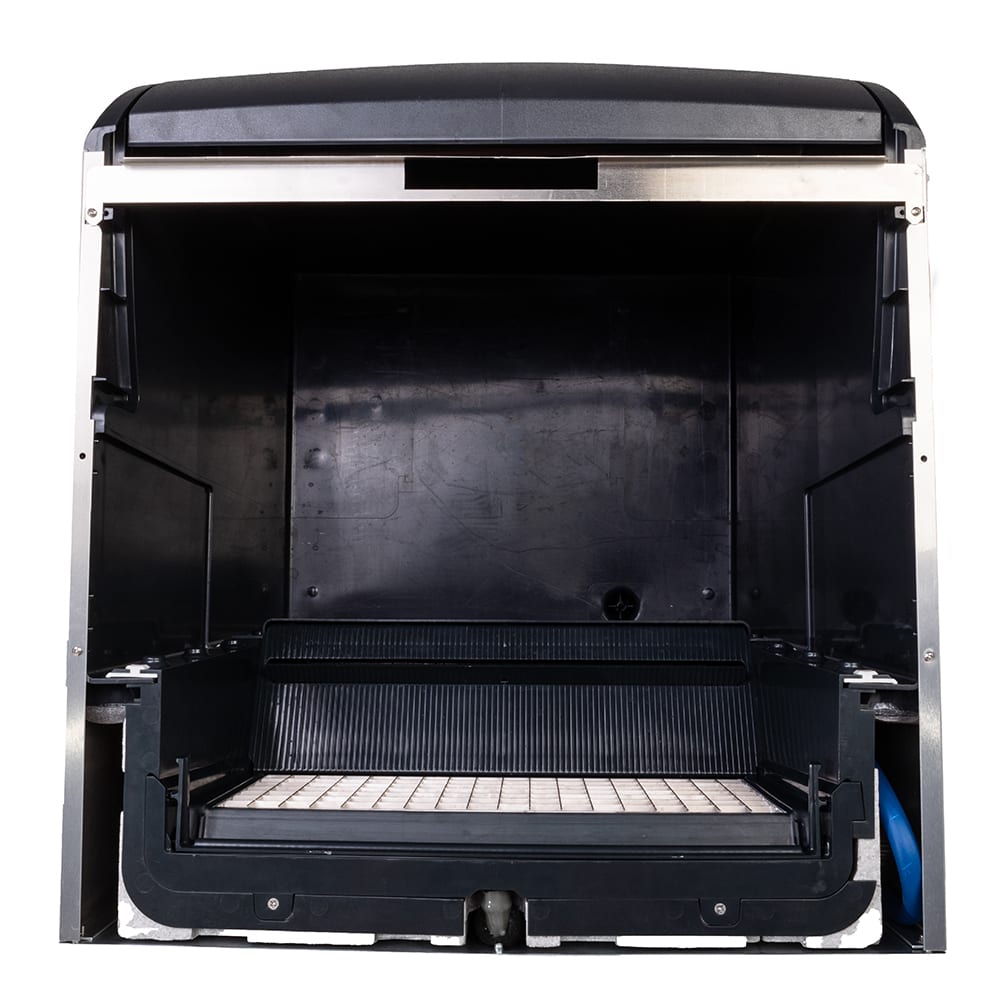

- Storage bin holds 80 lbs.

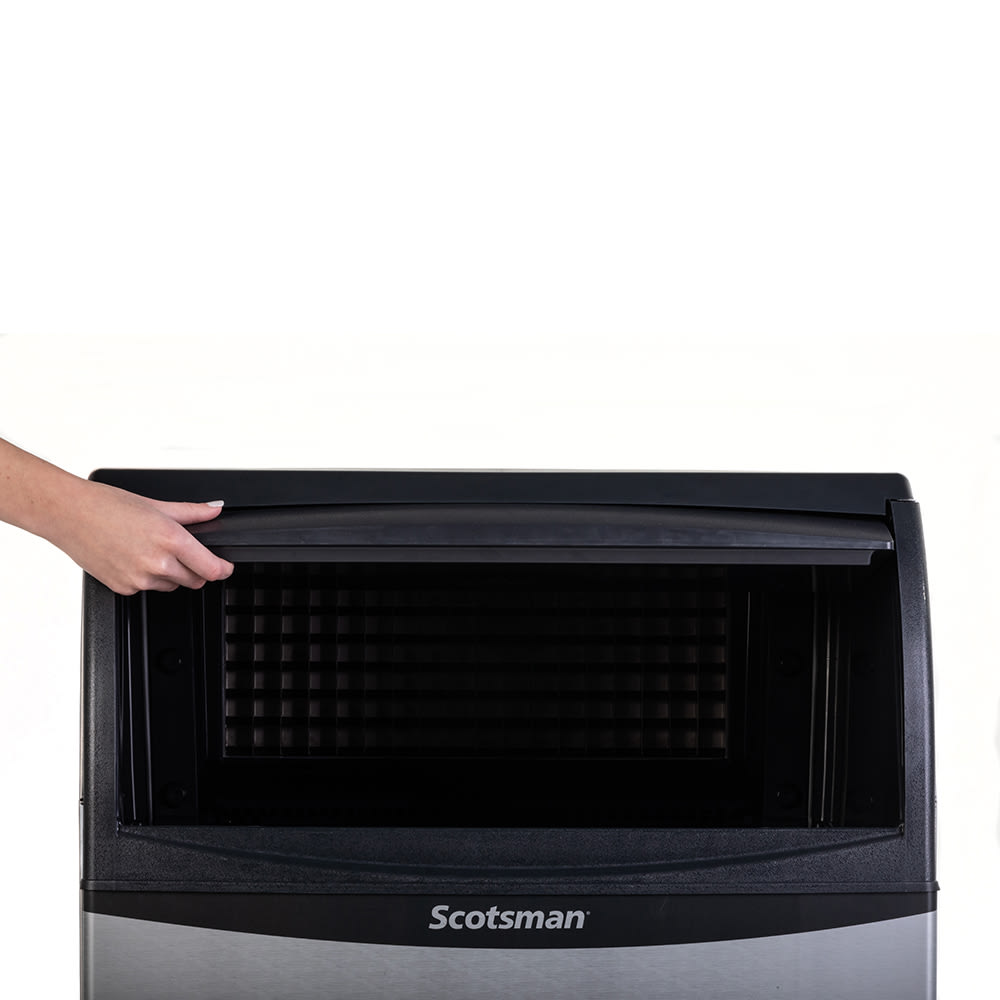

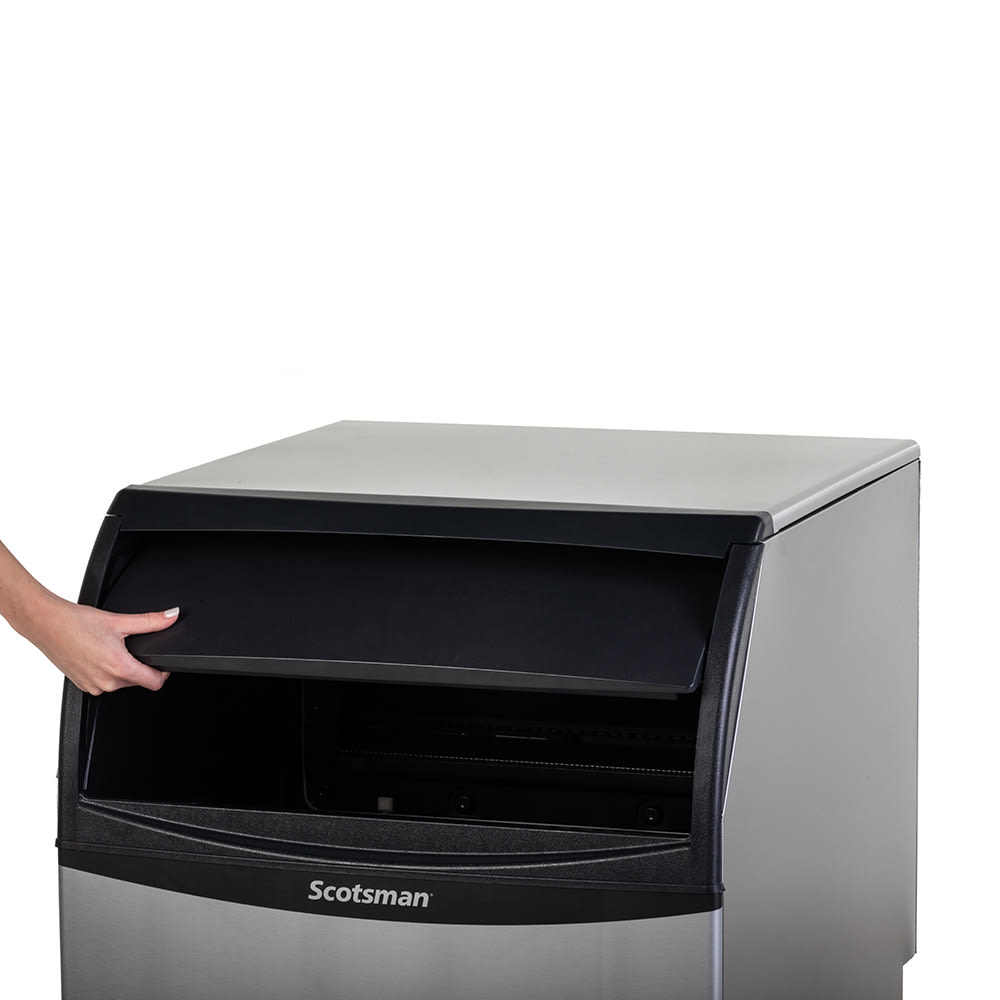

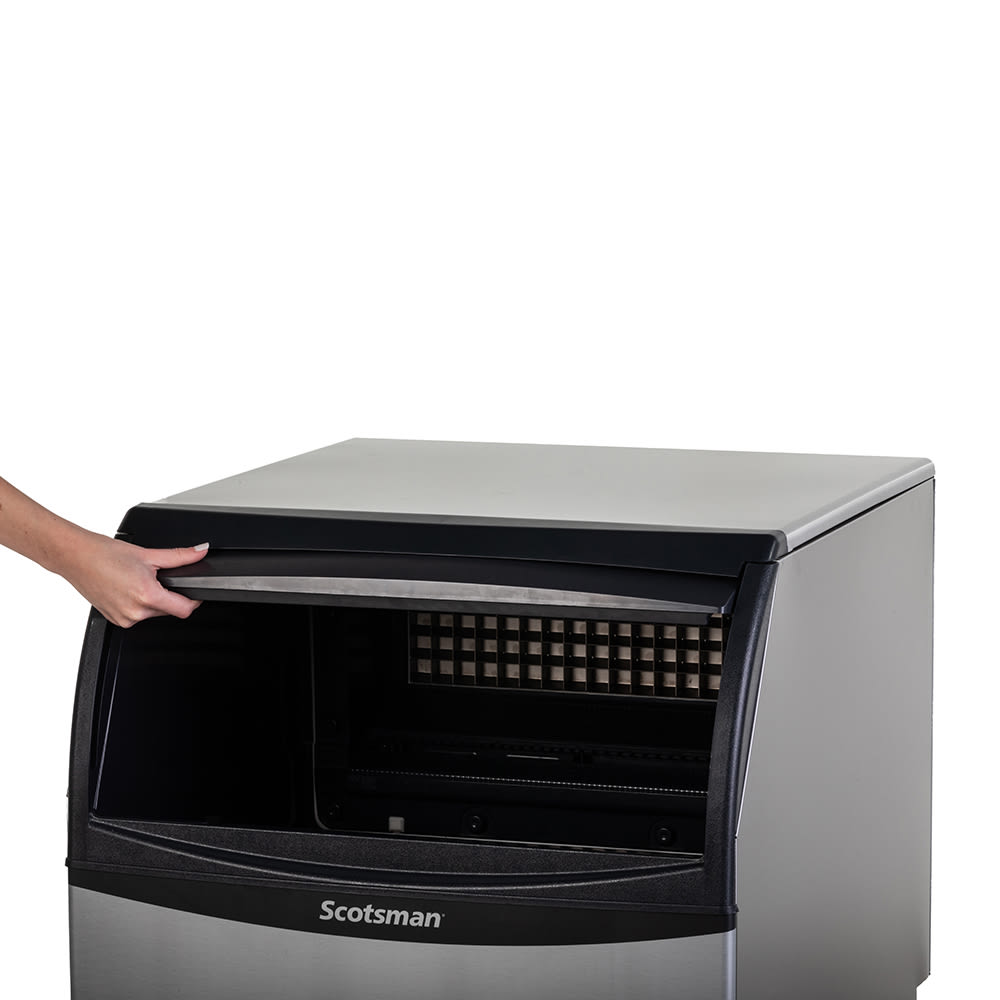

- Ergonomic slide-back door for ice accessibility
- Recessed utility chase facilitates installation in small areas

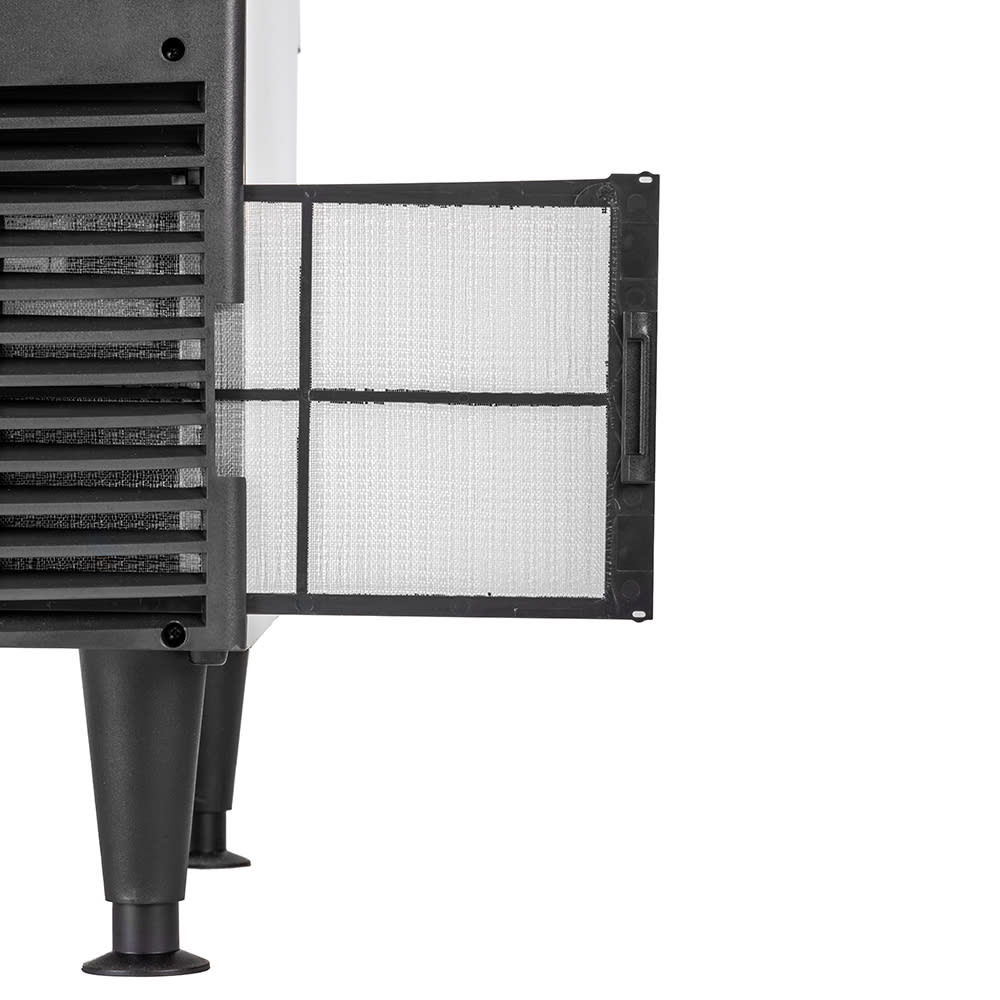

- External air filter is accessible and removable from the front
- Side panels are made of aluminum alloy
- Mounted on 6-in. legs
- Includes an ice scoop
- 3,900-BTU heat transfer capacity
- Ideal ambient temperature range: 50-100 degrees F
Product Features
Dimensions & Utilities
- 24 in. W x 281/2 in. D x 39 in. H
- 15 A, 6.14 kW

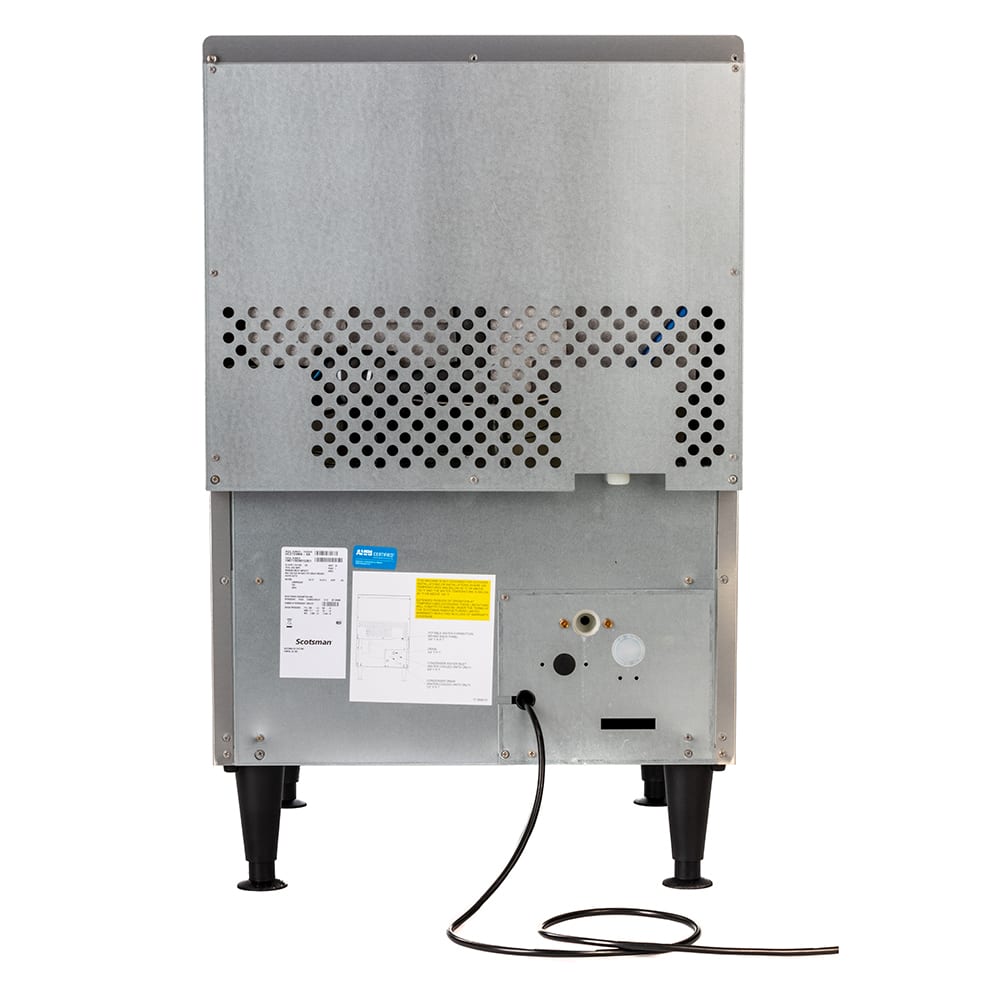

- 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
*Free shipping on Scotsman UC2024MA-1 within the 48 contiguous states.
From The Manufacturer
Undercounter Ice Maker With Bin, 24"W, cube style, air-cooled, self-contained condenser, production capacity up to 227 lb/24 hours at 70°/50° (174 lb AHRI certified at 90°/70°), 80 lb bin storage capacity, ergonomic slide-back door, recessed utility chase, front accessible external removable air filter, alluminum alloy side panels, medium cube size, R-134A refrigerant, includes 6" legs, 24"W x 28.5"D x 39"H, 115v/60/1-ph, 15 amps, NSF, cULus, Made in USA, AHRI Certified
*Image may not depict product color, inclusions or accessories.
Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor
Watch a video about this product
Scotsman UC2024MA-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 227 |
| Bin Capacity (lb) | 80 |
| Compressor Type | Air Cooled |
| Depth (in) | 28.5 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 39 |
| Hertz | 60 |
| Ice Type | Full Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R134a |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Suggested Use | Home/Office |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 24 |
| Weight | 150.00 |
Documents
Important Prop 65 information for California residents.
Replacement for the Following Item
- Scotsman CU1526MA1A
