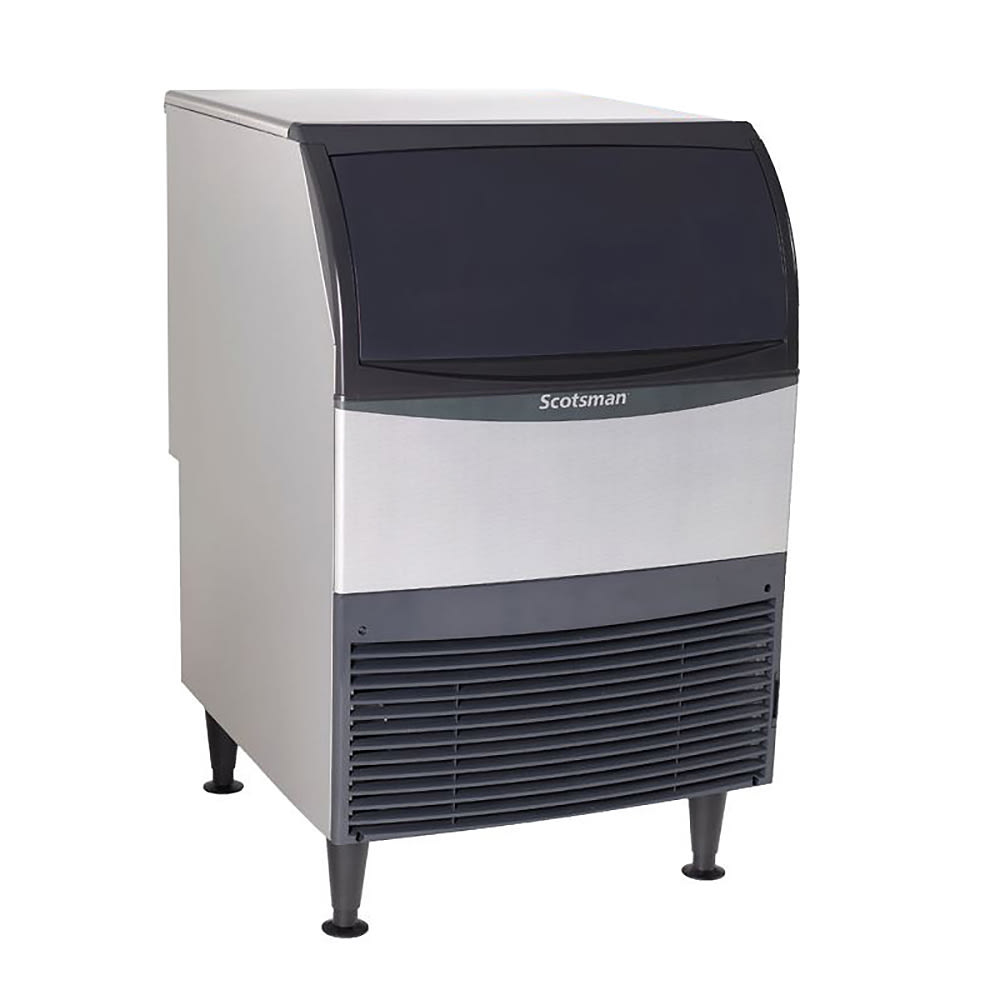

Scotsman UC2024MWX-1 24"W Full Cube Undercounter Ice Machine w/ Filter - 230 lbs/day, Water Cooled, Gravity Drain, 115v
Typically ships in 8 - 10 weeks
Retail Price: $7,627.00
$2,843.00 /Each
Selected Compressor Type: Water Cooled
Selected Ice Type: Full Cube
Scotsman UC2024MWX-1 Description
The Scotsman UC2024MWX-1/AP1-P undercounter ice maker has a compact footprint and a recessed utility chase that enable users to install it in tight spaces. It also has a front-breathing condenser, reducing the need for clearance requirements. This condenser is self-contained and water cooled. This unit includes the AP1-P water filter.
This Scotsman UC2024MWX-1/AP1-P undercounter ice maker produces as much as 230 pounds of ice daily and its bin holds 80 pounds of ice. It produces cube-style ice, which is a slow-melting style often found in bars. The unit includes an ice scoop so operators can use it right away.
- Creates medium-cube ice that melts slowly
- Ice size: 7⁄8 in. L x 7⁄8 in. W x 7⁄8 in. H
- 230-lb. maximum daily ice production
- 188-lb. AHRI-certified daily ice production
- 80-lb. bin storage capacity

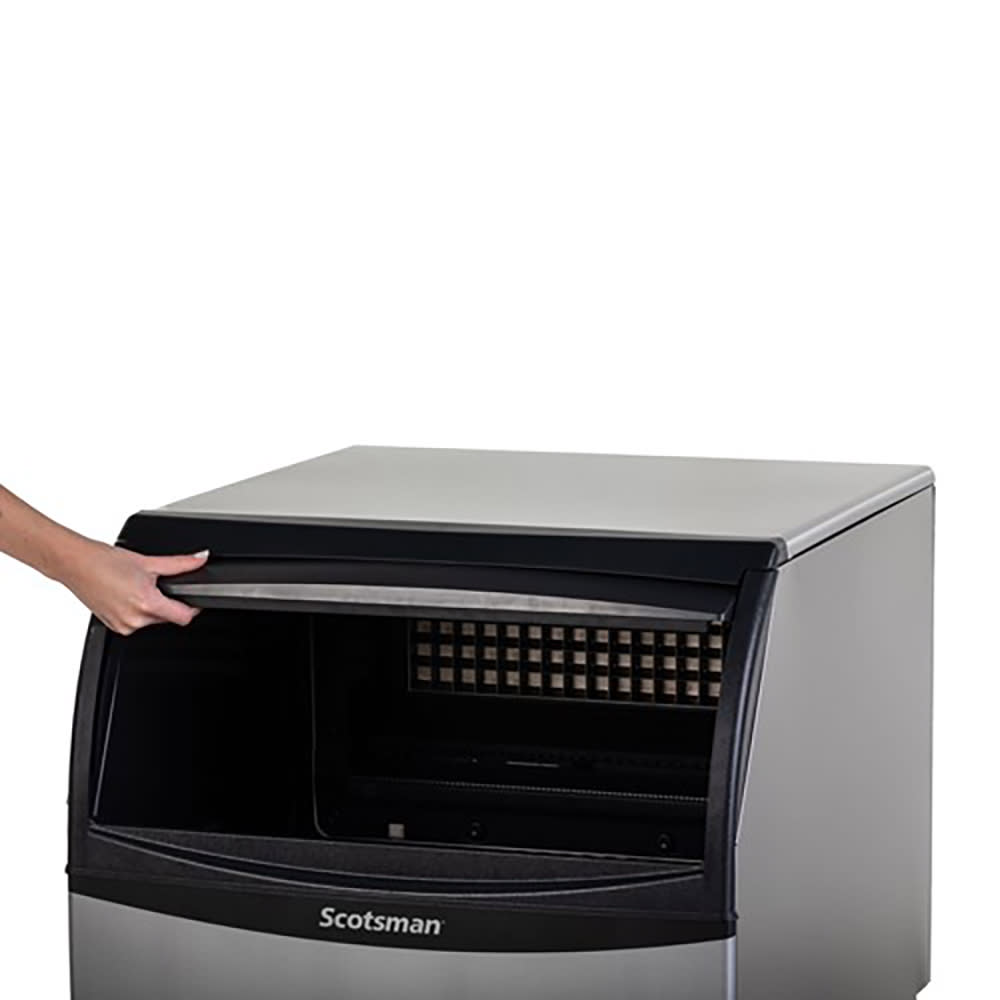

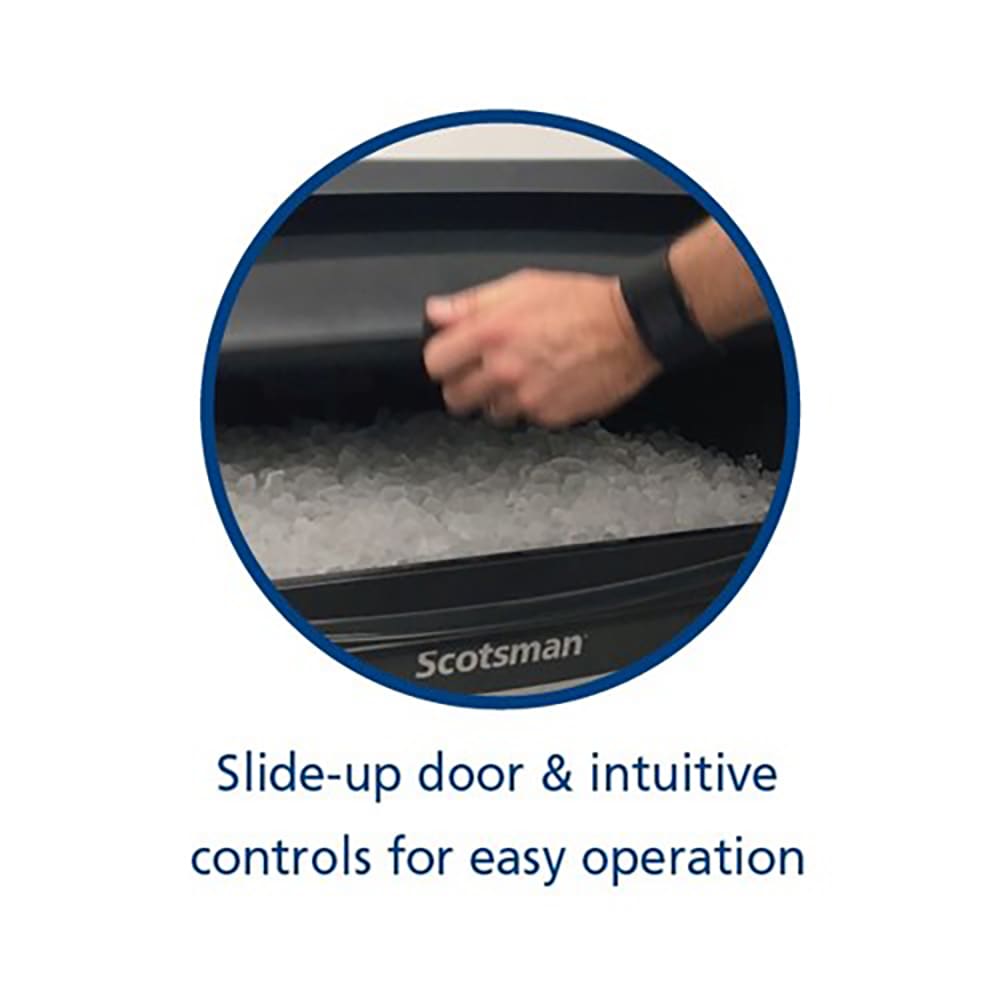

- Slide-back door grants access to stored ice
- Water-cooled, self-contained condenser breathes from the front
- R290 refrigerant
- AP1-P water filter included
- Utility chase is recessed to lessen clearance requirements

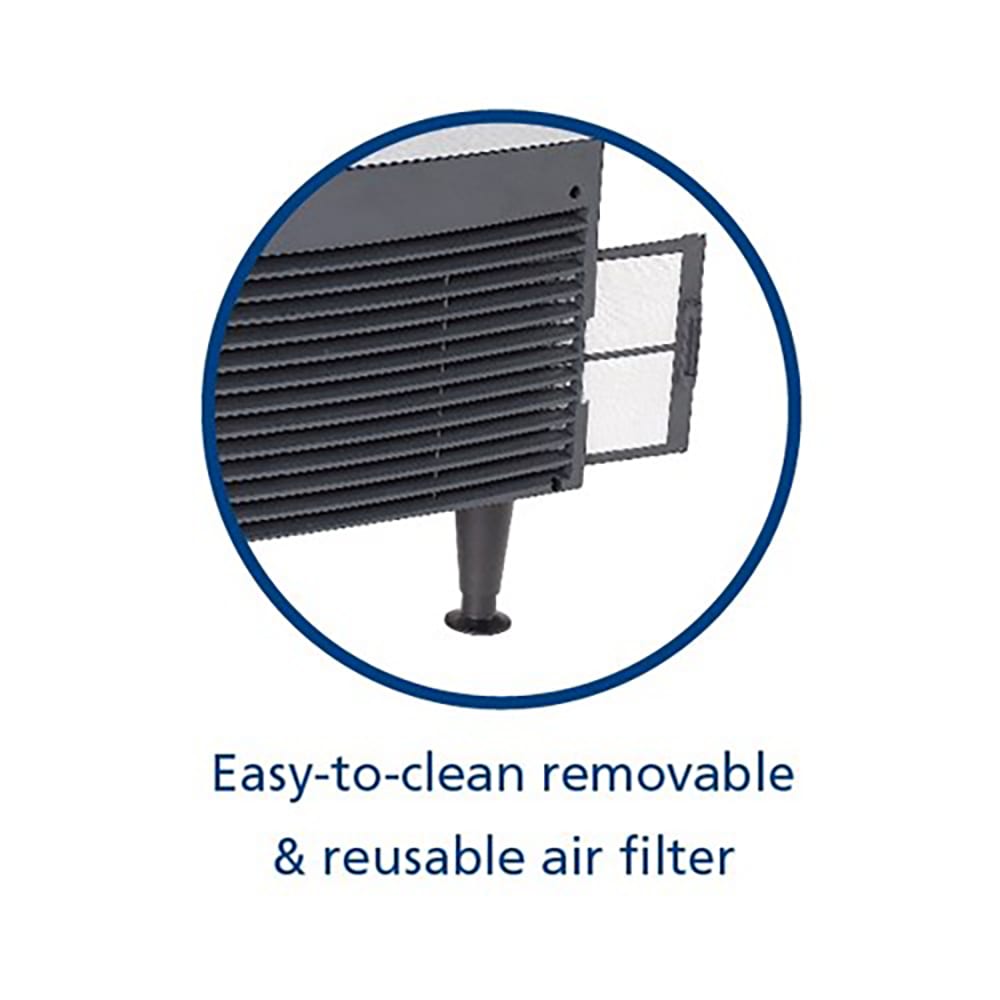

- Air filter is removable and accessible from the front
- Aluminum alloy side panels resist corrosion
- Mounted on 6-in. legs
- Ice scoop is included
- 3,900-BTU heat transfer capacity
- 24 in. W x 28 1⁄2 in. D x 39 in. H
- 15 A, 4.55 kW
- 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman UC2024MWX-1 within the 48 contiguous states.
From The Manufacturer
Undercounter Ice Maker with Bin, cube style, water-cooled, 24" width, self-contained condenser, production capacity up to 230 lb/24 hours at 70°/50° (176 lb AHRI certified at 90°/70°), 80 lb bin storage capacity, medium cube size, recessed utility chase, unit specific QR code, ice scoop included, 6" adjustable legs, R290 refrigerant, 115v/60/1-ph, includes 5.5’ power cord with NEMA 5-15P plug, NSF, cULus
AquaPatrol™ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF
Scotsman UC2024MWX-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 230 |
| Also Known As | UC2024MW-1 |
| Bin Capacity (lb) | 80 |
| Compressor Type | Water Cooled |
| Depth (in) | 28.5 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 39 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Includes | AP1-P Filtration |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Special Features | Inline Water Filter Included |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Suggested Use | Home/Office |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 24 |
| Weight | 150.00 |
Important Prop 65 information for California residents.
- Scotsman CU1526MW1A
- 5
- 4
- 3
- 2
- 1
Review this product!
The front-breathing design reduces side and rear clearance.
Yes. It requires a second water supply.
The slide-back door clears the opening.
Yes. An AquaPatrol™ Plus filter is included.
It operates from 50-100°F.
Yes. The air filter removes from the front.
The recessed utility chase reduces installation clearance.
A 20-80 PSIG range is required.
It can produce up to 230 lb. of ice per 24 hours.
Its storage bin holds 80 lb. of ice.
It makes full cube ice.
It measures 24 in. W x 28 1/2 in. D x 39 in. H.
It uses a water-cooled condensing system.
It requires 115 V electrical service.
It requires 1-phase electrical service.
Yes, it uses a gravity drain connection.
It uses R290 refrigerant.
Yes, it includes a storage bin with an 80-lb. capacity.
Its listed certifications include AHRI, cULus Classified, C-UL US, cULus Listed, NSF, and UL.
Yes, the air filter can be removed for cleaning.
Yes, it includes a water filter.
Yes, it has adjustable feet.
It requires 15 A.
It uses a NEMA 5-15P plug.
It requires a 3/8-in. water line connection.
Yes, it vents through the front.
Yes, it includes a power cord and plug.
