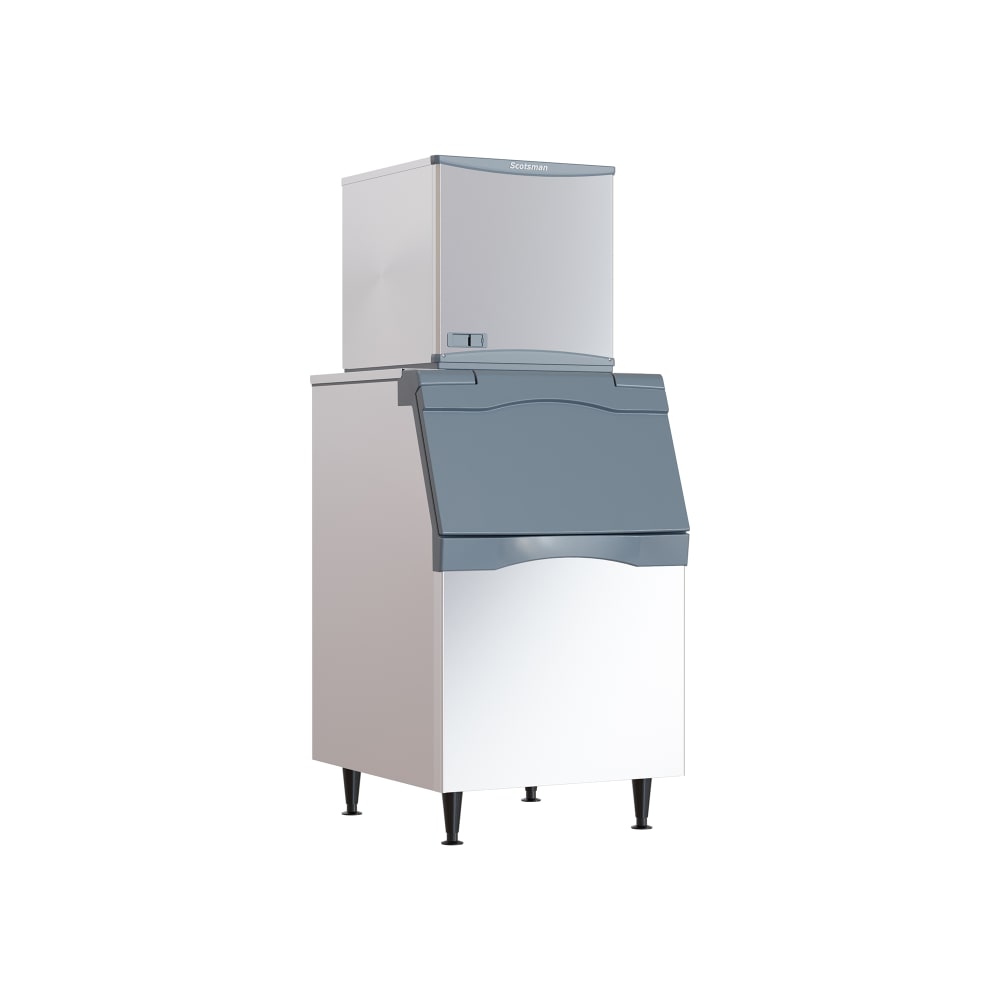

Scotsman NS0422WX-1/B530S/KBT27 455 lb Prodigy Plus® Nugget Ice Machine w/ Bin & Filter - 536 lb Storage, Water Cooled, Soft Nugget
Typically ships in 1 - 3 Business Days
Retail Price: $16,857.00
$6,683.00 /Each
Selected Compressor Type: Water Cooled
Scotsman NS0422WX-1/B530S/KBT27 Description
The Scotsman NS0422WX-1/B530S/KBT27/AP1-P nugget ice machine with bin has a unit-specific QR code that can be scanned to reveal guides and warranty information. AgION™ antimicrobial slows bacterial growth in the unit, and cleaning is performed at the push of a button. If ambient temperatures are low enough, this unit makes a maximum of 455 pounds of ice per day, but when conditions are less than ideal, it makes closer to 397 pounds daily. The ice bin accommodates 536 pounds for later use.
A popular choice for those who enjoy chewing ice, the Scotsman NS0422WX-1/B530S/KBT27/AP1-P ice maker with bin produces nugget ice. The bearings are sealed for protection and require no maintenance for operation. This unit's water-cooled, self-contained condenser streamlines installation and cools with R290 refrigerant. The bin includes a scoop for quick ice retrieval; after use, its scoop holder keeps it contained. Insulated with polyurethane, the bin provides dependable storage so ice doesn't melt. This unit comes with the AP1-P water filter.
- Part of the Prodigy Plus® series
- 455-lb. maximum daily ice production
- 397-lb. AHRI-certified daily ice production

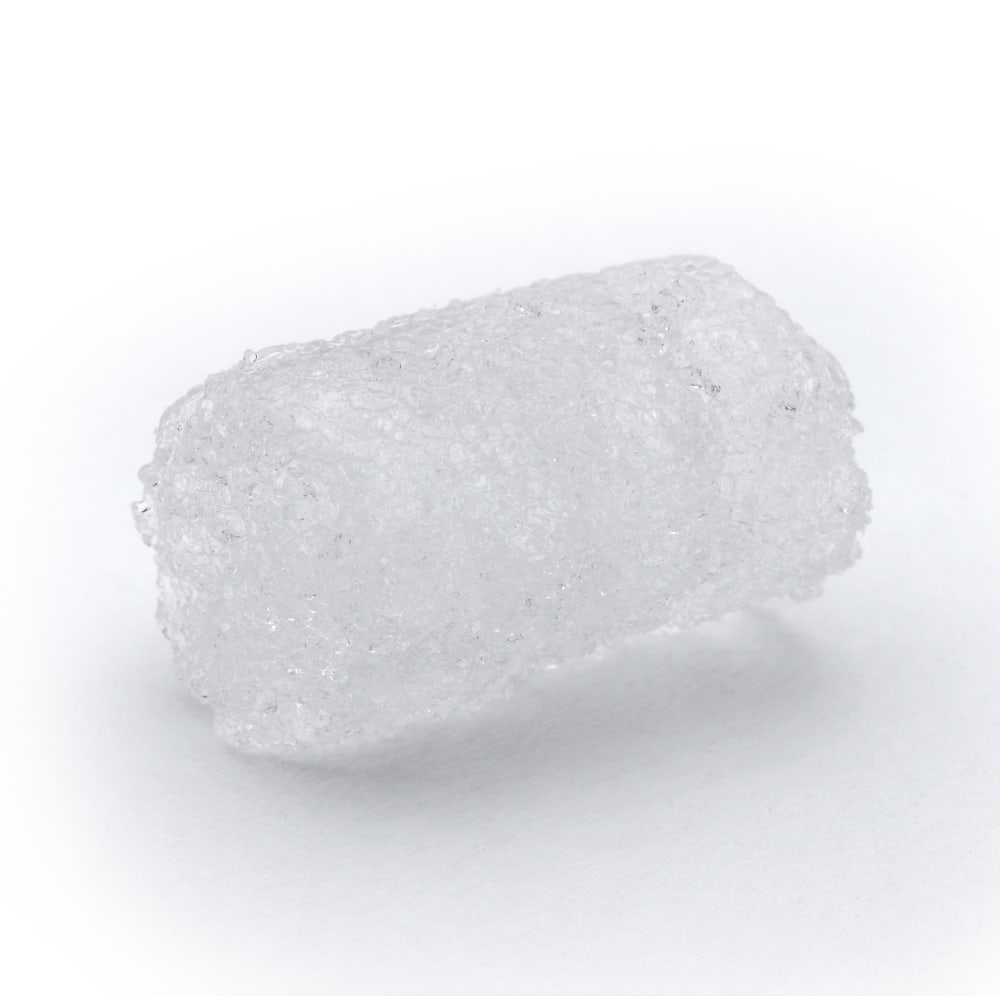

- Makes Original Chewable Ice®

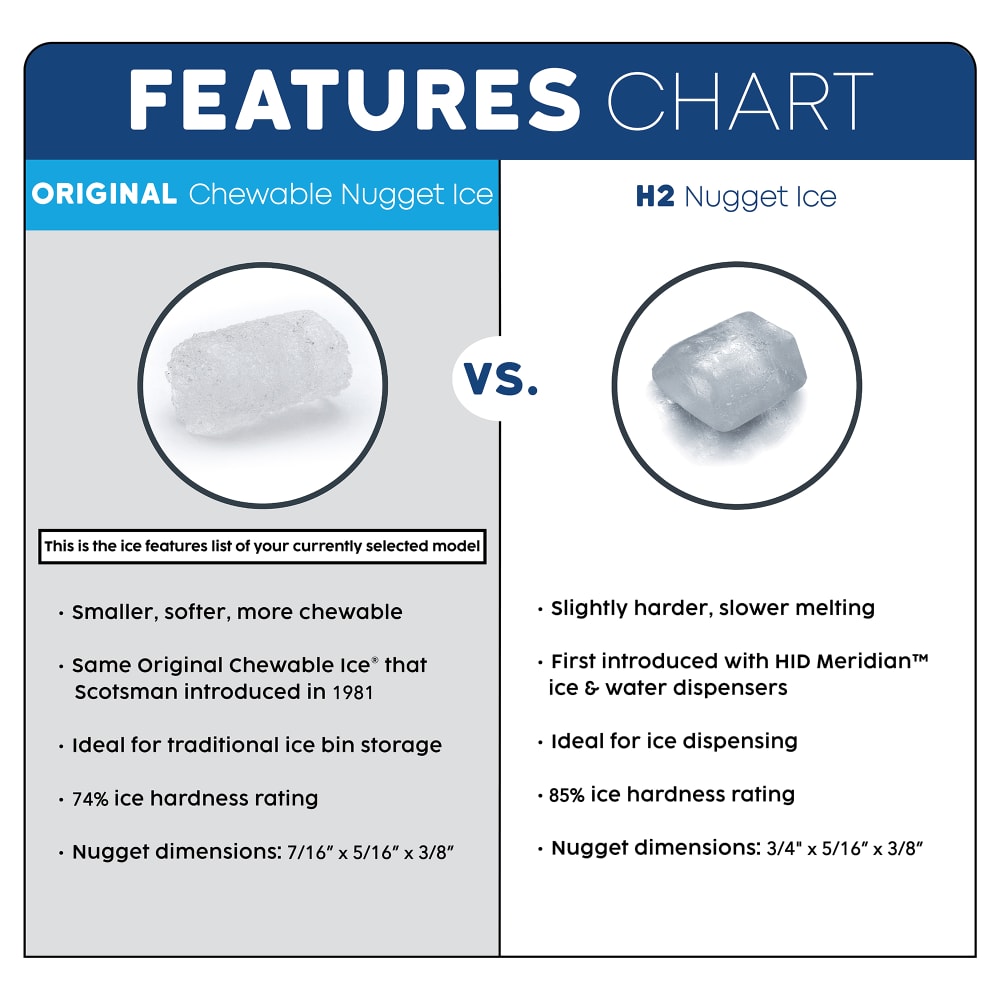

- Ice dimensions: 7⁄16 in. x 5⁄16 in. x 3⁄8 in.
- Condenser is self-contained and water cooled

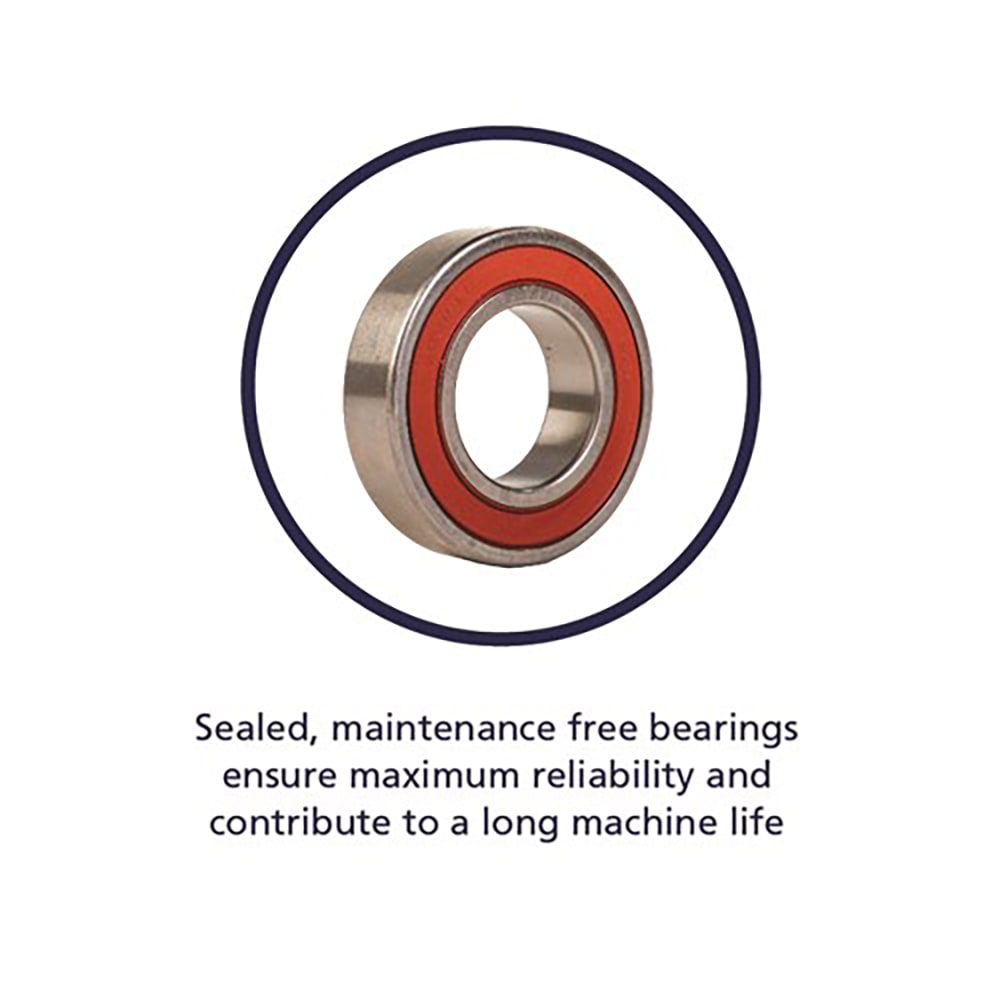

- Sealed bearings require no maintenance
- AutoAlert™ indicating lights
- Unit-specific QR code displays warranty information
- Stainless steel evaporator, auger, and exterior finish
- Cleaning provided with 1 touch
- AgION antimicrobial inhibits bacterial growth
- R290 refrigerant
- AP1-P water filter
- Ideal incoming air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- 5,000-BTU heat transfer capacity
- 536-lb. application capacity
- Door is top hinged and opens from the front
- Baffle can be removed without tools
- Insulated with dependable polyurethane
- Metallic finish exterior
- Bin lined with polyethylene
- Ice scoop included
- Built-in scoop holder
- Positioned on 6-in. legs
- Comes with KBT27 bin top to secure ice machine head
- Ice maker: 22 9⁄10 in. W x 24 in. D x 23 in. H
- Ice bin: 30 in. W x 34 in. D x 50 in. H
- 12.1 A
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman NS0422WX-1/B530S/KBT27 within the 48 contiguous states.
From The Manufacturer
Prodigy Plus® Ice Maker, nugget style, Original Chewable Ice®, water-cooled, self-contained condenser, production capacity up to 455 lb/24 hours at 70°/50° (308 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R290 refrigerant, 115v/60/1-ph,NSF, cULus
Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, 30" width, metallic finish exterior, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6" legs, NSF; (KBT27) Bin Top, for use with all 22" cubers, flakers & nugget makers (except EH222) on B230, B330 & B530 bins
AquaPatrol™ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF
Watch a video about this product
Scotsman NS0422WX-1/B530S/KBT27 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 455 |
| Access | Lift Up Door |
| Also Known As | NS0422W-1/B530S/KBT27 |
| Bin Capacity (lb) | 536 |
| Compressor Type | Water Cooled |
| Depth (in) | 34 |
| Height (in) | 73 |
| Hertz | 60 |
| Ice Type | Nugget |
| Includes | AP1-P Filtration |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Prodigy Plus® |
| Special Features | Inline Water Filter Included |
| Special Features | Sealed, Maintenance-Free Bearings |
| Special Features | The Original Chewable Ice® |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 290.00 |
