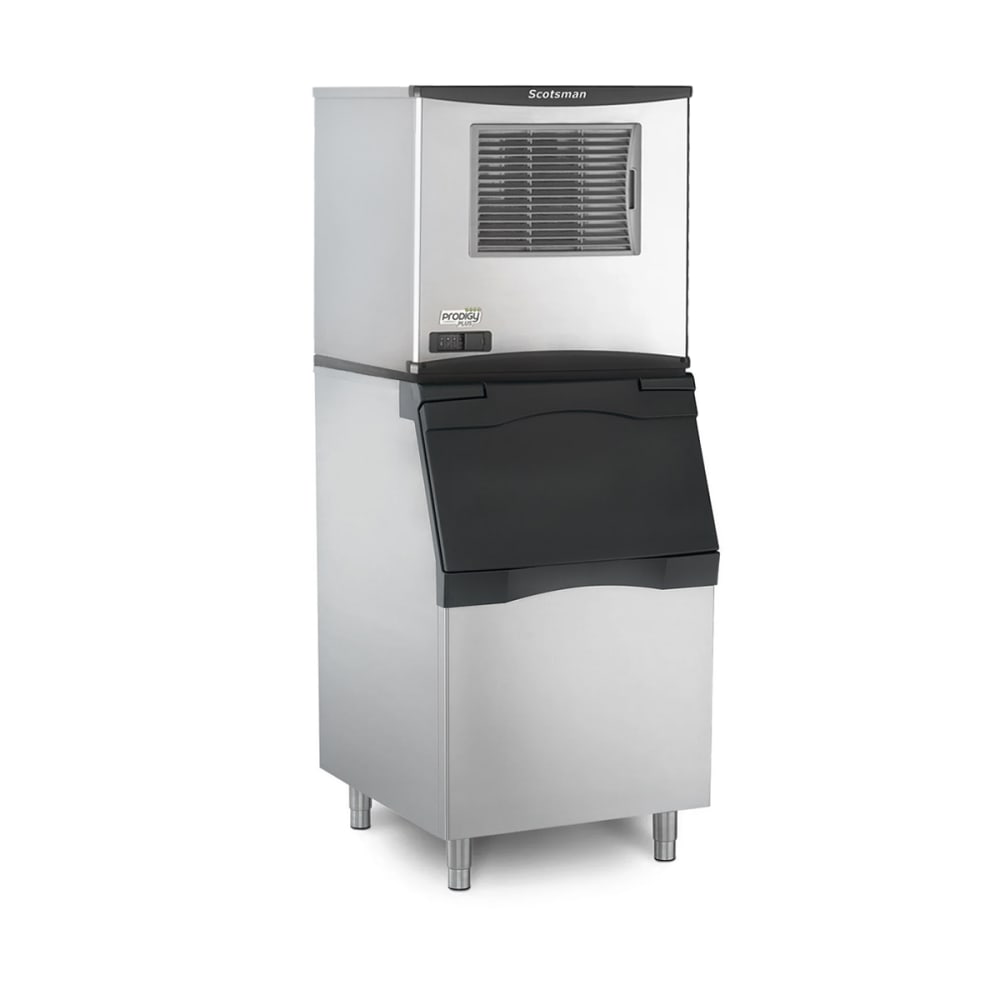

Scotsman NS0422AX-1/B530S/KBT27 430 lb Prodigy Plus® Nugget Ice Machine w/ Bin & Filter - 536 lb Storage, Air Cooled, Soft Nugget
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $16,607.00
$6,581.00 /Each
Selected Compressor Type: Air Cooled
Scotsman NS0422AX-1/B530S/KBT27 Description
The Scotsman NS0422AX-1/B530S/KBT27/AP1-P Prodigy Plus® ice maker and bin set comes with a bin top designed to connect the 22-inch-wide ice machine head with the 30-inch-wide bin, preventing cold air from seeping out. Producing as much as 430 pounds of soft, chewable nugget ice per day in optimal ambient conditions, this ice machine is intended for fast food chains and quick-service restaurants that serve many soft drinks throughout the day. Operating with a front-breathing system and a compact width of 30 inches, this ice machine and bin set fits into cramped floor plans where space is at a premium. Because the condenser is self-contained, this ice maker is simple to install and operate; its unit-specific QR code gives users a quick way to troubleshoot any technical issues that may arise. The AP1-P water filter comes standard with this unit.
Designed to hold 536 pounds of prepared ice, the Scotsman NS0422AX-1/B530S/KBT27/AP1-P ice machine and bin combo keeps lots of ice chilled in storage, ready to meet periods of increased demand. The bin stands on 6-inch legs at a comfortable, accessible height; its top-hinged door opens from the front for accessibility. For durability in high-volume locations, the bin has a metallic exterior finish. Lined with polyethylene and insulated with foamed polyurethane, this bin keeps ice chilled to prevent melting while requiring no electrical connection to operate. Inside the bin, an integrated drain enables meltwater to empty away from the stored ice with minimal user labor.
- Air cooled
- Produces nugget ice
- Original Chewable Ice® for customer enjoyment
- 430-lb. maximum daily ice production
- Designed with self-contained condenser
- Front-breathing system eliminates clearance requirements
- Bearings are sealed to enhance smooth operation
- AutoAlert™ indicator lights are integrated for simple operation
- AgION™ antimicrobial for resistance to contamination
- Unit-specific QR code for streamlined use
- Front-accessible air filter is easy to change
- Durability enhanced by stainless steel auger and evaporator
- 1-touch cleaning for simplified labor
- Stainless steel finish
- Operates with R290 refrigerant
- AP1-P water filter included
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSI
- Heat displacement: 5,000 BTU
- Comes with KBT27 bin top for use with 22-in. flakers
- Front-opening, top-hinged door for access
- Storage capacity: 536 lbs.
- Reduced, 30-in. width fits most floor plans
- Metallic finish exterior withstands high-volume use
- Quickly removable baffle
- Polyurethane insulation
- Polyethylene liner
- 6-in. legs
- Head: 22 in. W x 24 in. D x 23 in. H
- Bin: 30 in. W x 34 in. D x 44 in. H
- 12.9 A
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman NS0422AX-1/B530S/KBT27 within the 48 contiguous states.
From The Manufacturer
Prodigy Plus® Ice Maker, nugget style, Original Chewable Ice®, air-cooled, self-contained condenser, production capacity up to 430 lb/24 hours at 70°/50° (327 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, front facing removable air filter, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R290 refrigerant, 115v/60/1-ph, NSF, cULus
Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, 30" width, metallic finish exterior, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6" legs, NSF; (KBT27) Bin Top, for use with all 22" cubers, flakers & nugget makers (except EH222) on B230, B330 & B530 bins
AquaPatrol™ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF
Watch a video about this product
Scotsman NS0422AX-1/B530S/KBT27 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 430 |
| Access | Lift Up Door |
| Also Known As | NS0422A-1/B530S/KBT27 |
| Bin Capacity (lb) | 536 |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 73 |
| Hertz | 60 |
| Ice Type | Nugget |
| Includes | AP1-P Filtration |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Prodigy Plus® |
| Special Features | Inline Water Filter Included |
| Special Features | Sealed, Maintenance-Free Bearings |
| Special Features | The Original Chewable Ice® |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 290.00 |
Important Prop 65 information for California residents.
- Scotsman N0422A1B530SKBT2
- 5
- 4
- 3
- 2
- 1
Review this product!
The recommended air temperature range is 50-100°F.
Yes. It uses a front-breathing design with no side clearance required.
This unit features one-touch cleaning and a removable air filter.
Yes. It features AgION™ antimicrobial protection on internal surfaces.
A supply of Original Chewable Ice® is produced for beverages.
Yes. It has a toolless baffle for easier access and cleaning.
It uses AutoAlert™ lights and a unit-specific QR code.
The unit produces 430 lbs. per 24 hr.
