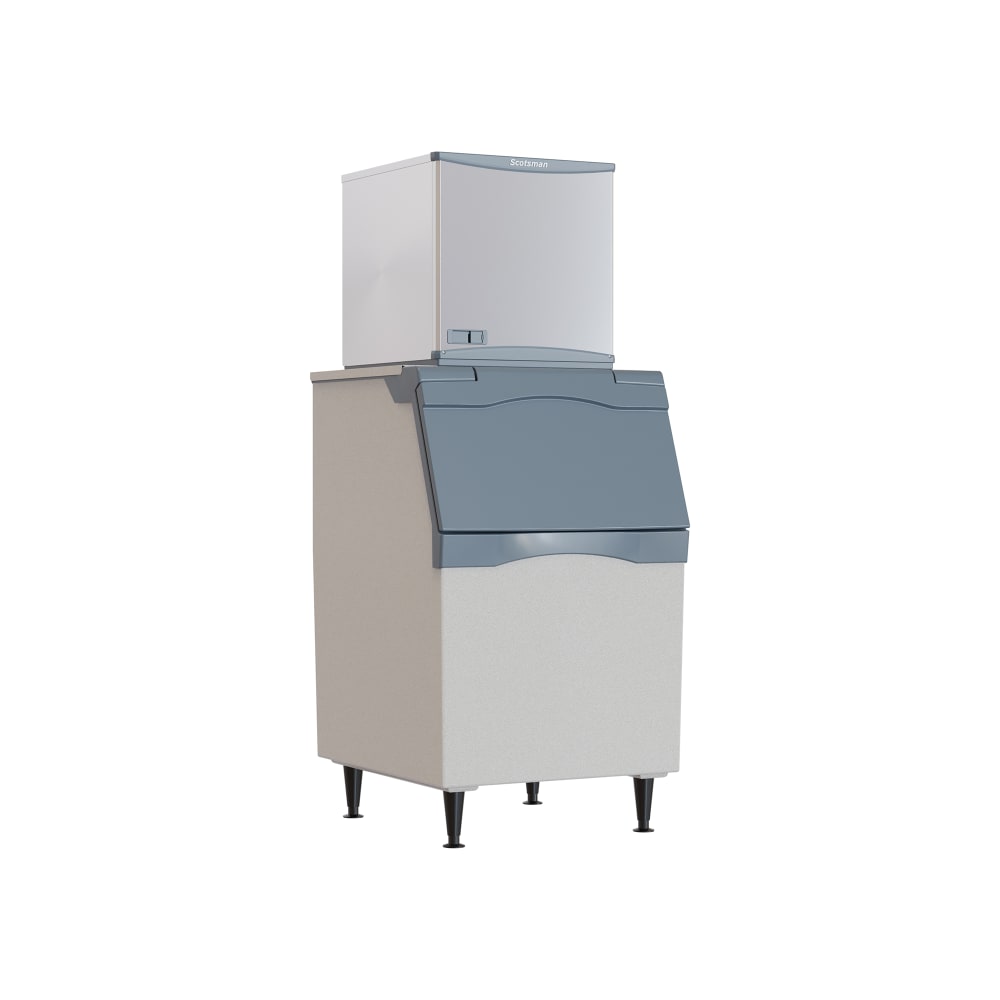

Scotsman NS0422W-1/B530P/KBT27 455 lb Prodigy Plus® Nugget Ice Machine w/ Bin - 536 lb Storage, Water Cooled, Softer Nugget, 115v

For sanitary ice retrieval, the Scotsman NS0422W-1/B530P/KBT27 ice maker with bin comes with a scoop so employees don't reach into the bin with their hands. The bin accommodates 536 pounds of ice for later use and is lined with polyethylene for sanitary storage. To prevent ice from melting, the bin is insulated with polyurethane. The door is spring loaded to facilitate opening and is hinged from the top. In ideal conditions, this unit makes 455 pounds of ice daily, but if ambient temperatures are higher it makes closer to 397 pounds per day.

The Scotsman NS0422W-1/B530P/KBT27 nugget ice maker with bin has a stainless steel finish for durability, and its evaporator and auger also are stainless steel to resist rust and corrosion. To streamline installation, the water-cooled condenser is self-contained, which reduces the risk for cross contamination. Cleaning happens at the touch of a button; to slow bacterial growth, this unit is protected by AgION™ antimicrobial.

Ice Machine Details

• Part of the Prodigy Plus® series
• 455-lb. maximum daily ice production
• 397-lb. AHRI-certified daily ice production
• Makes Original Chewable Ice®
• Ice dimensions: ⁷⁄₁₆ in. x ⁵⁄₁₆ in. x ³⁄₈ in.
• Self-contained, water-cooled condenser
• Sealed, maintenance-free bearings
• AutoAlert™ indicating lights
• Unit-specific QR code
• Stainless steel evaporator and auger
• 1-touch cleaning capabilities
• Rust-resistant stainless steel finish
• AgION antimicrobial slows bacterial growth
• Uses R404A refrigerant
• Ideal incoming air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSIG
• 5,000-BTU heat transfer capacity

Ice Bin Details

• 536-lb. application capacity
• Top-hinged, front-opening door
• Baffle removable without tools
• Insulated with polyurethane
• Rotocast plastic construction
• Polyethylene bin liner
• Ice scoop with a built-in holder
• Mounted on 6-in. legs
• Includes KBT27 top piece

Dimensions & Utilities

• Ice maker: 22⁹/₁₀ in. W x 24 in. D x 23 in. H
• Ice bin: 30 in. W x 34 in. D x 50 in. H
• 12.1 A
• 115 V/60 Hz/1 ph

*Free shipping on Scotsman NS0422W-1/B530P/KBT27 within the 48 contiguous states.

From The Manufacturer

Prodigy Plus® Ice Maker, nugget style, Original Chewable Ice®, water-cooled, self-contained condenser, production capacity up to 455 lb/24 hours at 70°/50° (397 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 12.1 amps, NSF, cULus, engineered and assembled in USA

Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, 30" width, roto cast plastic construction, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6" legs, NSF, engineered and assembled in USA; (KBT27) Bin Top, for use with all 22" cubers, flakers & nugget makers (except EH222) on B230, B330 & B530 bins

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor

Scotsman NS0422W-1/B530P/KBT27 Specifications

Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries.

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Brochure
