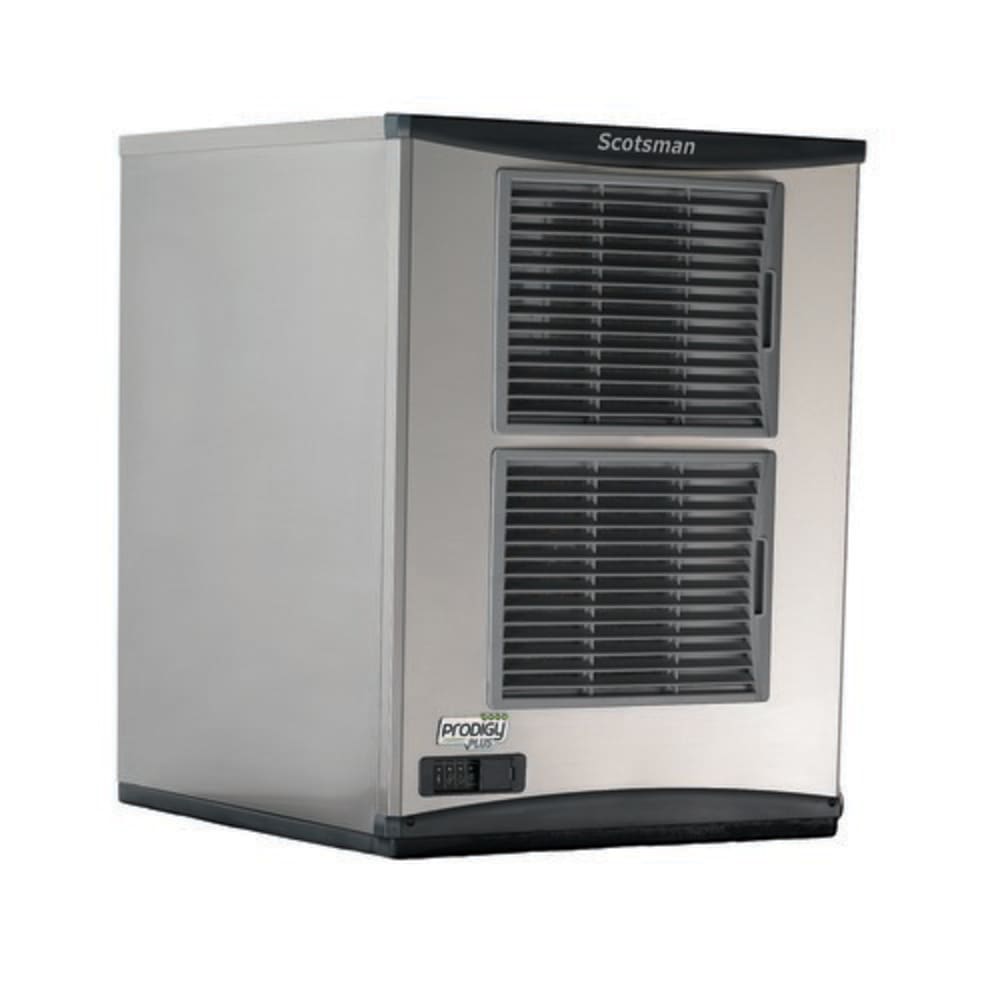

Scotsman FS1522A-32 22" Prodigy Plus® Flake Ice Machine Head - 1612 lb/24 hr, Air Cooled, 208-230v/1ph

For durability, the Scotsman FS1522A-32 flake ice machine head has a stainless steel finish. The auger and evaporator are made of stainless steel as well, ensuring they don’t rust or corrode when exposed to water and cleaning chemicals. The bearings are sealed to prevent damage, and they don’t require maintenance for operation. To slow the growth of microbes, this unit is protected with AgION™ antimicrobial, and cleaning is provided with the touch of a button.

A customer favorite, the Scotsman FS1522A-32 ice maker produces chewable flake ice. When operating conditions are ideal, it makes a maximum of 1,612 pounds of ice each day, though when ambient and water temperatures are too high, it makes closer to 1,088 pounds of ice daily. The refrigeration system is air cooled with R404A refrigerant, and it’s self-contained to streamline installation and reduce cross-contamination risks.

Product Details

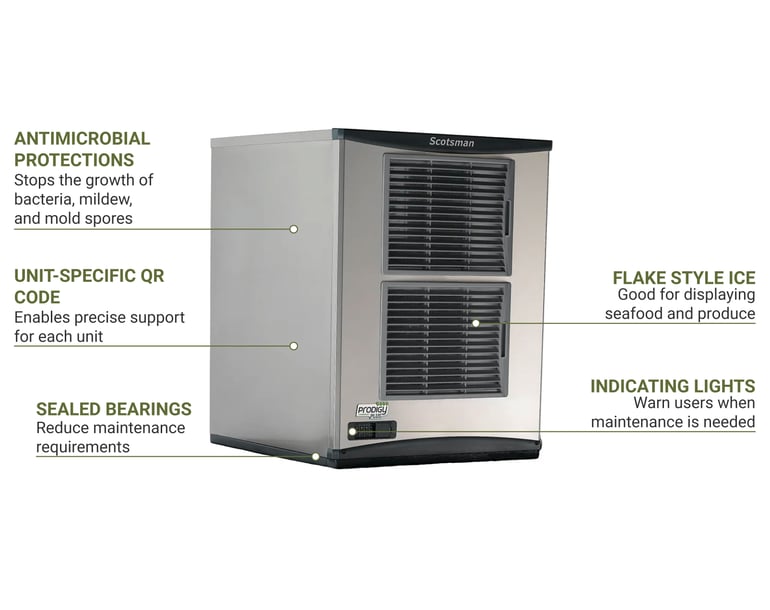

• Part of the Prodigy Plus® series
• 1,612-lb. daily ice production capacity
• 1,088-lb. AHRI-certified daily ice production capacity
• Makes flake ice
• Air-cooled, self-contained condenser utilizes with R404A refrigerant
• AgION antimicrobial slows the spread of germs
• 1-touch cleaning
• AutoAlert™ indicating lights
• Sealed, maintenance-free bearings
• Key information provided with unit specific QR code
• Auger, evaporator, and finish are stainless steel
• 16,000-BTU heat transfer capacity
• Ideal incoming air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSIG

Product Features

Dimensions & Utilities

• 22 in. W x 24 in. D x 27 in. H
• 17.8 A
• 208-230 V/60 Hz/1 ph

*Free shipping on Scotsman FS1522A-32 within the 48 contiguous states.

From The Manufacturer

Prodigy Plus® Ice Maker, flake style, air-cooled, self-contained condenser, production capacity up to 1612 lb/24 hours at 70°/50° (1088 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, front facing removable air filter, stainless steel evaporator and auger, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 208-230v/60/1-ph, 17.8 amps, NSF, cULus, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor

Scotsman FS1522A-32 Specifications

Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries.
