Scotsman ERC311-32 Condenser Unit for C0630xR, C0830xR, C1030xR, & C1448xR, 208 230v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $3,317.00
$1,359.00 /Each

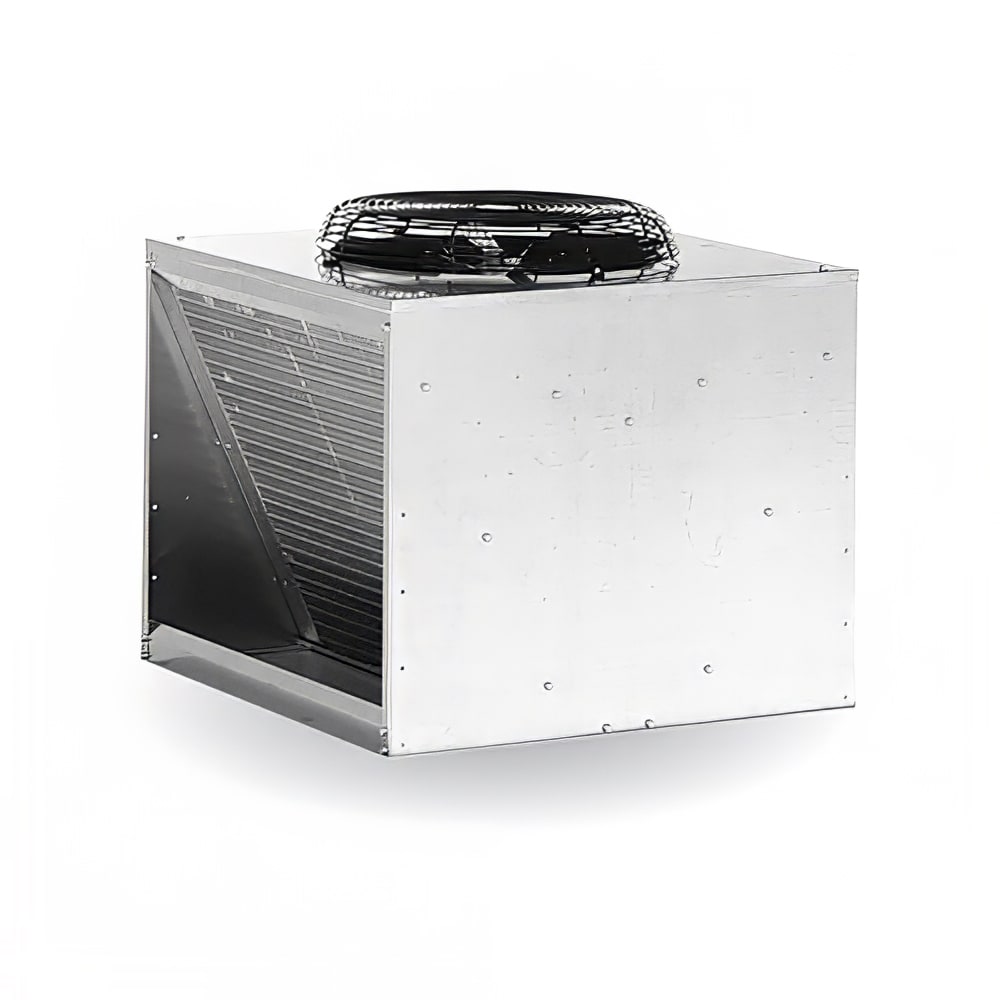

Scotsman ERC311-32 Description
The Scotsman ERC311-32 condenser unit is designed to be remotely mounted on the exterior of a building to alleviate excess noise and heat that would otherwise be created by an ice machine. The unit can operate in a range of -20 to 120 degrees Fahrenheit, so it is suitable for a variety of climates. Its fan motors are thermally protected, and PVC-coated steel fan guards are included. The air conditioning load is minimized, and the unit takes heat away from the ice machine to maximize the amount of ice production. The Scotsman ERC311-32 condenser unit is made from galvanized steel for corrosion resistance.
- Operational temperature range of -20-120 degrees F
- Galvanized steel construction is resistant to corrosion
- Fan motors are thermally protected
- PVC-coated steel fan guards
- Direct drive fan blades
- Designed for outdoor use
- Takes heat away from the ice machine to maximize ice production
- Air conditioning load is minimized
- Overall Dimensions: 29 1⁄8 in. W x 29 1⁄2 in. D x 38 47⁄100 in. H
- CME1056R
- C0630R
- C0830R
- C1030R
- C1448R
- F1222R
- N0922R
- N1322R
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman ERC311-32 within the 48 contiguous states.
From The Manufacturer
Condenser Unit, Remote Refrigeration, designed for outdoor installation, temperature range -20°F to 120°F, galvanized finish, 208-230v/50/60/1-ph, 1.25 amps, use with MC0630xR,MC0830xR, MC1030xR, & MC1448xR, C0630xR, C0830xR, C1030xR, & C1448xR, cULus
Scotsman ERC311-32 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| Application | Outdoor |
| For Use With | MC0630xR, MC0830xR, MC1030xR, & MC1448xR, C0630xR, . C0830xR, C1030xR & C1448xR |
| Hertz | 50/60 |
| Part Type | Compressor |
| Phase | 1 |
| Product | Parts & Accessories |
| Product Type | Ice Makers & Bins |
| Series | ERC |
| Special Features | Remote |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor |
| Weight | 130.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Scotsman ERC311-32 Scotsman ERC311-32 Condenser Unit for C0630xR, C0830xR, C1030xR, & C1448xR, 208 230v/1ph Current Item |
Manitowoc Ice JCT1500 Manitowoc Ice JCT1500 Remote Air Cooled Condenser for IT-1500N & IT-1900N, 208-230v/1ph |
||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $1,359.00 / Each | $1,644.00 / Each | $1,482.00 / Each | $1,448.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Ships in 1 Business Day | QUICK SHIP: Ships in 1 Business Day | Typically ships in 2 - 3 weeks |
| For Use With | MC0630xR, MC0830xR, MC1030xR, & MC1448xR, C0630xR, . C0830xR, C1030xR & C1448xR | IT-1500N & IT-1900N | IT-1200N Series | ICE0926R, ICE1006R, ICE1005R, ICE1007R, ICE1405R, ICE1406R, ICE1407R, ICE1506R, ICE1806R, ICE1807R, CIM0825R, CIM0835R, CIM0826R, CIM0836R, CIM1125, CIM1135R, CIM1126R, CIM1136R, CIM1137R GEM2006R & MFI2306R |
| Warranty | 3-year Parts & Labor |
