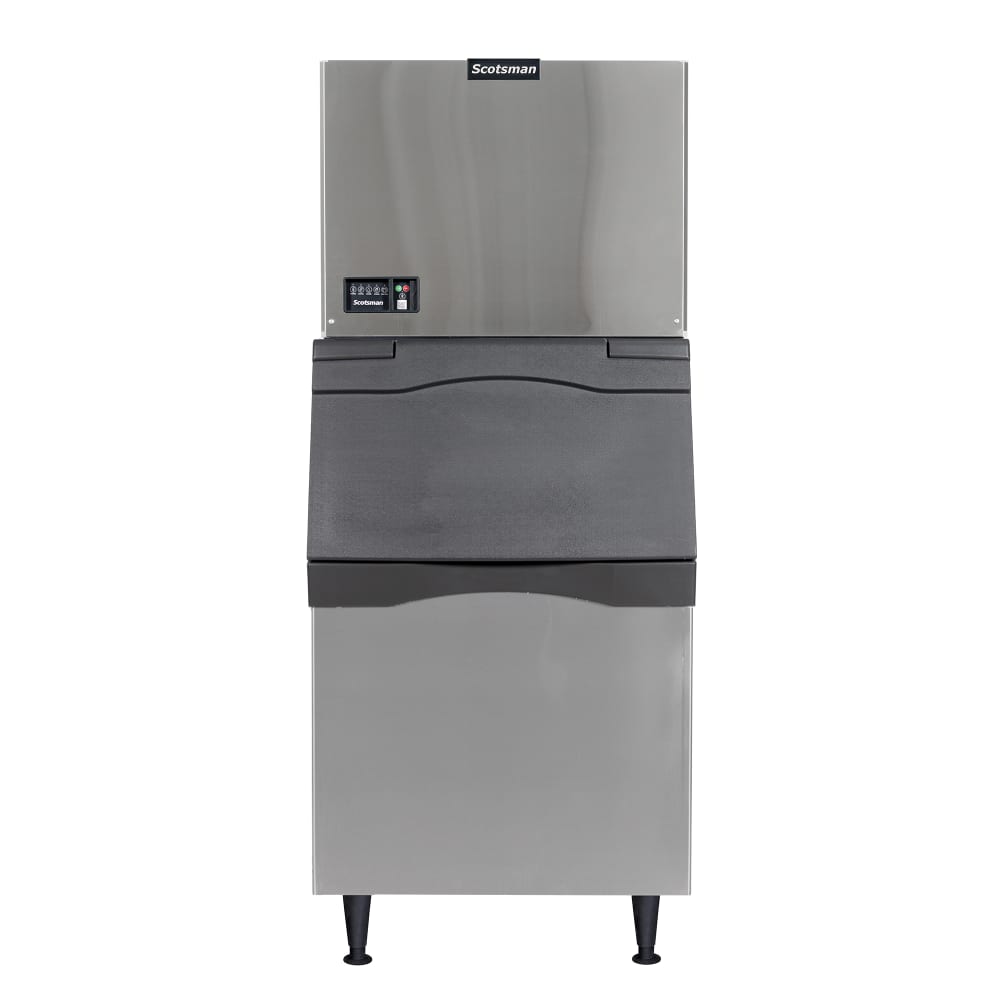

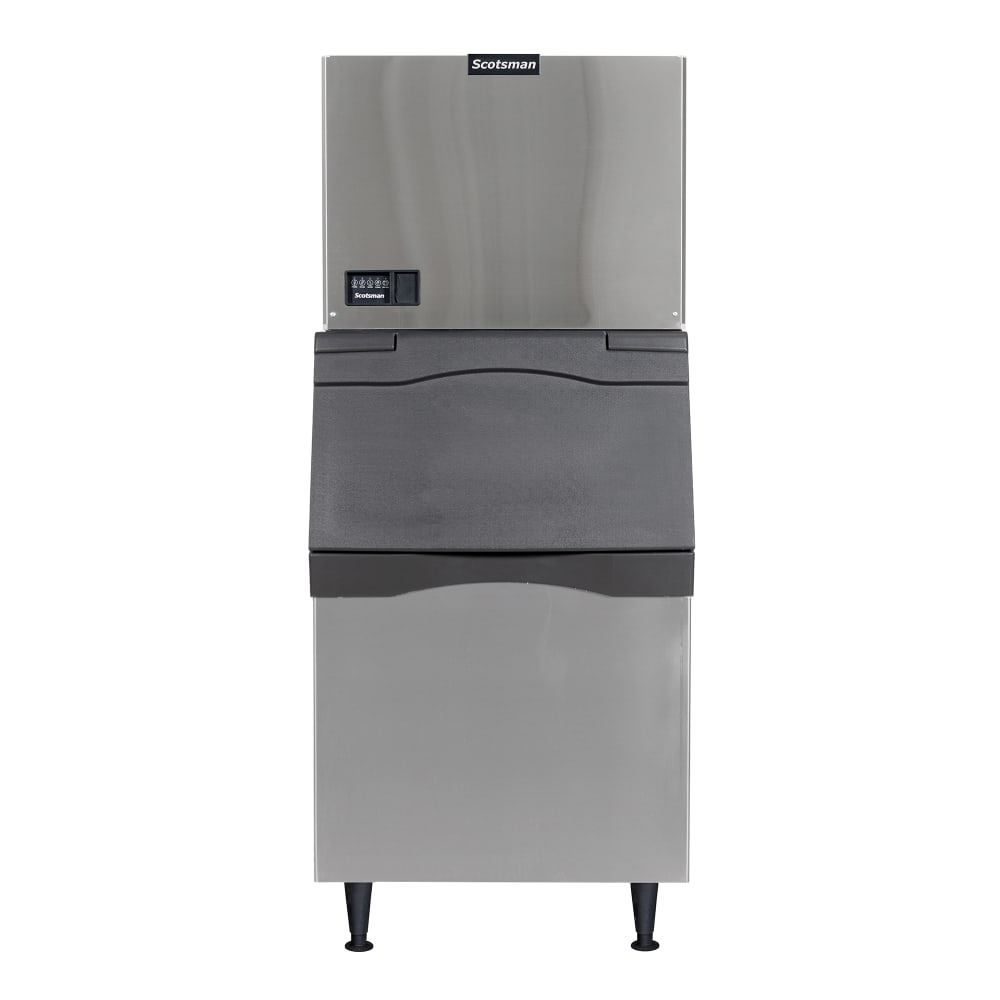

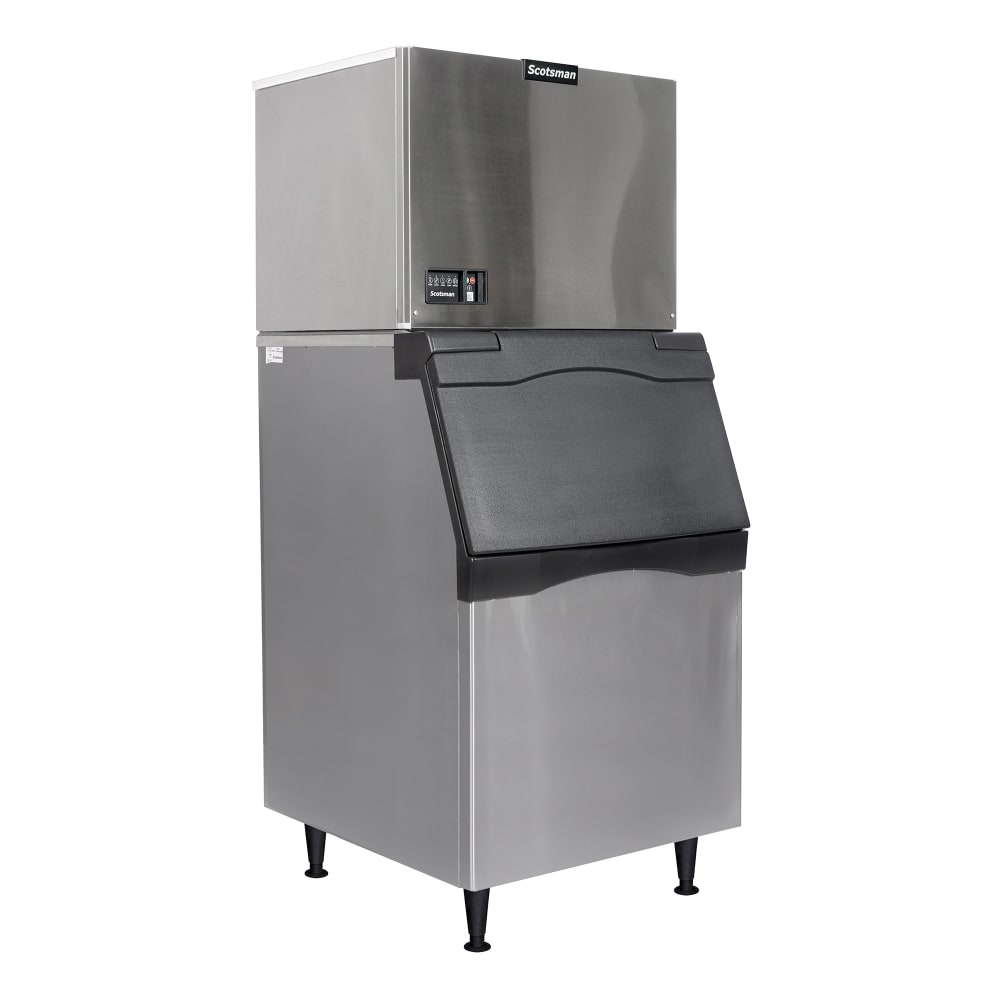

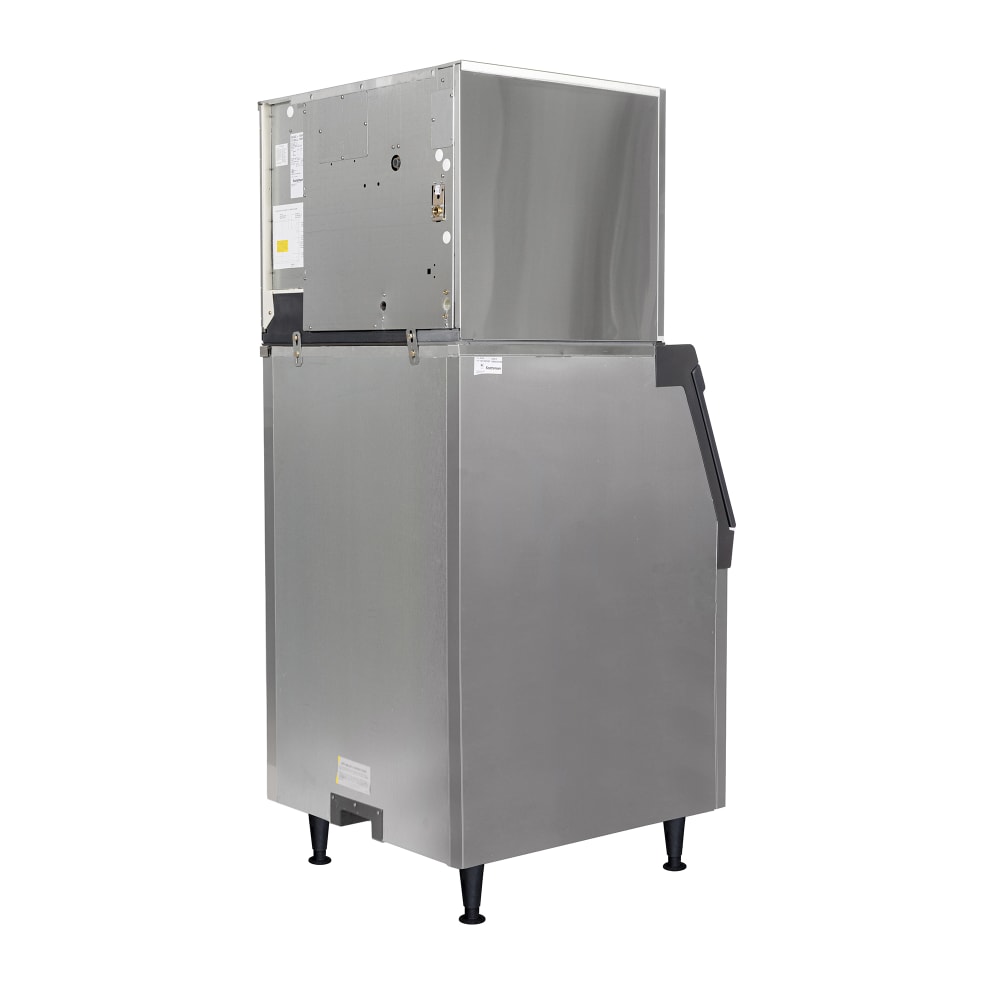

Scotsman MC0630MW-32/B530S 633 lb Prodigy ELITE® Full Cube Ice Machine w/ Bin - 536 lb Storage, Water Cooled, 208-230v

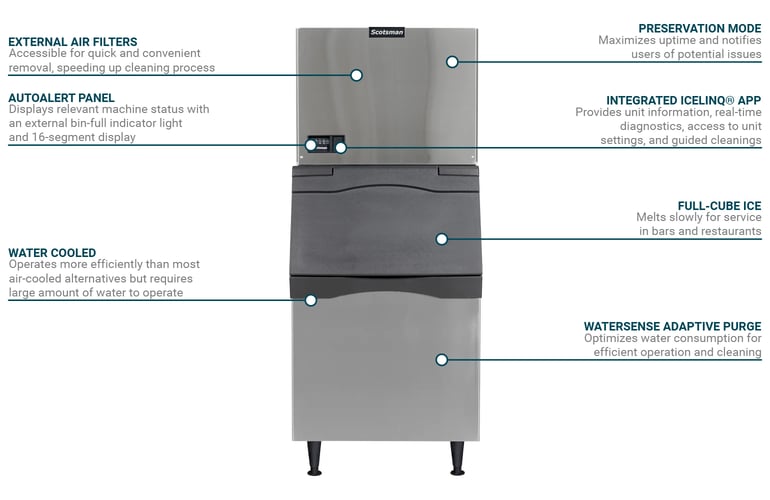

The Scotsman MC0630MW-32/B530S Prodigy ELITE® ice maker with bin can produce 633 pounds per day with a water-cooled condenser. Because it makes full-cube ice, this unit is ideal for restaurants and bars that sell a lot of drinks. Employees can keep up with the unit through the diagnostic module and operating status indicator lights. When issues arise, the operator can scan the QR code for instant connection to service information and warranty history. As this unit can be paired with Scotsman’s ICELINQ® mobile app, operators have complete access to the dashboard, operating controls, and a step-by-step guided cleaning process.

An antimicrobial agent in the ice machine head slows bacteria growth, while purge control helps eliminate scale. This Scotsman MC0630MW-32/B530S ice maker with bin uses harvest assist technology to move ice. Capable of holding 536 pounds, the bin has a spring-loaded door for convenient opening. Hidden hinges on this door eliminate crevices that can hinder cleaning.

Ice Maker Details

• Part of the Prodigy ELITE series
• 633-lb. ice production capacity
• 573-lb. AHRI-certified ice production capacity
• Full-cube ice size: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Smart-Board™ diagnostic module

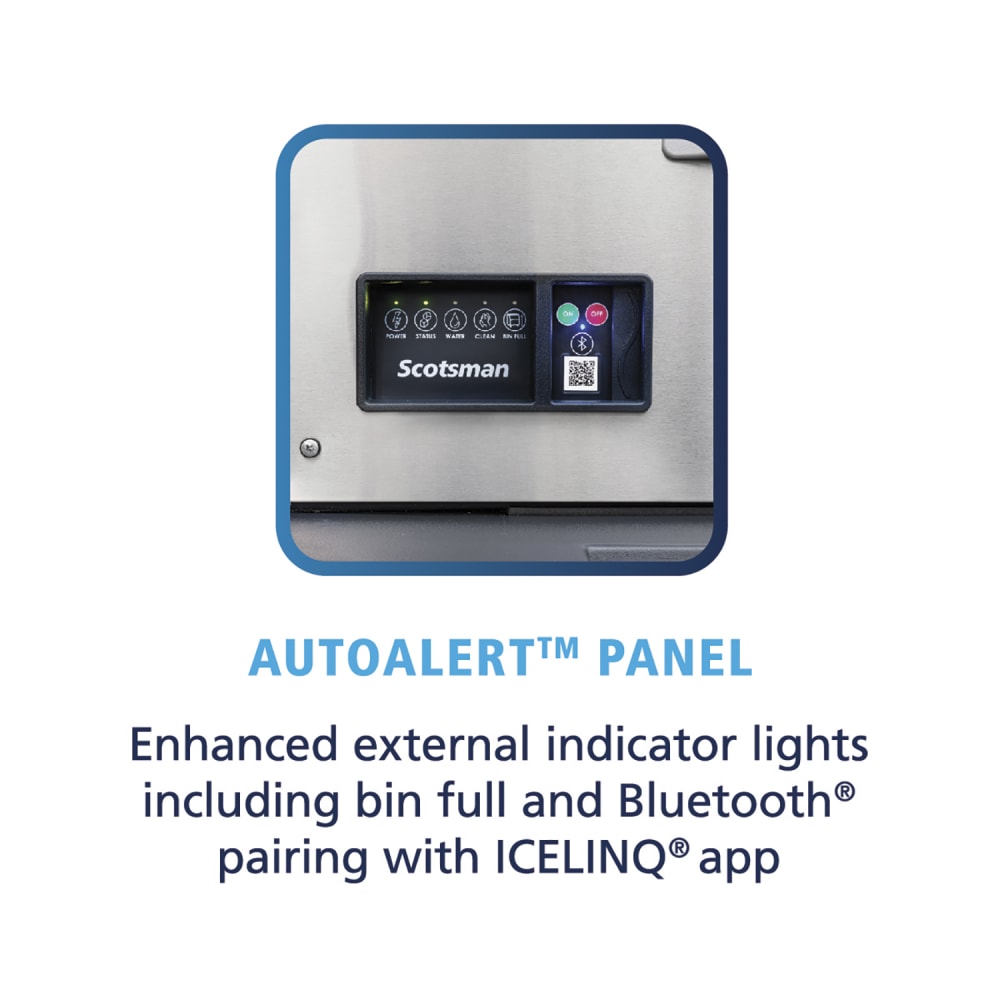

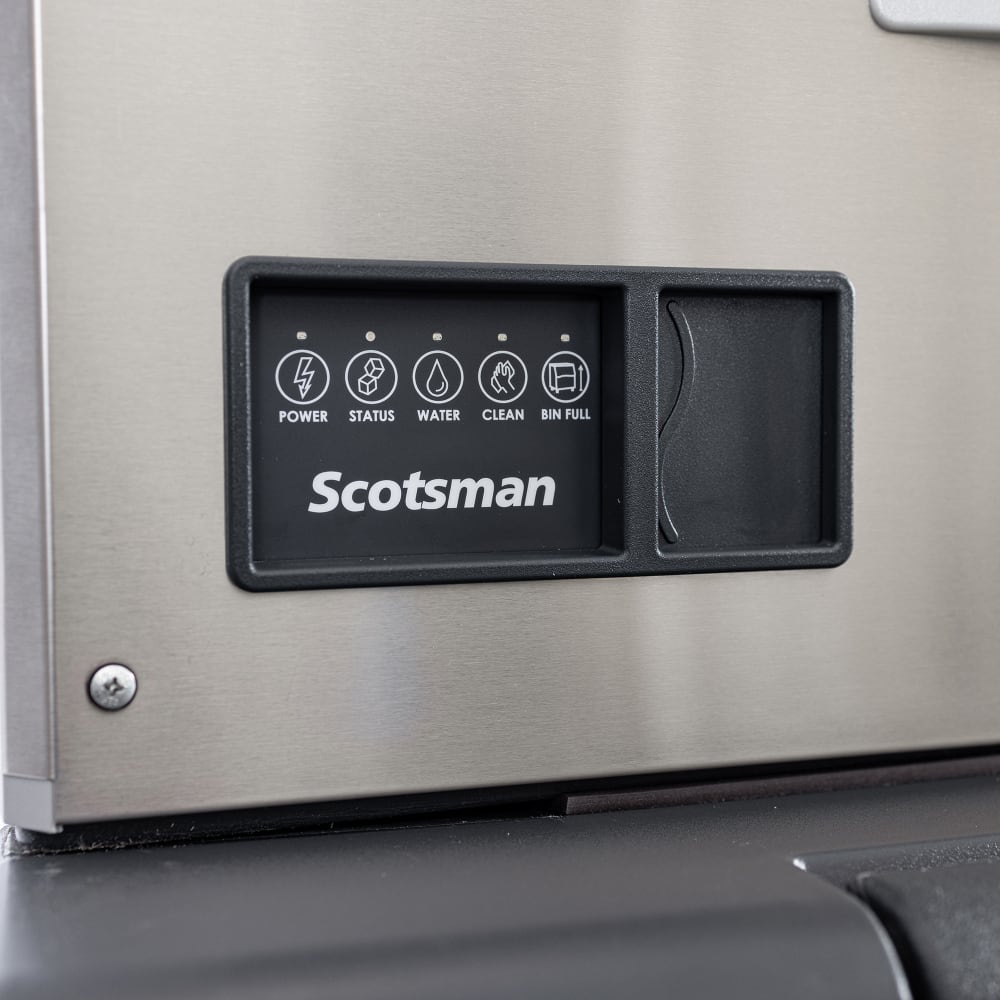

• AutoAlert™ indicator lights show operating status

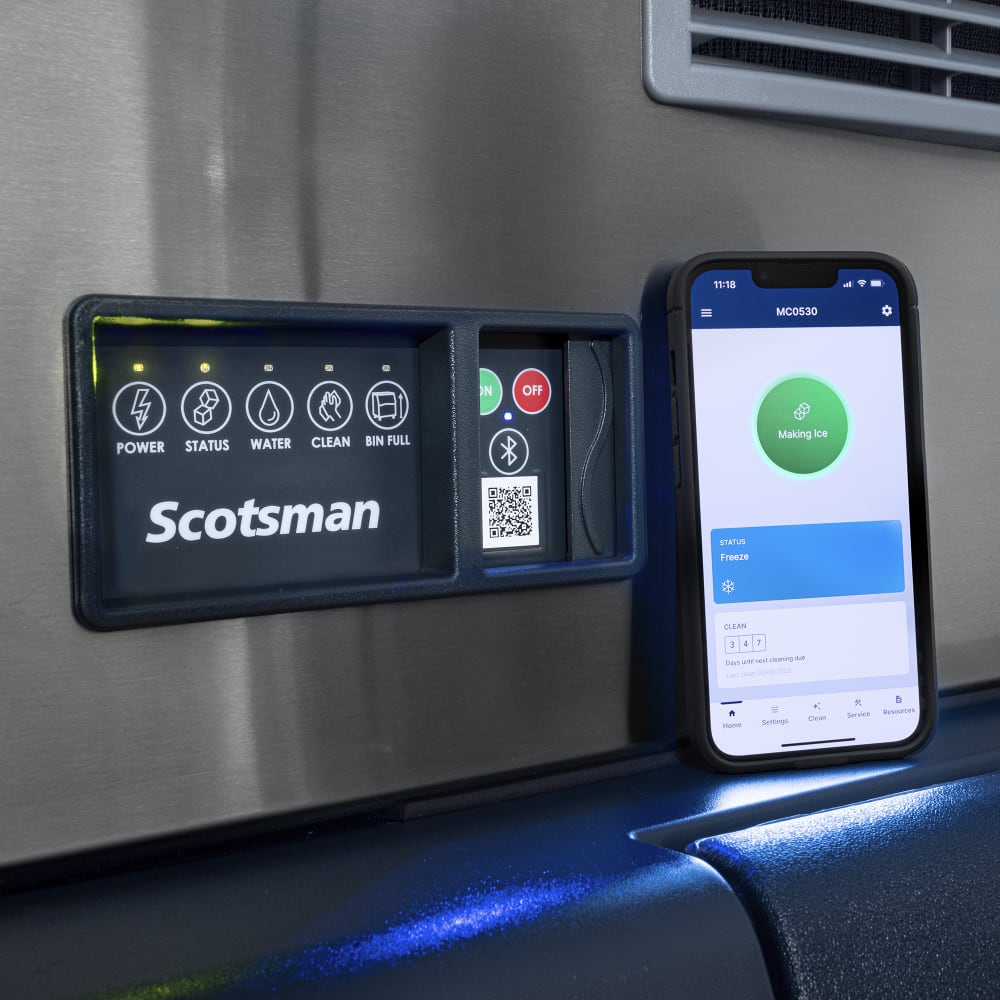

• Compatible with ICELINQ mobile application

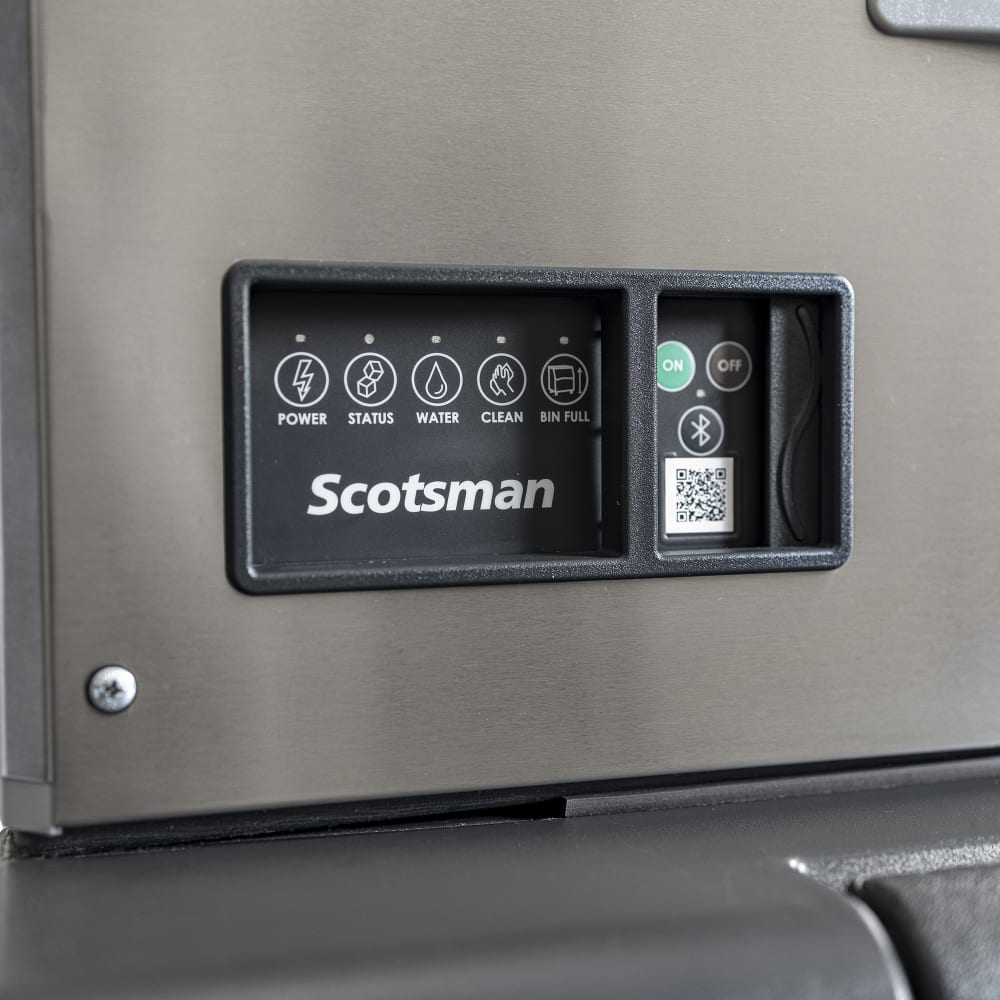

• Scannable QR code provides warranty and service information
• 1-touch cleaning button
• Antimicrobial agent protects against bacteria growth
• WaterSense purge control helps remove scale buildup
• Self-aligning front panel provides component access
• Harvest Assist technology efficiently moves ice to bin
• Part of the Prodigy ELITE series
• Water-cooled condenser
• R404A refrigerant
• 12,700 BTU
• Required ambient air temperature: 50-100 degrees F
• Required incoming water temperature: 40-100 degrees F
• Required incoming water pressure: 20-80 PSIG

Bin Details

• 536-lb. storage capacity
• Spring-loaded door
• Hidden door hinges eliminate hard-to-clean crevices
• Baffle is removable without tools
• Recessed drain fitting enhances installation flexibility
• Ice scoop is included with integrated holder
• Metallic finish

Dimensions & Utilities

• Ice Maker
  • 30⁷/₁₀ in. W x 24 in. D x 23 in. H
  • 9.8 A, 4.1 kW
  • 208-230 V/60 Hz/1 ph
• Bin
  • 30¹/₂ in. W x 34 in. D x 50 in. H

Product Features

*Free shipping on Scotsman MC0630MW-32/B530S within the 48 contiguous states.

From The Manufacturer

Prodigy ELITE® Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 633 lb/24 hours at 70°/50° (573 lb AHRI certified at 90°/70°), medium cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 208-230v/60/1-ph, 9.8 amps, cULus, NSF, engineered and assembled in USA

Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, 30" width, metallic finish exterior, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6" legs, NSF, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor
