Scotsman MC0530SW-1/B530S 500 lb Prodigy ELITE® Half Cube Ice Machine w/ Bin - 536 lb Storage, Water Cooled, 115v

The Scotsman MC0530SW-1/B530S Prodigy ELITE® ice maker with bin has a water-cooled condenser and produces half-cube ice. It can make 500 pounds daily and is attached to a 536-pound-capacity bin. Indicator lights show the operational status, while the smart module provides diagnostic information. The ICELINQ® app provides real-time diagnostics, access to settings, and cleaning and maintenance guidance.

Bacteria resistance is added to the ice maker by an antimicrobial agent, and WaterSense adaptive purge limits scale buildup. This Scotsman MC0530SW-1/B530S ice machine and bin are constructed of strong stainless steel, and the bin door is spring loaded for convenient opening. Cleaning the bin is simplified since the door has hidden hinges that eliminate crevices.

Ice Maker Details

• Part of the Prodigy ELITE series
• 500-lb. ice production capacity
• 410-lb. AHRI-certified ice production capacity
• Half-cube ice size: ⁷/₈ in. x ⁷/₈ in. x ³/₈ in.

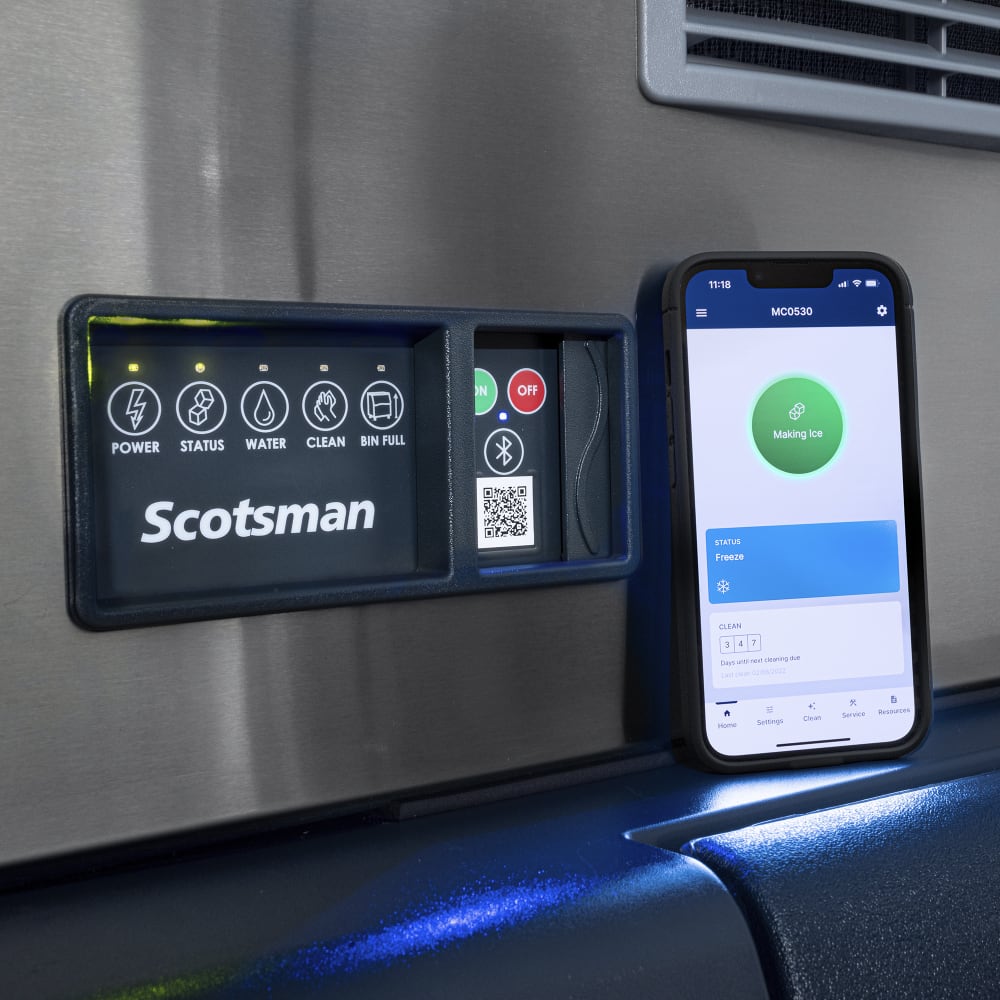

• AutoAlert™ indicator lights display operating status
• Smart-Board™ module gives users diagnostic information
• QR code is scannable for service and warranty data
• Compatible with ICELINQ app
• Preservation mode minimizes downtime and alerts operators to potential issues
• Bluetooth® connectivity
• Front panel self-aligns and removes for components accessibility
• 1-touch cleaning
• WaterSense purge control reduces scale buildup
• Antimicrobial technology helps prevent interior bacteria growth
• Harvest assist technology ensures ice moves into the bin
• Water-cooled condensing unit
• R404A refrigerant
• 7,900 BTU
• Required ambient air temperature: 50-100 degrees F
• Required incoming water temperature: 40-100 degrees F
• Required incoming water pressure: 20-80 PSIG

Bin Details

• 536-lb. storage capacity
• Spring-loaded door has hidden hinges that ease cleanup
• Baffle can be removed without tools
• Recessed drain fitting provides installation flexibility
• Includes ice scoop and holder
• Metallic finish

Dimensions & Utilities

• Ice Maker
  • 30⁷/₁₀ in. W x 24 in. D x 23 in. H
  • 13.5 A, 5 kW
  • 115 V/60 Hz/1 ph
• Bin
  • 30¹/₂ in. W x 34 in. D x 50 in. H

Product Features

*Free shipping on Scotsman MC0530SW-1/B530S within the 48 contiguous states.

From The Manufacturer

Prodigy ELITE® Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 500 lb/24 hours at 70°/50° (410 lb AHRI certified at 90°/70°), small cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 115v/60/1-ph, 13.5 amps, cULus, NSF, engineered and assembled in USA

Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, 30" width, metallic finish exterior, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6" legs, NSF, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Scotsman MC0530SW-1/B530S Specifications

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Brochure

Catalog
