Scotsman MC0530SA-1/B530S 525 lb Prodigy ELITE® Half Cube Ice Machine w/ Bin - 536 lb Storage, Air Cooled, 115v

The Scotsman MC0530SA-1/B530S Prodigy ELITE® ice maker and bin has an air-cooled condenser and can produce 525 pounds of ice in 24 hours. Its front-located air filter enables more air flow than a side- or rear-located filter, and AutoAlert™ lights inform the user when descaling, sanitizing, and other maintenance should be performed. To provide a constant supply, the Harvest Assist feature pushes ice into the bin with gas and a probe. The one-touch cleaning process and an antimicrobial agent guard the ice machine from bacteria. Scotsman’s ICELINQ® mobile app provides dashboard access, step-by-step cleaning, and control options.

A stainless steel and metallic finish with polyurethane foam insulation provides the Scotsman MC0530SA-1/B530S ice machine with structural support while retaining cold temperatures. Its interior is lined with polyethylene to reduce scratches and scuffs. A scoop with a built-in holder is included to keep the scoop out of the ice. For efficient installation, its drain fitting is recessed, and its spring-loaded door has hidden hinges for convenient opening and closing. This unit can hold 536 pounds of ice.

Ice Machine Details

• Part of the Prodigy ELITE series
• 525-lb. daily ice production capacity
• 380-lb. AHRI-certified daily ice production capacity
• Half-cube ice size: ⁷/₈ in. x ⁷/₈ in. x ³/₈ in.
• Bluetooth compatible

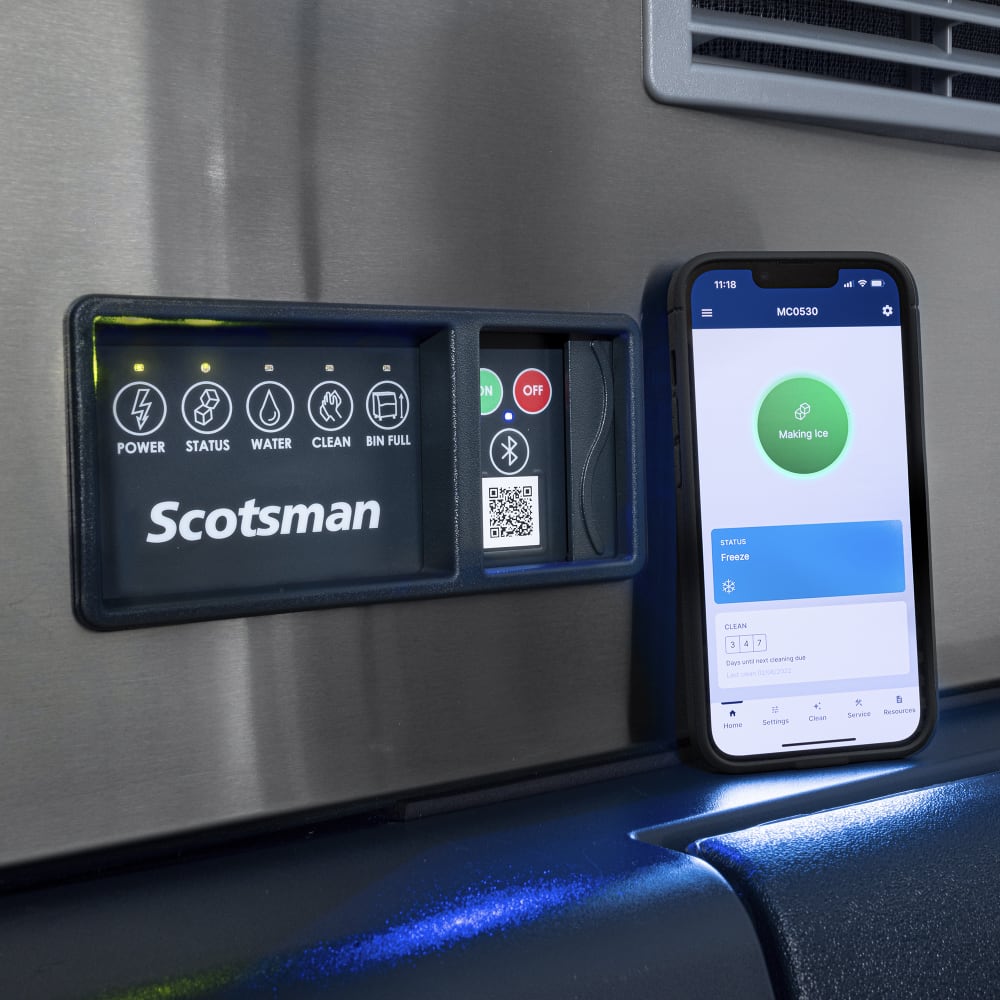

• Compatible with ICELINQ mobile application
• Mobile app enables settings adjustments, guided cleaning, and diagnostics reports
• Air-cooled condenser uses R404A refrigerant
• Air filter is located on the front for maximum efficiency
• Stainless steel finish
• Cleaning process begins with the push of a button
• AutoAlert lights notify users when maintenance is necessary
• WaterSense purge control monitors and adjusts water quality to reduce scale buildup
• Harvest Assist feature guides ice into the bin with a probe and gas
• Front panel is removable for internal component access
• QR code connects the user to warranty and technical information
• Antimicrobial technology protects the unit between cleanings
• 7,900 BTU
• Required ambient air temperature: 50-100 degrees F
• Required incoming water temperature: 40-100 degrees F
• Required incoming water pressure: 20-80 PSI

Ice Bin Details

• 536-lb. ice storage capacity
• Metallic finish is corrosion resistant
• Polyurethane foam insulation preserves ice by retaining cold air
• Polyethylene interior minimizes scratches
• Ice scoop is included with a built-in holder
• Removable baffle does not require tools
• Recessed drain fitting aids in installation
• Spring-loaded door with hidden hinges

Product Features

Dimensions & Utilities

• Ice Maker
  • 30 in. W x 24 in. D x 23 in. H
  • 15.2 A, 5.8 kW
  • 115 V/60 Hz/1 ph
• Ice Bin
  • 30¹/₂ in. W x 34 in. D x 50 in. H

Product Features

*Free shipping on Scotsman MC0530SA-1/B530S within the 48 contiguous states.

From The Manufacturer

Prodigy ELITE® Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 525 lb/24 hours at 70°/50° (380 lb AHRI certified at 90°/70°), small cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, front facing removable air filter, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 115v/60/1-ph, 15.2 amps, cULus, NSF, engineered and assembled in USA

Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, 30" width, metallic finish exterior, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6" legs, NSF, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor
