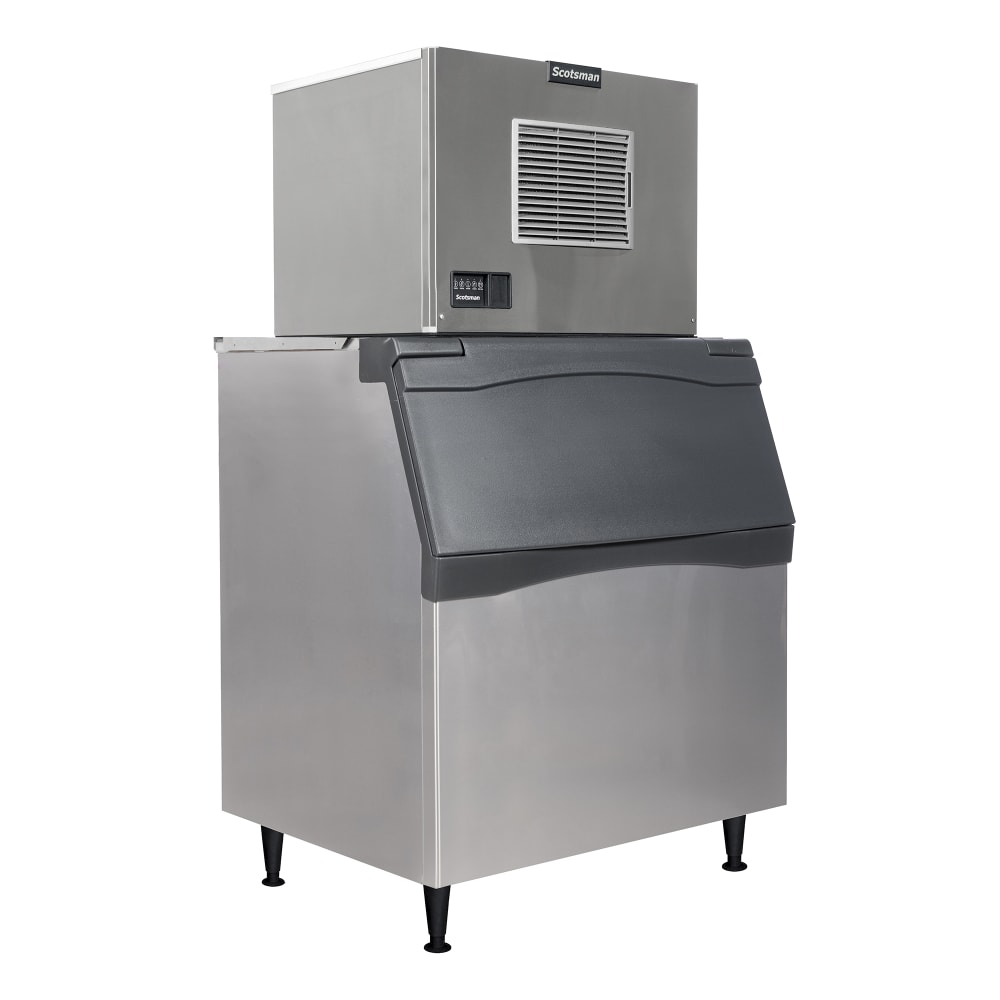

Scotsman MC0530MA-1/B842S/KBT29 525 lb Prodigy ELITE® Full Cube Ice Machine w/ Bin - 778 lb Storage, Air Cooled, 115v

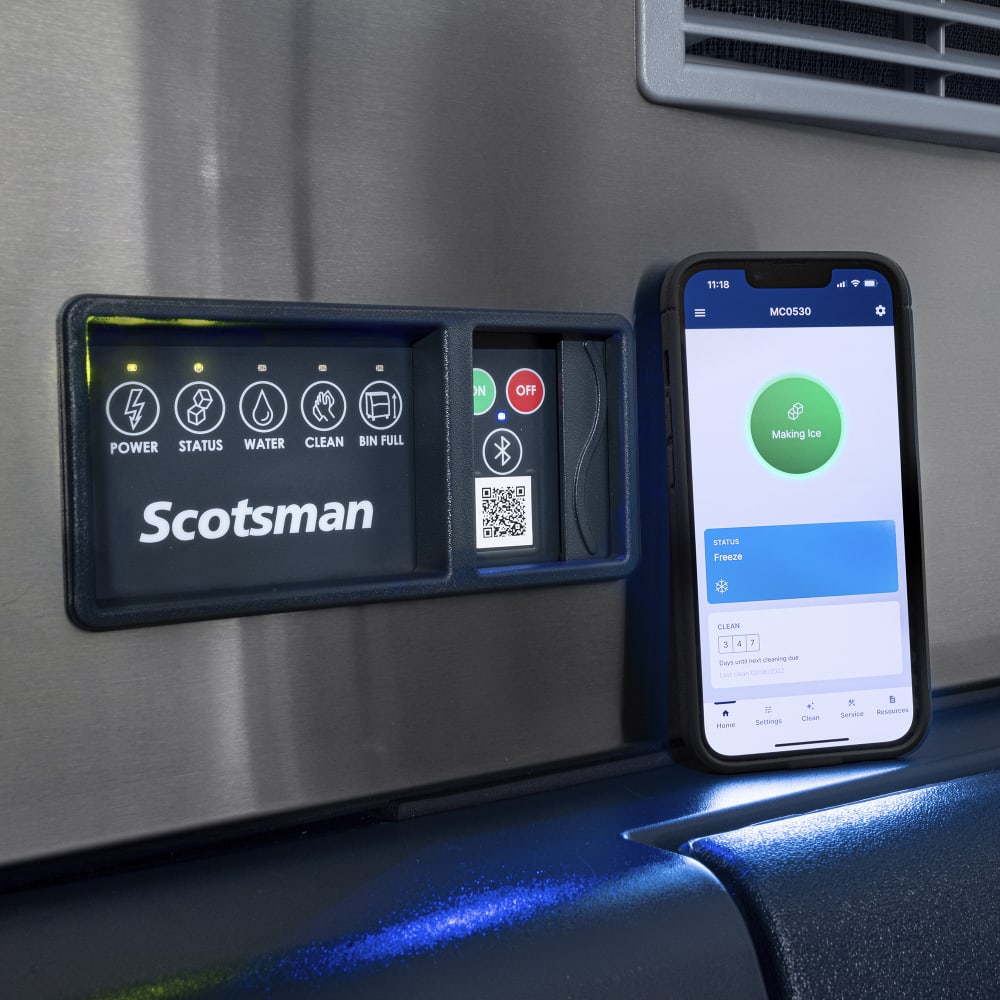

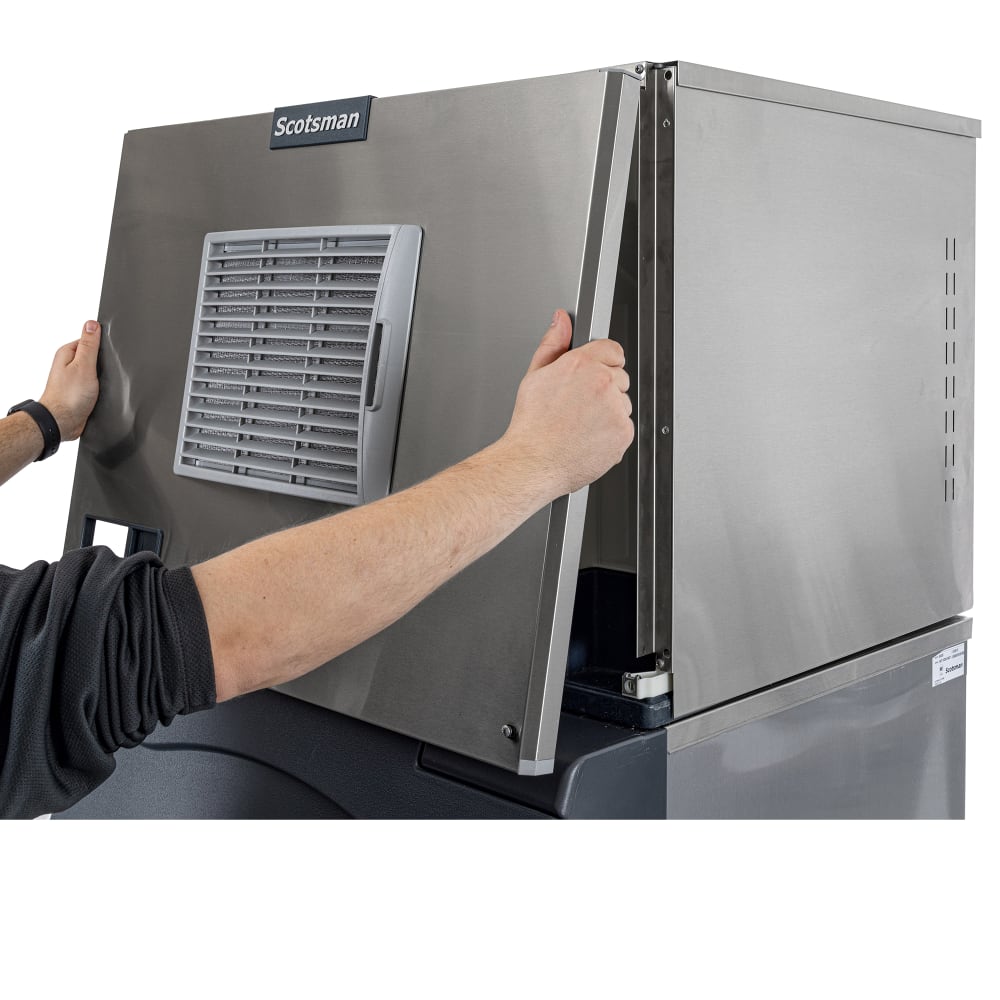

The Scotsman MC0530MA-1/B842S/KBT29 Prodigy ELITE® commercial ice maker and bin produces medium cubes. The head’s stainless steel finish deters rust and corrosion. One-touch cleaning functionality saves the user time compared to manual operation. Operators can download Scotsman’s ICELINQ® mobile app. With this technology, users can check the ice maker’s dashboard, adjust the controls, and walk through a step-by-step interactive cleaning process. For efficiency, the front-located air filter can be accessed quickly for maintenance. The head also features WaterSense purge control to combat scale buildup.

With its polyurethane insulation, the Scotsman MC0530MA-1/B842S/KBT29 ice machine’s bin keeps product cold and prevents premature melting. For convenience, the door is spring loaded so it can be opened and closed swiftly during busy shifts. The maker includes its own ice scoop which fits the built-in scoop holder. A polyethylene interior limits scoop scratches from a long day of service.

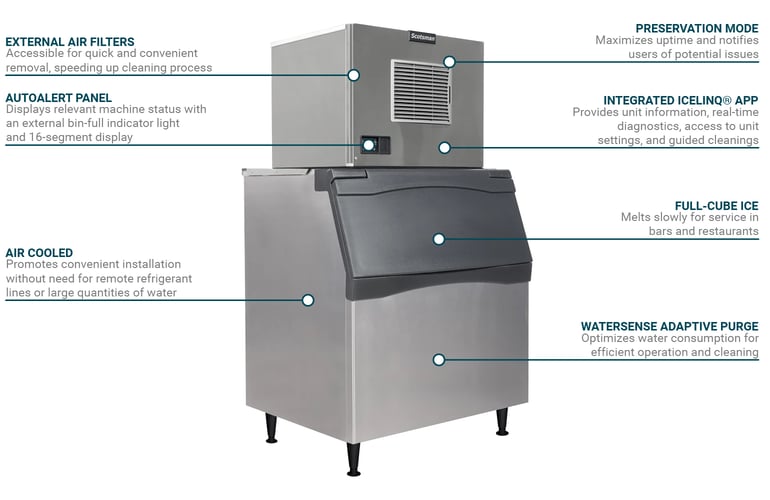

Ice Maker Details

• Part of the Prodigy ELITE line
• 525-lb. maximum daily ice production
• 380-lb. AHRI-certified daily ice production
• Makes full cubes
• Stainless steel finish is durable and corrosion resistant
• WaterSense purge control gets rid of scale buildup automatically
• One-touch cleaning
• Antimicrobial protection on the interior surfaces
• AutoAlert™ lights up for superior notification
• Compatible with ICELINQ mobile application
• Air-cooled system
• R404A refrigerant
• Ideal ambient air temperature: 70-90 degrees F
• Ideal incoming water temperature: 50-70 degrees F
• Ideal incoming water pressure: 20-80 PSIG
• 7,900-BTU heat transfer capacity

Ice Bin Details

• 778-lb. application capacity
• Polyethylene interior resists scoop scratching
• Baffle is removable
• Built-in scoop holder
• Polyurethane insulation keeps the ice cold
• Includes 6-in. legs
• Spring-loaded door is simple to open and close
• Includes an ice scoop

Dimensions & Utilities

• Ice Maker
• 30 in. W x 24 in. D x 23 in H
• 15.2 A, 5.80 kW
• 115 V/60 Hz/1 ph
• Ice Bin
• 42¹/₂ in. W x 34 in. D x 50 in. H

Product Features

*Free shipping on Scotsman MC0530MA-1/B842S/KBT29 within the 48 contiguous states.

From The Manufacturer

Prodigy ELITE® Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 525 lb/24 hours at 70°/50° (380 lb AHRI certified at 90°/70°), medium cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, front facing removable air filter, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 115v/60/1-ph, 15.2 amps, cULus, NSF, engineered and assembled in USA

Ice Bin, top-hinged front-opening door, 778 lb application capacity, for top-mounted ice maker, 42" width, metallic finish exterior, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6" legs, NSF, engineered and assembled in USA; (KBT29) Bin Top Kit, for 30" modular cubers on B842S, BH801 bin

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor
