Scotsman MC0522SAX-1/HD22B-1 464 lb Prodigy ELITE® Half Cube Ice Machine w/ Ice Dispenser & Filter - 120 lb Storage, Bucket Fill
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $20,160.00
$8,265.00 /Each
Selected Compressor Type: Air Cooled
Selected Ice Type: Half Cube
Scotsman MC0522SAX-1/HD22B-1 Description

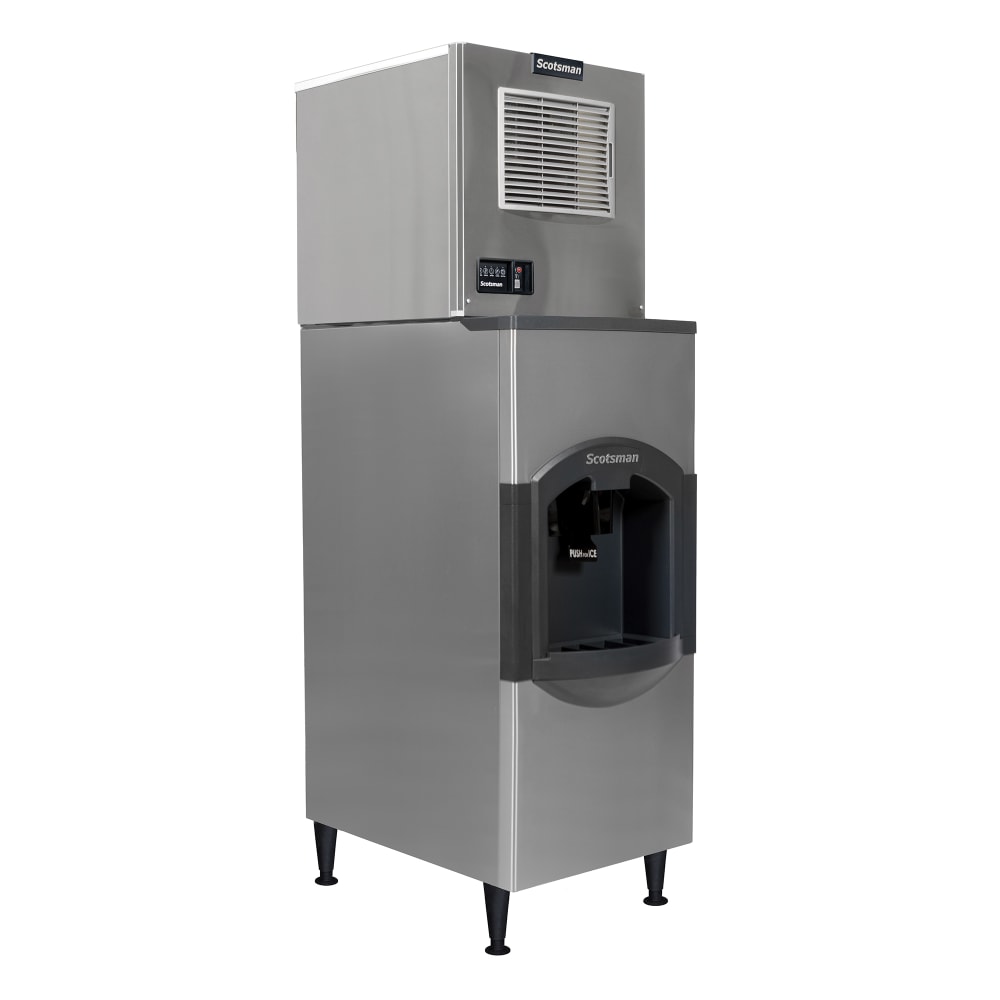

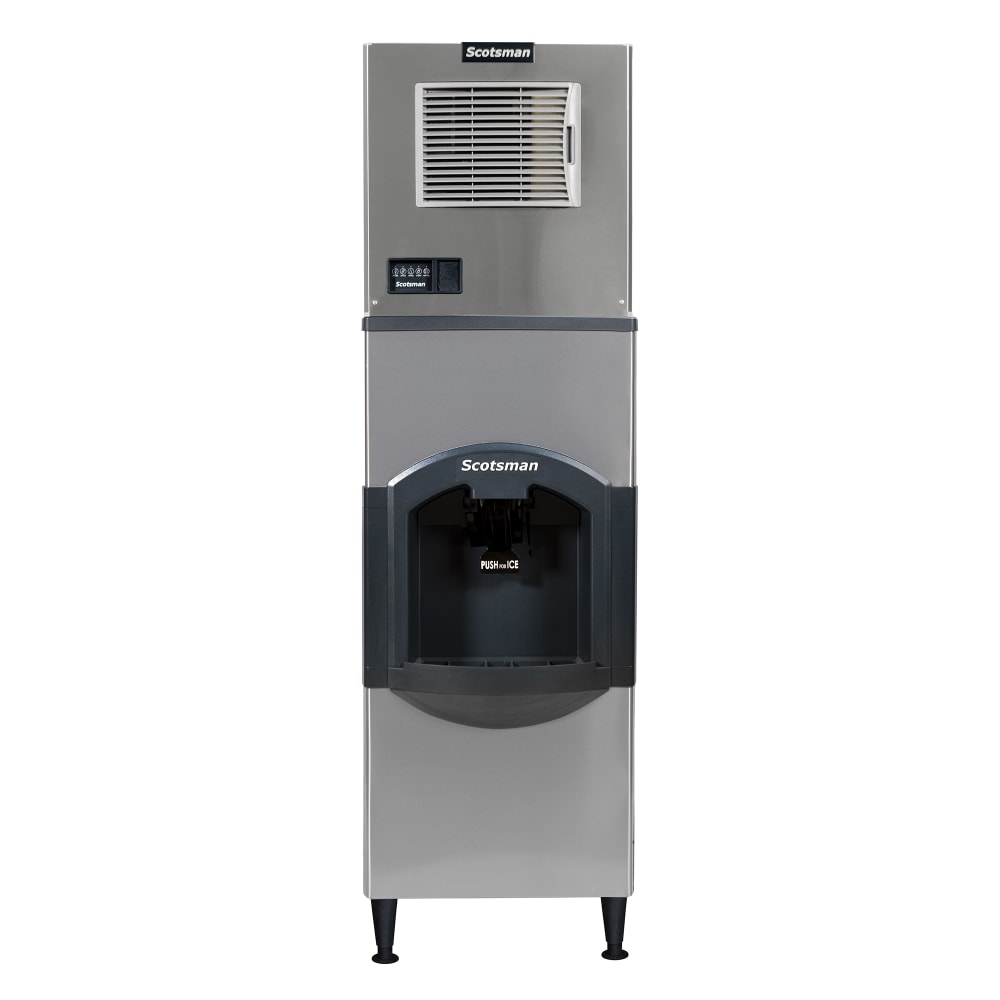

The Scotsman MC0522SAX-1/HD22B-1/AP1-P Prodigy ELITE® half-cube ice maker and iceValet® ice dispenser has a metallic cabinet with a stainless steel finish. With its air-cooled condensing unit, the ice maker can produce 464 pounds of ice daily. AutoAlert™ lights notify the user when the unit needs descaling, sanitizing, and other service needs. With this ice machine, operators can use ICELINQ® mobile app from Scotsman to check the machine dashboard and stay updated on its status for operation and servicing convenience. This app also enables users to change settings and use the guided cleaning process. To access the internal components, the front panel can be removed, and the cleaning process can be started with the push of a button. A WaterSense feature adjusts the water quality to minimize scale buildup, and a molded-in antimicrobial agent keeps the unit sanitary between cleanings.
The Scotsman MC0522SAX-1/HD22B-1/AP1-P half-cube ice maker and dispenser has a 120-pound ice storage capacity. Its top panel can be removed to access the bin while the ice head remains in place. The dispensing area is wide enough to accommodate various ice bucket sizes, and polyurethane foam insulation keeps the ice cold for hours. 6-inch legs raise the unit off the floor to aid in cleaning underneath. This ice machine comes with the AP1-P water filter.
- Part of the Prodigy ELITE series
- 464-lb. daily ice production capacity
- Air-cooled condenser
- Bluetooth compatibility enables use with mobile app

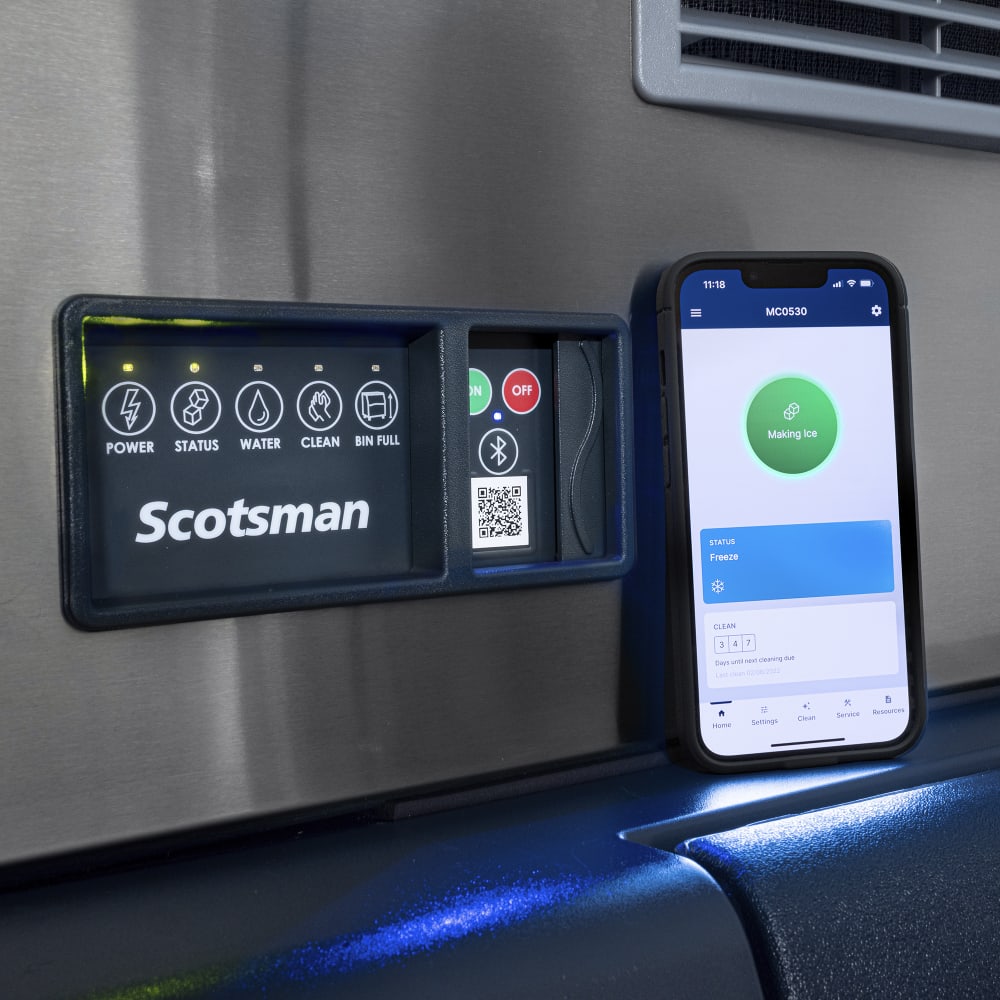

- ICELINQ mobile app available
- App enables settings adjustments, diagnostics reports, and guided cleaning instructions
- Uses R290 refrigerant
- AP1-P water filter included
- Stainless steel finish
- AutoAlert lights indicate when the unit needs sanitizing, descaling, and other maintenance needs
- QR code connects the user to warranty and service information
- Cleaning process runs with the touch of a button

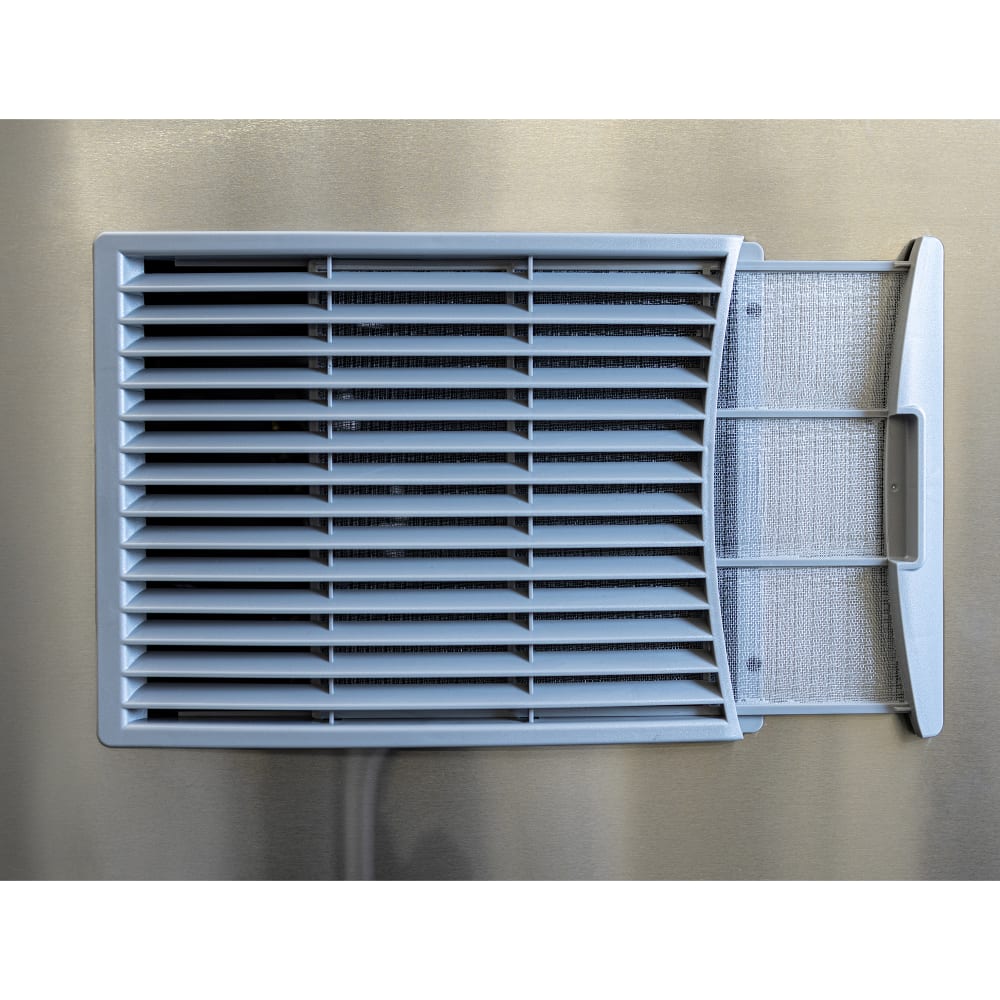

- Air filter on the front provides better breathability than a rear or side filter
- Front panel can be removed to access internal components
- WaterSense purge control monitors water quality to reduce scale buildup
- Harvest Assist guides ice into the bin
- Antimicrobial agent protects the unit between cleanings
- Half-cube ice size: 7⁄8 in. x 7⁄8 in. x 3⁄8 in.
- Required incoming water pressure: 20-80 PSI
- Required ambient water temperature: 40-100 degrees F
- Required ambient air temperature: 50-100 degrees F
- 7,900 BTU
- Part of the iceValet® series
- 120-lb. ice storage capacity
- Metallic cabinet resists corrosion
- Push chute enables ice dispensing
- Top panel is removable for bin access
- Large dispensing area fits nearly every bucket size
- 6-in. legs elevate the unit
- Polyurethane foam between the walls retains temperatures
- Required ambient air temperature: 50-100 degrees F
- Required ambient water temperature: 40-100 degrees F
- Required incoming water pressure: 20-80 PSI
- Ice Maker
- 22 in. W x 24 in. D x 23 in. H
- 13.5 A, 5.94 kW
- 115 V/60 Hz/1 ph
- Ice Dispenser
- Ice fill station: 13 1⁄2 in. W x 8 1⁄2 in. D x 8 3⁄4 in. H
- Overall: 22 in. W x 33 1⁄2 in. D x 53 1⁄4 in. H
- 15 A
- 115 V/60 Hz/1 ph, 11-ft. cord with plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman MC0522SAX-1/HD22B-1 within the 48 contiguous states.
From The Manufacturer
Prodigy ELITE® Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 464 lb/24 hours at 70°/50° (342 lb AHRI certified at 90°/70°), small cube size, ICELINQ® mobile app, Bluetooth® connectivIty, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, front facing removable air filter, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, R290 refrigerant, 115v/60/1-ph, 13.5 amps, cULus, NSF
iceValet® Hotel/Motel Ice Dispenser, floor model, push dispensing, 120 lb application capacity, designed for 22" wide top mount cube-type ice makers, ADA compliant dispensing area, polyurethane insulation, unit specific QR code, includes 6" legs, metallic finish, includes 11’ power cord with NEMA 5-15P plug, 115v/60/1-ph, 2.1 amps, NSF, cULus
AquaPatrol™ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF
Watch a video about this product
Scotsman MC0522SAX-1/HD22B-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 464 |
| Also Known As | MC0522SA-1/HD22B-1 |
| Amps | 13.5, 2.1 |
| Bin Capacity (lb) | 120 |
| Compressor Type | Air Cooled |
| Depth (in) | 33.5 |
| Dispenser Type | Push Button |
| Dispenses | Ice Only |
| Height (in) | 76.25 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Includes | AP1-P Filtration |
| Installation Type | Freestanding |
| NEMA | 5-15P |
| Operation | Self Contained |
| Phase | 1 |
| Product | Ice Dispensers |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Prodigy ELITE®/iceValet® |
| Serving Vessel | Bucket |
| Special Features | AgION™ Antimicrobial Protection |
| Special Features | Inline Water Filter Included |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 361.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
It produces 475 lbs. daily and stores 120 lbs. of ice.
Yes. It requires 6 in. of clearance on sides and back.
The top panel removes for direct bin access.
It uses WaterSense purge control to manage water quality.
Yes. AutoAlert™ lights show status and service needs.
Yes. ICELINQ® connects via Bluetooth for diagnostics.
It uses an air-cooled condenser system.
