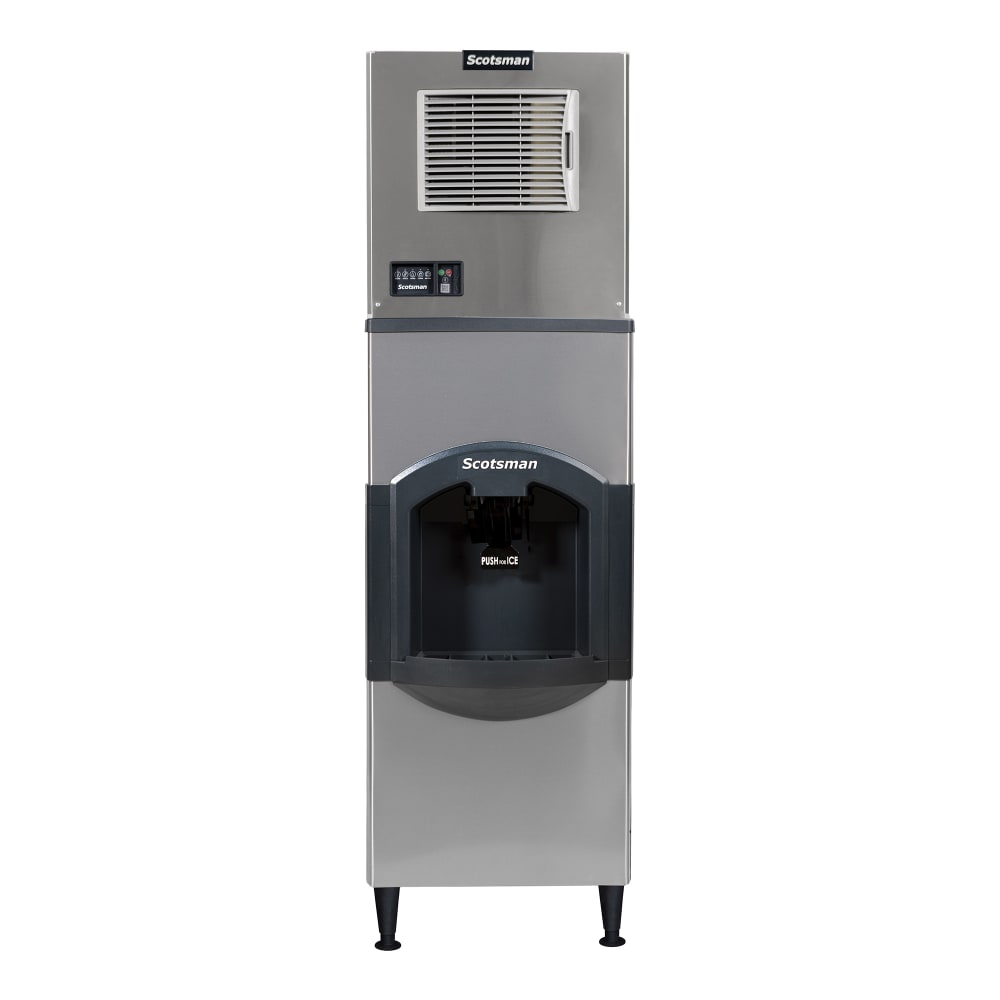

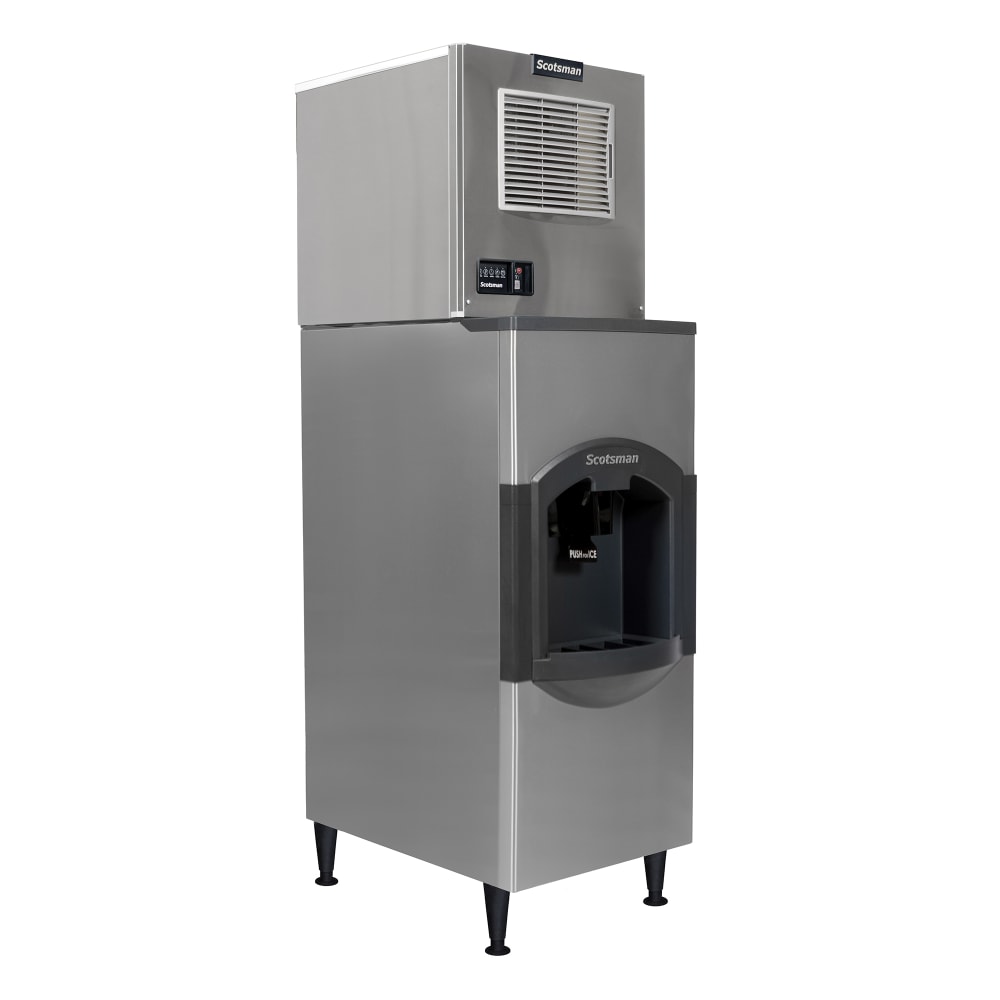

Scotsman MC0522MA-1/HD22B-1 475 lb Prodigy ELITE® Full Cube Ice Machine w/ Ice Dispenser - 120 lb Storage, Bucket Fill, 115v

Producing as much as 475 pounds in 24 hours, the Scotsman MC0522MA-1/HD22B-1 ice machine with dispenser produces full-size ice cubes that measure ⁷/₈ inch by ⁷/₈ inch by ⁷/₈ inch. This unit is part of the Prodigy ELITE® series. This type of ice melts slowly and works well in most beverages. With the module and indicator lights, operators can view diagnostic information and the ice maker's status. An antimicrobial agent and WaterSense purge control keep internal surfaces free of bacteria and scale buildup. Available to use with the ice maker, the ICELINQ® mobile app provides access to a step-by-step guided process, control options, and the machine dashboard, promoting efficient operation, thorough cleaning, and intuitive servicing. Harvest Assist technology efficiently moves ice from the machine head into the rust-resistant dispenser, which is actuated by a push mechanism.

Ice Maker Details

• 475-lb. ice production capacity
• 340-lb. AHRI-certified ice production capacity
• Full-cube ice size: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Connects to mobile app through bluetooth for diagnostics reports, guided cleaning, and settings adjustments
• Harvest Assist technology ensures ice drops into the dispenser
• Smart-Board™ module gives the operator diagnostic feedback

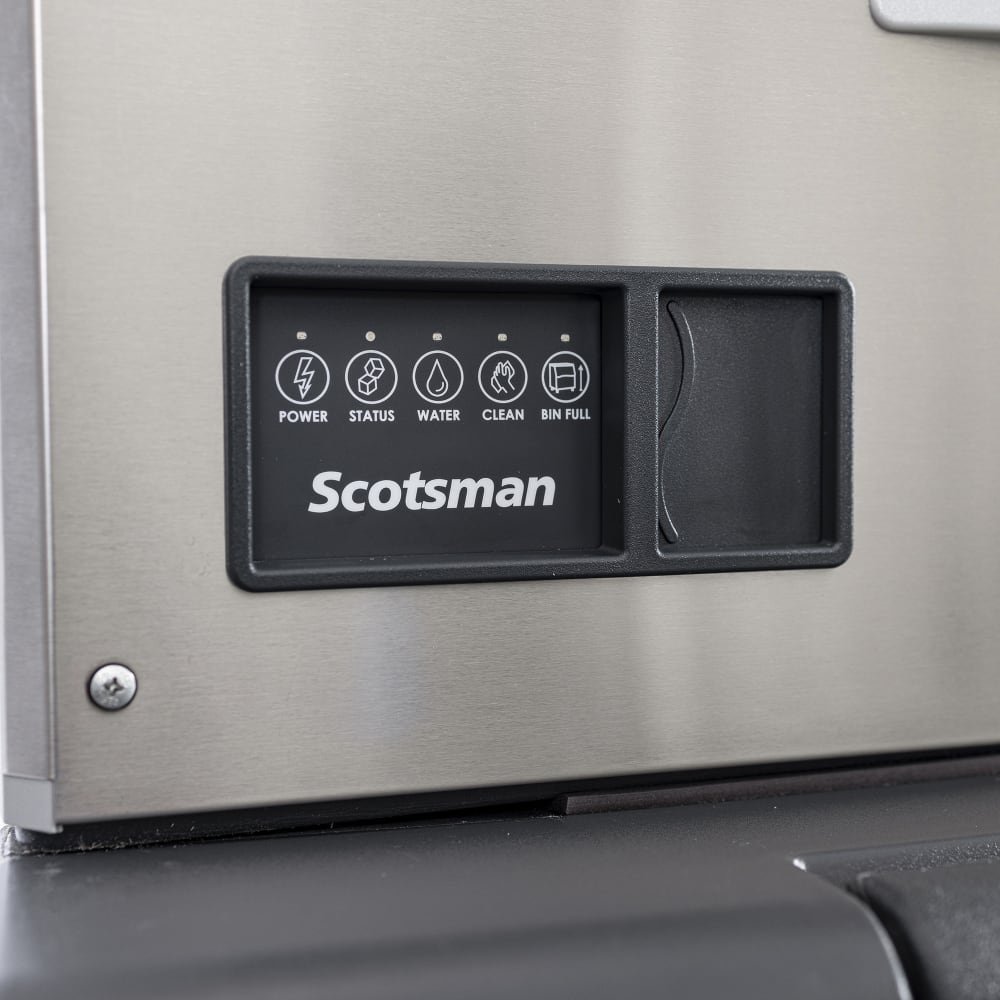

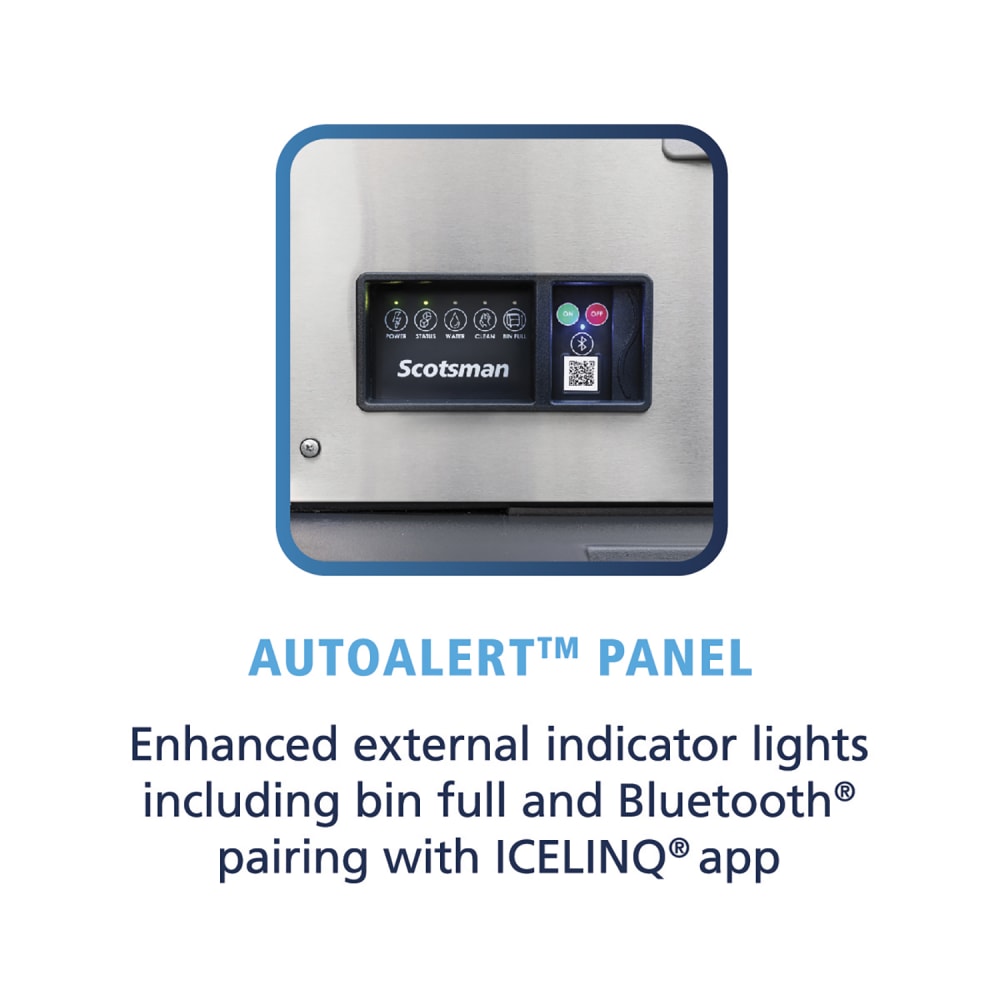

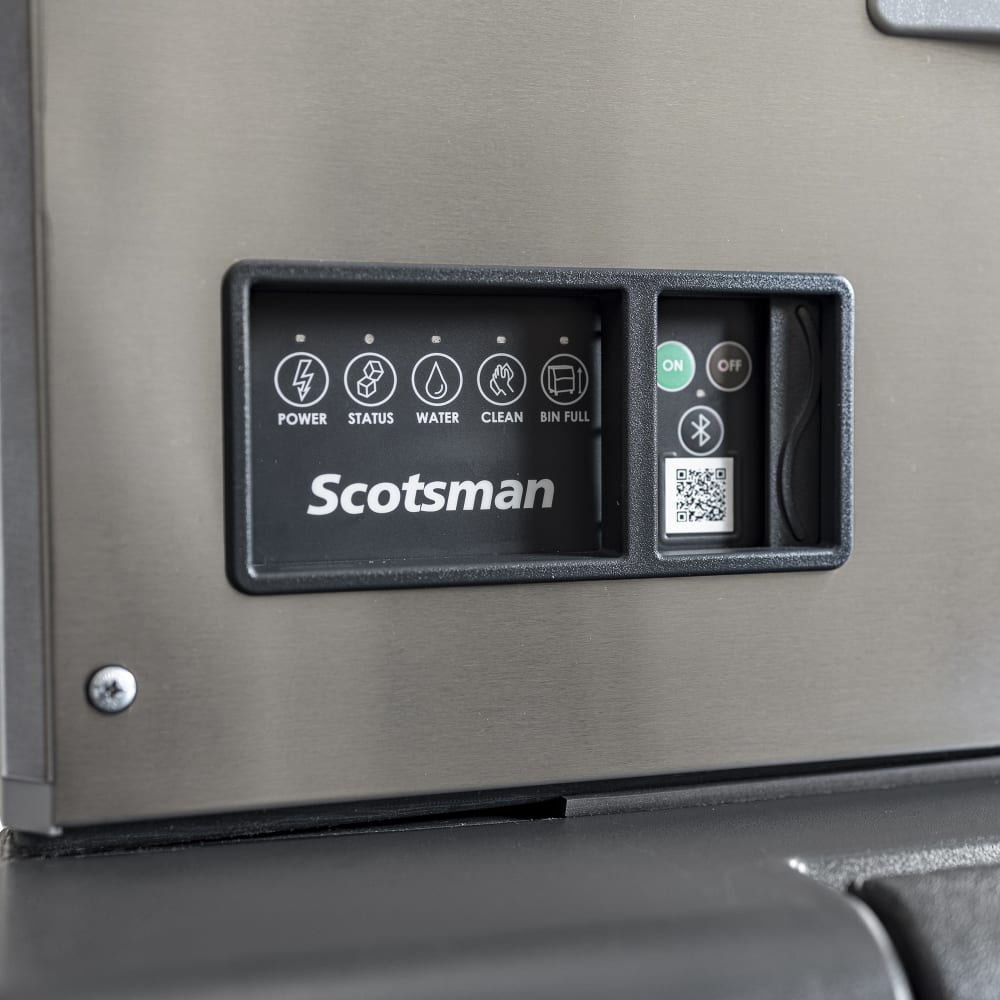

• AutoAlert™ indicator lights denote the operating status

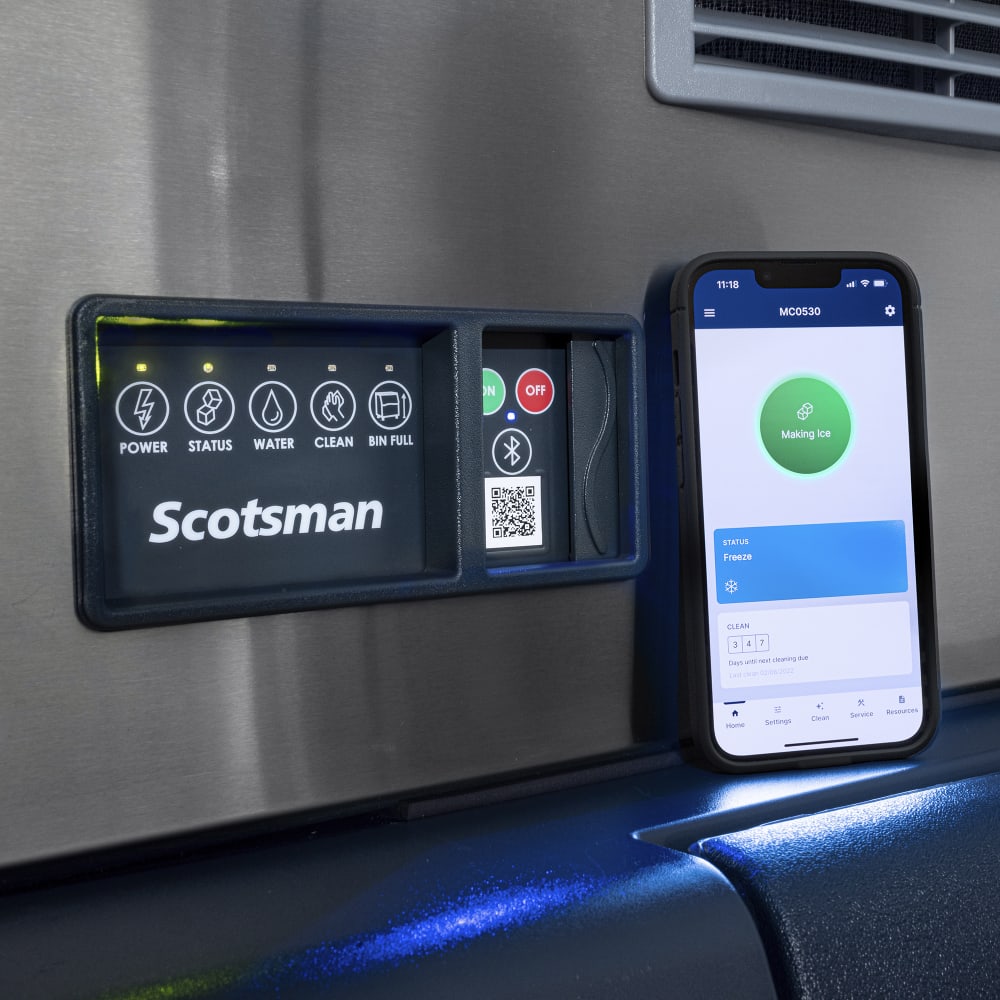

• Compatible with ICELINQ mobile application
• Scannable QR code provides service information and warranty history
• Removable, self-aligning front panel
• WaterSense purge control helps eliminate scale buildup
• Internal surfaces have antimicrobial protection to prevent bacteria growth
• 1-touch cleaning
• Air-cooled condenser

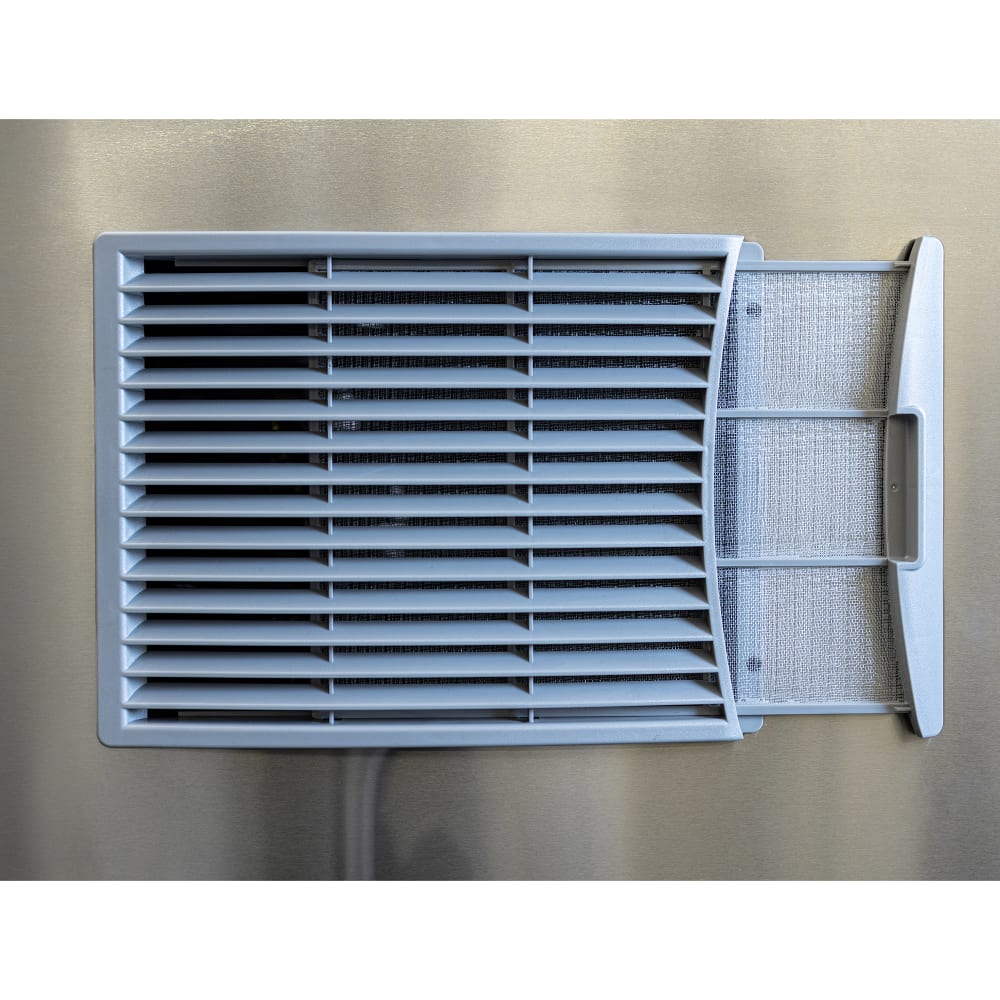

• Air filter is located on the front for flexibility in installation
• Uses R404A refrigerant
• 7,900 BTU
• Required ambient air temperature: 50-100 degrees F
• Required incoming water temperature: 40-100 degrees F
• Required incoming water pressure: 20-80 PSIG

Dispenser Details

• 120-lb. capacity
• Push actuation
• Dispensing area depth accommodates most hotel buckets
• Top panel is removable for cleaning without removing the ice machine head
• Metallic cabinet is resistant to corrosion

Product Features

Dimensions & Utilities

• Ice Maker
  • 22 in. W x 24 in. D x 23 in. H
  • 13.5 A, 5.94 kW
  • 115 V/60 Hz/1 ph
• Dispenser
  • 22 in. W x 33¹/₂ in. D x 53¹/₄ in. H
  • 115 V/60 Hz/1 ph, 11-ft. cord

*Free shipping on Scotsman MC0522MA-1/HD22B-1 within the 48 contiguous states.

From The Manufacturer

MC0522MA-1 Ice Maker: Prodigy ELITE® Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 475 lb/24 hours at 70°/50° (340 lb AHRI certified at 90°/70°), medium cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, front facing removable air filter, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 115v/60/1-ph, 13.5 amps, cULus, NSF, engineered and assembled in USA; HD22B-1 Ice Dispenser: iceValet® Hotel/Motel Ice Dispenser, floor model, push dispensing, 120 lb application capacity, designed for 22" wide top mount cube-type ice makers, ADA compliant dispensing area, polyurethane insulation, unit specific QR code, includes 6" legs, metallic finish, includes 11’ power cord with NEMA 5-15P plug, 115v/60/1-ph, 2.1 amps, NSF, cULus, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Scotsman MC0522MA-1/HD22B-1 Specifications

Spec Attribute	Spec Value
Manufacturer	Scotsman
24 Hr. Production (lb)	475
Amps	13.5, 2.1
Bin Capacity (lb)	120
Compressor Type	Air Cooled
Depth (in)	33.5
Dispenser Type	Push Button
Dispenses	Ice Only
Height (in)	76.25
Hertz	60
Ice Type	Full Cube
Installation Type	Freestanding
NEMA	5-15P
Operation	Self Contained
Phase	1
Product	Ice Dispensers
Product Type	Ice Makers & Bins
Rating	Best
Refrigerant	R404A
Series	Prodigy ELITE®/iceValet®
Serving Vessel	Bucket
Special Features	ICELINQ® Mobile App & Bluetooth® Connectivity
Voltage	115
Warranty	Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor
Width (in)	22
Weight	361.00
