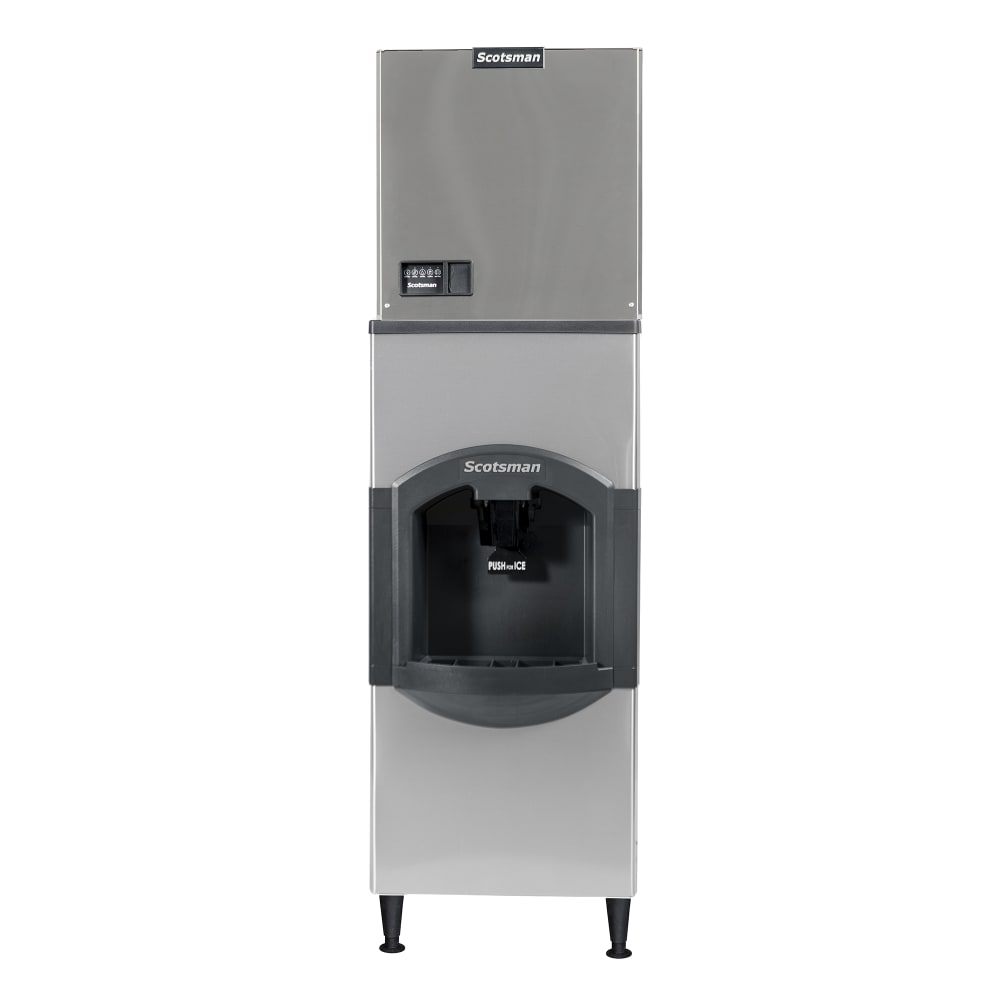

Scotsman MC0522SW-1/HD22B-1 480 lb Prodigy ELITE® Half Cube Ice Machine w/ Ice Dispenser - 120 lb Storage, Bucket Fill, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $19,724.00
$8,086.00 /Each
Selected Compressor Type: Water Cooled
Selected Ice Type: Half Cube
Scotsman MC0522SW-1/HD22B-1 Description
Being a water-cooled unit, the Scotsman MC0522SW-1/HD22B-1 ice maker with dispenser uses R-404A refrigerant. To ensure fresh and tasty ice, it uses WaterSense purge controls to remove any impurities. The unit cleans itself with the push of a button and is coated with AgION™ antimicrobial to slow the growth of bacteria. Helping employees verify its current status, the unit has AutoAlert™ indicating lights on the front panel. Operators can use the ICELINQ® mobile app to connect to the machine’s dashboard information and status, access harvest and purge controls, and use the interactive cleaning guide.
The Scotsman MC0522SW-1/HD22B-1 half-cube ice maker with dispenser holds 120 pounds of ice for use throughout the day. It dispenses with the push of a button through a chute into a bin, hotel pan, or directly into a glass. Insulated with polyurethane, it provides dependable storage to ensure ice doesn't melt. For maintenance purposes, the air filter is located on the front of the machine and the top of the dispenser is removable for access.
- Part of the Prodigy ELITE® series
- 480-lb. maximum daily ice production
- 409-lb. AHRI-certified daily ice production
- Makes small cube-style ice
- Cube size: 7⁄8 in. x 7⁄8 in. x 3⁄8 in.
- Water cooled
- ICELINQ mobile app compatible
- Connects to mobile app via bluetooth app for guided cleaning, diagnostic reports, and settings adjustments
- Resilient stainless steel finish
- AgION antimicrobial slows germ growth
- Components accessed on self-aligning front panel
- Front-accessed air filter

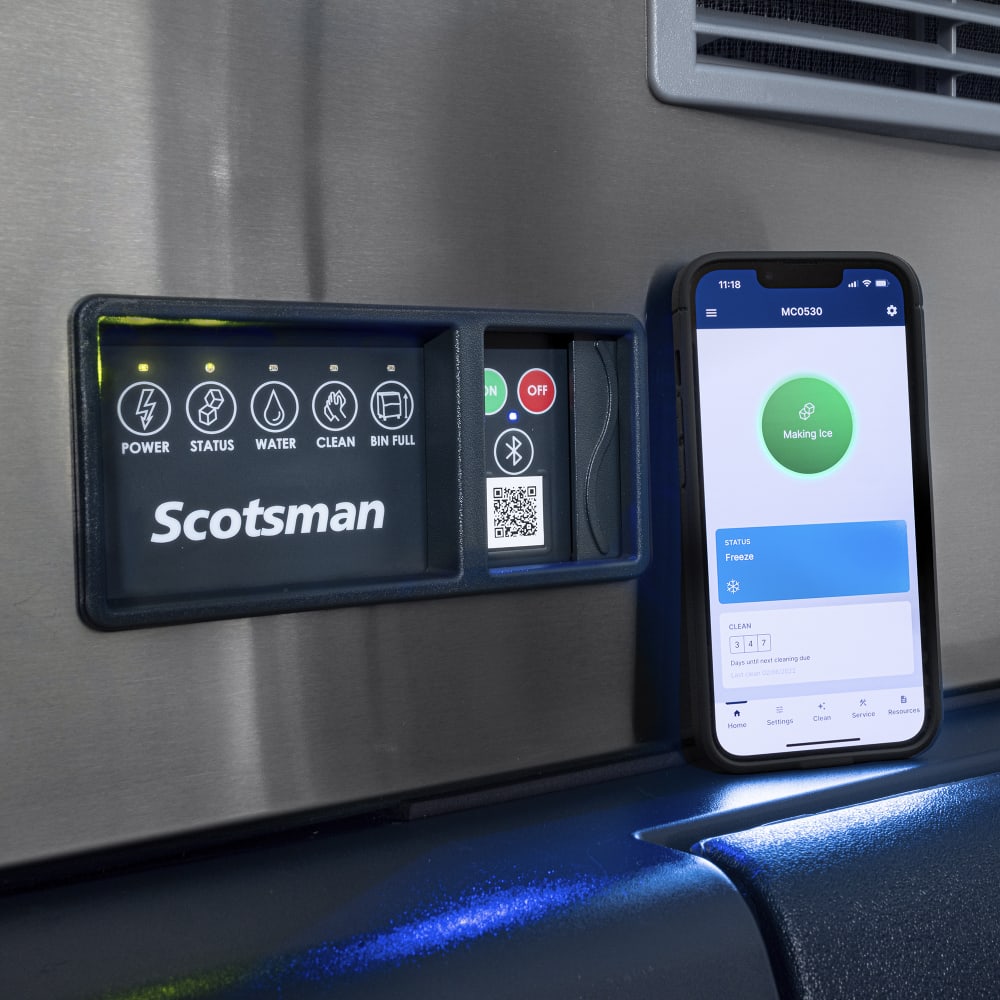

- AutoAlert indicating lights visibly show status
- WaterSense purge controls are adjustable
- 1-touch cleaning saves time
- Harvest assist ensures ice reaches the dispenser
- QR code displays service and warranty information
- R-404A refrigerant cools the unit
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- 7,900 BTU
- Part of the iceValet® series
- 120-lb. application capacity
- Dispenses from a chute with the push of a button
- Removable top panel provides access for cleaning
- Deep enough to accommodate hotel ice buckets
- Chill retained with polyurethane insulation
- QR code is scannable to show information
- Metallic finish
- 6-in. legs
- Ice machine: 22 in. W x 24 in. D x 23 in. H
- 11.9 A, 4.48 kW
- 115 V/60 Hz/1 ph
- Dispenser: 22 in. W x 33 1⁄2 in. D x 53 1⁄4 in. H
- 2.1 A
- 115 V/60 Hz/1 ph, 11-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman MC0522SW-1/HD22B-1 within the 48 contiguous states.
From The Manufacturer
MC0522SW-1 Ice Maker: Prodigy ELITE® Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 480 lb/24 hours at 70°/50° (409 lb AHRI certified at 90°/70°), small cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 115v/60/1-ph, 11.9 amps, cULus, NSF, engineered and assembled in USA HD22B-1 Ice Dispenser: iceValet® Hotel/Motel Ice Dispenser, floor model, push dispensing, 120 lb application capacity, designed for 22" wide top mount cube-type ice makers, ADA compliant dispensing area, polyurethane insulation, unit specific QR code, includes 6" legs, metallic finish, includes 11’ power cord with NEMA 5-15P plug, 115v/60/1-ph, 2.1 amps, NSF, cULus, engineered and assembled in USA
Watch a video about this product
Scotsman MC0522SW-1/HD22B-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 480 |
| Amps | 11.9, 2.1 |
| Bin Capacity (lb) | 120 |
| Compressor Type | Water Cooled |
| Depth (in) | 33.5 |
| Dispenser Type | Push Button |
| Dispenses | Ice Only |
| Height (in) | 76.25 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Installation Type | Freestanding |
| NEMA | 5-15P |
| Operation | Self Contained |
| Phase | 1 |
| Product | Ice Dispensers |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | Prodigy ELITE®/iceValet® |
| Serving Vessel | Bucket |
| Special Features | AgION™ Antimicrobial Protection |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 361.00 |
