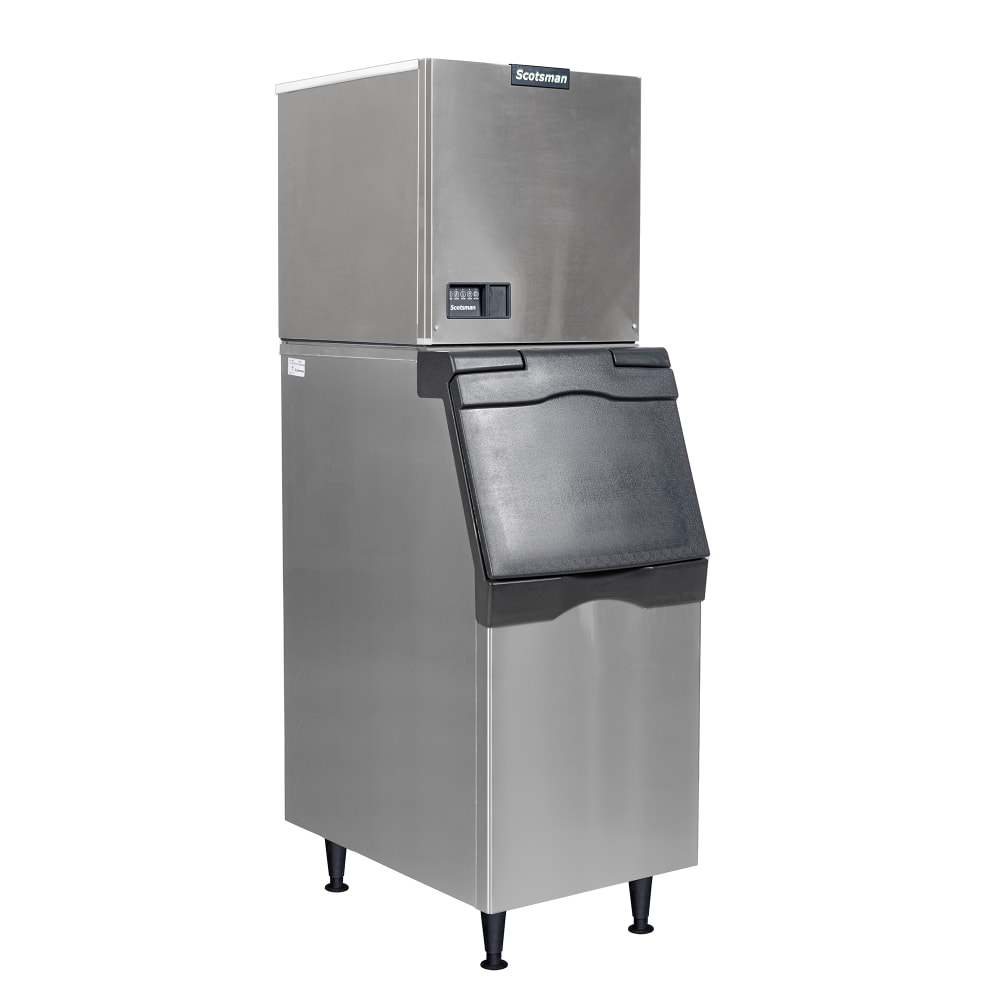

Scotsman MC0522MWX-1/B322S 510 lb Prodigy ELITE® Full Cube Ice Machine w/ Bin & Filter - 370 lb Storage, Water Cooled, 115v
Retail Price: $13,254.00
$5,433.00 /Each
Selected Compressor Type: Water Cooled
Selected Ice Type: Full Cube
Scotsman MC0522MWX-1/B322S Description
The Scotsman MC0522MWX-1/B322S/AP1-P ice maker with bin can produce 510 pounds daily, storing 370 pounds. This unit is part of the Prodigy ELITE® series. One-touch cleaning and antimicrobial technology help prevent bacteria growth, and WaterSense control eliminates scale. A module and the unit’s indicator lights provide diagnostic feedback, and a scannable QR code provides service information. Operators can download the Scotsman ICELINQ® mobile app to check the ice machine’s dashboard, adjust important settings, and walk through an intuitive step-by-step cleaning process.
Harvest Assist technology efficiently moves ice from the machine head to the bin. A spring-loaded door opens the bin smoothly, and its hidden hinges support cleanup. Since the Scotsman MC0522MWX-1/B322S/AP1-P ice maker with bin has a recessed drain fitting, it can be installed in many areas. A scoop and built-in holder are included. This unit comes with the AP1-P water filter.
- Part of the Prodigy ELITE series
- 510-lb. ice production capacity
- Connects to mobile app via bluetooth
- Mobile app enables diagnostics reports, guided cleaning, and settings adjustments
- Full-cube ice size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.

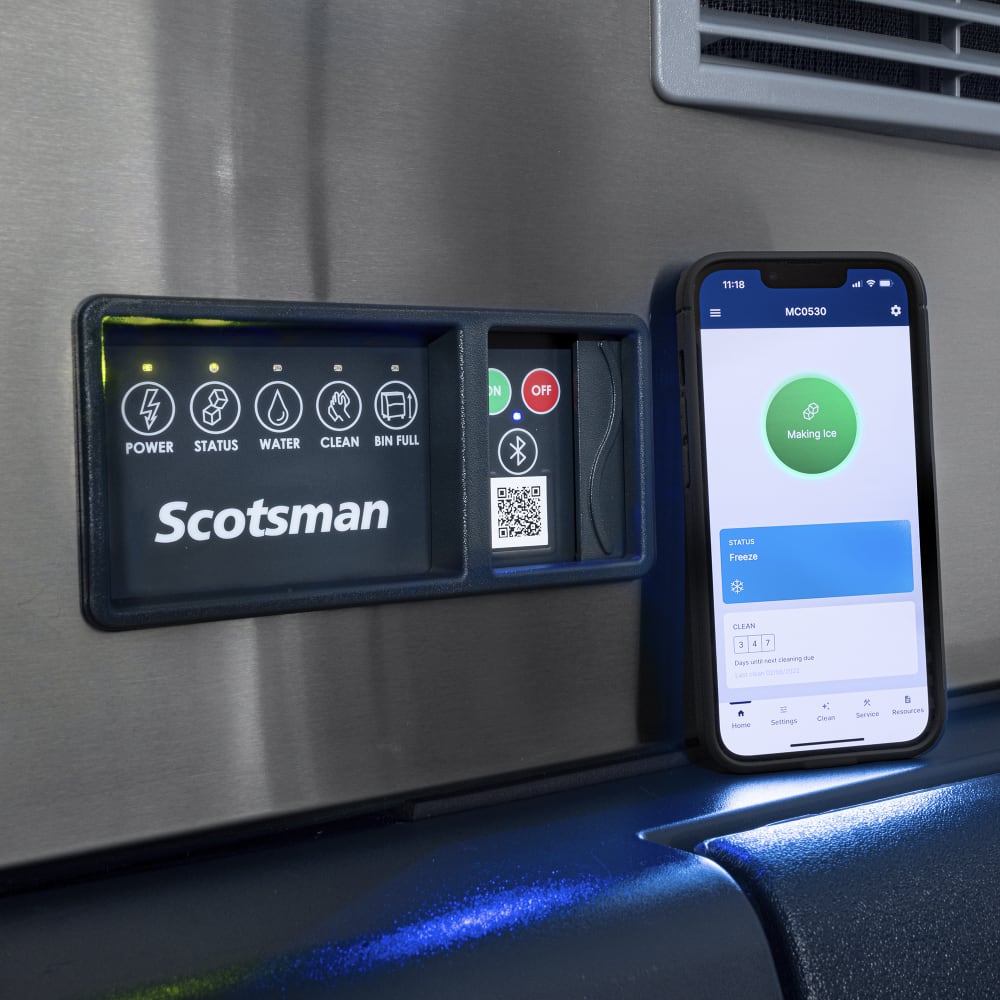

- AutoAlert™ indicator lights communicate information on the operating status
- Compatible with ICELINQ mobile application
- Smart-Board™ module for diagnostic feedback
- Scannable QR code provides immediate service information and warranty history
- Self-aligning front panel for internal component access
- Minimizes scale buildup with WaterSense purge control
- Antimicrobial protection prevents bacteria growth on internal surfaces
- Harvest Assist transfers ice to the bin
- 1-touch cleaning
- Water-cooled condensing unit
- Uses R290 refrigerant
- AP1-P water filter included
- 7,900 BTU
- Required ambient air temperature: 50-100 degrees F
- Required incoming water temperature: 40-100 degrees F
- Required incoming water pressure: 20-80 PSIG
- 370-lb. storage capacity
- Hidden hinges in the spring-loaded door cleanup quickly
- Removable baffle (no tools required)
- Recessed drain fitting provides flexibility during installation
- Scoop is included with a built-in holder
- Metallic exterior finish
- Ice Maker
- 22 in. W x 24 in. D x 23 in. H
- 11.9 A, 4.48 kW
- 115 V/60 Hz/1 ph
- Bin
- 22 1⁄2 in. W x 34 in. D x 50 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman MC0522MWX-1/B322S within the 48 contiguous states.
From The Manufacturer
Prodigy ELITE® Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 510 lb/24 hours at 70°/50° (352 lb AHRI certified at 90°/70°), medium cube size, ICELINQ® mobile app, Bluetooth® connectivIty, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, R290 refrigerant, 115v/60/1-ph, 11.9 amps, cULus, NSF
Ice Bin, top-hinged front-opening door, 370 lb application capacity, for top-mounted ice maker, 22" width, metallic finish exterior, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6" legs, NSF
AquaPatrol™ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF
Watch a video about this product
Scotsman MC0522MWX-1/B322S Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 510 |
| Access | Lift Up Door |
| Also Known As | MC0522MW-1/B322S |
| Bin Capacity (lb) | 370 |
| Compressor Type | Water Cooled |
| Depth (in) | 34 |
| Height (in) | 73 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Includes | AP1-P Filtration |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Prodigy ELITE® |
| Special Features | AgION™ Antimicrobial Protection |
| Special Features | Inline Water Filter Included |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 300.00 |
