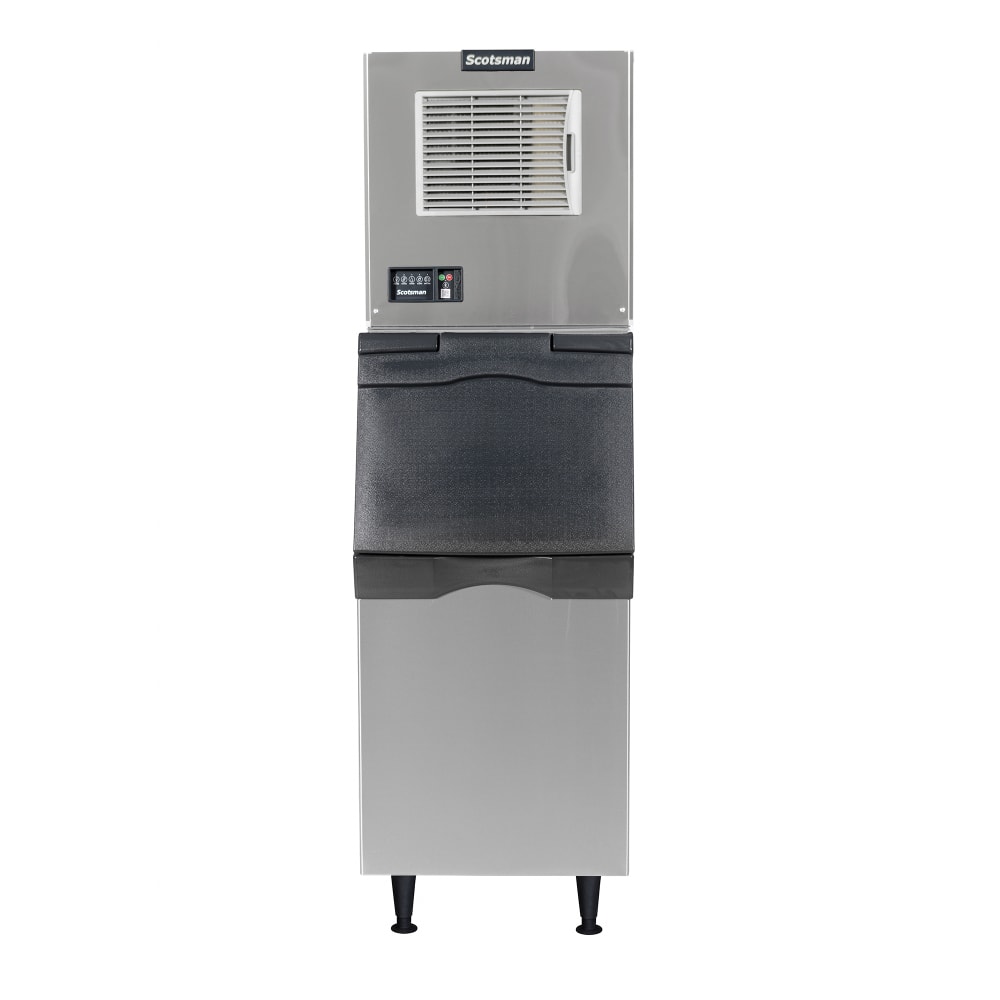

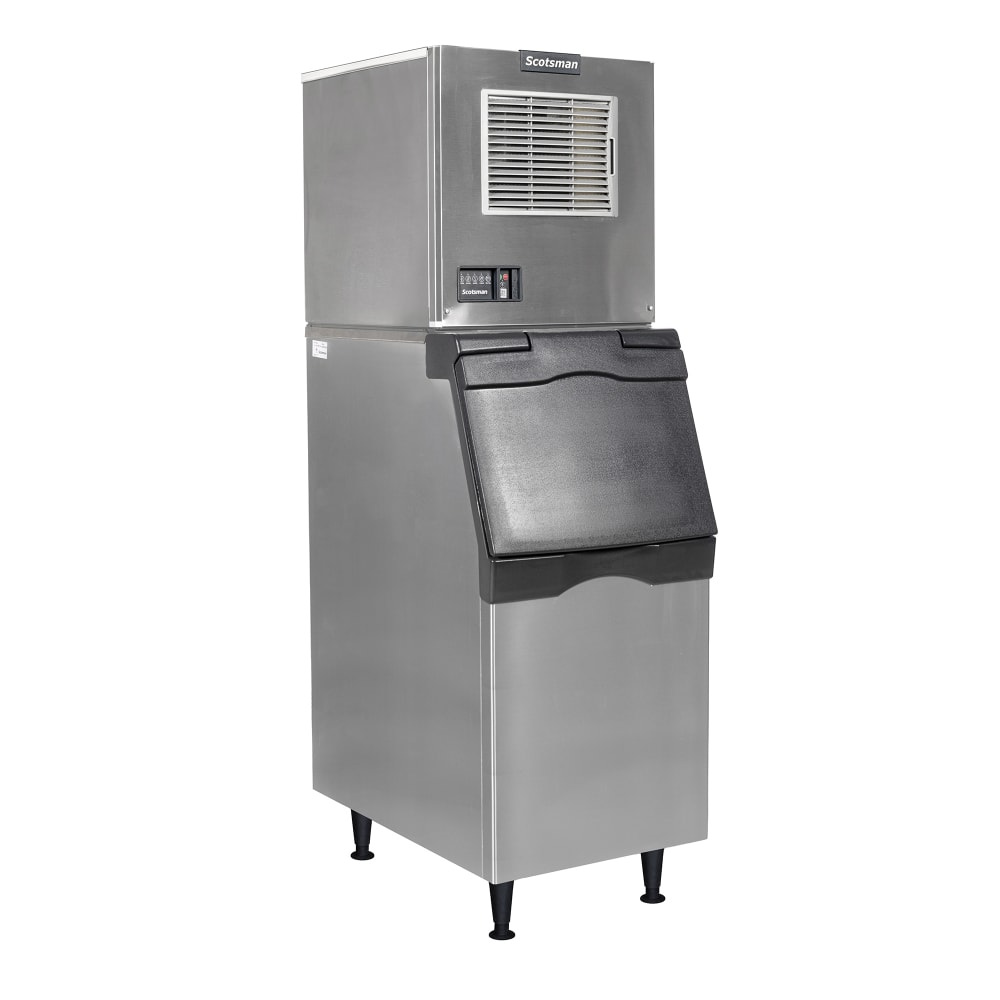

Scotsman C0522MA-1/B322S 475 lb Full Cube Ice Maker w/ Bin - 370 lb Storage, Air Cooled, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 044-C0522MA1B322S • MPN: C0522MA-1/B322S
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $8,345.00
$3,338.00 / Each

Image may not depict product color, inclusions or accessories.

Scotsman C0522MA-1/B322S Description

Scotsman

The Scotsman C0522MA-1/B322S ice machine with bin can make 475 pounds in 24 hours. It produces slow-melting cubes that measure 0.875 inch by 0.875 inch by 0.875 inch, perfect for chilling drinks. Internal surfaces are protected from bacteria by antimicrobial technology, and WaterSense control reduces scale buildup. Ice maker information is available through a scannable QR code, diagnostic module, and alert indicator lights. The Scotsman C0522MA-1/B322S ice machine with bin can hold 370 pounds and includes an ice scoop with a built-in holder.

Ice Maker Details

  • 475-lb. ice production capacity
  • 340-lb. AHRI-certified ice production capacity
  • Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
  • Harvest Assist moves ice to the bin using a probe
  • Diagnostic Smart-Board™ module

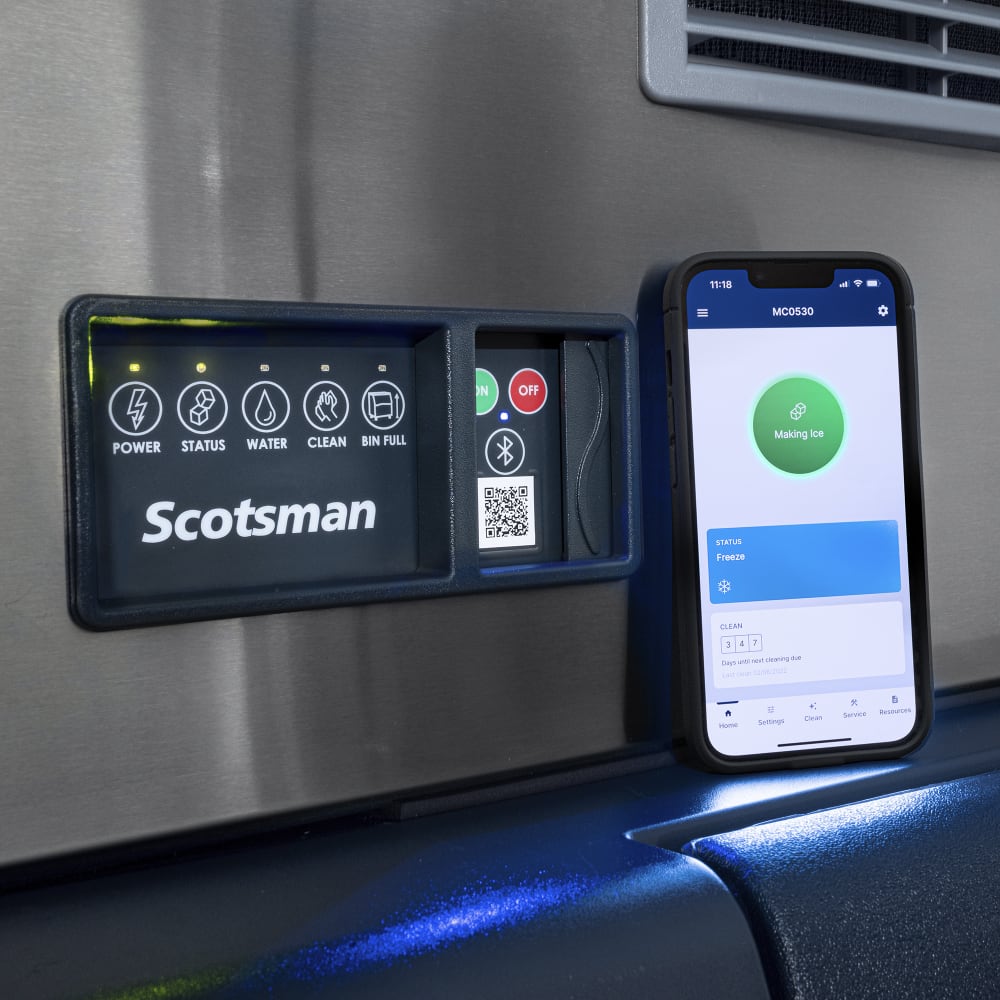

  • AutoAlert™ lights provide information on the operating status
  • QR code can be scanned for service and warranty
  • Removable, self-aligning front panel
  • WaterSense purge control helps reduce the buildup of scale
  • Antimicrobial agent slows bacteria growth on internal surfaces
  • 1-touch cleaning
  • Air-cooled condenser

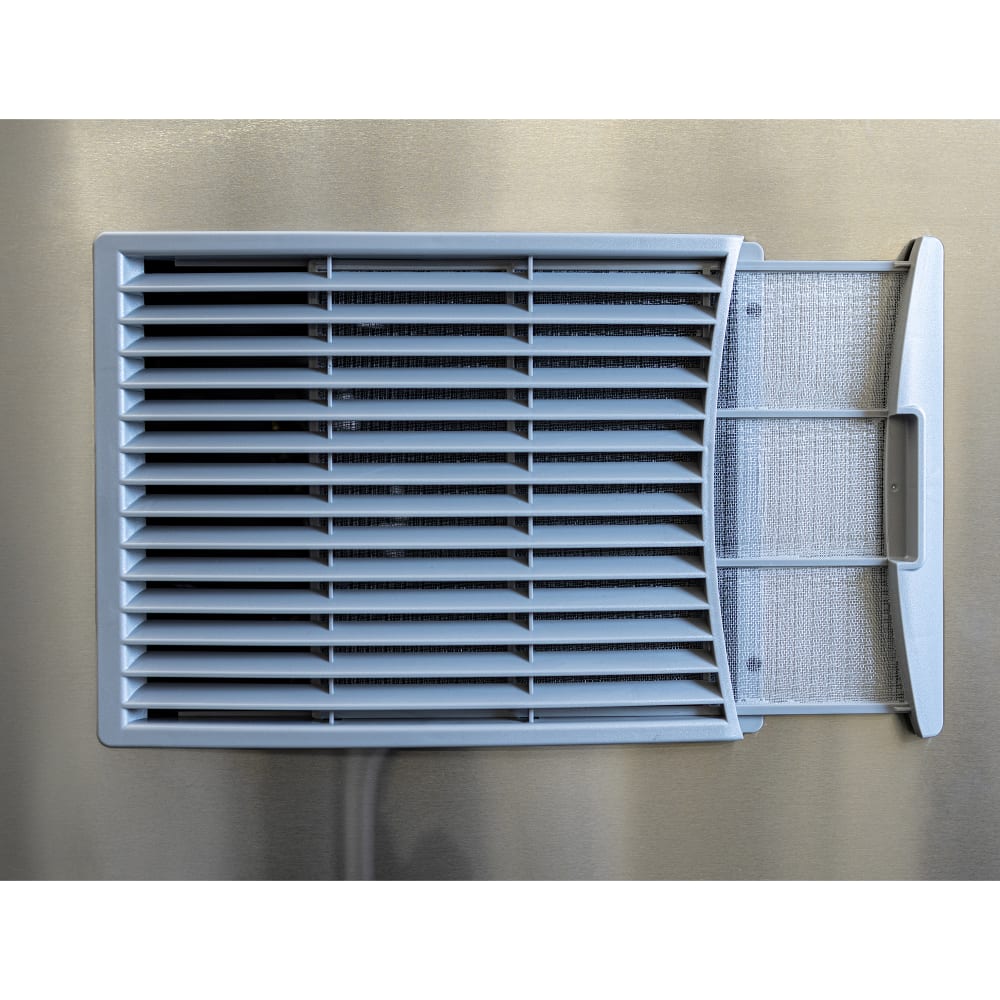

  • Front-located air filter enables placement against walls
  • Uses R404A refrigerant
  • 7,900 BTU
  • Required ambient air temperature: 50-100 degrees F
  • Required incoming water temperature: 40-100 degrees F
  • Required incoming water pressure: 20-80 PSIG
  • CE approved; cULus listed; AHRI, ISO 9001:2015, and NSF certified
  • Designed, engineered, and assembled in the U.S.

Bin Details

  • 370-lb. storage capacity
  • Quick-cleaning, hidden hinges in the spring-loaded door
  • Removable baffle (no tools required)
  • Recessed drain fitting increases flexibility for installation
  • Scoop is included
  • Built-in scoop holder
  • Metallic exterior finish
  • cULus listed; AHRI, ISO 9001:2015, and NSF certified
  • Designed, engineered, and assembled in the U.S.

Dimensions & Utilities

  • Ice Maker
    • 22.67 in. W x 25.15 in. D x 23 in. H
    • 13.5 A, 5.94 kW
    • 115 V/60 Hz/1 ph
  • Bin
    • 22.5 in. W x 34 in. D x 50 in. H

This resource on ice makers breaks down their features.

C0522MA-1 Ice Maker: Prodigy Plus® Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 475 lb/24 hours at 70°/50° (340 lb AHRI certified at 90°/70°), stainless steel finish, medium cube size, 115v/60/1-ph, 13.5 amps, cULus, NSF, CE; B322S Ice Bin: Ice Bin, top-hinged front-opening door, 370 lb application capacity, for top-mounted ice maker, polyethylene liner, metallic finish exterior, includes 6" legs, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Scotsman C0522MA-1/B322S Specifications

PDF Spec Sheet
Manufacturer Scotsman
Bin Capacity (lb) 370
Compressor Type Air Cooled
Depth (in) 34
Height (in) 73
Hertz 60
Ice Type Full Cube
Phase 1
Product Ice Maker with Bin
Production Range (lbs/day) 200-549 lb
Voltage 115
Width (in) 22
Width (in) Range 22 - 29
Warranty 3-year Parts & Labor; 5-year Evaporator, Compressor, & Condenser
Residential Warranty 1-year Parts & Labor
Series Prodigy Plus®
Product Type Ice Makers & Bins
Access Lift Up Door
24 Hr. Production (lbs) 475
Bin Capacity Range (lbs) 200 - 1229
Weight 300.00
Scotsman C0522MA-1/B322S Certifications
  • UL
  • NSF
