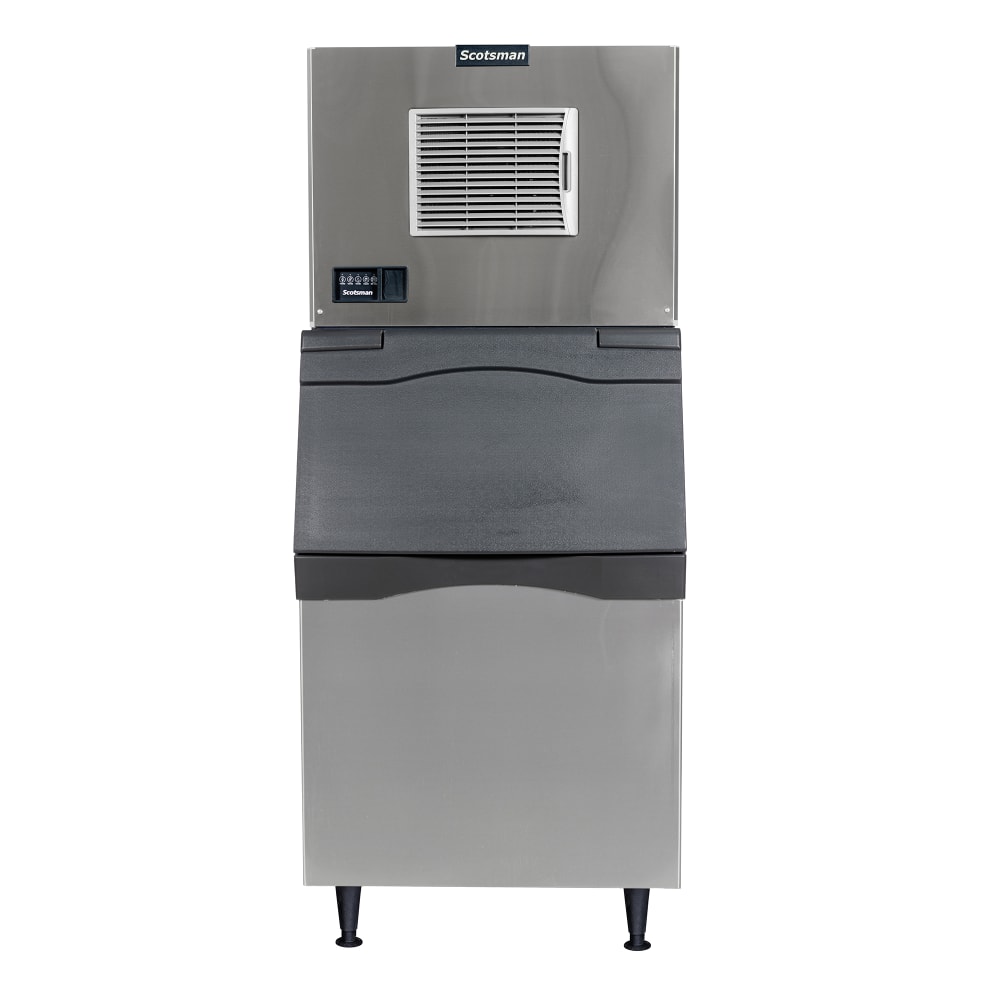

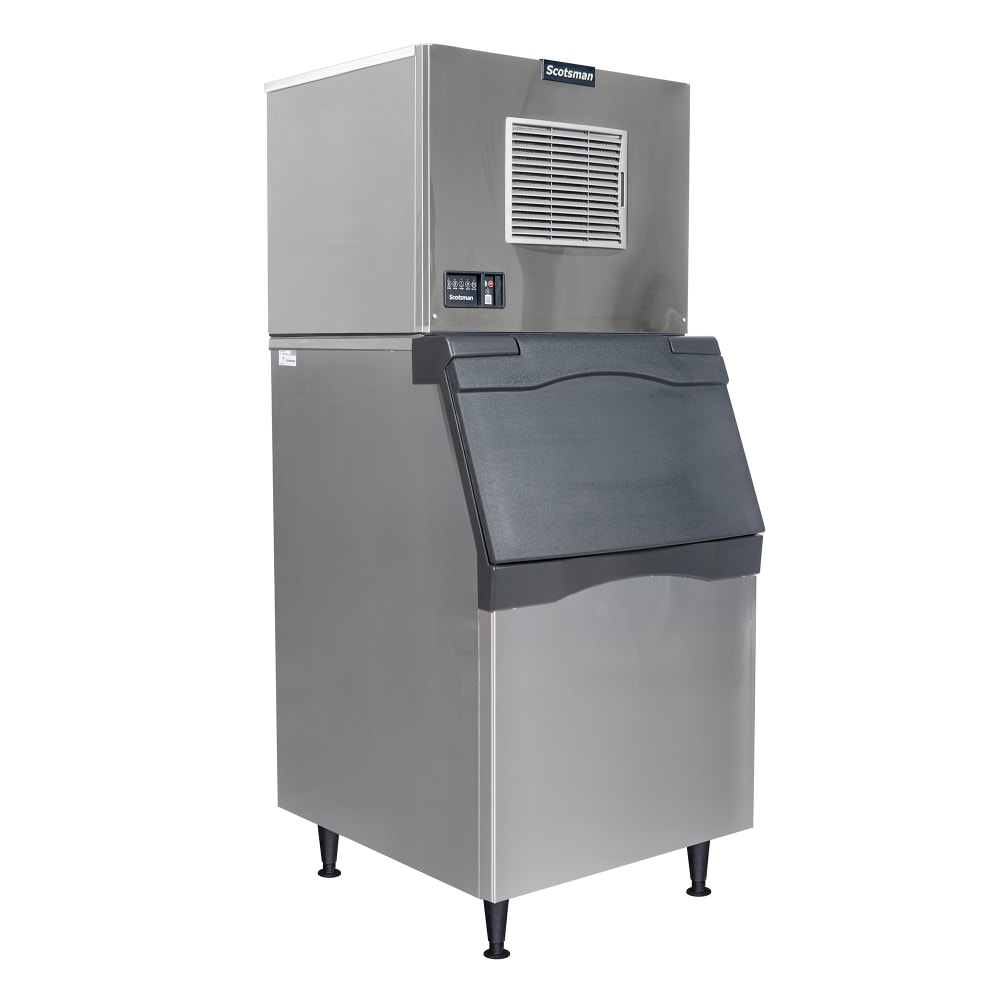

Scotsman MC0330MA-1/B530S 400 lb Prodigy ELITE® Full Cube Ice Machine w/ Bin - 536 lb Storage, Air Cooled, 115v

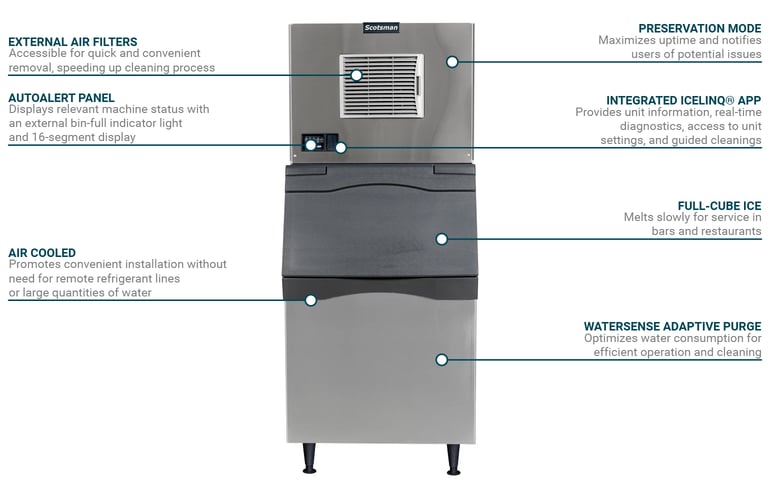

The Scotsman MC0330MA-1/B530S Prodigy ELITE® ice machine and bin has a stainless steel metallic finish. The ice bin can store 536 pounds of ice and has polyurethane foam between the wall and liner to preserve ice for long periods and provide structure. The polyethylene interior is sanitary and resists scratches. The baffle is removable for cleaning, and the recessed drain fitting enables flexible installation. The spring-loaded door has hidden hinges to make opening and closing simple and safe. An ice scoop is included, and a holder is built into the unit to keep the scoop out of the ice.

The Scotsman MC0330MA-1/B530S ice machine has an air-cooled, self-contained refrigeration system and a front-located air filter that provides better breathability than a filter located on the side or back. It can make 400 pounds of ice daily and has AutoAlert™ indicator lights that keep the user informed about the unit’s operating status. For intuitive control and convenient servicing, users can download the mobile app to walk through step-by-step cleaning procedures, update machine settings, and access the dashboard. The Harvest Assist feature guides ice into the bin with a probe and a small amount of hot gas. To decrease scale buildup, the WaterSense feature monitors and adjusts the quality of the incoming water. To simplify cleaning, the sanitizing process runs with the push of a button and eliminates the need for constant monitoring and servicing. An antimicrobial is built into the unit to protect it between cleanings.

Product Details

• Part of the Prodigy ELITE series
• Air-cooled, self-contained refrigeration system
• 400-lb. daily ice production
• 288-lb. AHRI-certified daily ice production
• Compatible with ICELINQ® mobile application

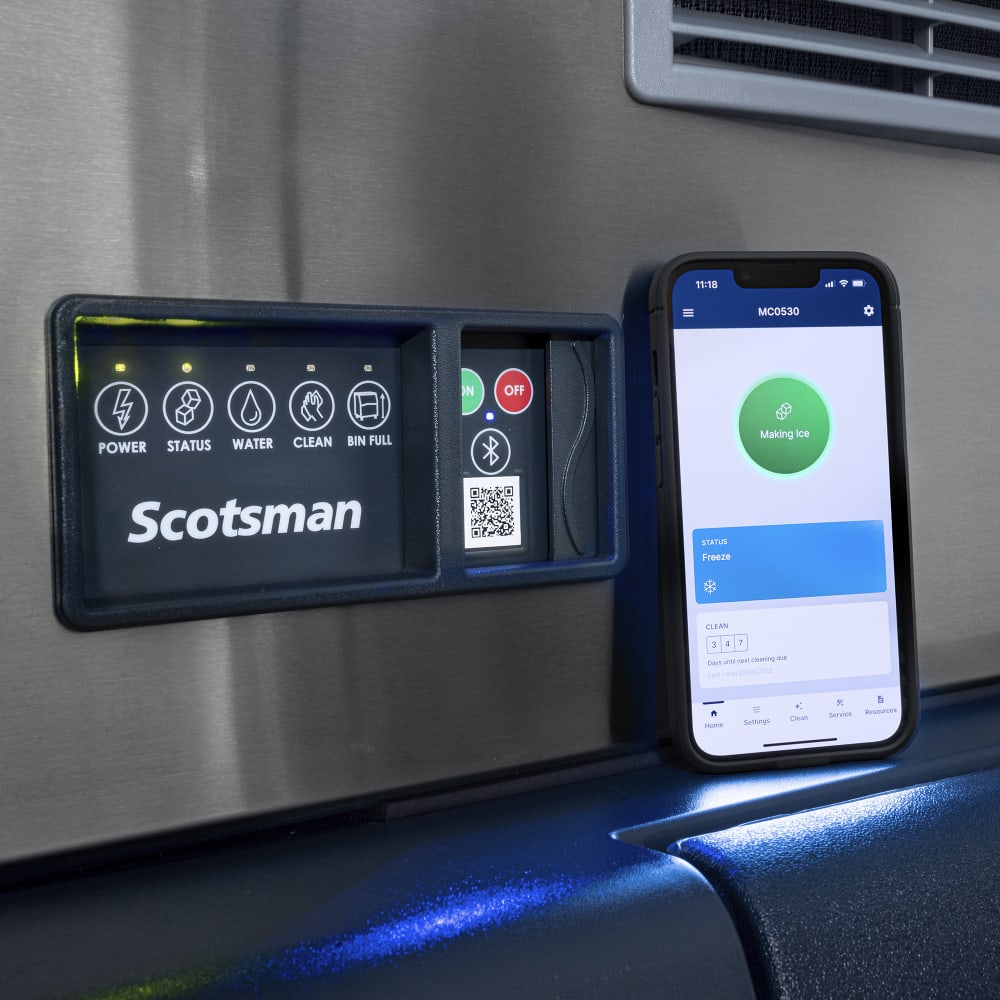

• Connects to mobile app via bluetooth to monitor settings and view diagnostics reports
• Antimicrobial guards unit between cleanings
• Harvest Assist guides ice into the bin with a probe and hot gas
• WaterSense technology decreases scale buildup by adjusting water quality
• Front panel can be quickly and effortlessly removed for access to internal components
• Air filter is located on the front to provide better breathability than filters located on the side or back
• 1-touch cleaning removes the need for constant monitoring and servicing
• QR code gives the user access to technical service and warranty information
• AutoAlert lights keep user informed about the unit’s operating status
• Uses R404A refrigerant
• Required ambient air temperature: 50-100 degrees F
• Required ambient water temperature: 40-100 degrees F
• Required incoming water pressure: 20-80 PSI
• 5,200 BTU
• 15 A
• 115 V/60 Hz/1 ph
• Ice cube dimensions: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Ice head dimensions: 30 in. W x 24 in. D x 23 in. H

Bin Details

• 536-lb. storage capacity
• Polyurethane insulation foamed between wall and liner for structure
• Polyethylene interior is sanitary and resists scratches
• Corrosion-resistant metallic finish
• Baffle is removable for cleaning
• Recessed drain fitting enables flexible installation
• Spring-loaded door with hidden hinges makes opening and closing simple
• Ice scoop included
• Built-in holder keep scoop out of ice
• Bin dimensions: 30 in. W x 34 in. D x 50 in. H

Product Features

*Free shipping on Scotsman MC0330MA-1/B530S within the 48 contiguous states.

From The Manufacturer

Prodigy ELITE® Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 400 lb/24 hours at 70°/50° (288 lb AHRI certified at 90°/70°), medium cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, front facing removable air filter, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 115v/60/1-ph, 14.3 amps, cULus, NSF, engineered and assembled in USA

Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, 30" width, metallic finish exterior, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6" legs, NSF, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor

Scotsman MC0330MA-1/B530S Specifications

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Brochure

Catalog
