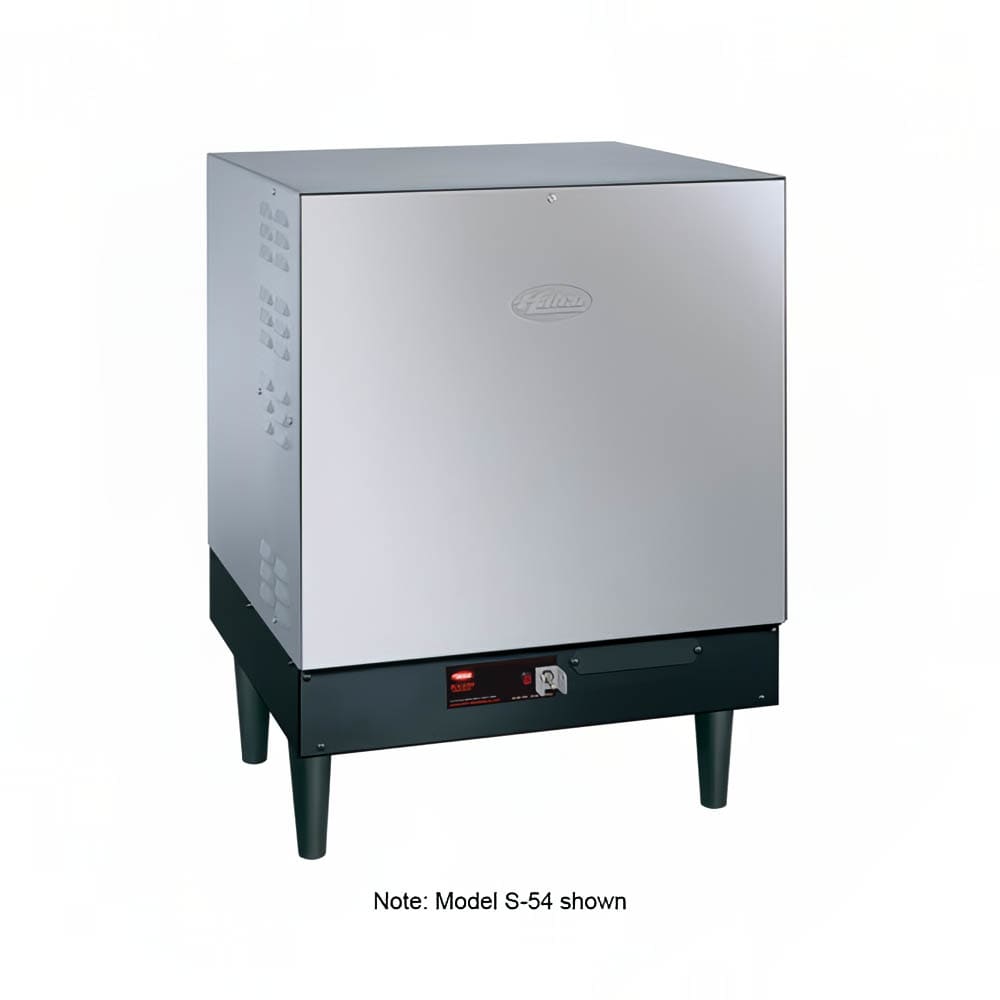

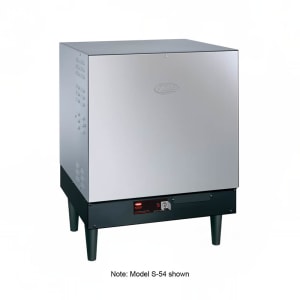

Hatco S-7 Imperial Booster Water Heater, 16 Gallon, 7 kW, 208v/3ph

Featuring a Castone®-lined tank, the Hatco S-7 Imperial booster water heater resists interior corrosion and mineral deposits. This tank has fiberglass insulation—as well as a heat trap—to keep water hot and reduce the need to heat the machine constantly. Factory pre-plumbing and pre-wiring prepare the heater for installation, relieving the user of some setup burden. For durability, the body has a hammertone finish and a stainless steel front.

The water temperature required for killing bacteria in a commercial dishwasher is 180 degrees Fahrenheit and the Hatco S-7 booster heater is equipped to provide that. Each hour, its recovery rate is 70 gallons at a 40-degree-Fahrenheit rise and 40 gallons at a 70-degree-Fahrenheit rise. This fast rate suits kitchens that have steady volumes of dirty dishes.

Product Details

• Maximum 70 GPH recovery at 40-degree-F rise
• Maximum 40 GPH recovery at 70-degree-F rise
• Heat trap and fiberglass insulation sustain tank temperature
• Low-water cut-off powers down elements when tank water levels drop
• Calibrated immersion thermostat
• Castone-lined tank is strong against corrosion
• Factory pre-plumbing and pre-wiring take steps out of setup
• Stainless steel front panel and powder-coated hammertone body finish
• Components can be quickly accessed through front
• 16-gal. capacity

Dimensions & Utilities

• 28⁵³/₁₀₀ in. W x 22³/₄ in. D x 31³/₁₀₀ in. H
• 29 A, 7 kW
• 208 V/60 Hz/3 ph

*Free shipping on Hatco S-7 within the 48 contiguous states.

From The Manufacturer

Imperial Booster Heater, Electric, 16-gallon storage capacity, 7-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, custom fittings, Castone tank, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 10-year Tank Parts
