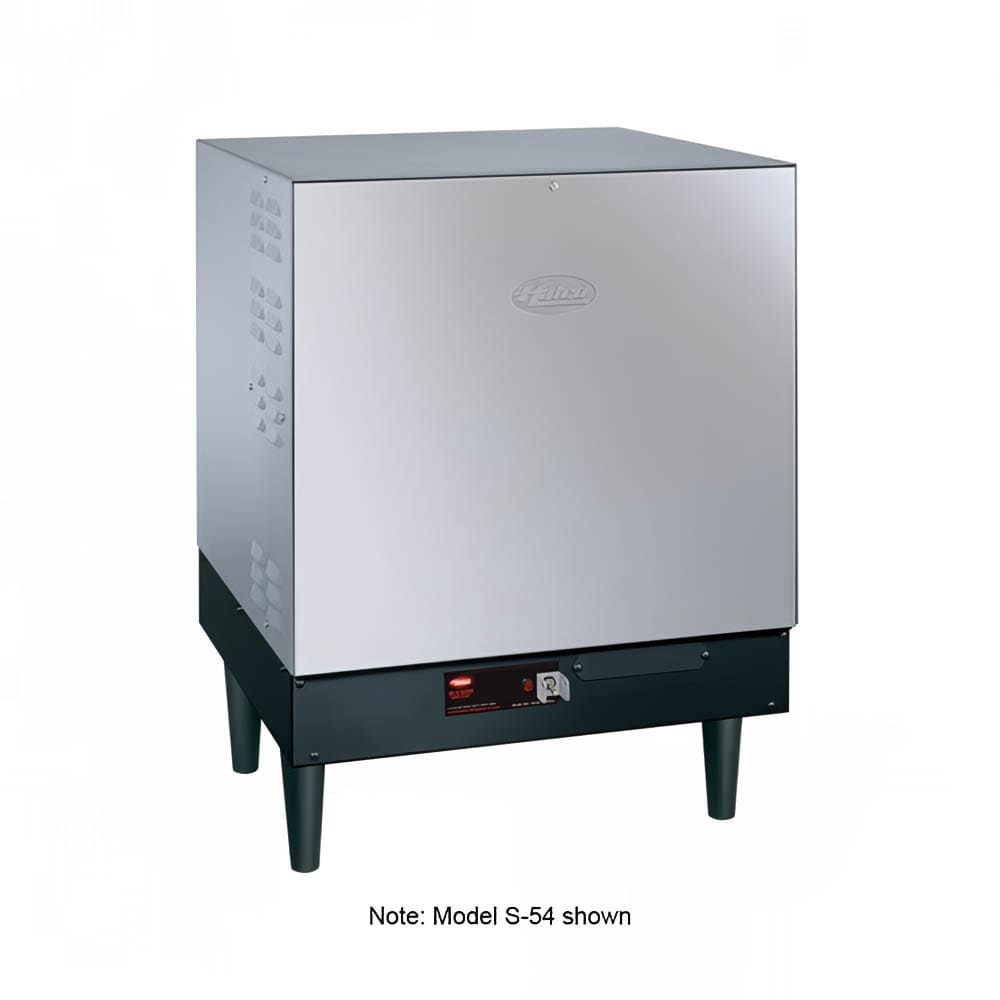

Hatco S-17 Imperial Booster Water Heater, 16 Gallon, 17 1/4 kW, 208v/3ph
Estimated Backorder Until 4/21/2025
Retail Price: $6,621.00
$3,641.55 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Hatco S-17 Description
Built for commercial use, the Hatco S-17 Imperial water heater has a hammertone exterior finish and a Castone®-lined tank. Both offer corrosion protection, preventing the constant running water from damaging the unit. Other safeguards include a low-water cut-off and high-temperature limit switch, which prevent the elements from burning out or overheating the electronics. This heater also features a temperature/pressure relief valve and pressure reduction valve, which keep those values at safe levels for operation.
This Hatco S-17 water booster heater is designed to raise a water supply to the hot, sanitizing temperature of 180 degrees Fahrenheit. At this temperature, bacteria begins to die off, making the water ideal for the final rinse cycle of a high-temperature dishmachine. For low-temperature machines, this unit also features a 140-degree-Fahrenheit setting. The heater is operated with a front-located on/off switch, and to change the temperature setting, users can conveniently reach through the front cover and turn the thermostat screw.
Product Details
- Part of the Imperial series
- Maximum 173 GPH at 40-degree-F rise
- Maximum 99 GPH at 70-degree-F rise
- Powder-coated hammertone finish adds durability
- Stainless steel front cover provides service access
- 2 temperature pressure gauges
- Temperature/pressure relief valve
- Pressure reduction valve
- Power switch
- Pilot indicator light
- Adjustable thermostat can be set to 180 degrees F or 140 degrees F
- Metal-sheathed elements
- Elements automatically deactivate if water level is too low or temperature is too high
- 16-gal. water tank lined in scale-resistant Castone
- Fiberglass layer around tank for insulation
- Pre-wired and pre-plumbed
Dimensions & Utilities
- 2853/100 in. W x 223/4 in. D x 313/100 in. H
- 47.9 A, 17.25 kW
- 208 V/60 Hz/3 ph
*Free shipping on Hatco S-17 within the 48 contiguous states.
From The Manufacturer
Imperial Booster Heater, Electric, 16-gallon storage capacity, 17.25 kW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 208v/60/3ph
*Image may not depict product color, inclusions or accessories.
Hatco S-17 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 173 |
| 70F Recovery (gph) | 99 |
| Amps | 47.9 |
| Capacity (gallons) | 16 |
| Heat | Electric |
| Hertz | 60 |
| kW | 17.25 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Series | Imperial |
| Usage Level | Heavy Duty |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 11 - 20 |
| Width (in) | 23.5 |
| Weight | 200.00 |
