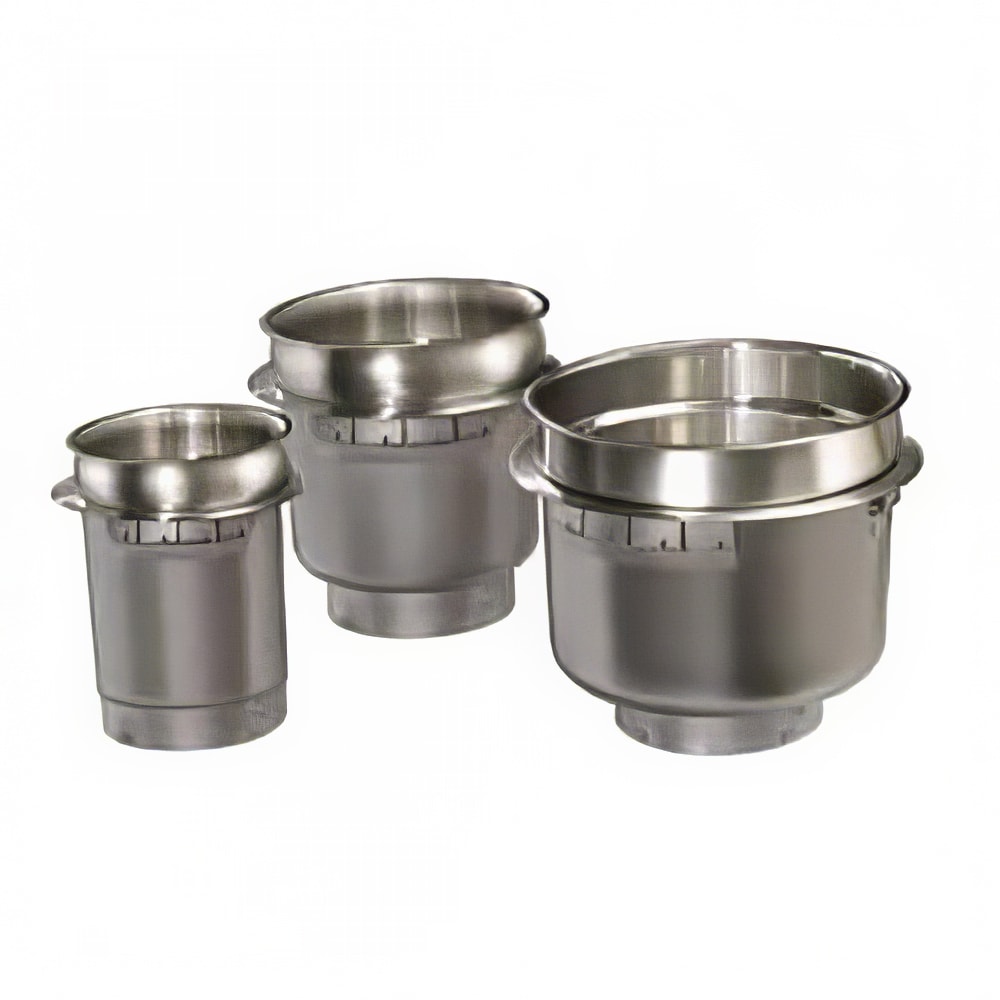

Hatco HWBRT-7QTD 7 qt Drop In Soup Warmer w/ Thermostatic Controls, 208v/1ph
Retail Price: $933.00
$513.15 /Each
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 120V, 1 Phase |
| 240V, 1 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Hatco HWBRT-7QTD Description
The Hatco HWBRT-7QTD heated well is a drop-in, top-mounted unit that can be installed in a countertop cutout between 9 1⁄8 and 9 9⁄16 inches in diameter for seamless presentation on back-of-house steam tables. EZ locking hardware is included to simplify installation, and its control panel is attached to 36-inch-long leads for remote installation. Neither the control box nor the conduit are enclosed, so they can be easily accessed for maintenance. The well's aluminized and stainless steel construction resists corrosion, dents, warps, and bends and can simply be wiped clean.
This Hatco HWBRT-7QTD soup warmer can hold 7 quarts of sauce, broth, or soup at safe serving temperatures for extended periods. Users can preset and adjust temperatures with the thermostatic control as menus change, and to minimize temperature fluctuations, the thermostat monitors actual product temperatures, raising or reducing heat if needed. An on/off rocker switch glows when the unit is in use to notify operators. After wet operation, remaining water can be removed through the 3⁄4-inch drain.
- 7-qt. capacity
- Fabricator component only
- Drop-in, top-mount unit
- Can be installed in a noncombustible countertop cutout from 9 1⁄8 to 9 9⁄16 in. diameter
- Fits a square combustible countertop cutout measuring from 11 in. x 11 in. to 11 1⁄4 in. x 11 1⁄4 in. (accessory mounting kit not included)
- EZ locking hardware
- Stainless and aluminized steel housing
- Uninsulated
- Drain
- Metal-sheathed heating element
- Thermostatic control
- Lighted power rocker switch
- 36-in.-long lead cords for remote installation
- Control box can be installed in a 2 1⁄8-in.-wide x 3 3⁄8-in.-high cutout
- No conduit or control box enclosure for maintenance access
- Thermostatic control: 2 3⁄4 in. W x 4 in. H
- Overall: 10 5⁄16 in. dia. x 9 3⁄5 in. H
- 2.6 A, 536 W
- 208 V/60 Hz/1 ph
- 3⁄4-in. NPT
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco HWBRT-7QTD within the 48 contiguous states.
From The Manufacturer
(Fabricator component only) Drop-In Heated Well, with drain, round, non-insulated, top mounted, 7 quart, thermostatic controls with lit rocker switch & leads, stainless steel construction (standard watt), cURus, 208v/60/1ph
Hatco HWBRT-7QTD Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| Capacity (qt) | 7 |
| Controls | Thermostatic |
| Diameter (in) | 10.31 |
| Height (in) | 9.6 |
| Hertz | 60 |
| Installation Type | Drop In |
| Lid Type | None |
| Number of Insets | 1 |
| Operation | Wet |
| Phase | 1 |
| Product | Soup Warmers |
| Product Type | Food Bars & Buffets |
| Special Features | With Drain |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor; 2-year Element Parts |
| Weight | 10.00 |
