Delfield N8643P Drop-In Hot/Cold Food Well w/ (3) Full Size Pan Capacity, 120-240v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
Delfield N8643P Description
Great for buffets that rotate dishes, the Delfield N8643P drop-in food well can operate hot or cold depending on necessity. For hot operation, users can raise the pan rest so foods are closer to the elements in the sides, and for cold, they can lower the pan rest, nestling pans deep within the cold wells. The controls are simple to use with a hot/cold/off switch and, because they are in a remote box, they can be placed in an accessible area.
With a stainless steel top and liner, this Delfield N8643P drop-in hot and cold food well resists scarring, denting, and corroding. It is also quick to clean, so any dribbles or spills on the top can be wiped off. At closing, moisture can be released out the drain, where the drain screen strains contents, preventing the line from clogging.
Product Details
- Holds (3) 6-in.-deep, full-size pans at once
- Remote-mounted, electronic control panel
- 3-way temperature switch with cold, hot, and off options
- Stainless steel immersion heaters with a high-limit safety switch
- Self-contained refrigeration uses R290 hydrocarbon refrigerant
- Pan rest can be lowered for recessed cooling or raised for flush-mount heating
- Stainless steel top and liners resist scratching and rusting
- Galvanized steel housing is insulated with polyurethane foam
- 1-in. drain and a drain screen
- Recommended counter cutout: 421/2 in. x 25 in.
- 923-BTU heat transfer capacity
Dimensions & Utilities
- 431/2 in. W x 26 in. D x 266/25 in. H
- 21 A, 1⁄5 HP
- 120-240 V/60 Hz/1 ph
From The Manufacturer
Drop-In Hot/Cold Food Well, 43-1/2", 3-pan size for 12" x 20" pans, 8" deep single tank with drain, remote control panel with single temperature control & three-way toggle switch, stainless steel top & well, galvanized steel exterior housing, self-contained refrigeration, R290 refrigerant, 1/5 HP, (42-1/2" x 25" cutout required), cUL, UL, NSF

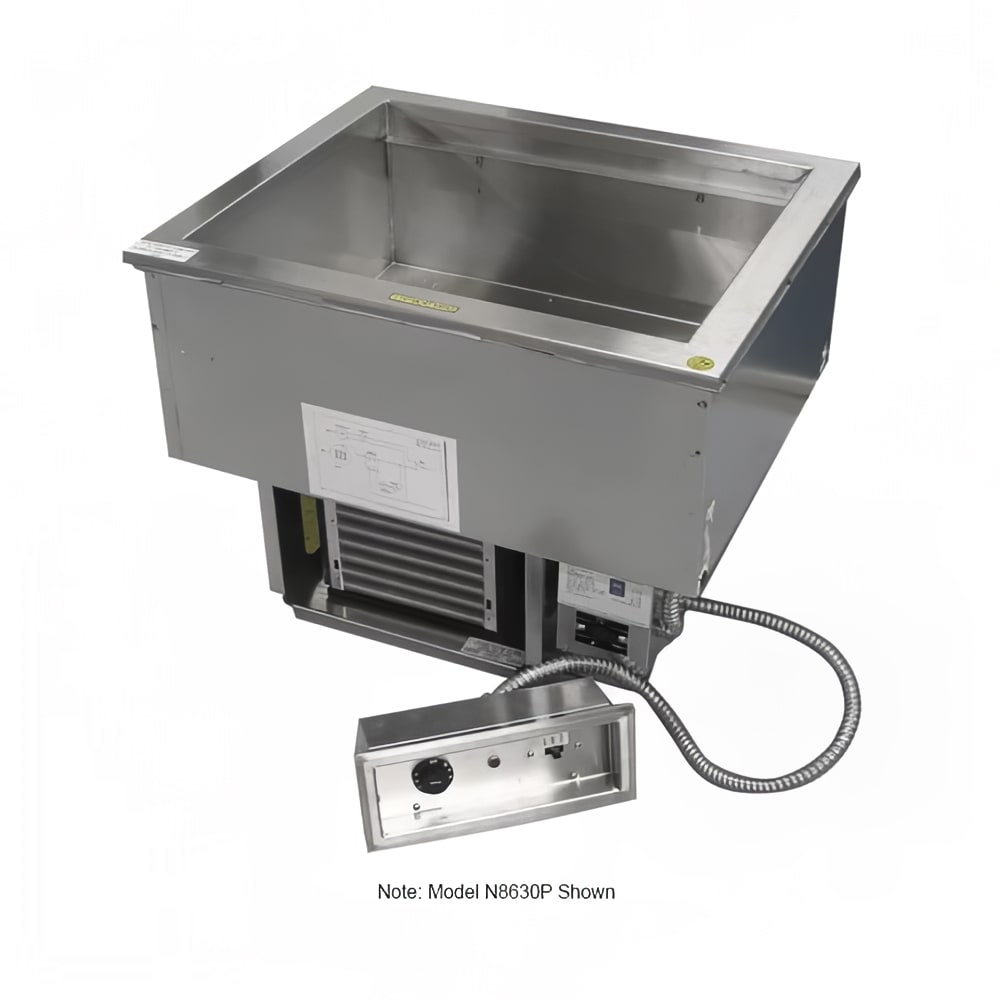

*Image may not depict product color, inclusions or accessories.
Delfield N8643P Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Delfield |
| Accommodates | Full Size Pans |
| Also Known As | N8643 |
| Controls | Thermostatic |
| Hertz | 60 |
| Length (in) | 43.5 |
| Pan Capacity | 3 |
| Type | Drop-in |
| Voltage | 120/240 |
| Warranty | 1-year Parts & Labor |
| Phase | 1 |
| Product | Hot Food Wells |
| Product Type | Food Bars & Buffets |
| Weight | 198.00 |
