Blodgett ZEPH-200-G-ES SGL Zephaire Bakery Depth Single Full Size Natural Gas Convection Oven - 50,000 BTU

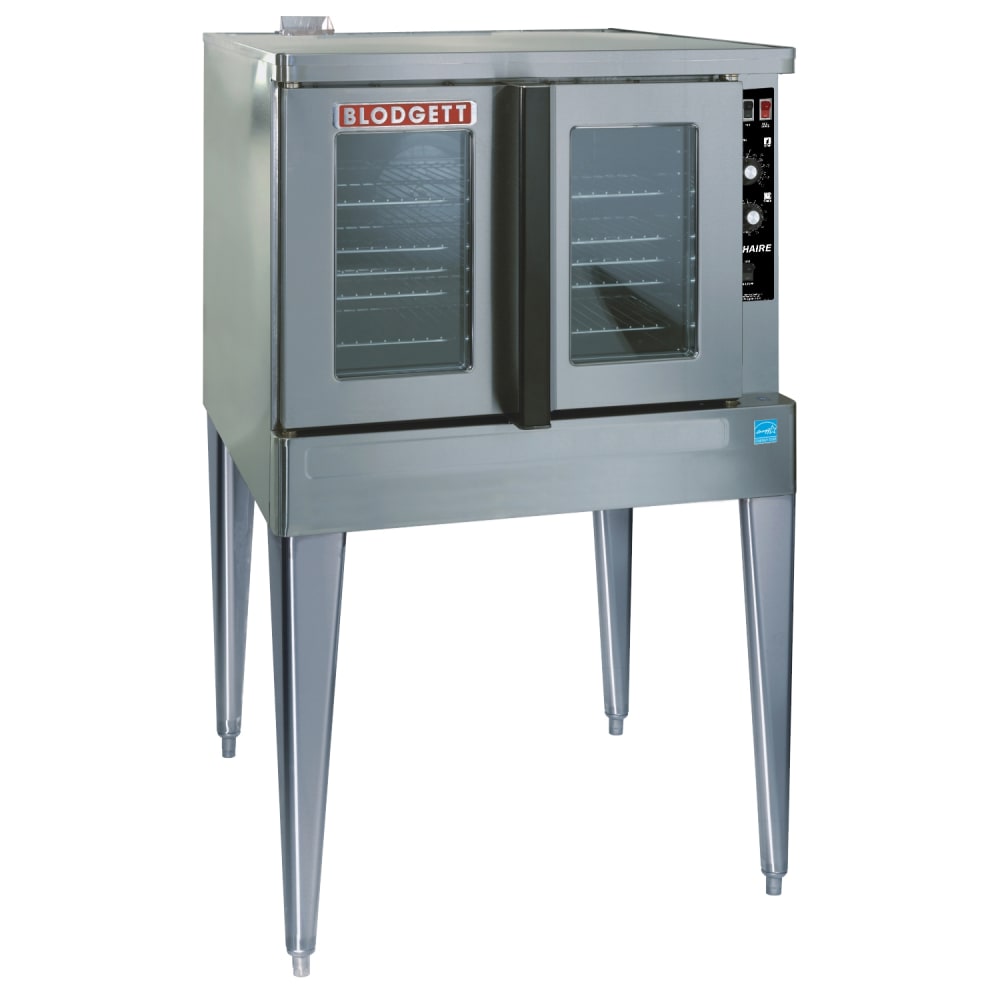

The Blodgett ZEPH-200-G-ES SGL Zephaire convection oven is a single-deck unit featuring five chrome-plated racks that accommodate an 18-inch by 26-inch pan each. Its doors are made of dual-pane thermal glass with stainless steel frames and powder-coated handles. Because the doors operate dependently, they can be opened with one hand to ease loading and unloading, and this natural gas-powered unit features an electronic spark ignition system and outputs a total of 50,000 BTUs.

Strong, rust resistant, and simple to clean, the Blodgett ZEPH-200-G-ES SGL full-size convection oven is made primarily of stainless steel with a full angle-iron frame. Operators can adjust its temperature from 200 to 500 degrees Fahrenheit using solid-state infinite controls, and to minimize heat loss, its top, sides, back, and bottom are insulated with solid mineral fiber. This unit is mounted on 25-inch stainless steel legs and measures 38¹/₄ inches wide by 36⁷/₈ inches deep by 59⁴/₂₅ inches high overall.

Product Details

• Single-deck, bakery-depth configuration
• Holds 18-in. x 26-in. pans
• 5 chrome-plated racks with 11 positions
• Solid-state infinite controls with 60-min. manual timer
• Temperature range: 200-500 degrees F
• Full angle-iron frame
• Rust-resistant stainless steel top, sides, and front
• Solid mineral fiber insulation in top, back, sides, and bottom
• Flue connector
• Electronic spark ignition control system
• Direct-fired gas system
• Removable inshot burners
• Internal pressure regulator
• Manual gas service cutoff switch
• Dual-pane thermal glass doors with stainless steel door frames and powder-coated handles
• Doors operate dependently
• Slide-out control panel
• 2-speed fan motor
• Blower motor with automatic thermal overload protection
• Double-sided porcelainized baking compartment liner
• Interior oven lights
• 25-in. stainless steel legs
• 50,000 BTU

Dimensions & Utilities

• Interiors 29 in. W x 28¹/₄ in. D x 20 in. H
• Overall: 38¹/₄ in. W x 36⁷/₈ in. D x 59⁴/₂₅ in. H
• Powered by natural gas
• ³⁄₄ HP
• ³⁄₄-in. NPT inlet

Product Features

*Free shipping on Blodgett ZEPH-200-G-ES SGL within the 48 contiguous states.

From The Manufacturer

Zephaire Convection Oven, gas, single-deck, bakery depth, capacity (5) 18" x 26" pans, (SSI-M) solid state infinite controls with 60 min. manual timer, two speed fan, porcelainized baking compartment, dependent glass door, interior light, stainless steel front, sides and top, 25" stainless steel legs, 50,000 BTU, cETLus, CE, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

2-year Parts & Labor; 3-year Door Parts
