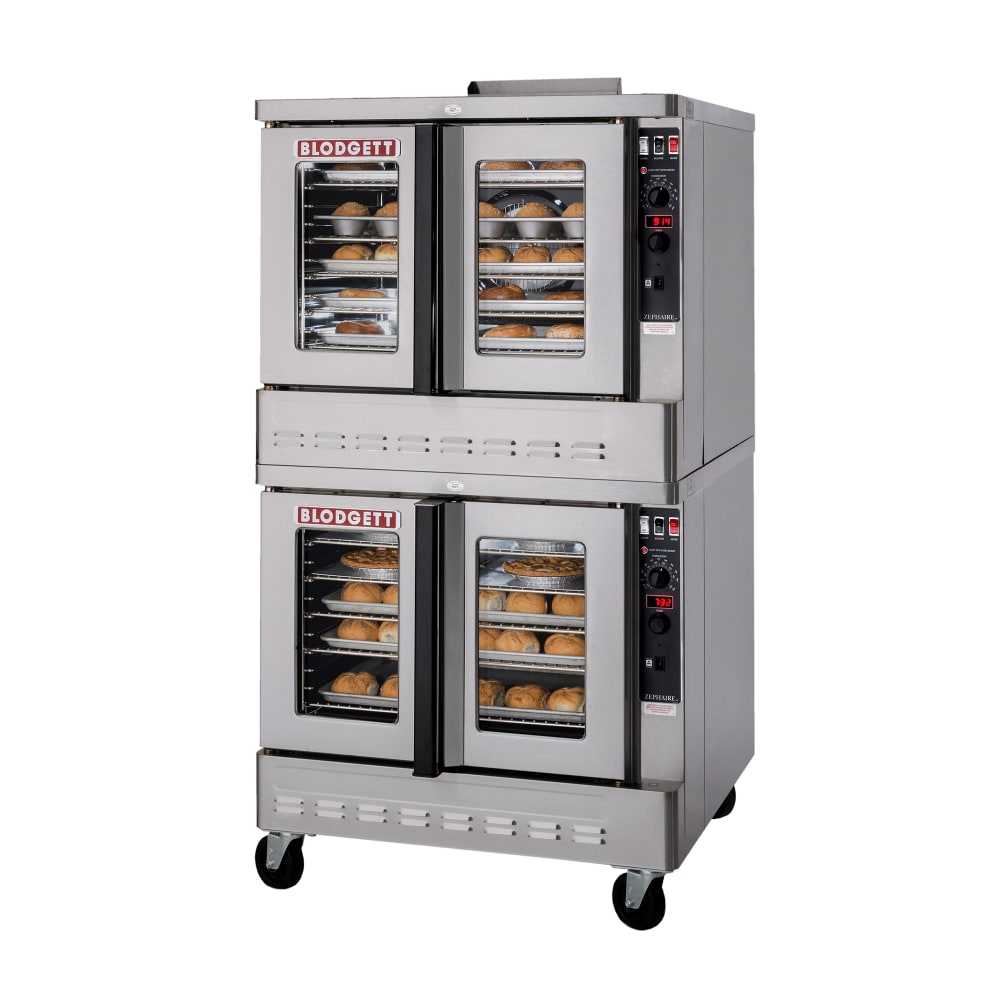

Blodgett ZEPH-200-G DBL Zephaire Bakery Depth Double Full Size Liquid Propane Gas Convection Oven - 120,000 BTU

By using solid-state infinite controls, operators can adjust the temperature of the Blodgett ZEPH-200-G DBL Zephaire convection oven between 200 and 500 degrees Fahrenheit. It's furnished with five chrome-plated racks per section that each accommodate an 18-inch by 26-inch pan. To improve visibility for monitoring product, the oven interiors are fitted with lights, and this unit is built with solid mineral fiber insulation to preserve heat. Overall, it measures 38¹/₄ inches wide by 36⁷/₈ inches deep by 87¹/₈ inches high.

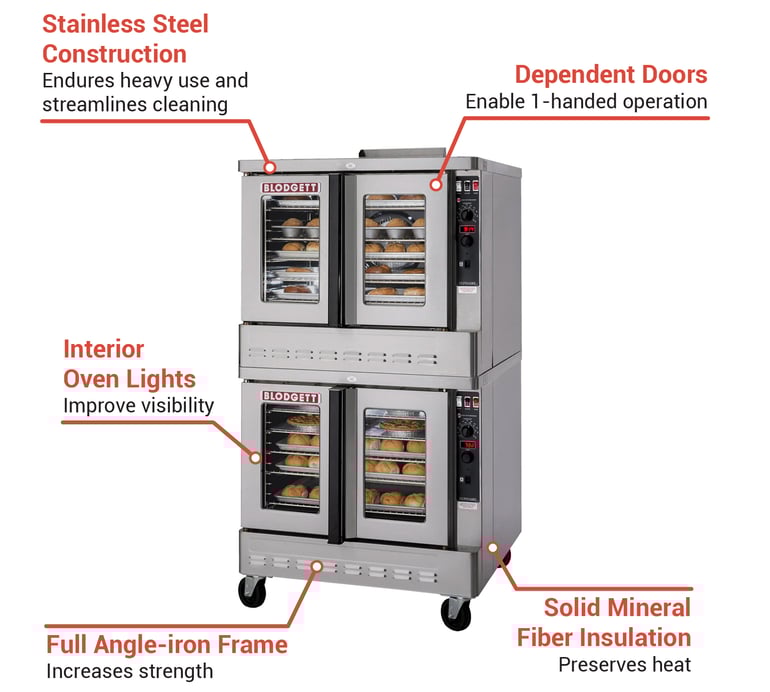

Strong enough to withstand heavy use, the Blodgett ZEPH-200-G DBL full-size convection oven is built with a full-angle iron frame and primarily stainless steel construction. This metal is simple to clean and offers excellent rust and corrosion resistance. To further streamline cleaning, it features a double-sided porcelainized baking compartment liner. Its doors are made of dual-pane thermal glass with stainless steel frames and powder-coated handles. Because the doors operate dependently, they can be opened with one hand.

Product Details

• Double-deck model
• Bakery depth
• Capacity: (5) 18-in. x 26-in. pans per section
• 5 chrome-plated racks per compartment with 11 positions
• Full angle-iron frame increases strength
• Removable front control panel
• Front, top, and sides are durable stainless steel
• 2-speed fan motor
• Blower motor includes automatic thermal overload protection
• Includes flue connector
• Electronic spark ignition control system
• Dual-flow gas system
• Removable dual-tube burners
• Pressure regulator and manual gas service cutoff valve
• Solid-state infinite controls with 60-min. manual timer
• Temperature range: 200-500 degrees F
• Double-sided porcelainized baking compartment liner
• Interior oven lights improve visibility
• Back, bottom, top, and sides insulated with solid mineral fiber
• Dependent doors for 1-handed operation
• Dual-pane thermal glass doors with stainless steel door frames and powder-coated handles
• 6-in. stainless steel legs
• 120,000 BTU

Dimensions & Utilities

• Interiors (2): 29 in. W x 28¹/₄ in. D x 20 in. H
• Overall: 38¹/₄ W x 36⁷/₈ in. D x 87¹/₈ in. H
• Powered by LP gas
• ³⁄₄-in. NPT inlet per section

Product Features

*Free shipping on Blodgett ZEPH-200-G DBL within the 48 contiguous states.

From The Manufacturer

Zephaire Convection Oven, gas, double-deck, bakery depth, capacity (5) 18" x 26" pans per compartment, (SSI-M) solid state infinite controls with 60 min. manual timer, two speed fan, flue connector, dependent glass doors, interior light, stainless steel front, sides and top, 6" stainless steel legs, 120,000 BTU, ETL, CE, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

2-year Parts & Labor; 3-year Door Parts

Blodgett ZEPH-200-G DBL Specifications

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual
