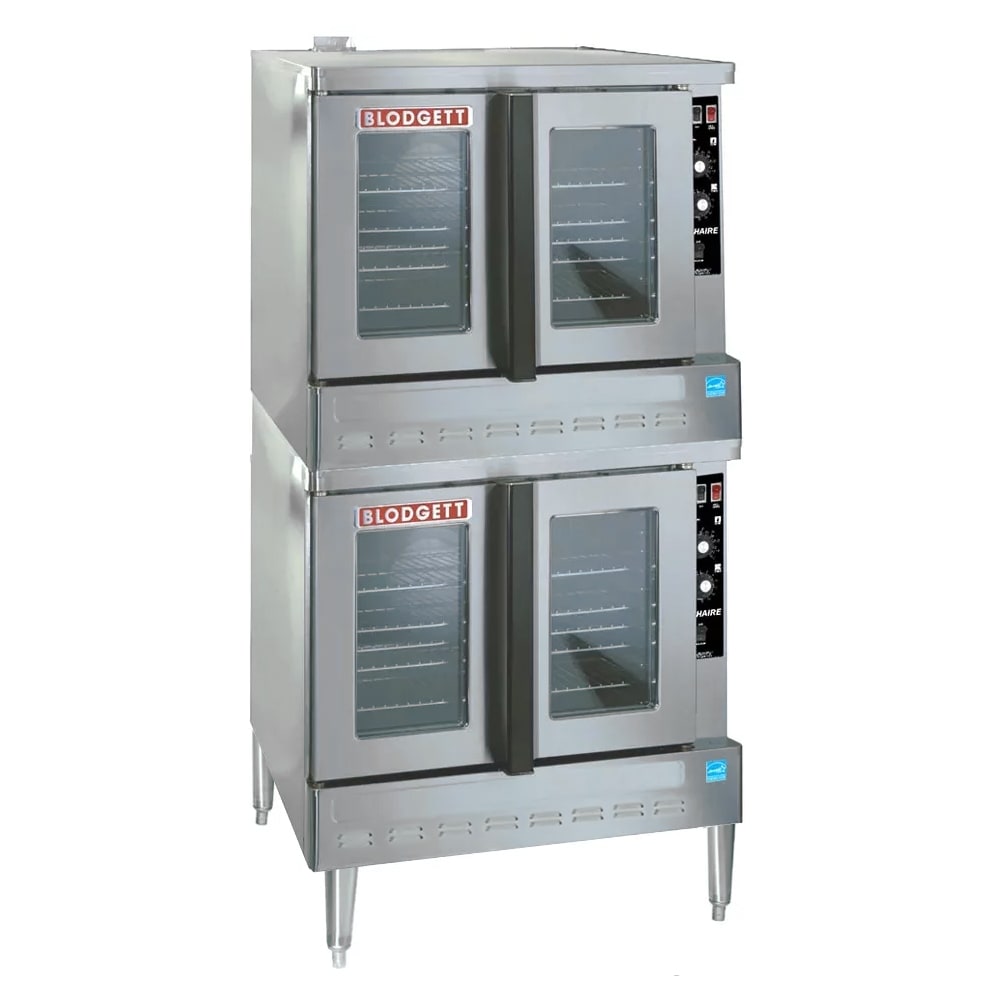

Blodgett ZEPHAIRE-100-G Double Full Size Gas Convection Oven - LP

Image may not depict product color, inclusions or accessories.

KaTom #: 015-ZEPH240GPLDBLLP • MPN: ZEPH-100-GDBL LP
Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Retail Price: $8,190.00

Selected Gas Type: Liquid Propane

Image may not depict product color, inclusions or accessories.

Blodgett ZEPHAIRE-100-G Description

Blodgett

The Blodgett ZEPH-100-G full-size gas convection oven has powder-coated door handles that operate simultaneously. It has a stainless steel front, top, sides, and legs with a full angle iron frame for support, while the stainless steel doors have double-paned, thermal glass windows. A removable front-control panel has a pressure regulator and manual gas service cut-off valve, while the Blodgett ZEPH-100-G double convection oven has six-inch, adjustable stainless steel legs and five chrome-plated racks. The oven is insulated with solid mineral fiber and has a dual flow gas system that mixes direct and indirect heat. To keep air inside the oven, the doors have a triple-mounted pressure lock.

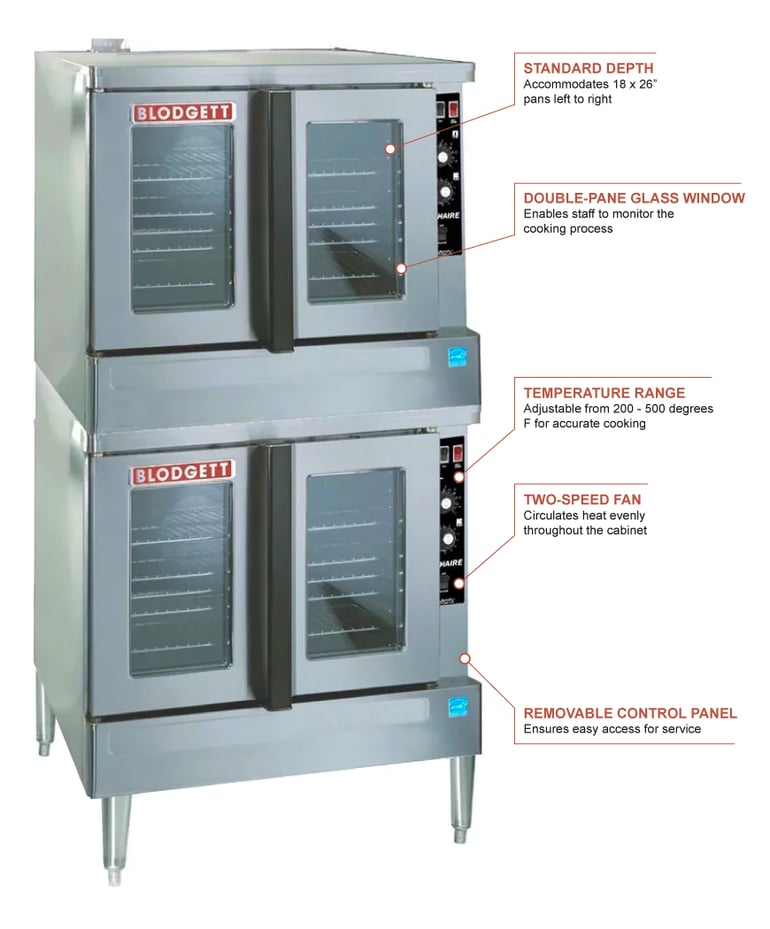

Product Details

  • Stainless steel front, top, sides, and legs with full angle iron frame for support
  • Powder coated door handle with simultaneous operation
  • Stainless steel door frames have double-paned thermal glass windows
  • Triple-mounted pressure lock has turnbuckle assembly
  • Removable front control panel
  • Dual flow gas system mixes direct and indirect heat
  • Electronic spark ignition control system
  • Removable dual tube burners
  • Front control area has pressure regulator and manual gas service cut-off valve
  • Air mixers have adjustable air shutters
  • Two speed fan motor and control area cooling fan
  • Solid mineral fiber insulation
  • Blower motor has automatic thermal overload protection
  • Interior oven lights
  • 6-in. adjustable stainless steel legs
  • Solid state infinite control with a digital timer
  • Baking compartment is lined with double-sided porcelain
  • Dual inlet blower wheel
  • Includes 5 chrome-plated racks
  • Eleven rack positions with minimum 158-in. spacing
  • Temperature range: 200-500 degrees F
  • Required manifold pressure: 10 in. W.C.
  • Required inlet pressure: 10.5-13 in. W.C.
  • Required gas supply: 12-in. IPS connection at rear of oven
  • 100,000 BTU
  • 6 A, 12 HP
  • 115 V/60 Hz/1 ph, 6-ft. cord
  • Interior dimensions: 29 in. W x 24.25 in. D x 20 in. H
  • Overall dimensions: 38.25 in. W x 42.88 in. D x 70.63 in. H
  • cETLus listed; NSF certified

Not sure which unit is right for you? Read our convection ovens buyers’ guide to learn more.

Zephaire Convection Oven, LP gas, double-deck, standard depth, solid state manual controls, two speed fan, (5) racks & (11) positions, flue connector, dependent glass doors, interior light, stainless steel front, sides & top, 6" stainless steel legs, 100,000 BTU, ETL, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Blodgett ZEPHAIRE-100-G Specifications

PDF Spec Sheet
Manufacturer Blodgett
Base Legs
BTU 50,000
Controls Manual
Door Construction Glass Only
Door Type Dependent
Gas Type LP
Go Green Energy Star
Heat Gas
Interior Construction Stainless Steel
Number of Ovens Double
Pans (per deck) 5 Pans
Size Full Size
Type Floor Model
Warranty 2 years parts, 1 year labor, 1 additional year door warranty (Parts only, excluding glass)
Product Type Ovens
Product Convection Oven
Weight 1070.00
Blodgett ZEPHAIRE-100-G Certifications
  • NSF
  • ETL
