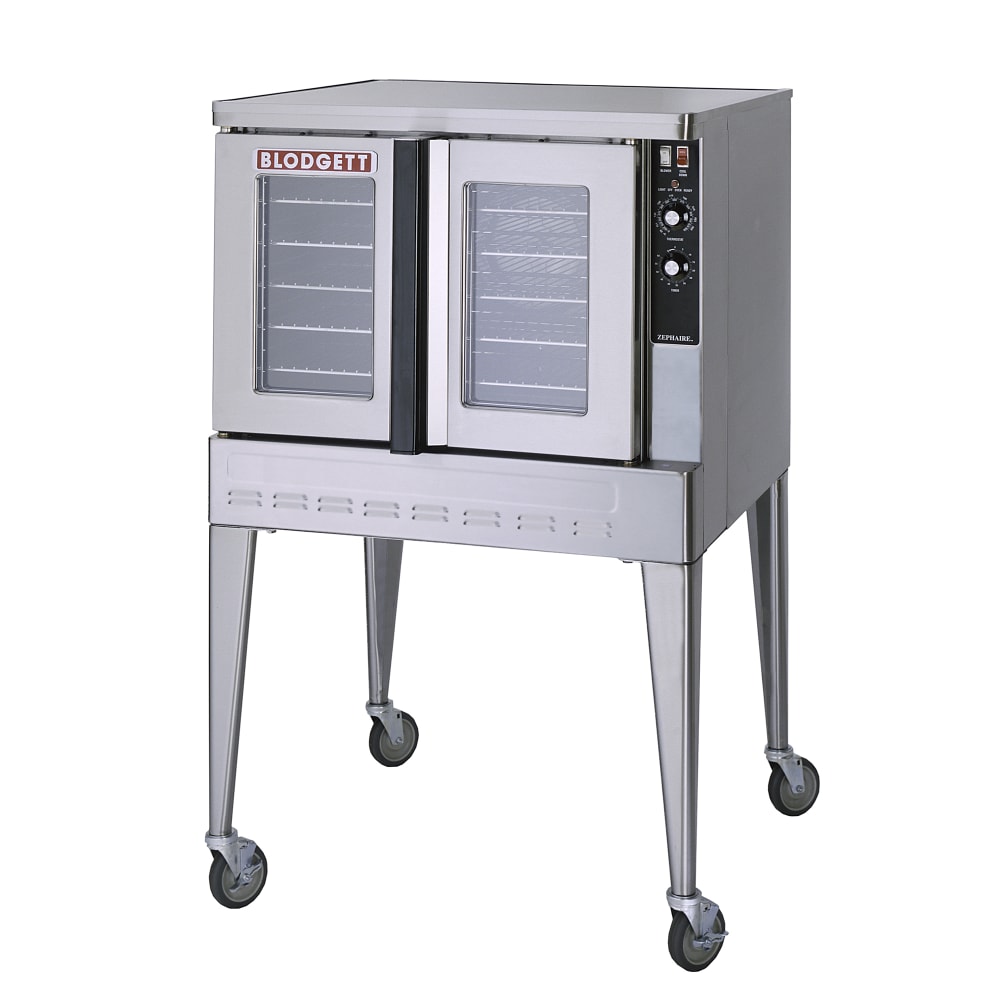

Blodgett ZEPH-100-G SGL Zephaire Single Full Size Natural Gas Convection Oven - 50,000 BTU

KaTom #: 015-ZEPH1GSGLMNG • MPN: ZEPH-100-GSGL (M) NG
  • 015-ZEPH1GSGLMNG Primary Thumbnail Image
  • 015-ZEPH1GSGLMNG Multiple Thumbnail Image #1
  • 015-ZEPH1GSGLMNG Multiple Thumbnail Image #2
  • 015-ZEPH1GSGLMNG Multiple Thumbnail Image #3
  • 015-ZEPH1GSGLMNG Multiple Thumbnail Image #4
  • 015-ZEPH1GSGLMNG Multiple Thumbnail Image #5
  • 015-ZEPH1GSGLMNG Multiple Thumbnail Image #6
  • 015-ZEPH1GSGLMNG Multiple Thumbnail Image #7
  • 015-ZEPH1GSGLMNG Multiple Thumbnail Image #8
  • 015-ZEPH1GSGLMNG Multiple Thumbnail Image #9
  • 015-ZEPH1GSGLMNG Multiple Thumbnail Image #10
  • 015-ZEPH1GSGLMNG Multiple Thumbnail Image #11
  • 015-ZEPH1GSGLMNG Multiple Thumbnail Image #12

IN STOCK: Ships in 1 Business Day

Less Than 5 in Stock, Order Soon!

Free Shipping Item

$6,799.00 /Each

  • Protect Your Product
  • Coverage starting at $125.25
  • Edit Remove

Selected Gas Type: Natural Gas

Liquid PropaneLiquid Propane
chris shuler User Image
Ask a Foodservice Equipment Specialist

Blodgett ZEPH-100-G SGL Description

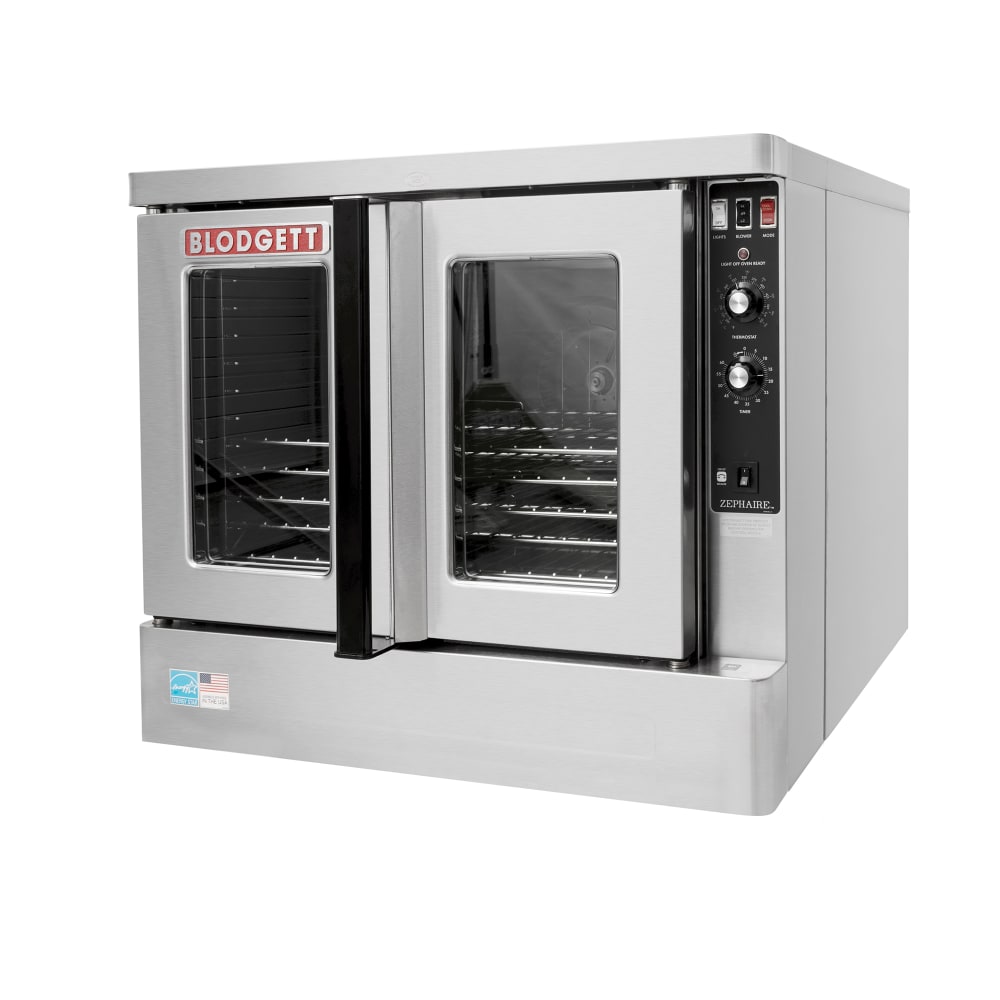

This Blodgett ZEPH-100-G SGL Zephaire standard-depth single-section convection oven features a 29-inch-wide by 24 1⁄4-inch-deep by 20-inch-high interior, which includes five chrome-plated racks that can be adjusted on 11 positions. These racks accommodate five 18-inch by 26-inch baking pans in a left-to-right position, suiting low-volume schools, nursing homes, and other institutions. Two dependent doors encase the cooking compartment, enabling operators to open and close them simultaneously with one hand to streamline pan insertion and retrieval. Users can peer through the doors' dual-pane thermal glass windows and into the lighted cabinet to manage the baking process. For lasting use in commercial environments, this 38 1⁄4-inch-wide by 36 7⁄8-inch-deep by 63 1⁄16-inch-high unit's stainless steel construction resists rust, corrosion, and impacts, and its full angle-iron frame adds structural rigidity to endure repeated pan loading and removal.

The Blodgett ZEPH-100-G SGL convection oven's dual-flow gas system is powered by natural gas, and it combines direct and indirect heat. For quick startup, this unit includes an electronic spark-ignition control system, and its dual-tube burners are removable for cleaning and maintenance. Operators can adjust internal temperatures using the solid-state infinite thermostat, which provides a temperature control range of 200 to 500 degrees Fahrenheit and can modify the fan motor's speed for efficient heat circulation. A 60-minute timer tracks time efficiently to reduce the risk of burning and undercooking. To preserve generated heat, solid mineral fiber insulation is built into the top, back, bottom, and sides.

  • Single deck with standard depth
  • Stainless steel top, sides, and front
  • Full angle-iron frame
  • Top, back, sides, and bottom insulated with solid mineral fiber

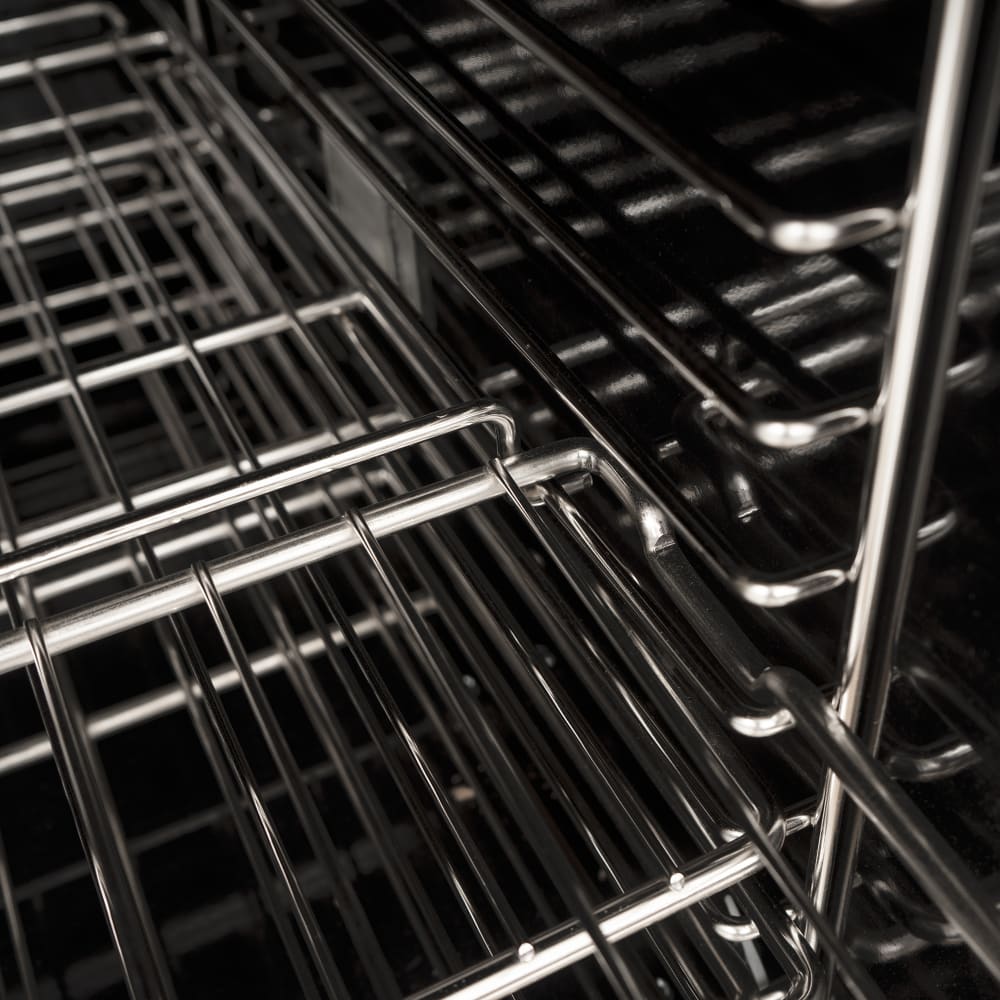

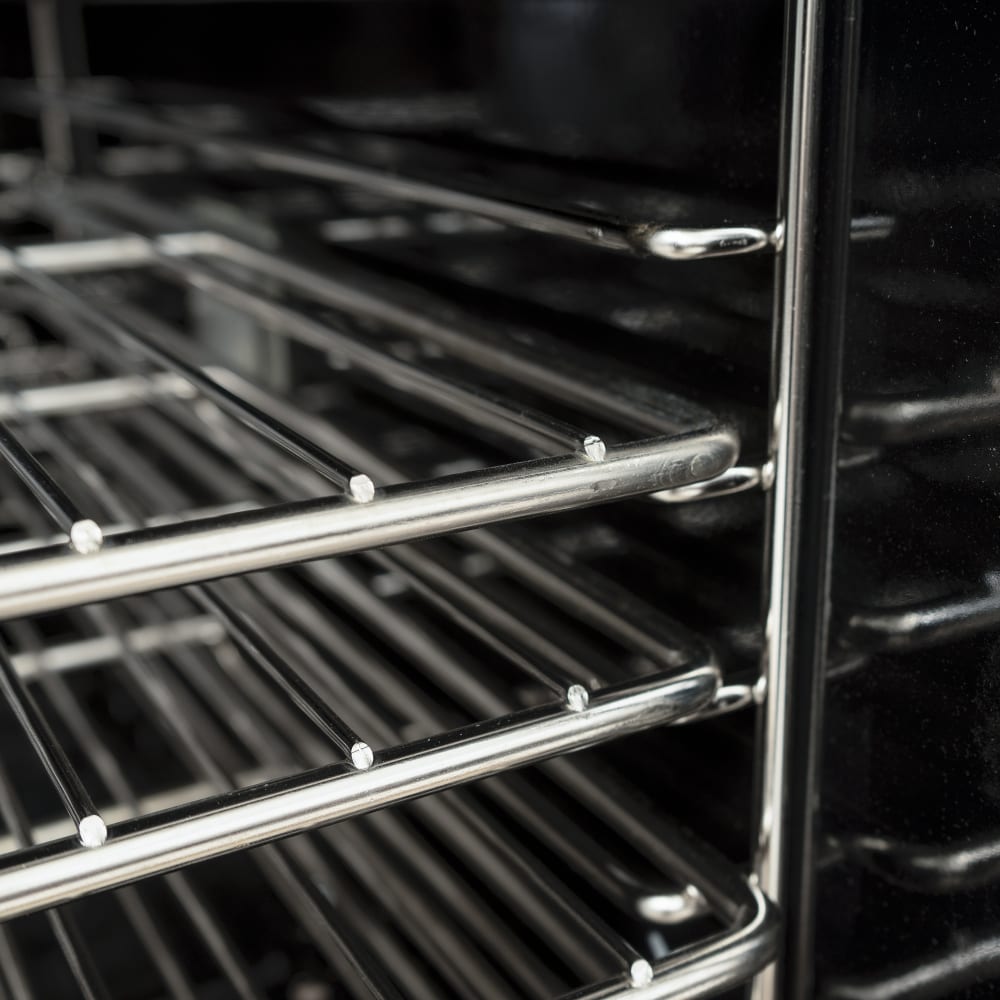

  • 5 removable, chrome-plated racks accommodate (5) 18-in. x 26-in. pans
  • 11 rack positions spaced 1 5⁄8 in. apart
  • Electronic spark-ignition control system
  • Removable dual-tube burners
  • Dual-flow gas system
  • Front control area includes pressure regulator and manual gas service cut-off valve
  • Air mixers with adjustable air shutters

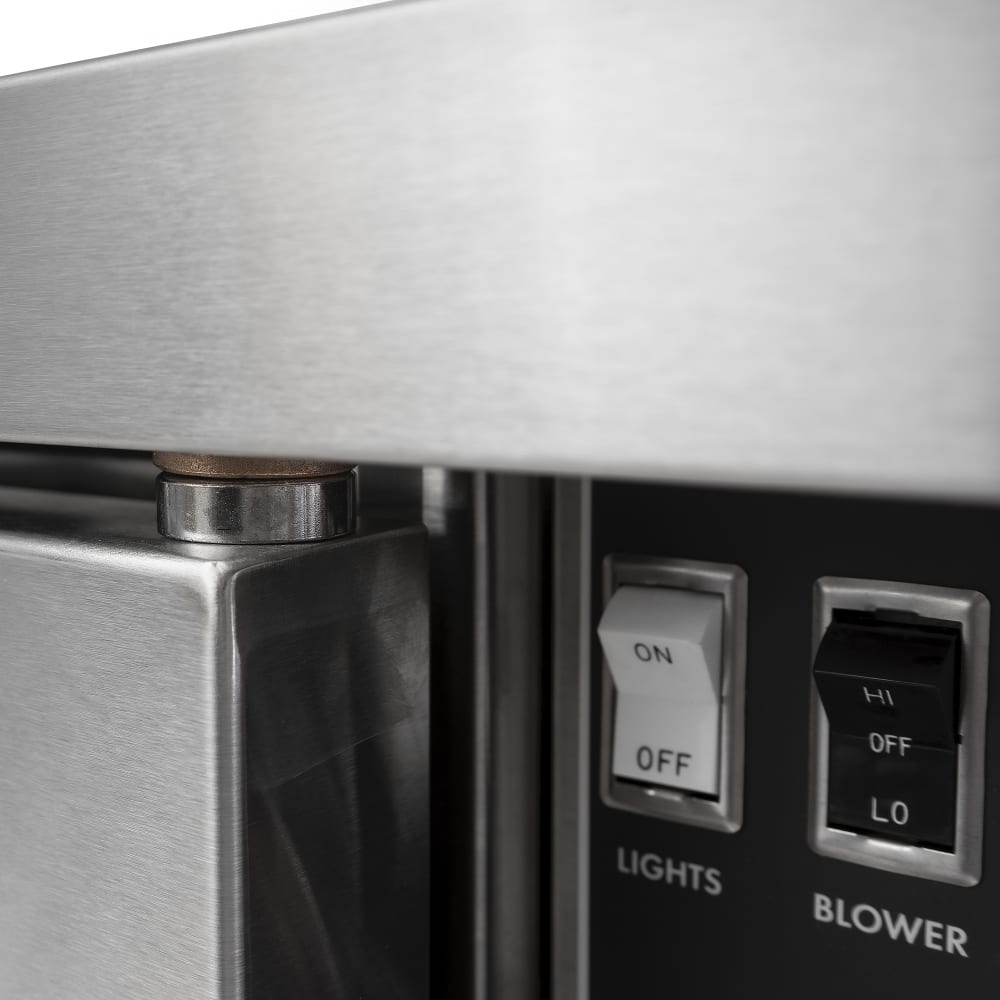

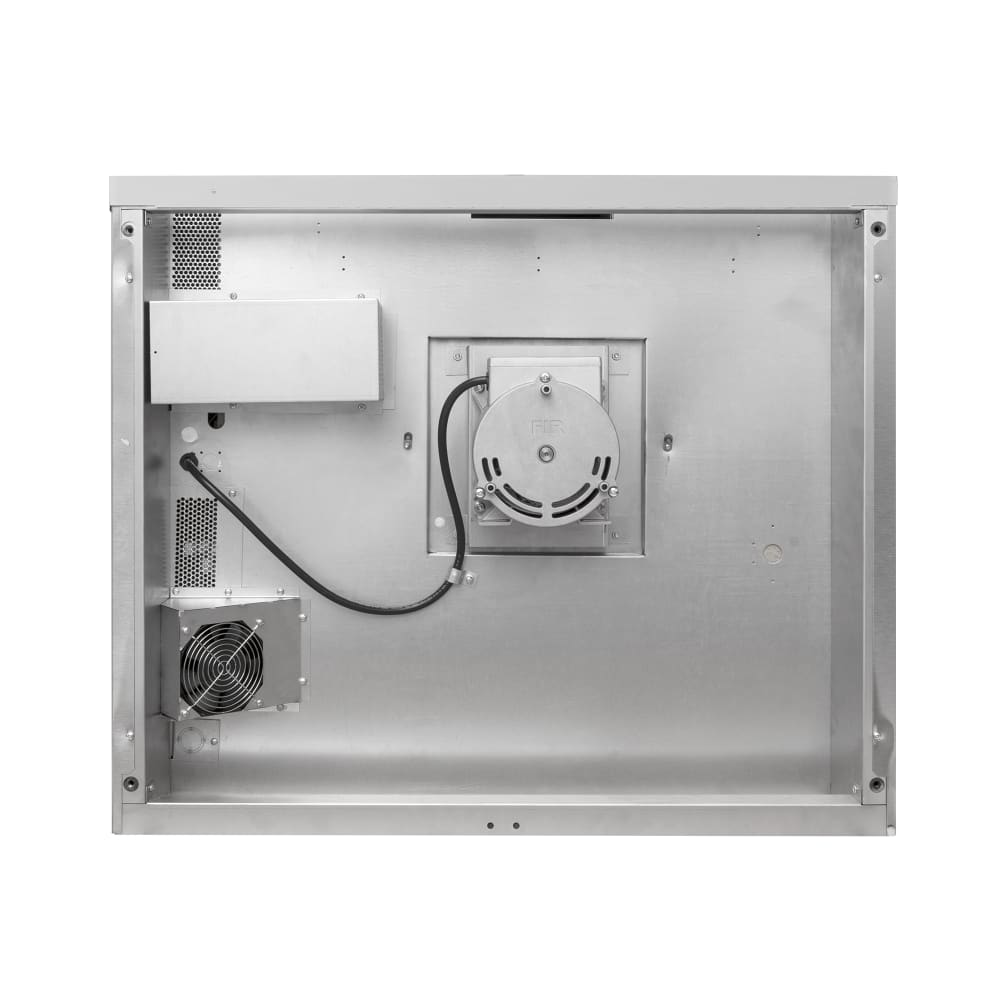

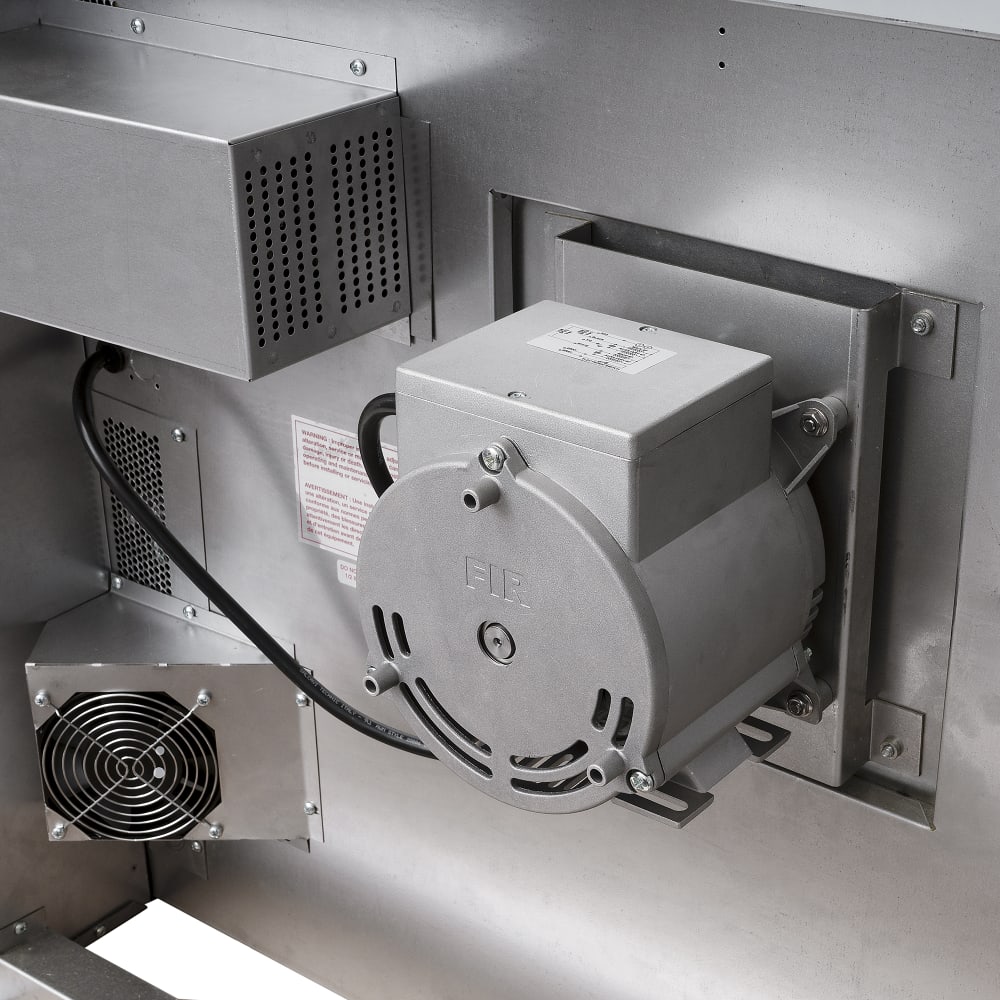

  • 2-speed fan motor
  • 1⁄2-HP motor
  • Automatic thermal overload protection

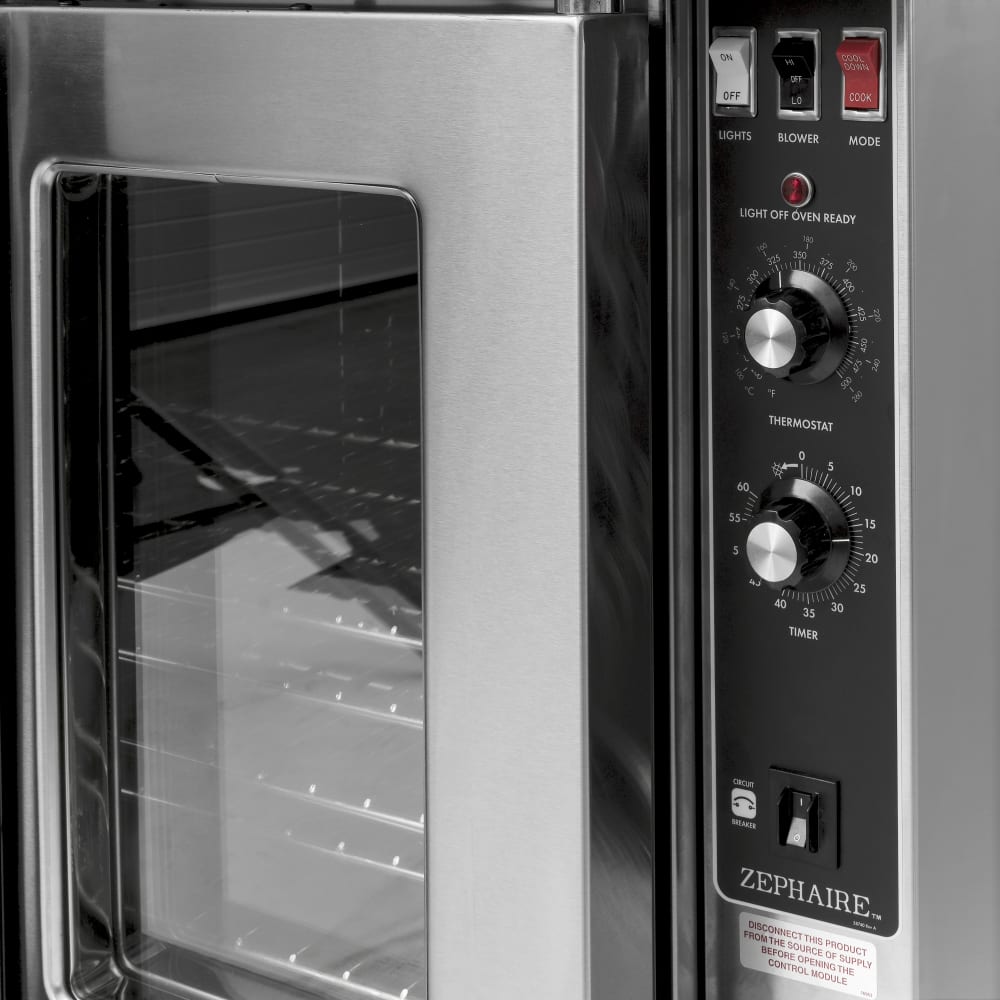

  • Solid-state infinite controls with 60-min. manual timer
  • Operating temperature range: 200-500 degrees F
  • Control area cooling fan

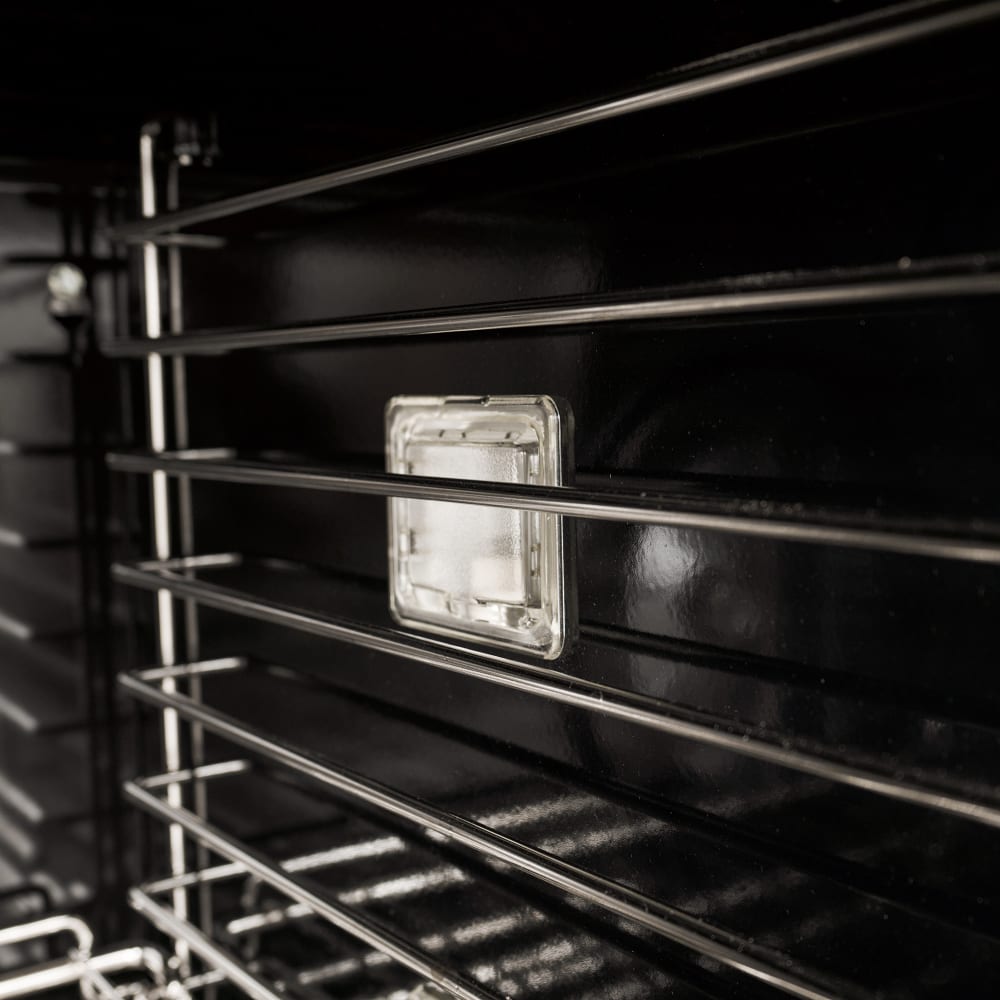

  • Interior oven lights

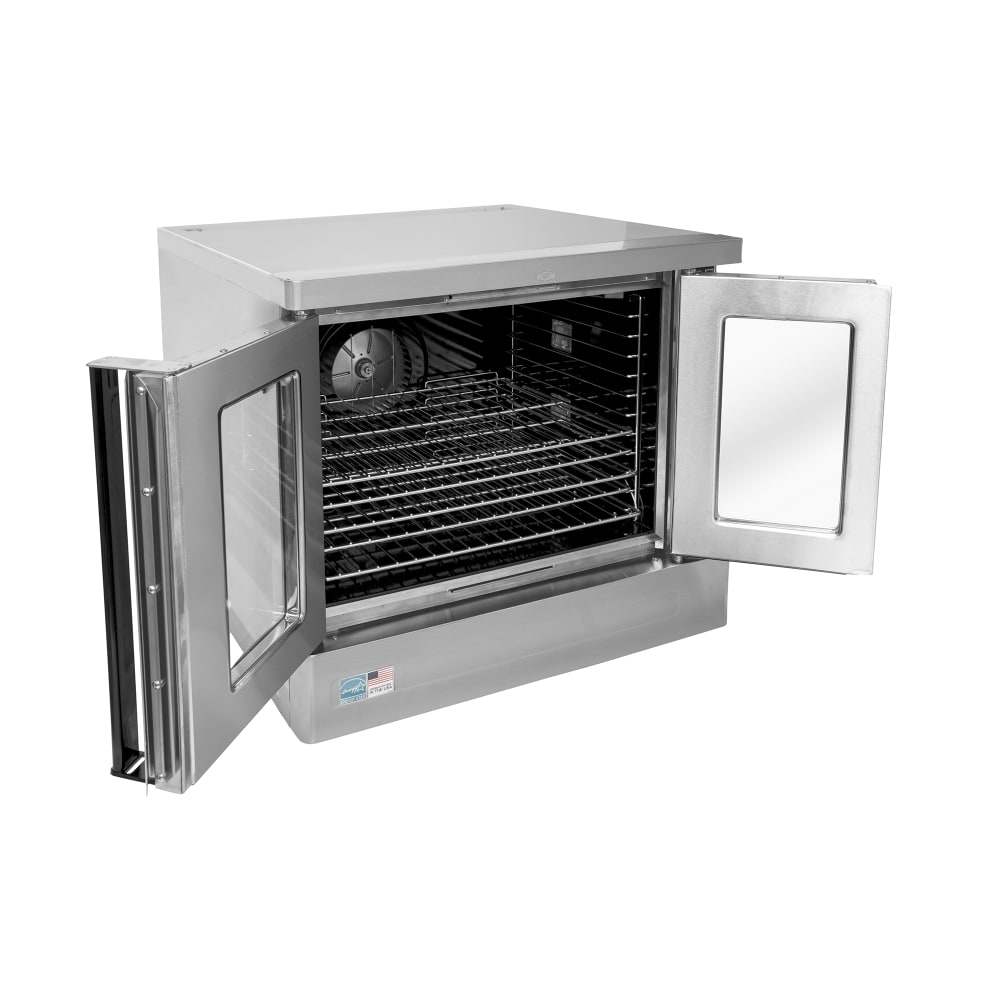

  • 2 dependent doors with powder-coated door handle
  • Dual-pane thermal glass windows

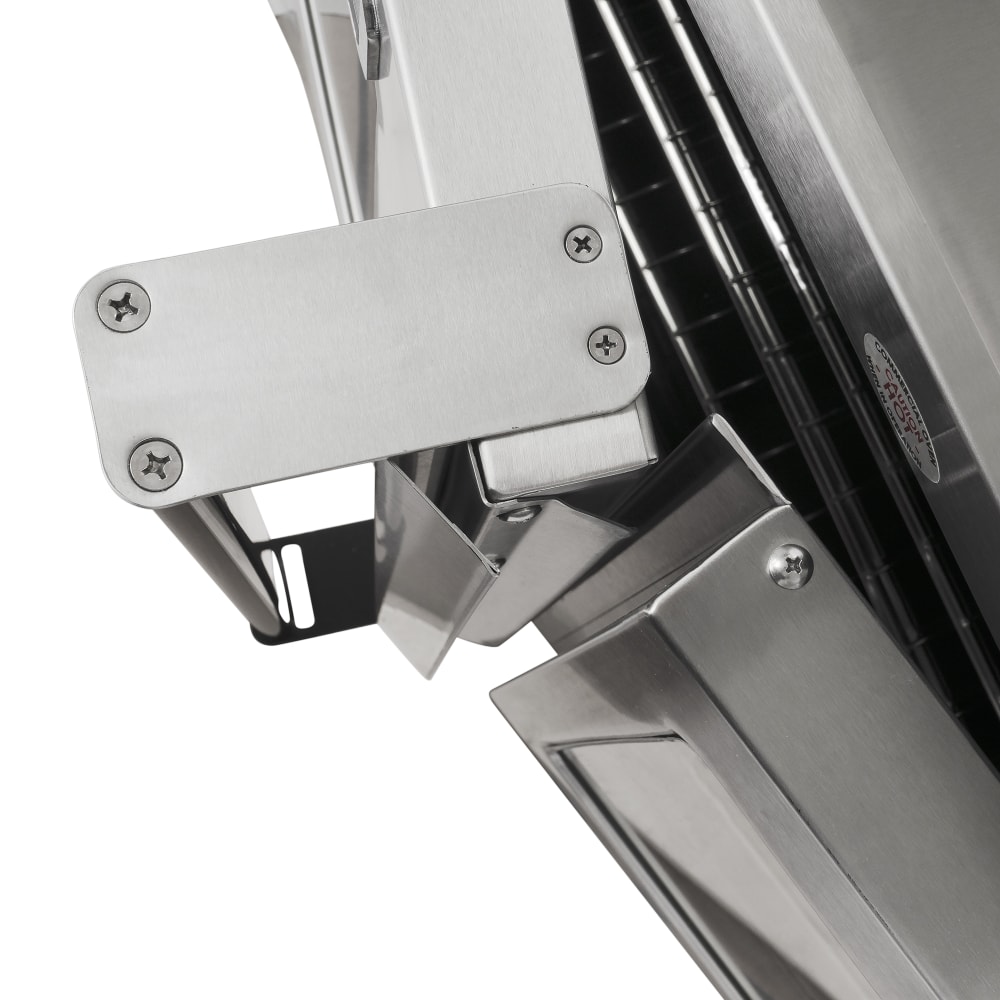

  • Triple-mounted, pressure-lock doors with turnbuckle assembly
  • Double-sided porcelain baking compartment liners
  • Aluminized steel combustion chambers

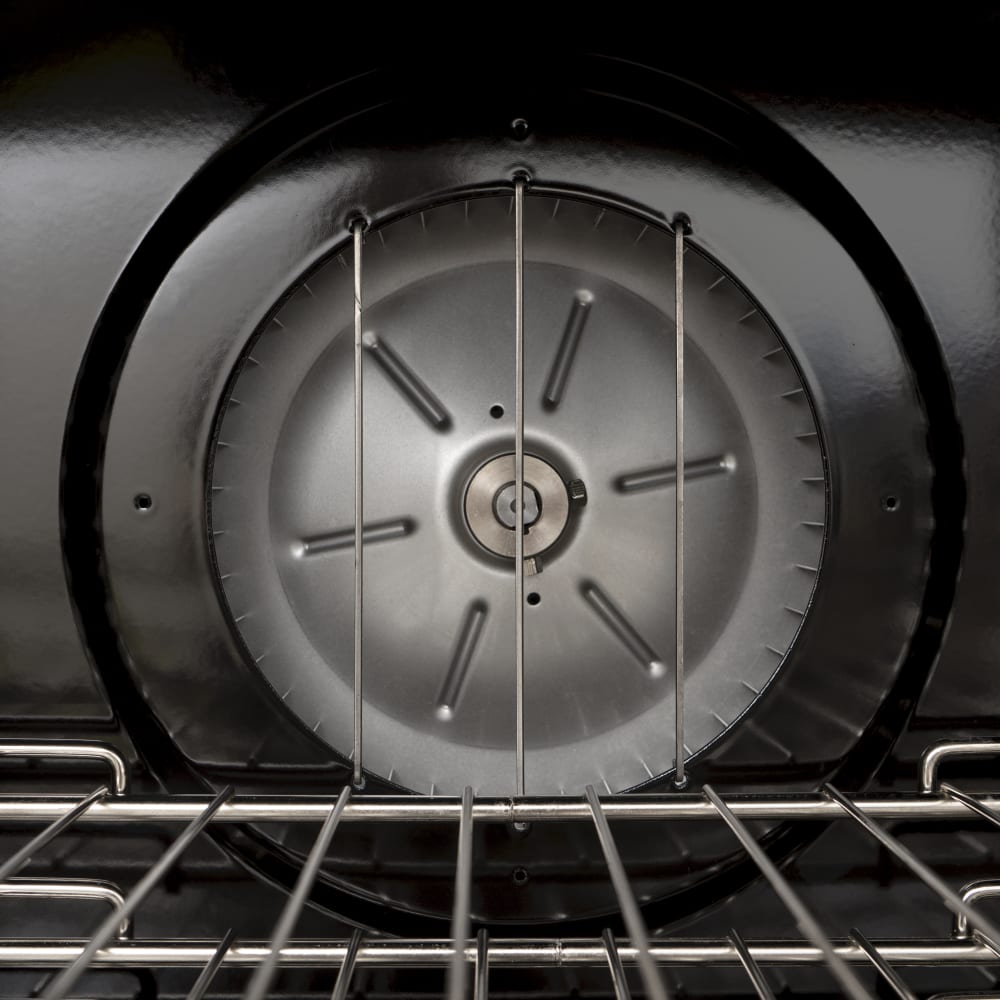

  • Dual-inlet blower wheel

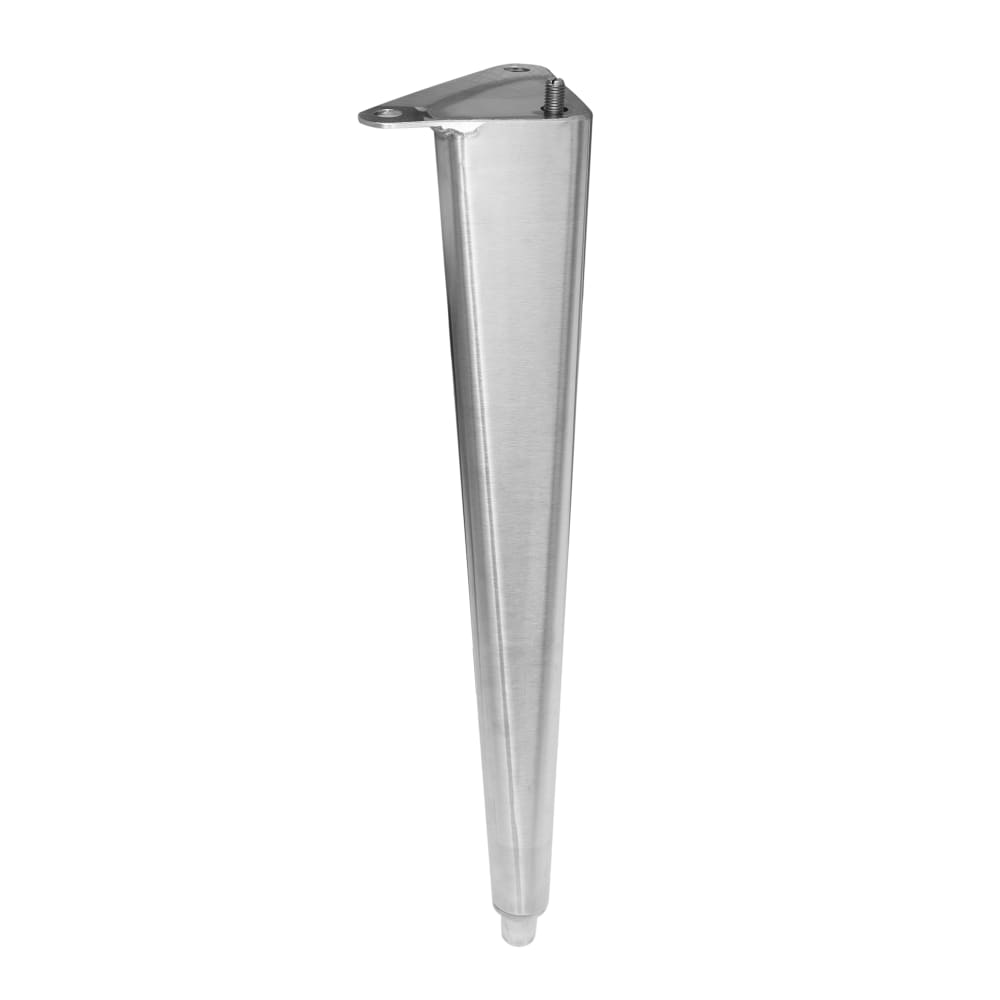

  • 25-in. adjustable stainless steel legs
  • Flue connector included
  • 50,000 BTU

  • Interior: 29 in. W x 24 1⁄4 in. D x 20 in. H
  • Overall: 38 1⁄4 in. W x 36 7⁄8 in. D x 63 1⁄16 in. H
  • 6 A, 1⁄2 HP
  • 115 V/60 Hz/1 ph, 6-ft. electric cord set included
  • Powered by natural gas
  • 3⁄4-in. NPT gas supply

*Image may not depict product color, inclusions or accessories.

*Free shipping on Blodgett ZEPH-100-G SGL within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Zephaire Convection Oven, gas, single-deck, standard depth, capacity (5) 18" x 26" pans, (SSI-M) solid state infinite controls with 60 min. manual timer, two speed fan, dependent glass doors, interior light, stainless steel front, sides and top, 25" stainless steel legs, 50,000 BTU, ETL, NSF, ENERGY STAR®

Warranty Icon
2-year Parts & Labor; 3-year Door Parts
