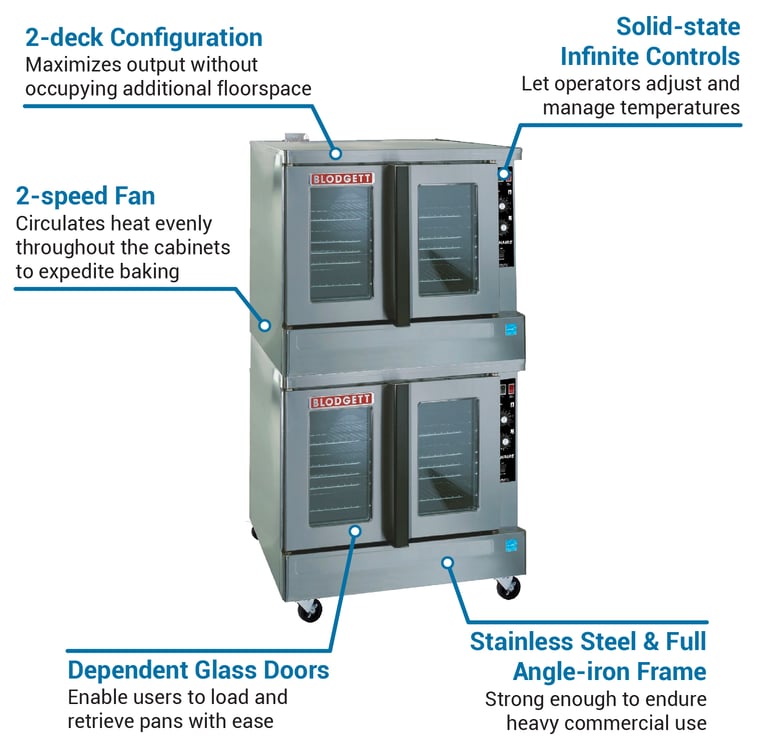

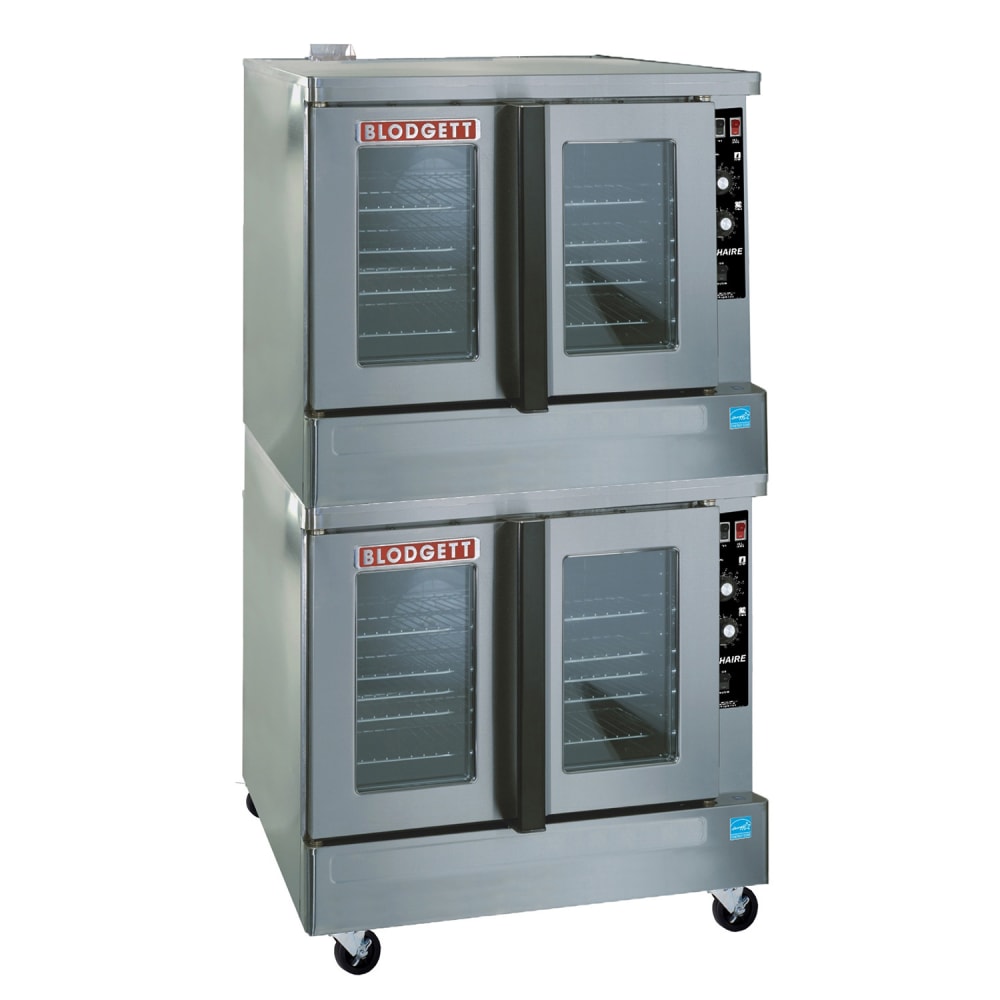

Blodgett ZEPH-100-G-ES DBL Zephaire Double Full Size Natural Gas Convection Oven - 90,000 BTU

By igniting the electronic spark control system and adjusting the Blodgett ZEPH-100-G-ES DBL gas convection oven's solid-state infinite controls between 200 and 500 degrees Fahrenheit, operators can manipulate each compartment's removable inshot burners to produce ample heat for roasting, baking, or rethermalizing. This direct-fired gas system works in tandem with its two-speed fan motor and the ³⁄₄-horsepower blower motor to circulate heat uniformly, reducing bake times. To preserve generated heat, this unit is insulated with a 1-inch solid block and 1 inch of solid mineral fiber.

Each section in the Blodgett ZEPH-100-G-ES DBL double-deck convection oven accommodates five 18-inch by 26-inch pans on its five chrome-plated pan racks. These racks can be adjusted into 11 various positions, and they're removable for cleaning whenever necessary. The compartments' porcelainized baking liners withstand repeated heating and cooling; their smooth surfaces can be wiped clean. Pans must be inserted and removed from a left-to-right position, so the unit's doors open dependently, letting users open them with one hand. While the doors' dual-pane thermal glass windows provide a clear view of the baking process, the stainless steel door frames resist rust, corrosion, and wear. This unit's top, front, and sides also are made of stainless steel for longevity, and a full angle-iron frame adds rigidity throughout daily use. To prevent wobbling if the unit is installed on uneven flooring, its 6¹/₂-inch stainless steel legs can be adjusted.

Product Details

• 2 standard-depth decks
• Stainless steel top, sides, and front with full angle-iron frame
• 2-in. interior insulation
• 5 removable, chrome-plated racks in each section
• Each compartment accommodates (5) 18-in. x 26-in. pans
• 11 rack positions
• Direct-fired gas system
• Electronic spark-ignition control system
• Removable inshot burners
• Internal pressure regulator
• Manual gas service cut-off switch on control panel's front
• 2-speed fan motor
• ³⁄₄-HP blower motor
• Automatic thermal overload protection
• Solid-state infinite controls with 60-min. manual timer
• Operating temperature range: 200-500 degrees F
• Control area cooling fan
• Interior oven lights
• 4 dependent doors
• Powder-coated door handles
• Dual-pane thermal glass windows
• Triple-mounted, pressure-lock doors with turnbuckle assemblies
• Double-sided porcelain baking compartment liners
• Aluminized steel combustion chambers
• Single-inlet blower wheels
• 6¹/₂-in. adjustable stainless steel legs
• Flue connector included
• 90,000 BTU

Dimensions & Utilities

• Interiors: (2) 29 in. W x 24¹/₄ in. D x 20 in. H
• Overall: 38¹/₄ in. W x 36⁷/₈ in. D x 83¹⁹/₂₅ in. H
• 8 A, ³⁄₄ HP
• 115 V/60 Hz/1 ph, includes 6-ft. electric cord set
• Powered by natural gas
• ³⁄₄-in. NPT gas supply per section

Product Features

*Free shipping on Blodgett ZEPH-100-G-ES DBL within the 48 contiguous states.

From The Manufacturer

Zephaire Convection Oven, gas, double-deck, standard depth, capacity (5) 18" x 26" pans per compartment, (SSI-M) solid state infinite controls with 60 min. manual timer, two speed fan, porcelainized baking compartment, dependent glass doors, interior light, flue connector, stainless steel front, sides & top, 6" stainless steel legs, 45,000 BTU each, cETLus, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

2-year Parts & Labor; 3-year Door Parts
