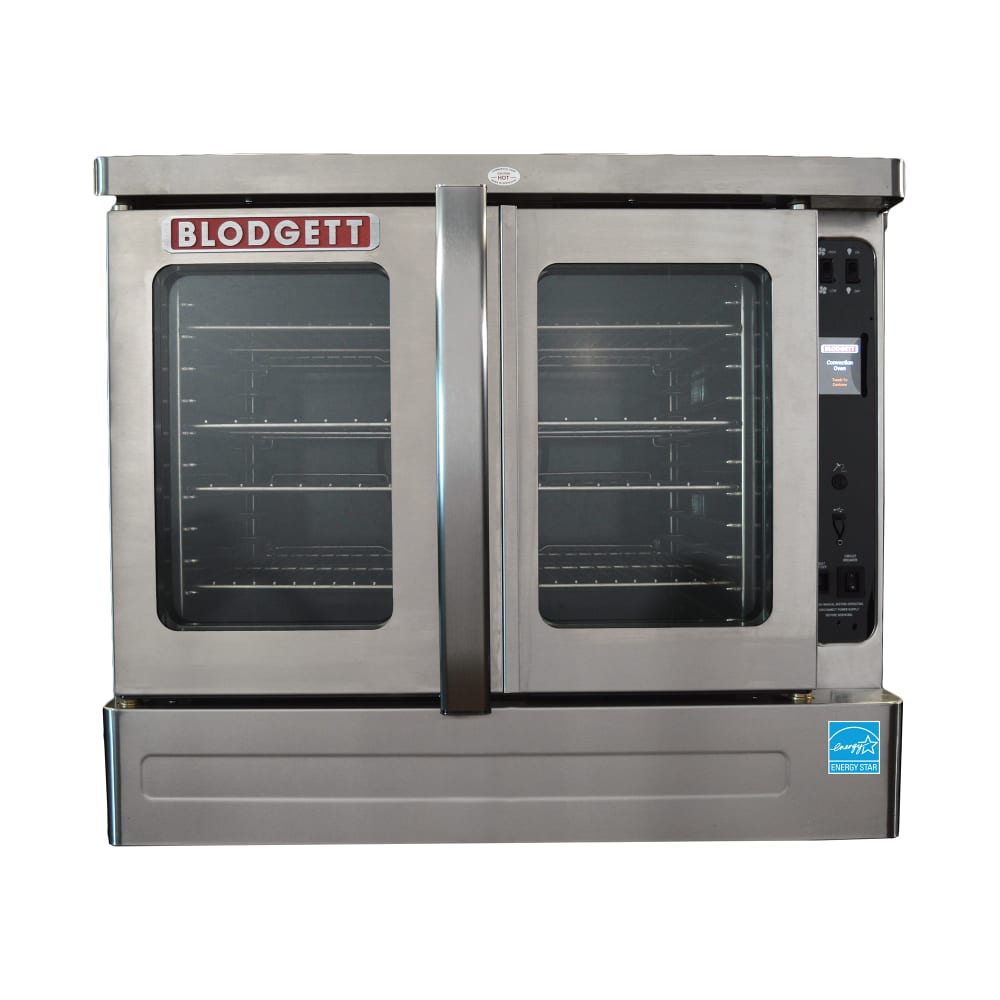

Blodgett MARK V-100 Single Full Size Electric Convection Oven - 11kW, 208v/3ph

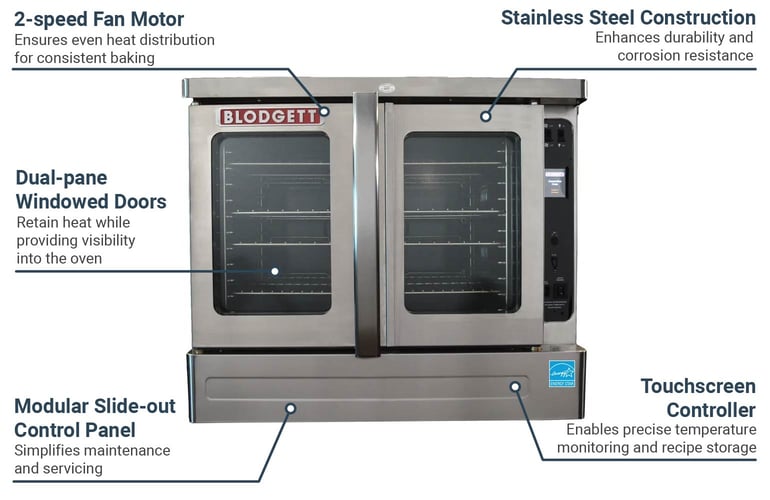

The Blodgett MARK V-100 full-size convection oven is a single-deck unit designed for high-performance baking and roasting. Its stainless steel exterior enhances durability, while the oleophobic compartment liner resists grease buildup, simplifying cleaning and maintenance. Solid mineral fiber insulation retains heat efficiently, and an aluminized blower wheel ensures even airflow throughout the cooking chamber. The oven features two dual-pane thermal windowed doors with a curved aluminum handle, equipped with a simultaneous door opening mechanism for convenient access. Inside, five repositionable chrome-plated racks provide flexibility, and two halogen interior lights improve visibility during operation.

Designed for precise temperature control, the Blodgett MARK V-100 convection oven is equipped with a touchscreen controller and an integrated meat probe to monitor internal food temperatures accurately. The unit supports a holding range of 200 to 500 degrees Fahrenheit, powered by three tubular heaters. A two-speed fan motor circulates hot air evenly, while automatic thermal overload protection safeguards internal components. The control area cooling fan prevents overheating, and the modular slide-out control panel simplifies maintenance. To provide stability in commercial kitchens, the oven is supported by 25-inch adjustable stainless steel legs.

Product Details

• 1-deck design
• Stainless steel exterior
• Oleophobic compartment liner resists grease buildup
• Solid mineral fiber insulation
• 2 dual-pane thermal windowed doors with 1 curved aluminum handle
• Simultaneous door opening mechanism
• Modular slide-out control panel
• 2 interior halogen lights
• 5 repositionable chrome-plated racks
• 25-in. adjustable stainless steel legs

Operating System

• 3 tubular heaters
• 2-speed fan motor
• Automatic thermal overload protection
• Control area cooling fan
• Aluminized blower wheel for even airflow
• Touchscreen controller with integrated meat probe
• Temperature holding range: 200-500 degrees F

Dimensions & Utilities

• Interior: 29 in. W x 24¹⁄₄ in. D x 20 in. H
• Overall: 38¹⁄₄ in. W x 36⁷⁄₈ in. D x 57 in. H
• 31 A, 11 kW, ¹/₂ HP
• 208 V/60 Hz/3 ph

Product Features

*Free shipping on Blodgett MARK V-100 within the 48 contiguous states.

From The Manufacturer

Convection Oven, electric, single-deck, standard depth, capacity (5) 18" x 26" pans, (SSD) solid state digital controls, 2-speed fan, interior light, simultaneous operated doors with glass, stainless steel front, sides & top, vent connector, 6" stainless steel legs & stacking kit, vent connector, 11.0kW, 1/3 hp, 208v/60/3ph, cETLus, CE, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

3-year Parts; 2-year Labor; 5-year Door Parts
