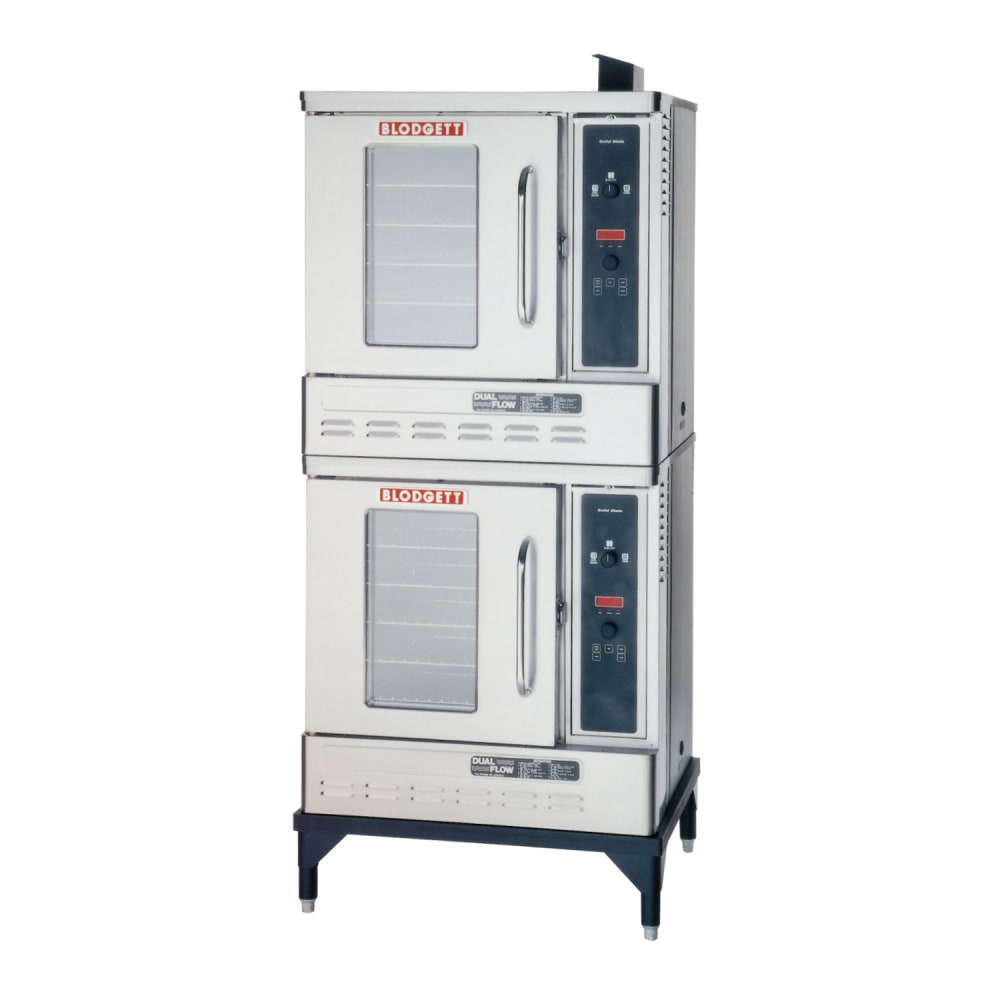

Blodgett DFG-50 DBL Double Half Size Liquid Propane Gas Convection Oven - 55,000 BTU

KaTom #: 015-DFG50DBLLP • MPN: DFG-50DBL LP
  • 015-DFG50DBLLP Primary Thumbnail Image
Free Shipping Item

$26,119.00 /Each

  • Protect Your Product
  • Coverage starting at $125.25
  • Edit Remove

Selected Gas Type: Liquid Propane

Natural GasNatural Gas
Noah Wilbourn User Image
Ask a Foodservice Equipment Specialist






Blodgett DFG-50 DBL Description

Great for kitchens with limited space, the Blodgett DFG-50 DBL gas convection oven is a half-size 30 1⁄4-inch-wide by 25 1⁄8-inch-deep by 77 7⁄8-inch-high unit positioned on a 7-inch stainless steel stand. Its two stacked, porcelain baking compartments include five chrome-plated racks that can be adjusted in nine positions. For versatility, these racks accommodate five 13-inch by 18-inch half-size baking pans or 12-inch by 20-inch hotel pans. Both compartments feature a stainless steel door with a chrome-plated handle and dual-pane thermal glass window for a clear view of the lighted interior. To endure frequent use, this full angle-iron-frame unit's front, top, sides, and back are made of rust- and corrosion-resistant stainless steel.

With its dual-flow system, the Blodgett DFG-50 DBL half-size convection oven combines direct and indirect heat, operating with LP gas. Staff can quickly turn this unit on via the electronic spark ignition control system, while its pressure regulator and manual gas service cut-off valve let users manage gas flow for safety. Its removable dual-tube burners produce temperatures as high as 500 degrees Fahrenheit, and these temperatures can be adjusted with the solid-state manual controls. To expedite roasting and baking, its single-speed fan motors distribute hot air throughout the chambers. Solid mineral fiber insulation is built into the top, back, sides, and base for energy preservation.

  • Half-size unit
  • 2 standard-depth baking compartments
  • 10 removable, chrome-plated racks with 9 positions (5 per section)
  • Capacity per section: (5) 18-in. x 13-in. half-size baking pans or (5) 12-in. x 20-in. hotel pans
  • Rigid full angle-iron frame
  • 7-in. stainless steel stand
  • Durable stainless steel top, front, and sides
  • Top, back, sides, and bottom built with solid mineral fiber insulation
  • 2 doors with chrome-plated handles (1 door per section)
  • Grease-resistant dual-pane thermal glass windows
  • Tilt-down modular front control panel
  • Double-sided porcelain baking compartment liners
  • Aluminized steel combustion chamber
  • Dual-inlet blower wheel
  • Interior light
  • Dual-flow gas system
  • Electronic spark ignition control system
  • Removable dual-tube burners
  • Pressure regulator
  • Manual gas service cut-off switch
  • Air mixers with adjustable air shutters
  • 1-speed fan motors
  • Operating temperature range: 200-500 degrees F
  • Solid-state manual control with separate thermostat and timer dials
  • Control area cooling fan
  • 27,500 BTU per oven section (55,000 total BTU)
  • 3⁄4-in. NPT inlet

  • Interiors: (2) 15 3⁄8 in. W x 21 in. D x 20 in. H
  • Overall: 30 1⁄4 in. W x 25 1⁄8 in. D x 77 7⁄8 in. H
  • 5 A, (2) 8.1 kW, (2) 1⁄3 HP
  • 115 V/60 Hz/1 ph, 2-wire 6-ft. cord with 2 NEMA 5-15P plugs (1 per deck)
  • LP gas powered

*Image may not depict product color, inclusions or accessories.

*Free shipping on Blodgett DFG-50 DBL within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Convection Oven, gas, half-size, double-deck, capacity (5) 13" x 18" pans per compartment, (SSM) solid state infinite controls with separate dials for thermostat and timer, 1-speed fans, interior light, single door per deck with dual pane thermal glass, stainless steel front, sides & top, 7" stainless steel stand, 1/2 HP, 27,500 BTU per section, cETLus, NSF

Warranty Icon
3-year Parts; 2-year Labor; 5-year Door Parts
