Blodgett CTB Single Half Size Electric Convection Oven - 5.6 kW, 208v/3ph
Typically ships in 4 - 8 Business Days
$10,565.00 /Each
White Glove Delivery
Contact your sales rep for availability
Blodgett CTB Description

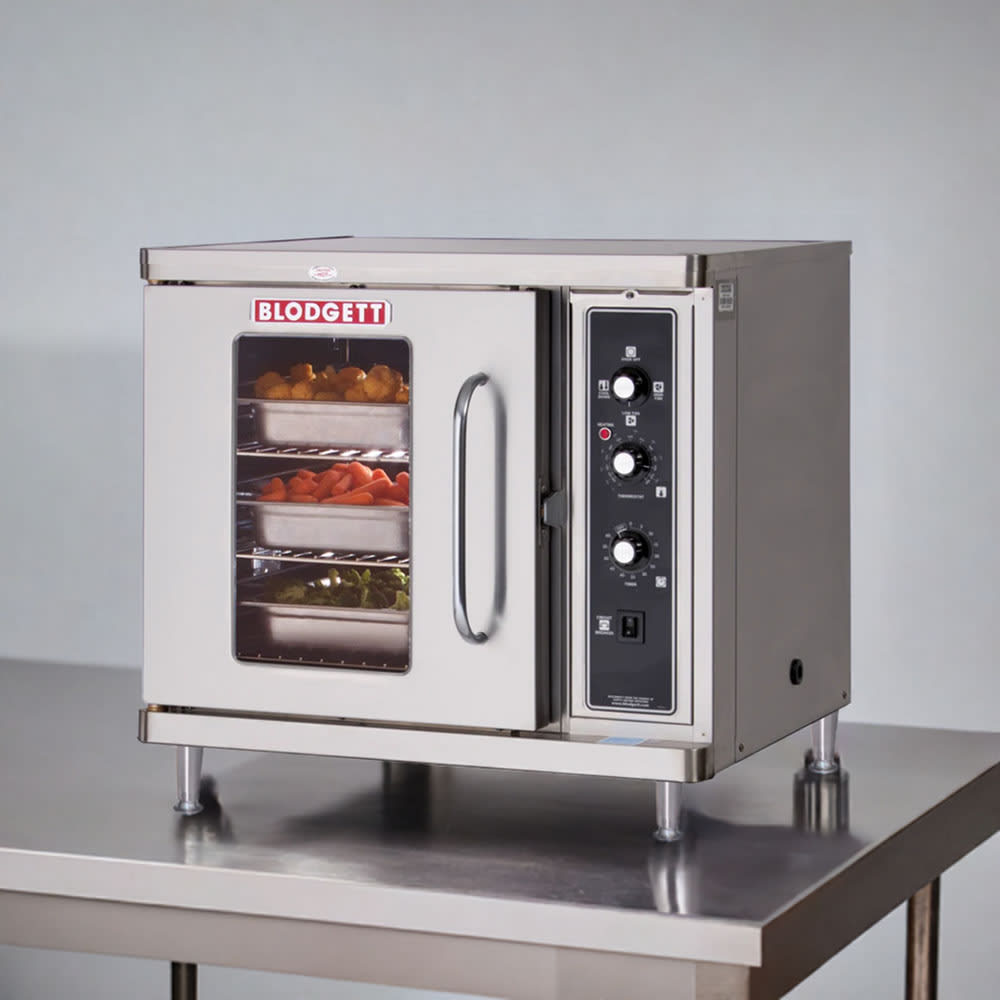

The Blodgett CTB single half-size convection oven can hold five 13-inch by 18-inch baking pans on chrome-plated wire racks. These racks can be adjusted to nine different positions with a minimum 15⁄8-inch spacing. To resist corrosion and facilitate cleanup, the interior liner is double-sided and porcelainized. Because the top, bottom, back, and sides are insulated, heat stays in the cabinet. This oven is durable, with a mostly stainless steel exterior and an angle-iron frame.
The oven door has a dual-pane glass window, so employees can check on the food without letting heat out. With a temperature range of 200 to 500 degrees Fahrenheit, the Blodgett CTB half-size convection oven has independent solid-state controls for temperature and time. The control panel is mounted on the front of the oven for accessibility.
Product Details
- (5) 18-in. x 13-in. pan capacity
- 5 chrome-plated racks with 9 available positions
- 15⁄8-in. minimum rack spacing
- Double-sided compartment liner is porcelainized to prevent bacteria and food from building up
- Temperature range: 200-500 degrees F
- Tilt-down, modular control panel has solid-state thermostat and time dials
- 2-speed fan motor: 1,140 or 1,725 RPM
- Dual-pane glass door window provides visibility
- Chrome-plated door handle
- Exterior door frame, top, front, side, and rear have a stainless steel construction that resists rusting and scratching
- Full angle-iron frame creates structural strength
- Insulated top, bottom, rear, and sides retain heat
- Automatic thermal overload protection reduces the risk of overheating
Product Features
Dimensions & Utilities
- Interior: 151⁄4 in. W x 21 in. D x 20 in. H
- Overall: 301⁄4 in. W x 287⁄8 in. D x 251⁄16 in. H
- 12-24 A, 5.6 kW, 1⁄4 HP
- 208 V/60 Hz/3 ph
*Free shipping on Blodgett CTB within the 48 contiguous states.
From The Manufacturer
Convection Oven, electric, single-deck, half-size, capacity (5) 13" x 18" pans, (SSM) solid state infinite controls with separate dials for thermostat and timer, 2-speed fan, single door, hinged on left, with dual pane thermal glass window, stainless steel front, sides, top & back, 208v/60/3ph, NSF, ETL, CE, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
Watch a video about this product
Blodgett CTB Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Blodgett |
| Base | None |
| Controls | Manual |
| Depth (in) | 25.13 |
| Door Construction | Metal with Window |
| Door Type | Independent |
| Heat | Electric |
| Height (in) | 28.25 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 5.6 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 3 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | CTB Series |
| Size | Half Size |
| Type | Requires Base |
| Voltage | 208 |
| Warranty | 3-year Parts; 2-year Labor; 5-year Door Parts |
| Width (in) | 30.25 |
| Weight | 295.00 |
