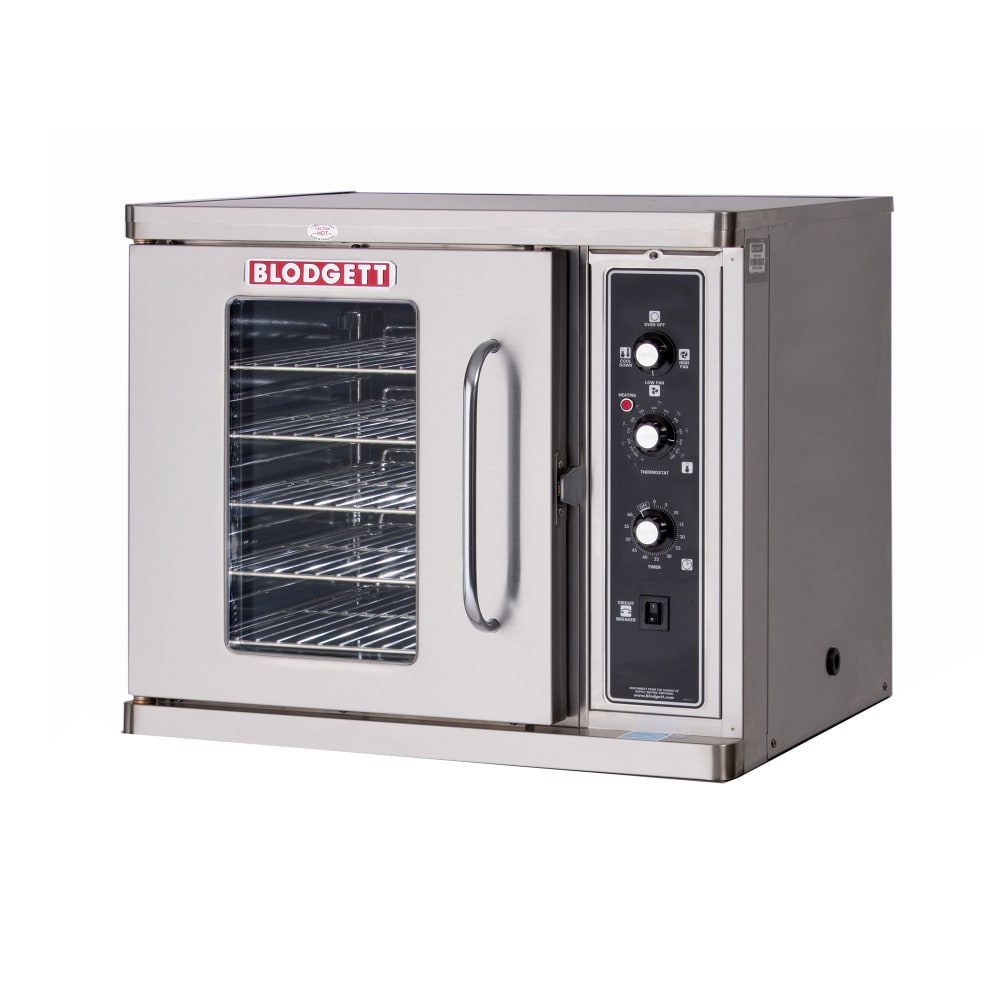

Blodgett CTB BASE Single Half Size Electric Convection Oven - 5.6kW, 208v/1ph
$11,006.00 /Each
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 220-240V, 1 Phase |
| 220-240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Blodgett CTB BASE Description
The Blodgett CTB BASE half-size convection oven is designed for high-volume baking in compact commercial kitchens. It accommodates five 13-inch by 18-inch pans on five adjustable chrome-plated racks, providing flexibility for various cooking applications. Its solid-state controls include a 60-minute timer, while the tilt-down modular control panel simplifies adjustments. A two-speed fan motor ensures even heat distribution, and the dual-pane windowed door with a stainless steel frame enables operators to monitor cooking progress without opening the oven.
Designed to endure commercial applications, the Blodgett CTB BASE convection oven features a stainless steel exterior and a porcelain-lined interior for easy cleaning. Mineral fiber insulation enhances heat retention, while the full angle-iron frame reinforces structural integrity. The unit operates with two tubular heaters, maintaining a temperature range of 200 to 500 degrees Fahrenheit. An automatic overload protection system safeguards the blower motor, while a built-in cooling fan helps regulate internal temperatures.
- Holds (5) 13-in. x 18-in. pans (sold separately)
- Stainless steel exterior
- Porcelain-lined interior
- Mineral fiber insulation
- Full angle-iron frame
- 1 dual-pane windowed door with stainless steel frame
- 5 adjustable chrome-plated racks
- 9 rack positions with 1 5⁄8-in. spacing
- Tilt-down modular control panel
- 2 tubular heating elements
- 2-speed fan motor
- 1,140 and 1,725 RPM
- Cooling fan
- Automatic overload protection (blower motor)
- Solid-state controls with a 60-minute timer
- Temperature range: 200-500 degrees F
- Interior: 15 1⁄4 in. W x 21 in. D x 20 in. H
- Overall: 30 1⁄4 in. W x 25 1⁄8 in. D x 29 1⁄2 in. H
- 27 A, 5.6 kW, 1⁄4 HP
- 208 V/60 Hz/1 ph, hardwired
*Image may not depict product color, inclusions or accessories.
*Free shipping on Blodgett CTB BASE within the 48 contiguous states.
From The Manufacturer
Convection Oven, electric, (base oven only) single-deck, half-size, capacity (5) 13" x 18" pans, (SSM) solid state infinite controls with separate dials for thermostat and timer, 2-speed fan, single door, hinged on left, with dual pane thermal glass window, stainless steel front, sides, top & back, NSF, ETL, CE, ENERGY STAR®
Watch a video about this product
Blodgett CTB BASE Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Blodgett |
| Base | None |
| Controls | Manual |
| Depth (in) | 25.13 |
| Door Construction | Metal with Window |
| Door Type | Independent |
| Heat | Electric |
| Height (in) | 29.5 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 5.6 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 1 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | CTB Series |
| Size | Half Size |
| Type | Requires Base |
| Voltage | 208 |
| Warranty | 3-year Parts; 2-year Labor; 5-year Door Parts |
| Width (in) | 30.25 |
| Weight | 280.00 |
