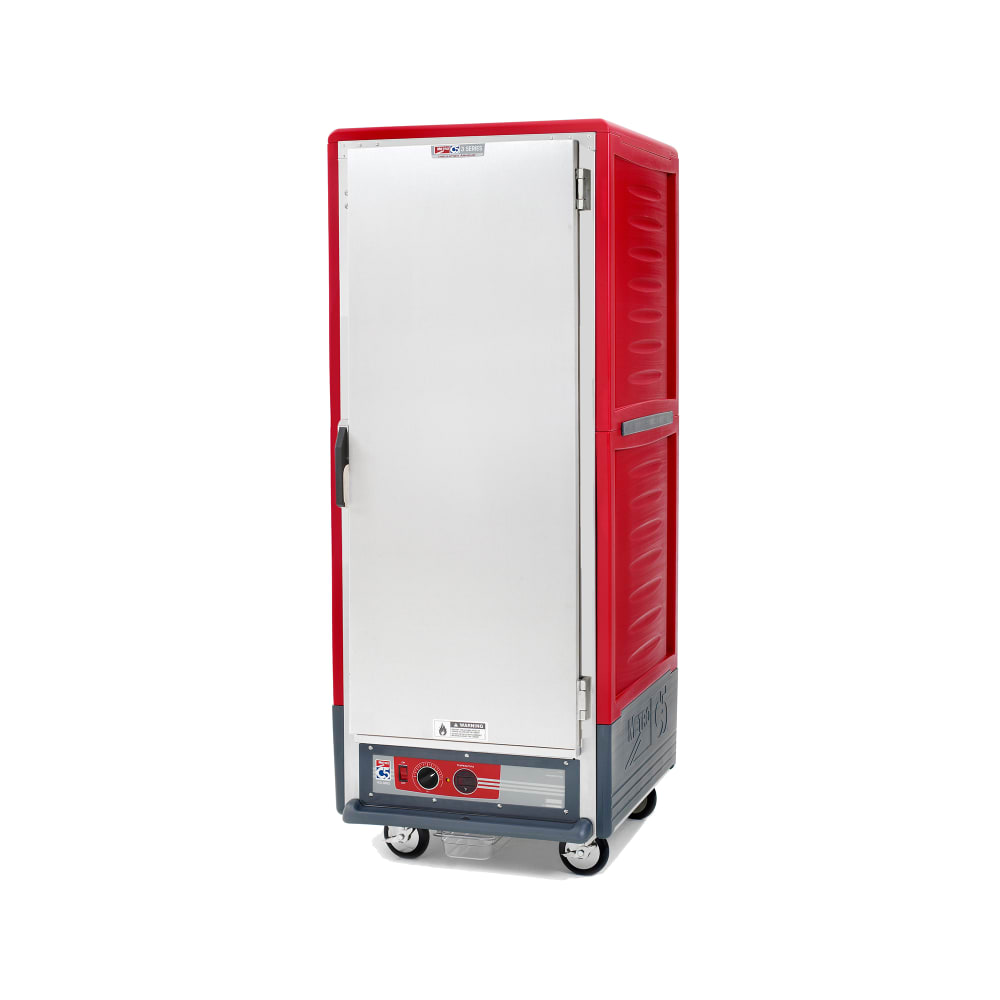

Metro C539-HFS-U Full Height Insulated Mobile Heated Cabinet w/ (18) Pan Capacity, 120v
Typically ships in 2 - 3 weeks
$3,240.00 /Each
Contact us for details!
Non Returnable Item
Metro C539-HFS-U Description
Heated holding cabinets are fantastic for bakeries, delis, restaurants, and more. The Metro C539-HFS-U heated holding cabinet provides temperature control to ensure foods are safe in addition to hot. The control module has a digital thermometer that is easy to read, control dials that are recessed to prevent damage, and power-indicator lights. This module is easily removable without tools so the cabinet can be cleaned. Insulation Armour™ is a patented technology that keeps the exterior cool while retaining heat in the cabinet. Its durable polymer construction resists stains and dents and is built with molded-in hand holds that make moving the cabinet easier.
Rapid heat up and recovery times are achieved with a thermostatically controlled forced convection system. The Metro C539-HFS-U heated holding cabinet holding cabinet unit has a full-length, solid door insulated with 1-inch-thick fiberglass that helps keep heat inside the cabinet. It is double hinged with field reversible hinges that swing out 180 degrees so loading and unloading the cabinet is simple. A Santoprene, high-temperature gasket is mounted on the door to help keep heat from leaking. A magnetic pull latch on the door has a lever-action release, and the cabinet has universal slides that hold the pans.
- Red, aluminum, full-size heated holding cabinet
- Holds food at safe temperatures while maintaining its moist texture with passive humidity
- Insulation Armour™ keeps the exterior cool while heat stays in the cabinet interior
- Insulation has durable polymer construction that resists dents and stains
- Hand holds are molded into the exterior to create vertical handles so moving the cabinet is easy
- Thermostatically controlled forced convection system quickly heats up and recovers heat
- 4 nickel-plated, swivel casters with 5-in. neoprene wheels
- 2 casters have brakes to keep cabinet locked in place
- Full-length solid door is insulated with 1 in. fiberglass
- Double-hinged, field-reversible door swings open to 180 degrees for loading and unloading
- Santoprene, high-temperature gasket is mounted on the door to help keep heat inside
- Magnetic, high-strength pull latch has a lever-action release
- 1⁄4-in.-dia. universal wire slides
- Slides are made from nickel chrome electroplated wire
- Slides are adjustable in 1 1⁄2-in. increments on universal slides
- Pan capacity is based on the standard 18 slide pairs provided
- 18 slide pairs are provided but the cabinet can hold up to 37 (additional slides are sold separately)
- Holds 18 pans measuring 18 in. x 26 in.
- Holds 34 pans measuring 12 in. x 20 in. x 2 1⁄2 in.
- Control module is removable to make cleaning the cabinet easier
- Control dials are recessed to prevent damage
- Digital thermometer is easier to read
- Temperature range: 80-200 degrees F
- Master on/off switch makes the cabinet easy to control
- Power-indicator lights let the operator know if the cabinet is on or off
- Polymer drip trough with a catch pan helps prevent messes
- Ball bearing blower forced air system
- 18-in. clearance from cooking equipment
- 1⁄2-in. clearance on top, back, and sides
- No contact with surfaces that exceed 200 degrees F
- 27 5⁄8 in. W x 31 1⁄2 in. D x 71 in. H
- 2000 W, 16.7 A
- 120 V/60 Hz/1 ph, 7 1⁄2-ft. cord with a NEMA 5-20P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Metro C539-HFS-U within the 48 contiguous states.
From The Manufacturer
C5™ 3 Series Heated Holding Cabinet, with Red Insulation Armour™, mobile, full height, insulated cabinet & door, removable bottom mount control module, thermostat to 200°F, universal wire slides on 3" centers, adjustable on 1-1/2" increments (18) 18" x 26" or (34) 12" x 20" x 2-1/2" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF
Metro C539-HFS-U Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Metro |
| Application | Heat Only |
| Color | Red |
| Construction | Aluminum |
| Control Location | Bottom |
| Controls | Dial |
| Depth (in) | 31.5 |
| Door Design | Full |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 71 |
| Hertz | 60 |
| Hinge Configuration | Right |
| kW | 2 |
| Load Type | Reach In |
| NEMA | 5-20P |
| No. of Doors | 1 |
| Pan Capacity | 18 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Series | C5™ 3 Series |
| Size | Full Height |
| Slide Spacing (in) | 3 |
| Slide Type | Universal |
| Special Features | Field Reversible Door |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 1-year Against Manufacturing Defects |
| Width (in) | 27.63 |
| Weight | 282.00 |
