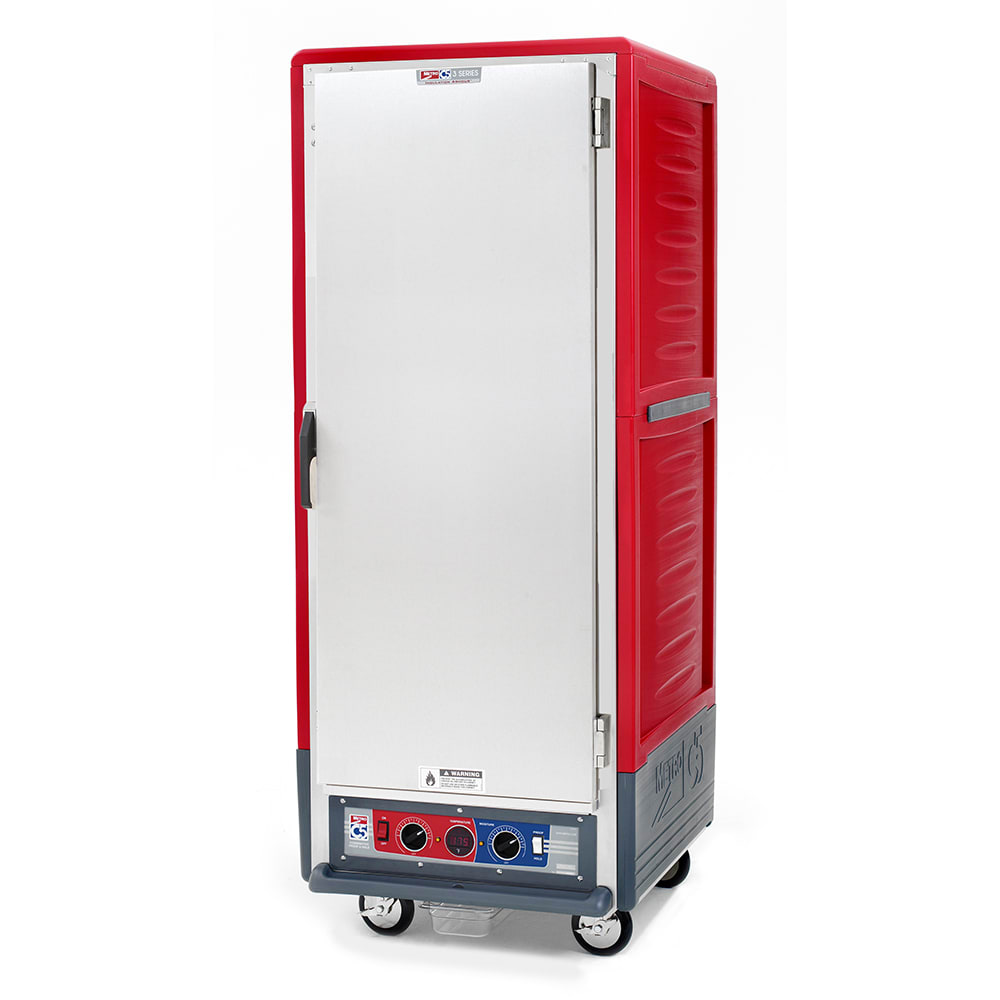

Metro C539-CFS-U Full Height Insulated Mobile Heated Cabinet w/ (18) Pan Capacity, 120v

Universal slides in the Metro C539-CFS-U full-height, mobile heated holding cabinet accommodate 18 full-size sheet pans or 34 full-size hotel pans. The slides are adjustable in 1¹/₂-inch increments to accommodate different types of product. Its high-density polyethylene construction provides strength that supports high-volume operations. Insulation in the unit retains heat, reducing energy consumption and keeping the exterior cool to the touch.

Designed for holding and proofing, the Metro C539-CFS-U insulated heated holding cabinet has high temperatures for holding, with low temperatures and humidity for proofing. These temperatures are easy to read on the digital thermostat and are controlled with recessed dials on the bottom-mount control module. This module is removable, so operators can update the control system or simplify cleaning.

Product Details

• Full-height cabinet
• (18) 18-in. x 26-in. pan capacity
• (34) 12-in. x 20-in. x 2¹/₂-in. pan capacity
• Universal slides on 3-in. centers adjust in 1¹/₂-in. increments
• Cabinet is constructed of aluminum for strength
• Red high-density polyethylene is durable and stain resistant
• Insulation keeps heat inside and maintains a cool-to-the-touch exterior
• Insulated, field-reversible solid door
• High-temperature door gaskets prevent heat from leaking
• Temperature range: 80-200 degrees F
• 95 percent relative humidity at 95 degrees F
• Bottom-mounted control module is removable for system updates and cleaning
• Easy-to-read digital thermostat
• Recessed control knobs are protected from impact
• On/off switch with power-on indicator light
• 5-in. casters with brakes on 2 of them

Dimensions and Utilities

• 27⁵/₈ in. W x 31¹/₂ in. D x 71 in. H
• 16.7 A, 2 kW
• 120 V/60 Hz/1 ph, NEMA 5-20P plug

From The Manufacturer

C5™ 3 Series Heated Holding & Proofing Cabinet, with Red Insulation Armour™, mobile, full height, insulated cabinet & door, removable bottom mount control module, thermostat to 200°F, universal wire slides on 3" centers, adjustable on 1-1/2" increments (18) 18" x 26" or (34) 12" x 20" x 2-1/2" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

1-year Against Manufacturing Defects
