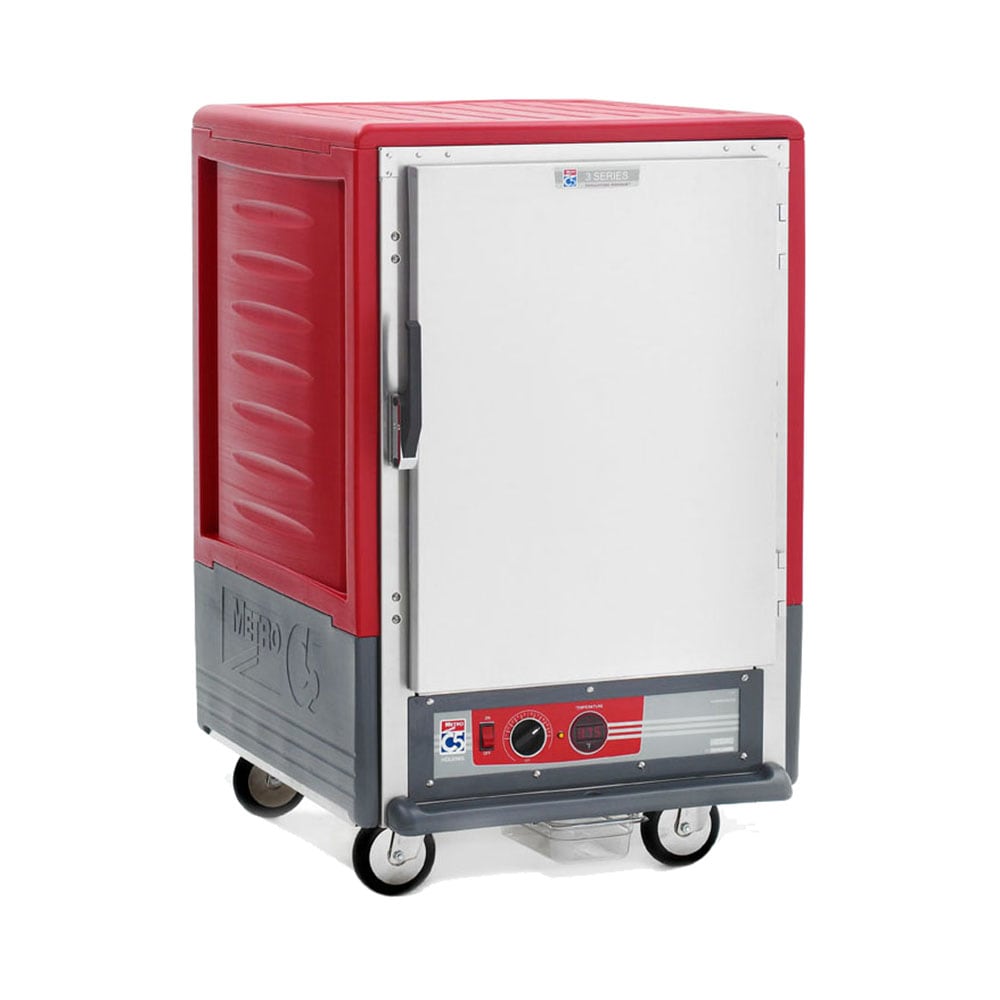

Metro C535-HFS-L 1/2 Height Insulated Mobile Heated Cabinet w/ (17) Pan Capacity, 120v
$2,938.00 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 05-12-2025 to save before the price increases!
Similar Products in Stock Now
Alto-Shaam 1200-UP-QS
Halo Heat® Full Height Insulated Mobile Heated Cabinet w/ (16) Pan Capacity, 120v
Looking for ENERGY STAR® Heated Cabinet?
See our selection of Metro ENERGY STAR® Heated Cabinet below
Metro C535-HFS-L Description
The Metro C535-HFS-L C5™ 3 half-height, insulated, mobile heated cabinet measures 275/8 inches wide by 311/2 inches deep by 44 inches high. For strength, this piece of equipment is constructed of red Insulation Armour™, a high-density polyethylene that insulates the cabinet and keeps the exterior cool. Its design prevents heat loss and conserves energy, while its durable construction protects it in transit.
Designed for heated holding, the Metro C535-HFS-L heated holding cabinet's temperature range is 80 to 200 degrees Fahrenheit. This unit's recessed controls can be removed without tools for facilitated cleaning and maintenance. The controls include power indicator lights, a master on/off switch, and a digital thermostat. It has the capacity for 17 pans.

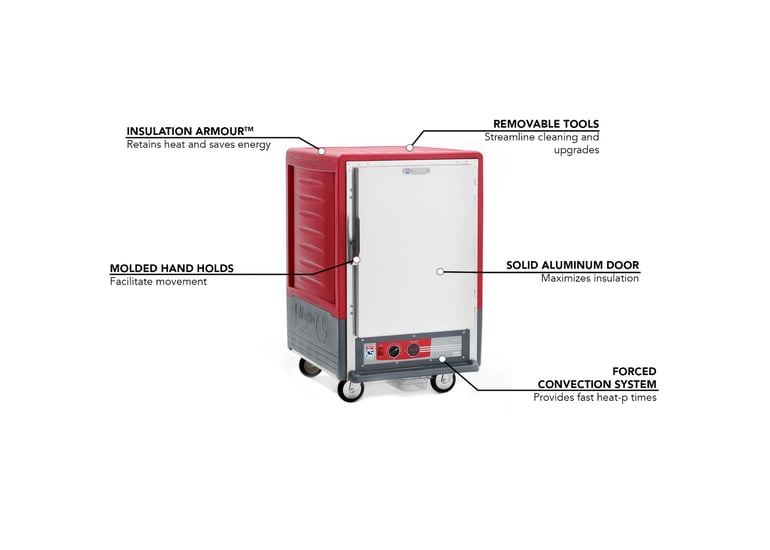

Product Details
- Part of the Metro C5 3 series
- (17) 18-in. x 26-in. pan capacity
- Red Insulation Armour
- Heated holding control module is removable without tools
- Digital thermometer is straightforward to read
- Recessed control dials
- On/off switch
- Power indicator lights alert user to system status
- Thermostatically controlled, forced-convection system
- Half height
- Solid, insulated aluminum door retains heat
- (4) 5-in. casters (2 with brakes)
- Field-reversible hinges
- Santoprene gaskets
- Polymer latches
- Handholds molded into Insulation Armour to facilitate movement
- 11/2-in. x 1/2-in. x 1/16-in. lip-load slides with 11/2-in. fixed spacing
- Polymer drip trough with catch pan
- Temperature holding range: 80-200 degrees F
Product Features
Dimensions & Utilities
- 275/8 in. W x 311/2 in. D x 44 in. H
- 16.7 A, 2 kW
- 120 V/60 Hz/1 ph, 71/2-ft. cord with a NEMA 5-20P plug
*Free shipping on Metro C535-HFS-L within the 48 contiguous states.
From The Manufacturer
C5™ 3 Series Heated Holding Cabinet, with Red Insulation Armour™, mobile, half height, insulated cabinet & door, removable bottom mount control module, thermostat to 200°F, lip load slides on 1-1/2" centers (17) 18" x 26" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF
*Image may not depict product color, inclusions or accessories.
Metro C535-HFS-L Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Metro |
| Application | Heat Only |
| Construction | Aluminum |
| Control Location | Bottom |
| Controls | Dial |
| Depth (in) | 31.5 |
| Door Design | Full |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 44 |
| Hertz | 60 |
| Hinge Configuration | Right |
| kW | 2 |
| Load Type | Reach In |
| NEMA | 5-20P |
| No. of Doors | 1 |
| Pan Capacity | 17 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Series | C5™ 3 Series |
| Size | 1/2 Height |
| Slide Spacing (in) | 1.5 |
| Slide Type | Lip Load |
| Special Features | Field Reversible Door |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 1-year Against Manufacturing Defects |
| Width (in) | 27.63 |
| Weight | 145.00 |
Metro C535-HFS-L Accessories
Other Products From This Line
Compare to Similar Items
| Attributes |
Current Item: Metro C535-HFS-L 1/2 Height Insulated Mobile Heated Cabinet w/ (17) Pan Capacity, 120v |
Metro C535-CFS-L 1/2 Height Insulated Mobile Heated Cabinet w/ (17) Pan Capacity, 120v |
|---|---|---|
| Customer Rating |
|
|
| Price | $2,938.00 | $3,263.00 |
| Shipping | Ships Free | Ships Free |
| Application | Heat Only | Heat & Humidity |
| Type | Insulated | Insulated |
| Size | 1/2 Height | 1/2 Height |
| Pan Capacity | 17 | 17 |
| No. of Doors | 1 | 1 |
| Door Design | Full | Full |
| Door Type | Solid | Solid |
| Warranty | 1-year Against Manufacturing Defects | 1-year Against Manufacturing Defects |
