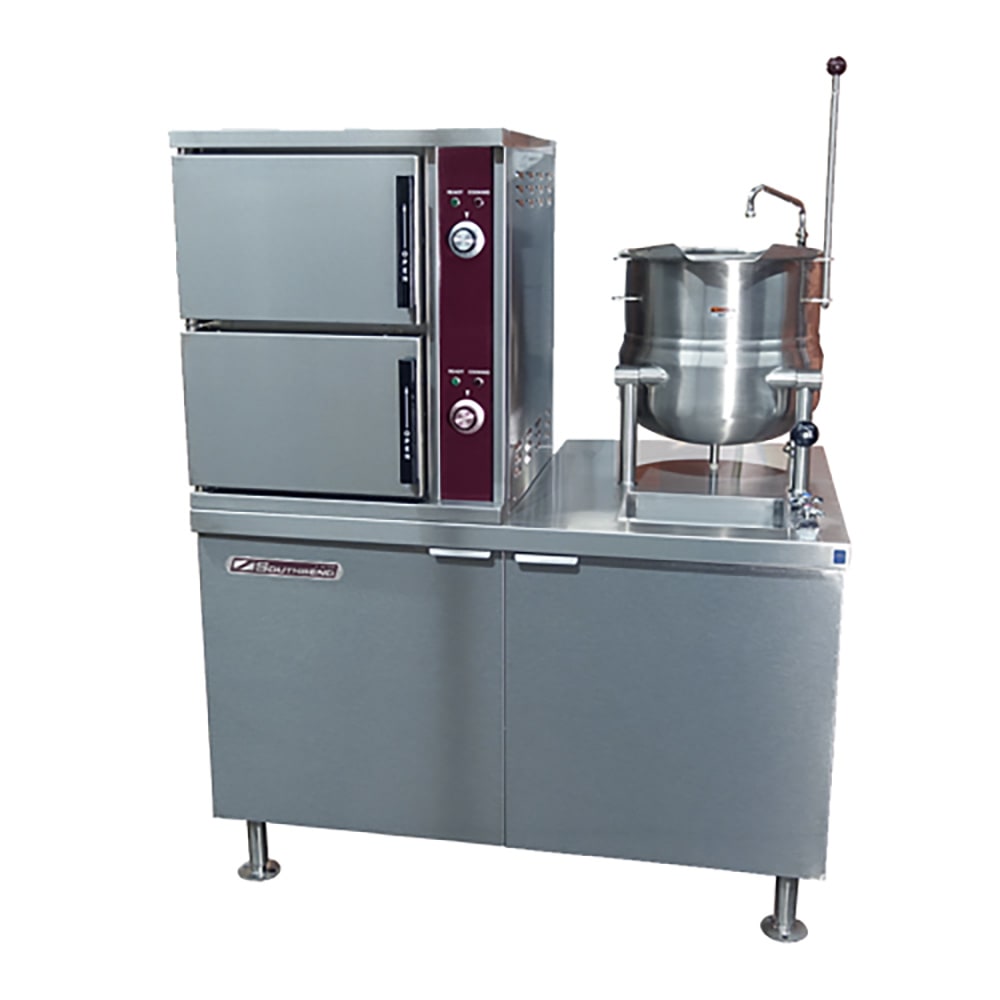

Southbend GCX-2S-10 (6) Pan / (1) Kettle Convection Steamer - Cabinet, Natural Gas
$49,942.13 /Each
Call for details!
Selected Gas Type: Natural Gas
Southbend GCX-2S-10 Description
Designed for commercial kitchens, the Southbend GCX-2S-10 gas convection steamer and kettle combination integrates a 10-gallon kettle and two steaming compartments. Each compartment holds three 12-inch by 20-inch pans, providing flexibility for batch cooking.
This unit is housed within a 48-inch cabinet base and includes a deck-mounted faucet valve, a swing nozzle, and an integral sink for efficient workflow. To help manage condensation, a stainless steel drip trough is connected to the drain.
Built with a stainless steel interior and exterior, the Southbend GCX-2S-10 kettle steamer is designed for heavy-duty steaming applications. It features electronic ignition, an automatic blowdown system, and a 60-minute timer per compartment for precise operation.
The unit is reinforced with a full-perimeter angle frame and boiler mountings, while 6-inch stainless steel legs with adjustable flanged feet provide stability. A water treatment system and split water lines contribute to the unit’s longevity and consistent performance.
- 10-gal. kettle capacity
- Stainless steel interior and exterior
- 2-compartment convection steamer
- Holds (3) 12-in. x 20-in. pans per compartment
- Deck-mounted faucet valve with swing nozzle and integral sink
- Stainless steel drip trough channels condensation to the drain
- Removable stainless steel pan supports
- Automatic blowdown system
- Electronic ignition system
- 60-minute timer per compartment
- CSD-1 boiler controls
- Water treatment system
- Split water lines
- 6-in. stainless steel legs with adjustable flanged feet
- Gas connection: 3⁄4-in. IPS supply line required
- Boiler feed water: 1⁄2-in. NPT at 25-50 PSI
- Condensate cold water: 1⁄2-in. NPT at 25-50 PSI
- Hot water: 3⁄8-in. O.D. tubing at 25-50 PSI
- Drain: 2-in. IPS piped to open floor drain
- 48 in. W x 33 in. D x 65 1⁄8 in. H
- 120 V/60 Hz/1 ph
- Natural gas powered
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend GCX-2S-10 within the 48 contiguous states.
From The Manufacturer
Convection Steamer/Kettle, gas, (2) compartment, (1) 10 gallon kettle, (3) 12" x 20" pan capacity per compartment, 48" cabinet base, electronic ignition, automatic blowdown, 60 minute timer per compartment, deck mount faucet valve, swing nozzle & integral sink, CSD-1 code package, includes water filter system, stainless steel interior & exterior, 6" legs, adjustable flanged feet, 250,000 BTU, CSA, NSF
Southbend GCX-2S-10 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Also Known As | Crown GCX-2-10 |
| Application | High Volume |
| Base | Cabinet |
| Controls | Manual |
| Depth (in) | 33 |
| Gas Type | NG |
| Heat | Gas |
| Height (in) | 65.1 |
| Kettle Capacity | 10 gal |
| No. of Compartments | 2 |
| No. of Kettles | 1 |
| Pan Capacity | 3 to 9 Pans |
| Pan Type | Full Size Steam Pans |
| Product | Steamers |
| Product Type | Cooking Equipment |
| Steam Generator | Boiler-Based |
| Steamer Type | Convection |
| Total BTU | 250000 |
| Warranty | 1-year Limited Parts & Labor |
| Water Source | Plumbed |
| Width (in) | 48 |
| Weight | 1030.00 |
