Southbend GCX-2S-10 (6) Pan / (1) Kettle Convection Steamer - Cabinet, Liquid Propane
$49,942.13 /Each
Call for details!
Selected Gas Type: Liquid Propane
Southbend GCX-2S-10 Description

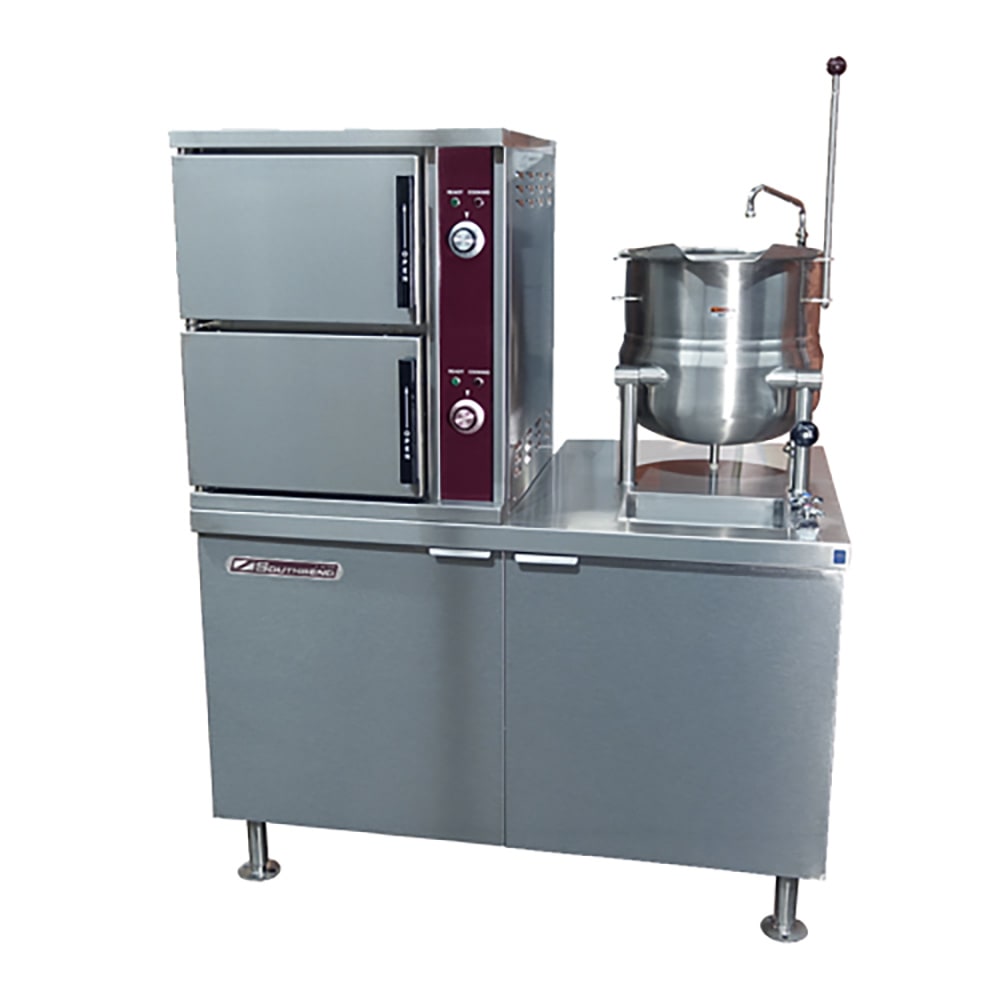

The Southbend GCX-2S-10 gas convection steamer and kettle combination features a 10-gallon kettle and two steaming compartments, each accommodating three 12-inch by 20-inch pans. This unit is mounted on a 48-inch cabinet base and includes a deck-mounted faucet valve with a swing nozzle and an integral sink for efficient water access. Its stainless steel drip trough collects condensate when the doors are opened, and the removable pan supports facilitate cleaning.
The Southbend GCX-2S-10 convection steamer is constructed with a stainless steel interior and exterior for durability in high-volume kitchen environments. Each compartment is equipped with a 60-minute timer, an electronic ignition system, and an automatic blowdown function.
The cabinet base is reinforced with a full-perimeter angle frame and boiler mountings, while 6-inch stainless steel legs with adjustable flanged feet provide stability. This unit includes a water treatment system, split water lines, and CSD-1 boiler controls to maintain performance.
- 10-gal. kettle capacity
- Stainless steel interior and exterior
- 2-compartment convection steamer
- Accommodates (3) 12-in. x 20-in. pans per compartment
- Deck-mounted faucet valve with swing nozzle and integral sink
- Removable stainless steel pan supports
- Stainless steel drip trough for condensate collection
- 60-minute timer per compartment
- Electronic ignition system
- Automatic blowdown function
- CSD-1 boiler controls
- Water treatment system
- Split water lines
- 6-in. stainless steel legs with adjustable flanged feet
- Gas connection: 3⁄4-in. IPS supply line required
- Boiler feed water: sup>1⁄2-in. NPT at 25-50 PSI
- Condensate cold water: sup>1⁄2-in. NPT at 25-50 PSI
- Hot water: 3⁄8-in. O.D. tubing at 25-50 PSI
- Drain: 2-in. IPS piped to open floor drain
- 250,000 BTU
- 48 in. W x 33 in. D x 65 1⁄8 in. H
- 120 V/60 Hz/1 ph
- LP gas powered
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend GCX-2S-10 within the 48 contiguous states.
From The Manufacturer
Convection Steamer/Kettle, gas, (2) compartment, (1) 10 gallon kettle, (3) 12" x 20" pan capacity per compartment, 48" cabinet base, electronic ignition, automatic blowdown, 60 minute timer per compartment, deck mount faucet valve, swing nozzle & integral sink, CSD-1 code package, includes water filter system, stainless steel interior & exterior, 6" legs, adjustable flanged feet, 250,000 BTU, CSA, NSF
Southbend GCX-2S-10 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Also Known As | Crown GCX-2-10 |
| Application | High Volume |
| Base | Cabinet |
| Controls | Manual |
| Depth (in) | 33 |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 65.1 |
| Kettle Capacity | 10 gal |
| No. of Compartments | 2 |
| No. of Kettles | 1 |
| Pan Capacity | 3 to 9 Pans |
| Pan Type | Full Size Steam Pans |
| Product | Steamers |
| Product Type | Cooking Equipment |
| Steam Generator | Boiler-Based |
| Steamer Type | Convection |
| Total BTU | 250000 |
| Warranty | 1-year Limited Parts & Labor |
| Water Source | Plumbed |
| Width (in) | 48 |
| Weight | 1030.00 |
