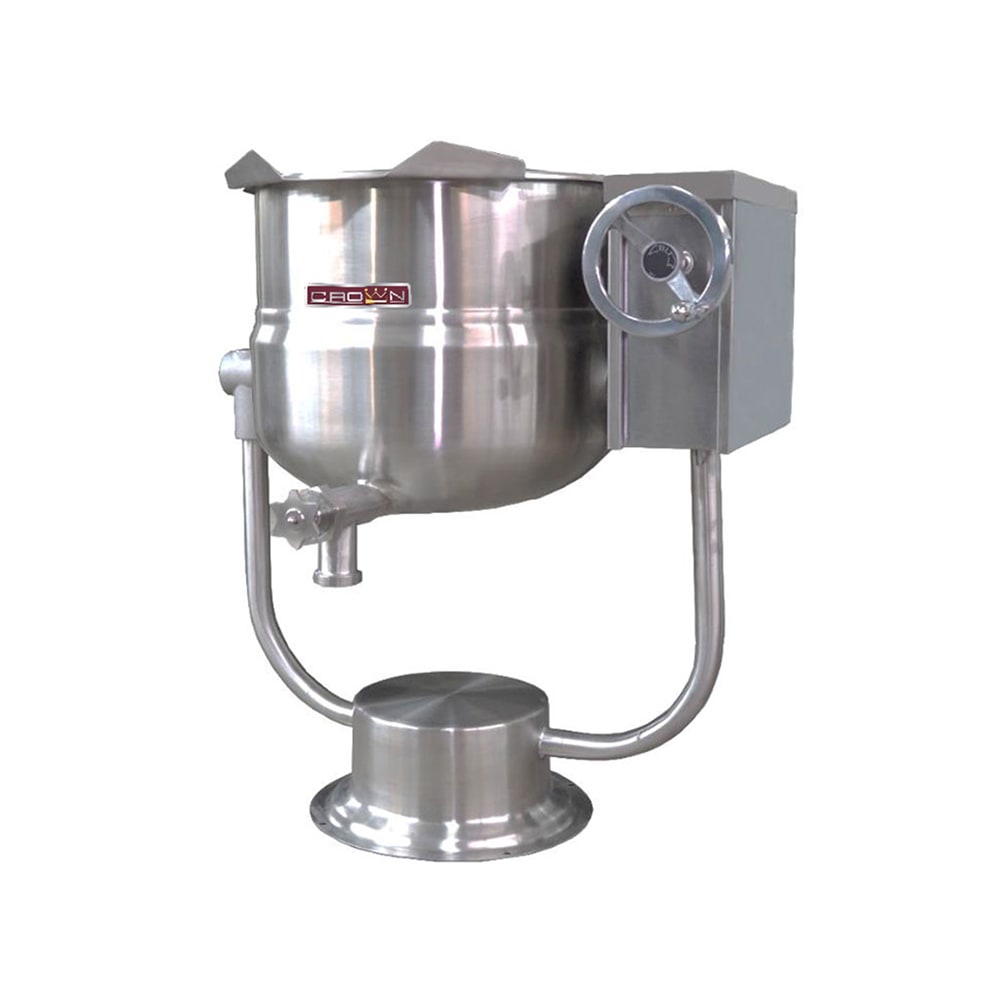

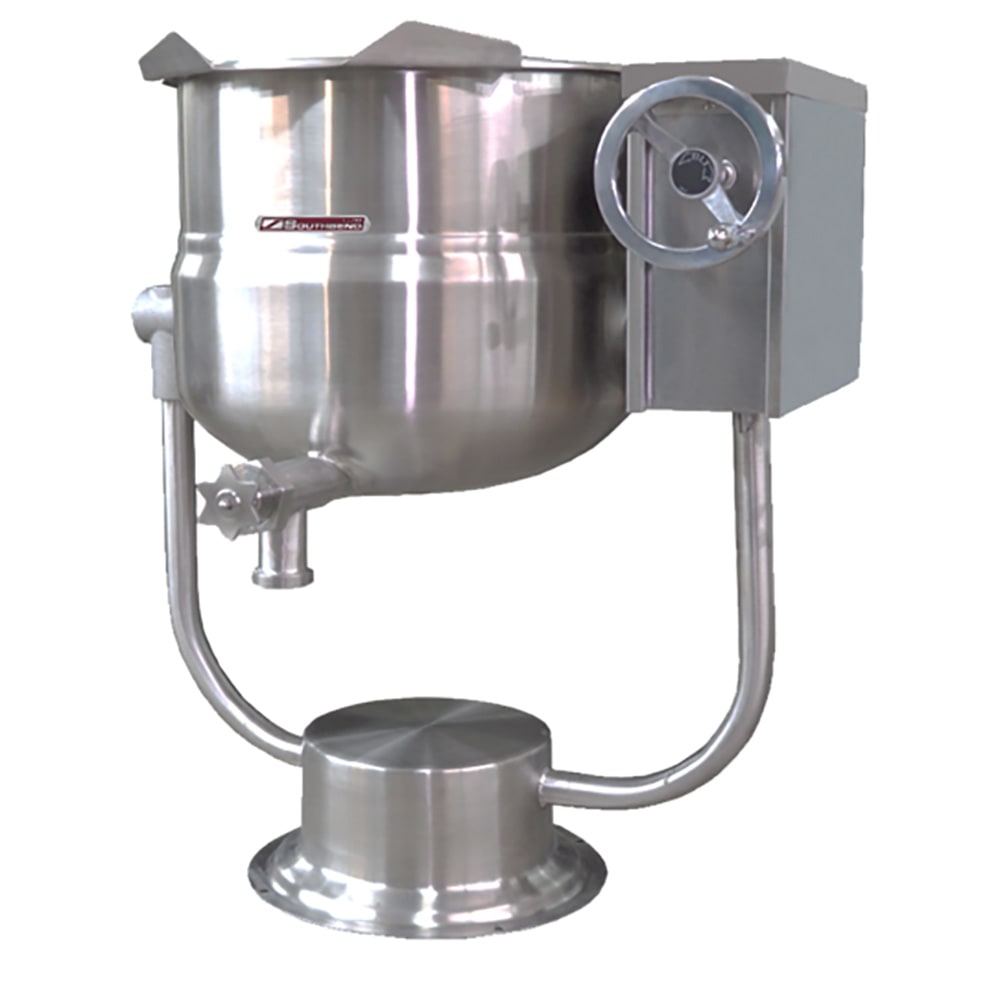

Crown Steam DPT-40 40 gal. Steam Kettle - Manual Tilt, 2/3 Jacket, Direct Steam

The Crown Steam DPT-40 steam kettle accommodates 40 gallons of a liquid product such as chili, stew, or broth. With a manual mechanism, this piece of equipment tilts forward to a full 90 degrees so users can empty all its contents. Easing operation, a faucet bracket is included.

The Crown Steam DPT-40 steam kettle has a stainless steel interior and exterior. For use with acidic foods that would corrode other materials, the interior is made of 304 stainless steel. Users must pair this unit with an external steam source.

Product Details

• 40-gal. capacity
• Lower ²⁄₃ is jacketed with direct steam
• Manual operation features crank tilt with self-locking positive stop
• 90-degree kettle tilt for complete emptying
• Includes faucet bracket
• Exterior, console, and pedestal base are made of 304 stainless steel
• 316 stainless steel interior liner resists corrosion from acidic foods
• 30 PSI

Dimensions & Utilities

• 39.75 in. W x 45 in. D x 37 in. H
• ³⁄₄-in. IPS steam supply
• ¹⁄₂-in. IPS condensate return

*Free shipping on Crown Steam DPT-40 within the 48 contiguous states.

From The Manufacturer

Tilting Kettle, direct steam, 40 gallon capacity, 2/3 jacket, crank tilt with self-locking positive stop, faucet bracket, 316 stainless steel interior liner, stainless steel exterior, console & pedestal base, 30 psi, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Hemisphere

Crown Steam DPT-40 Specifications

Documents

Spec Sheet

Warranty

Manual
