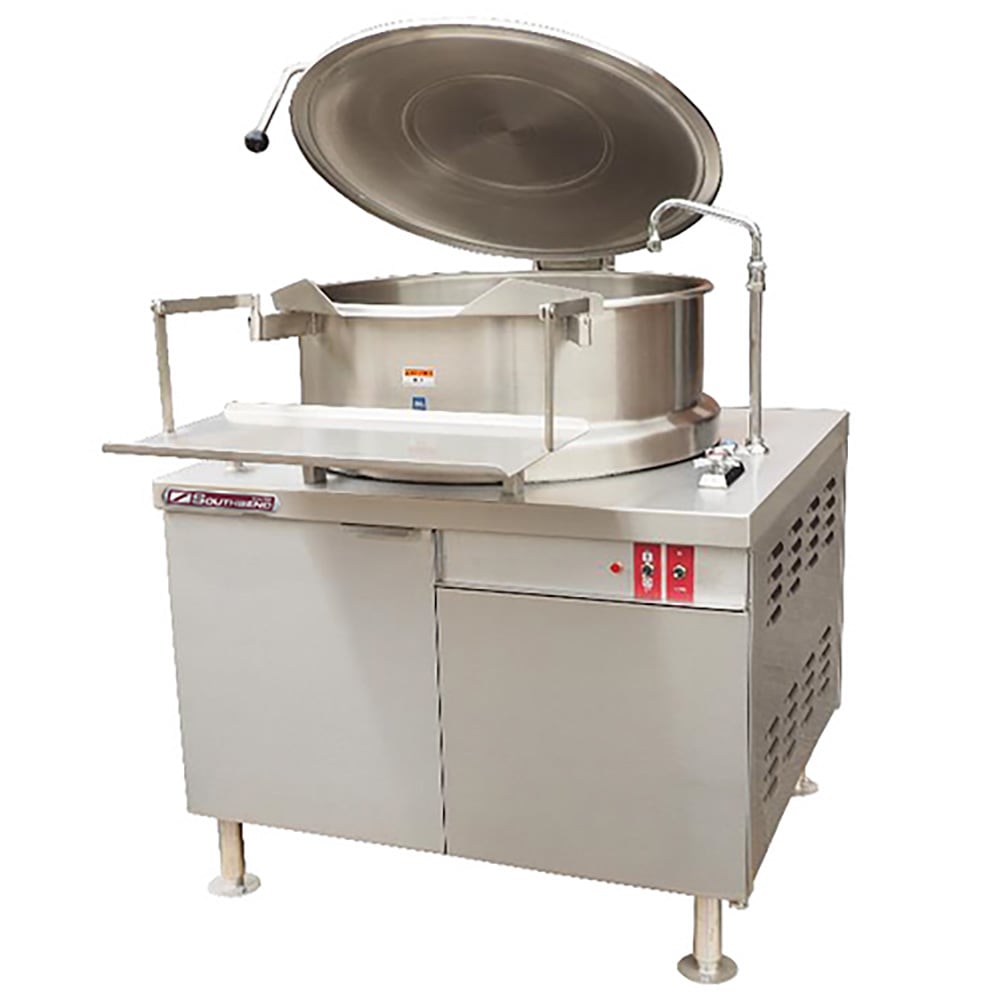

Southbend DMS-40S 40 gal. Steam Kettle - Stationary, 2/3 Jacket, Direct Steam
$21,638.03 /Each
Call for details!
Southbend DMS-40S Description
The Southbend DMS-40S stationary kettle is built for high-efficiency commercial cooking, offering a 40-gallon capacity with a 2 2⁄3-jacketed steam cavity for even heat distribution. Its interior liner is constructed of 316 stainless steel, ensuring durability and resistance to high-acid food products.
The hemispherical bottom maximizes heat circulation, while the enclosed stainless steel cabinet base houses essential components, including a steam trap and safety relief valve. For smooth operation, this unit features a 2-inch sanitary draw-off valve with a perforated strainer, allowing efficient product dispensing. A hot and cold deck-mounted fill faucet provides convenient water access.
Designed for stability and convenience, the Southbend DMS-40S stationary kettle includes a spring-assisted hinged stainless steel cover to retain heat and ensure safety. Its modular cabinet design matches other Crown cooking equipment, while removable side panels and magnetic latch doors provide easy access for maintenance.
The unit is supported by 6-inch stainless steel legs, with bullet feet in the front and adjustable flanged feet in the rear for secure floor mounting. A standard pan support holds one 12-inch by 20-inch by 2 1⁄2-inch pan in a horizontal position and can be removed without tools for easy cleaning.
- 40-gal. capacity
- Standard pan support holds (1) 12-in. x 20-in. x 2 1⁄2-in. pan
- 2 2⁄3-jacketed interior with a 316 stainless steel liner for high-acid food resistance
- Hemispherical design
- Stainless steel cabinet base with enclosed components
- Perforated strainer with 2-in. sanitary draw-off valve
- Steam trap and safety relief valve included
- Deck-mounted hot and cold water fill faucet
- Spring-assisted hinged stainless steel cover
- 6-in. stainless steel legs with bullet feet in the front
- Adjustable flanged feet in the rear
- Operating pressure: 30 PSI
- 36 in. W x 33 in. D x 42 1⁄2 in. H
- 10 A
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend DMS-40S within the 48 contiguous states.
From The Manufacturer
Stationary Kettle, direct steam, 40 gallon capacity, 2/3 jacket, 2" draw-off, perforated strainer, hot & cold faucet, pan support, 316 stainless steel interior liner, stainless steel cabinet base & hinged cover, 6" legs, bullet feet front, flanged feet rear, 30 psi, CSA, NSF
Southbend DMS-40S Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Also Known As | Crown DMS-40 |
| Base | Cabinet |
| Capacity (gallons) | 40 |
| Design | 2/3 Jacket |
| Heat | Direct Steam |
| No. of Kettles | 1 |
| Tilt Mechanism | Stationary |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Hemisphere |
| Weight | 475.00 |
