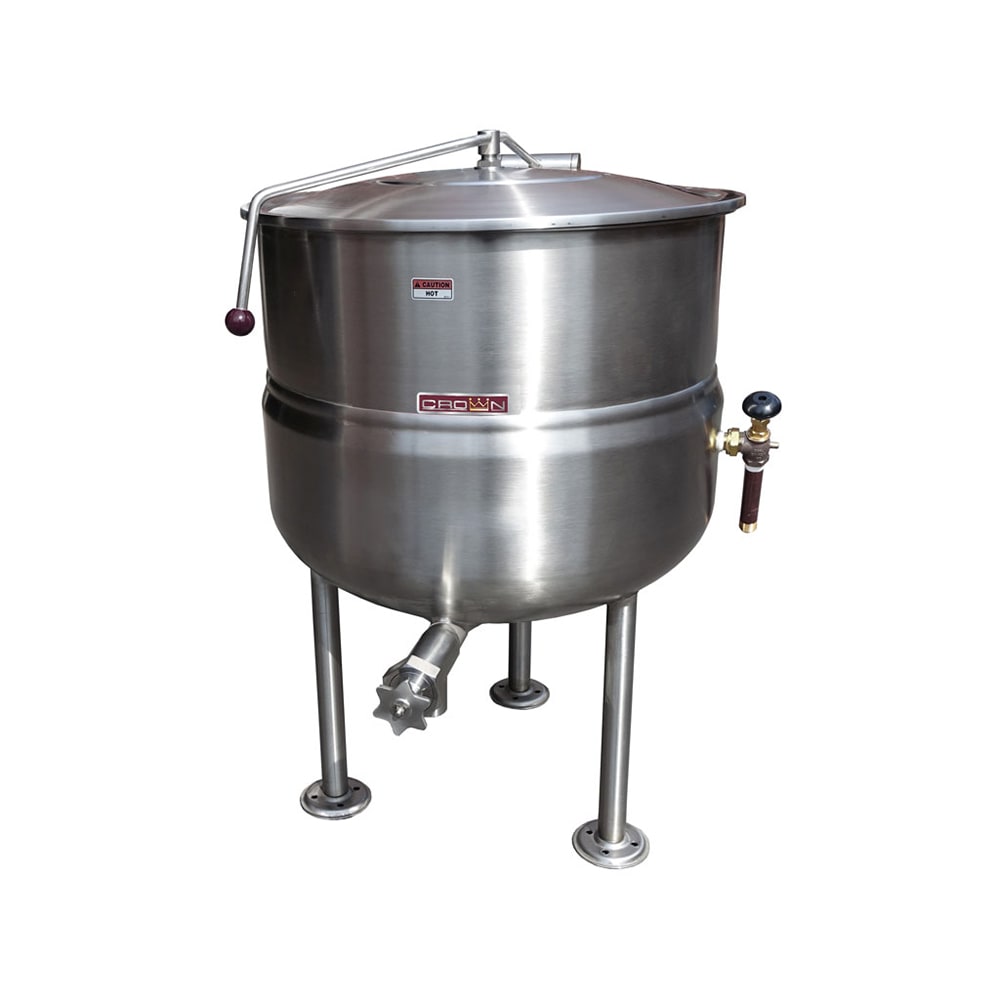

Crown Steam DL-80 80 gal Steam Kettle - Stationary, 2/3 Jacket, Direct Steam
$16,293.00 /Each
Web price, call us!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Crown Steam DL-80 Description
For even heating, the lower two-thirds of the Crown Steam DL-80 stationary steam kettle's interior is lined with a double wall that creates a steam jacket. The unit's bottom features a hemispherical structure, which reduces cold spots and improves uniform heat circulation. Because it uses a direct-steam system, it requires an external source to fill the jacket with steam, and overall, this unit accommodates 80 gallons of product—an ideal volume for cooking large batches of soups, stews, and pastas.
Because the Crown Steam DL-80 steam kettle is stationary, it doesn't require operator exertion to remove product—instead, it includes a 2-inch draw-off valve. This unit is equipped with a perforated strainer to catch foods while dispensing liquids. A spring-assisted, hinged stainless steel cover shields product from airborne particulates and helps prevent heat loss. Made of durable stainless steel, the interior and exterior resist rust and corrosion to withstand long-term use. For stability, this 37.75-inch-wide by 37-inch-deep by 40.50-inch-high kettle is furnished with three tubular legs and adjustable flanged feet.
Product Details
- Capacity: 80 gal.
- Direct-steam unit
- 316 stainless steel interior liner and 304 stainless steel exterior finish
- Two-thirds steam jacket
- Hemispherical bottom structure
- Stationary
- 3 tubular legs with adjustable flanged feet
- 2-in. draw-off valve
- Perforated strainer, spring-assist cover, and faucet bracket included
- Minimum PSI: 5
- Maximum PSI: 30
Product Features
Dimensions & Utilities
- 37.75 in. W x 37 in. D x 40.50 in. H
- Steam supply: 3⁄4-in. IPS
- Condensate return: 1⁄2-in. IPS
*Free shipping on Crown Steam DL-80 within the 48 contiguous states.
From The Manufacturer
Stationary Kettle, direct steam, 80 gallon capacity, 2/3 jacket, 2" draw-off, includes: perforated strainer, spring assist cover & faucet bracket, 316 stainless steel interior liner, 304 stainless steel exterior finish, (3) stainless steel tubular legs with adjustable flanged feet, NSF
*Image may not depict product color, inclusions or accessories.
Crown Steam DL-80 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Crown Steam |
| Base | Tri Leg |
| Capacity (gallons) | 80 |
| Design | 2/3 Jacket |
| Heat | Direct Steam |
| No. of Kettles | 1 |
| Tilt Mechanism | Stationary |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor; 10-year Hemisphere |
| Weight | 205.00 |
Important Prop 65 information for California residents.
