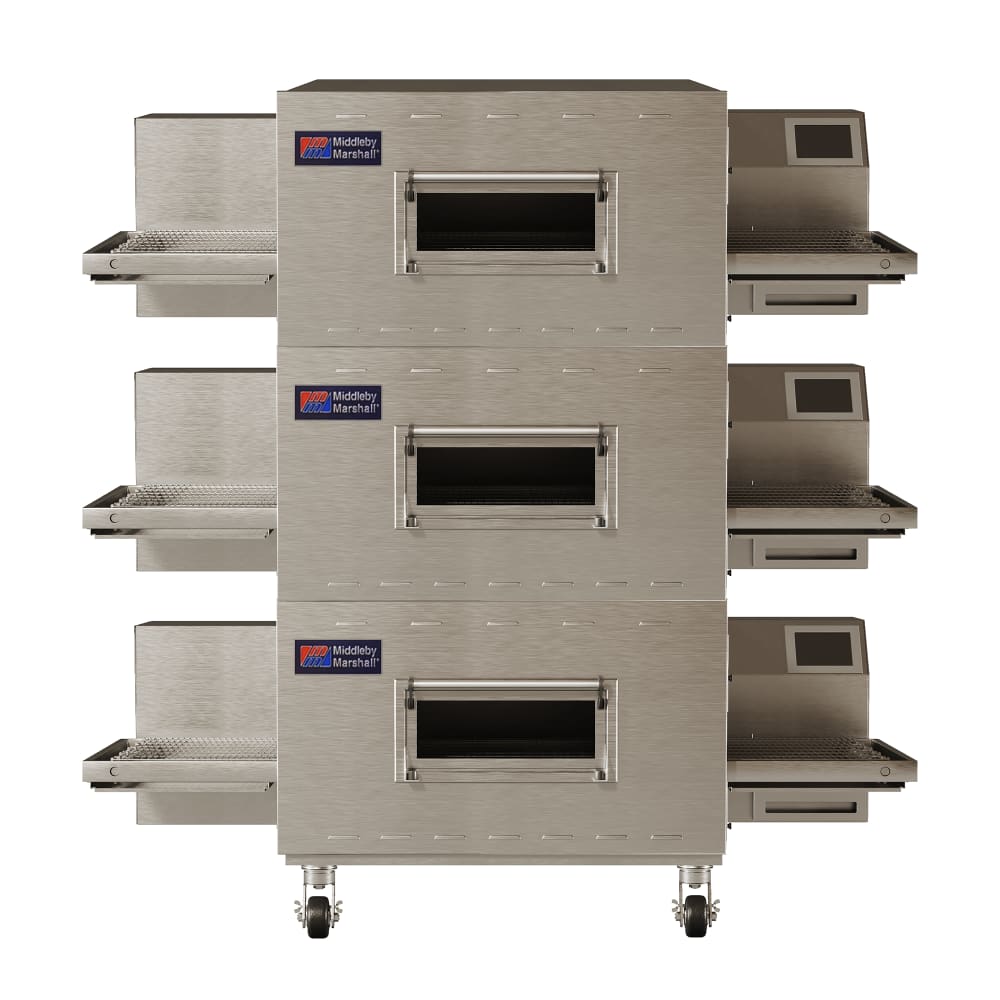

Middleby Marshall PS640E-3 77" Electric Triple Impingement Conveyor Oven - 208v/3ph

KaTom #: 961-PS640E32083 • MPN: PS640E-3 208/3
  • 961-PS640E32083 Primary Thumbnail Image

Typically ships in 4 - 6 weeks

Free Shipping Item

Retail Price: $114,609.60

$77,693.24 /Each

Selected Voltage: 208V, 3 Phase

Tyler Graham User Image
Ask a Foodservice Equipment Specialist

Middleby Marshall PS640E-3 Description

The Middleby Marshall PS640E-3 electric conveyor oven measures 76 1⁄2 inches wide by 60 inches deep by 77 5⁄8 inches high to accommodate compact kiosks and express-style stations. This three-deck unit is comprised of three independent conveyor ovens, each measuring 76 1⁄2 inches wide by 33 1⁄2 inches deep with a 40 1⁄2-inch-wide cooking chamber. To endure high-volume, back-of-house use, the front, sides, top, and interior are made of stainless steel—a durable, simple-to-clean metal resistant to rust and corrosion. During baking, its cool-skin safety feature ensures the external surface's temperature is cooler than 120 degrees Fahrenheit so employees can safely work near the oven. For thorough cleaning, the crumb pans, air fingers, end panels, and conveyor belts can be removed. So it can be wheeled out of the way for cleaning or maintenance, this unit is positioned on 5-inch casters.

The Middleby Marshall PS640E-3 WOW!™ Impingement PLUS! low-profile oven uses an advanced technology air-delivery system that can bake products 30 percent faster than standard conveyor ovens. By directing high-pressure jets of hot air toward foods on the conveyor belt, this oven eliminates the cold halo that insulates foods, expediting cook time. Each oven has corresponding controls that lets the operator set the oven's temperature from 300 to 600 degrees Fahrenheit, modify cook times from 1 1⁄4 to 33 minutes, and adjust airflow. To reduce energy consumption, this unit features an Energy Management System and energy-saving touchscreen control. Each oven's "energy eye" detects when the conveyor belts are empty to reduce blower fan speed.

  • Part of the WOW! Impingement PLUS! collection
  • Baking area: 27 sq. ft.
  • Low-profile 3-deck unit
  • (3) 40 1⁄2-in.-wide cooking chambers
  • Variable airflow technology
  • Dual air return
  • Cook time can be set from 1 1⁄4-33 minutes
  • Operating temperature: 300-600 degrees F
  • Energy Management System
  • Automatic energy eye photo sensor detects when oven is empty to reduce energy use
  • Touchscreen control with energy-saving mode
  • Stainless steel front, sides, top, and interior
  • Cool-skin exterior maintains external surface temperature cooler than 120 degrees F
  • Removable crumb pans, end panels, air fingers, and folding conveyor belt for cleaning
  • Equipped with 5-in. legs and casters
  • Requires installation with separately sold installation hood

  • Conveyor belts: (3) 76 1⁄2 in. W x 33 1⁄2 in. D
  • Overall: 76 1⁄2 in. W x 60 in. D x 77 5⁄8 in. H
  • 75-85 A, 27 kW
  • 208 V/50/60 Hz/3 ph

*Image may not depict product color, inclusions or accessories.

*Free shipping on Middleby Marshall PS640E-3 within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

WOW! Impingement PLUS Conveyor Oven, electric, triple deck, 40-1/2" long cooking chamber & 32" width x 76-1/2" length belt (per deck), touch screen control, includes: top, legs, casters & base, stainless steel front, sides, top & interior, cETLus Listed, ETL-Sanitation, CE

Warranty Icon
1-year Parts & Labor

Middleby Marshall PS640E-3 Specifications

Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
