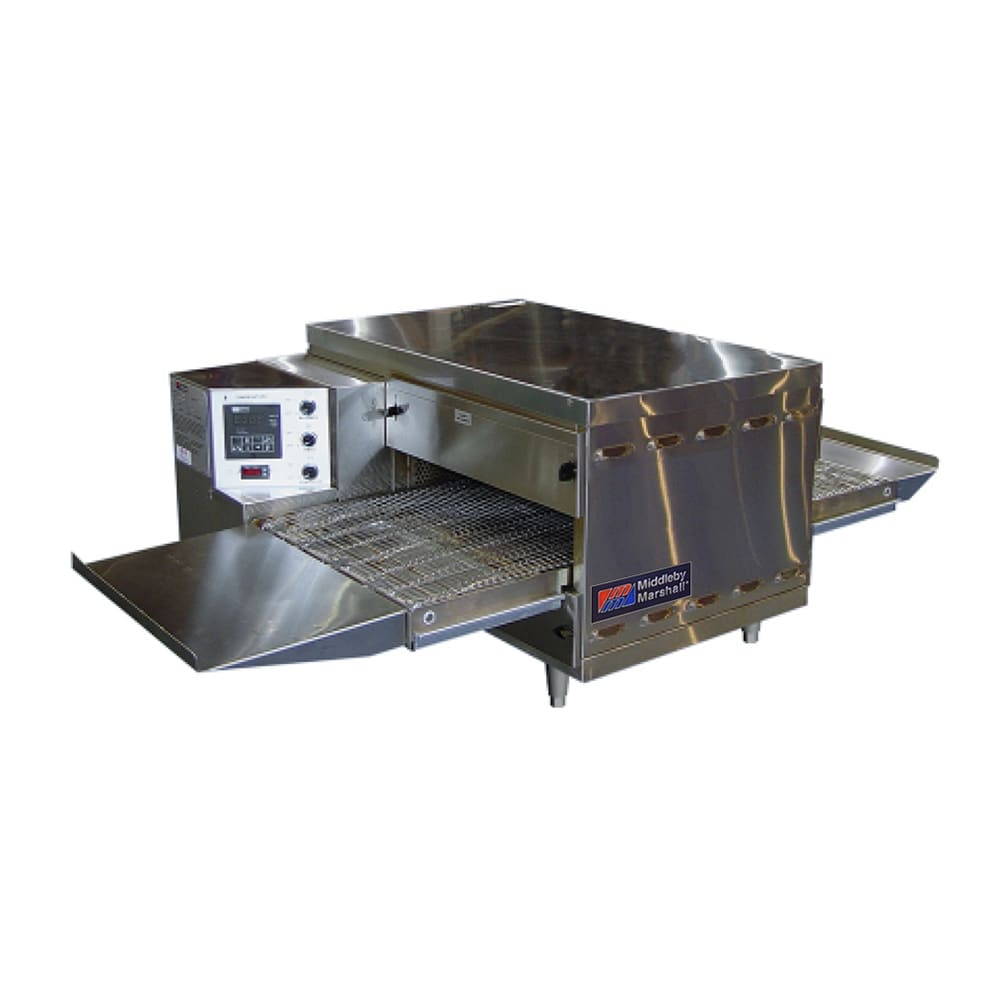

Middleby Marshall PS520G-1 20" Gas Countertop Conveyor Oven - Natural Gas
$10,777.00 /Each
Call for details!
Selected Gas Type: Natural Gas
Middleby Marshall PS520G-1 Description
The Middleby Marshall PS520G-1 conveyor oven helps users prepare dishes including pizzas, seafood, sandwiches, and bagels. Products pass through the 20-inch-long baking chamber on a conveyor, and the conveyor’s direction can be reversed depending on workflow.
The Middleby Marshall PS520G-1 conveyor oven has microprocessor controls that users can adjust for bake time and conveyor speed settings. This gas-fired unit has a BTU capacity of 40,000, and after product cooks, the conveyor releases it onto a 12-inch exit tray.
- Countertop design
- Single deck
- Direct gas fired
- Cooking chamber is 20 in. long
- Microprocessor controls for bake time and conveyor speed
- Reversible conveyor direction
- Catches product on 12-in. exit tray
- Sides, front, top, and interior are durable stainless steel
- 4-in. legs
- 40,000 BTU
- Belt: 42 in. L x 18 in. W
- Overall: 53 4⁄5 in. W x 37 1⁄2 in. D x 21 1⁄10 in. H
- Powered by natural gas
- 15 A
- 120 V/50/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Middleby Marshall PS520G-1 within the 48 contiguous states.
From The Manufacturer
Countertop conveyor oven, gas, single deck, stackable design up to 3 high (requires stacking kits), 20" long cooking chamber, 18" wide standard single belt (per deck), discrete digital temperature and speed controllers, controllable bake/time conveyor speed, 30 seconds to 12 1/2 minutes time range, 200°-600°F operating temperature range, reversible conveyor direction, left to right feed, single-speed blower motors, includes: legs & optional casters, plug and cord (6 ft. nominal, NEMA L6-20), stainless steel front, sides, top and interior, cETLus, ETL-Sanitation, CE (120 V, 50/60 Hz, 1-ph, 15 Amps, 40,000 BTUs)
Middleby Marshall PS520G-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Middleby Marshall |
| Belt Length (in) | 42 |
| Belt Width (in) | 18 |
| Controls | Digital |
| Gas Type | NG |
| Heat | Gas |
| Heating Style | Impingement |
| Hertz | 50/60 |
| Installation Type | Countertop |
| Maximum Pizza Diameter | 18" |
| NEMA | 5-15P |
| Overall Length (in) | 53.82 |
| Overall Width (in) | 37.46 |
| Phase | 1 |
| Product | Conveyor Ovens |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PS Series |
| Size | Single |
| Special Features | Reversible Conveyor Direction |
| Total BTU | 40000 |
| Voltage | 120 |
| Warranty | 1-year Parts & Labor |
| Weight | 325.00 |
