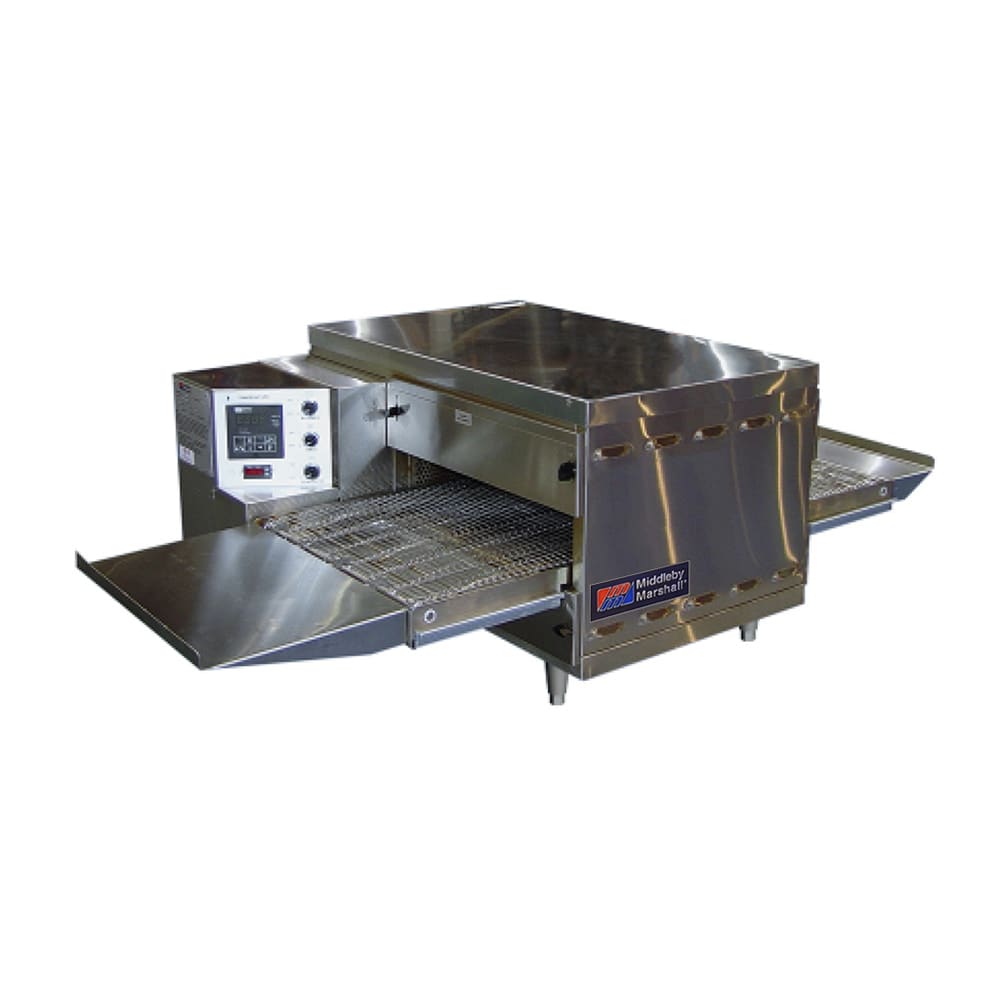

Middleby Marshall PS520E-1 20" Electric Countertop Conveyor Oven - 208v/1ph
Retail Price: $14,369.00
$10,645.99 /Each
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 240V, 1 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Middleby Marshall PS520E-1 Description
Great for pizzerias and Italian restaurants, the Middleby Marshall PS520E-1 conveyor oven can be used to bake anything from pizza and pasta to fajitas and steak. It has a 42-inch by 18-inch conveyor belt that moves through a 20-inch chamber. Because the operator can adjust the bake time and conveyor speed with microprocessor controls, the oven has more versatility than most standard commercial ovens. It uses vertical hot air columns to move heat aerodynamically in the cook chamber, speeding up cook times without cooking at extremely high temperatures.
The energy management system in this Middleby Marshall PS520E-1 electric conveyor oven increases baking efficiency while lowering energy use. To protect users from burns, the oven exterior stays cool to the touch. If maintenance is required, the components are accessible in the control compartment. Some parts are removable so operators can access the interior for detailed cleaning.
- Countertop model
- Single deck
- 20-in.-long cooking chamber
- Vertical columns move heat aerodynamically to bake product at a lower temperature than most standard ovens without reducing cook speed
- Microprocessor controller for adjusting bake time and conveyor speed
- Maximum temperature: 600 degrees F
- Bake time range: 1-12 min.
- Reversible conveyor direction
- Energy management system efficiently transfers heat to food without losing lots of hot air
- Oven exterior stays cool to the touch
- 12-in. exit tray
- Stainless steel interior, front, top, and sides
- Control compartment is accessible for servicing
- Removable belt assembly, end panels, exit tray, and crumb pans streamline cleaning
- 4-in. legs
- Should be operated under a ventilation hood
- Conveyor belt: 42 in. L x 18 in. W
- Overall: 53 4⁄5 in. W x 37 1⁄2 in. D x 21 1⁄10 in. H
- 39.9 A, 8.3 kW
- 208 V/50-60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Middleby Marshall PS520E-1 within the 48 contiguous states.
From The Manufacturer
Countertop conveyor oven, electric, single deck, stackable design up to 3 high (requires stacking kits), 20" long cooking chamber, 18" wide standard single belt (per deck), discrete digital temperature and speed controllers, controllable bake/time conveyor speed, 30 seconds to 12 1/2 minutes time range, 200°-600°F operating temperature range, reversible conveyor direction, left to right feed, single-speed blower motors, includes: legs & optional casters, plug and cord (6 ft. nominal), stainless steel front, sides, top and interior, cETLus, ETL-Sanitation, CE (208 V, 50/60 Hz, 1-ph, 50 Amps, 8,300 Watts)
Middleby Marshall PS520E-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Middleby Marshall |
| Belt Length (in) | 42 |
| Belt Width (in) | 18 |
| Controls | Digital |
| Heat | Electric |
| Heating Style | Impingement |
| Hertz | 50/60 |
| Installation Type | Countertop |
| kW | 8.3 |
| Maximum Pizza Diameter | 18" |
| NEMA | L6-20P |
| Overall Length (in) | 53.82 |
| Overall Width (in) | 37.46 |
| Phase | 1 |
| Product | Conveyor Ovens |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PS Series |
| Size | Single |
| Special Features | Reversible Conveyor Direction |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor |
| Weight | 325.00 |
