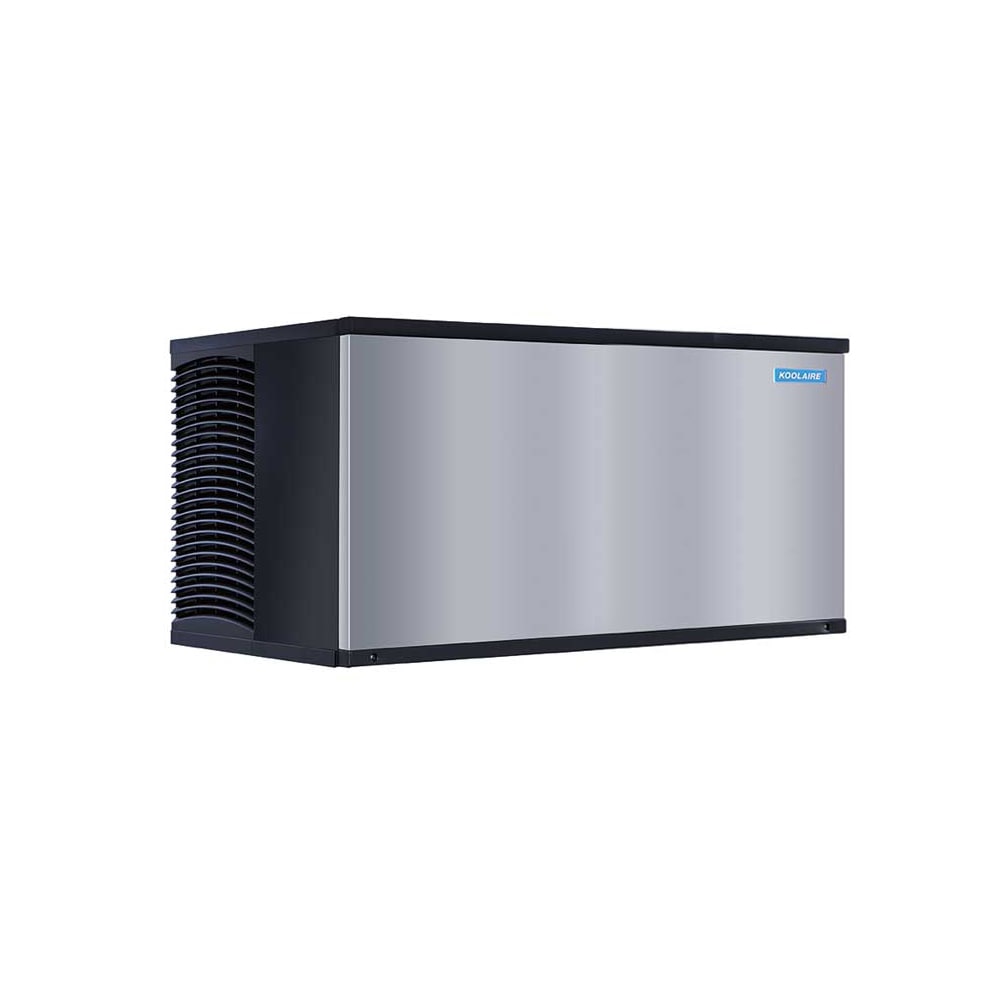

Koolaire KYT1700A 48" Ice Kube Half Cube Ice Machine Head - 1652 lb/24 hr, Air Cooled, 208-230v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$9,386.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Selected Ice Type: Half Cube
Koolaire KYT1700A Description
The Koolaire KYT-1700A ice maker head starts production when its toggle switch is set to "ice." Air cools the refrigerant lines, which then cool the evaporator plate. Water flowing over the plate freezes into individual cells until an ice thickness float switch shuts off the water flow. Ice thickness is measured by a harvest probe, which then turns off the air cooling the refrigerant lines. When the evaporator plate warms up, its ice is released and dumped in a bin or dispenser (sold separately).
Water must flow through the food zone before it reaches the evaporator plate and turns to ice. This area can be affected by mineral buildup, so it should be cleaned regularly. Staff can remove its components for cleanup after two screws and the door are removed. The Koolaire KYT-1700A ice machine produces 1,800 pounds if conditions are ideal but produces 1,380 pounds on average. Half-cube ice quickly cools liquids due to its surface area, but it melts more quickly than full-cube ice.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- 1,800-lb. ice production capacity
- 1,380-lb. AHRI-certified ice production capacity
- Corrosion-resistant exterior finish
- To access the food zone, 2 screws and the door must be removed
- Food zone has white plastic that cleans up quickly
- Removable distribution tube, floats, pump, trough, and water shield
- Half-cube ice size: 0.375 in. x 1.125 in. x 0.875 in.
- Uses R410A refrigerant
- Ice bin or dispenser sold separately
- Ice deflector is required with an ice bin but not with a dispenser
- 24,700 average BTU; 29,000 maximum BTU
- Required ambient air temperature: 40-110 degrees F
- Required incoming water temperature: 40-90 degrees F
- Required incoming water pressure: 20-80 PSI
- Required top and sides clearance: 8 in.
- Required rear clearance: 5 in.
- Toggle switch must be set to "ice," and the water curtain must be closed
- Trough goes through a purge cycle to remove water
- Air-cooled refrigerant lines
- Evaporator plate is chilled by refrigerant lines
- Plate freezes the water that flows over the cells
- Water flow is turned off by the ice thickness float switch
- Harvest probe checks ice thickness so that staff know when to turn off the air that cools the refrigerant lines
- Ice falls off the evaporator after warming slightly
- 48 in. W x 24 in. D x 29.5 in. H
- 18.2 A, 4.6 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Koolaire KYT1700A within the 48 contiguous states.
From The Manufacturer
Ice Kube Machine, cube style, air-cooled, self-contained condenser, 48"W, production capacity up to 1652 lb/24 hours at 70°/50° (1334 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, half dice size cubes, R410a refrigerant, NSF, cULus, CE (replaces KY-1350A & KY-1800A)
Koolaire KYT1700A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Koolaire |
| 24 Hr. Production (lb) | 1652 |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 35.5 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R410A |
| Series | Ice Kube |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 48 |
| Weight | 292.00 |
