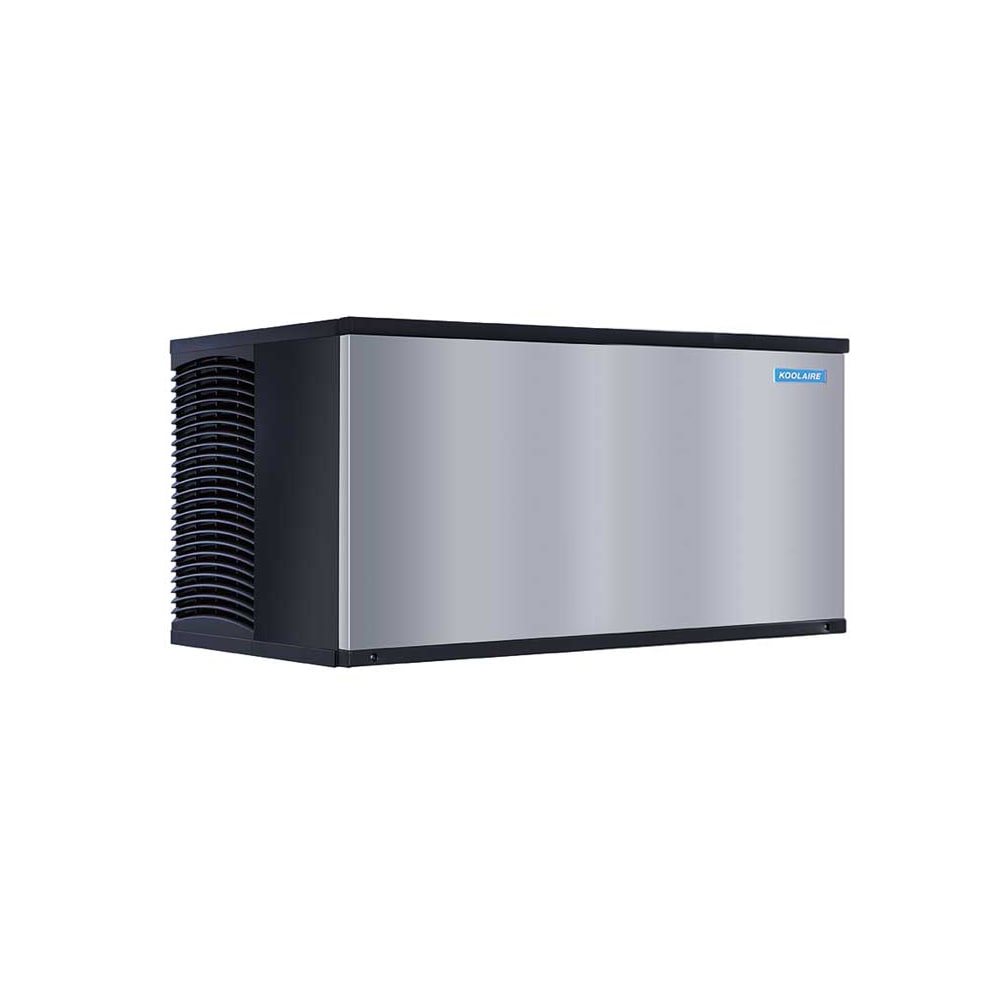

Koolaire KDT1700A 48" Ice Kube Full Cube Ice Machine Head - 1652 lb/24 hr, Air Cooled, 208-230v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$9,386.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Selected Ice Type: Full Cube
Koolaire KDT1700A Description
To resist scratches and fingerprints, the Koolaire KDT-1700A full-cube ice machine head has a stainless steel-like exterior finish. Its air-cooled condensing unit is built with all of its components contained in one area. With proper conditions, this unit can produce 1,800 pounds of full-cube ice daily. This type of ice melts more slowly than half-cube ice, which makes it great for drinks that are meant to be sipped. The food zone is sealed and has white plastic areas that ensure dirt stands out so staff can see it.
To produce ice, the Koolaire KDT-1700A full-cube ice machine head has a distribution tube that releases water onto the evaporator plate so that it can be frozen into cubes. A water shield prevents excess water from splashing onto the food zone. The unit's cleaning cycle can be started with the push of a button, reducing time spent cleaning. Its floats, trough, and pump can be removed without tools for cleanup.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- 1,800-lb. daily ice production when ambient air is 70 degrees F and incoming water is 50 degrees F
- 1,350-lb. AHRI-certified daily ice production when ambient air is 90 degrees F and incoming water is 70 degrees F
- Air-cooled condensing unit
- Exterior has a stainless steel-like finish to resist dents and fingerprints
- White plastic parts in the food zone facilitate cleaning
- Sealed food zone prevents debris from getting stuck in crevices
- Unit can be cleaned with the press of a button
- Distribution tube sprays water on the evaporator plates
- Water shield confines excess water and prevents the food zone from being splashed
- Pump, floats, and trough can be removed for cleaning
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- Bin sold separately
- Uses R410A refrigerant
- Required incoming water pressure: 20-80 PSI
- Required incoming water temperature: 40-90 degrees F
- Required ambient air temperature: 40-110 degrees F
- 48 in. W x 24 in. D x 29.5 in. H
- 18.2 A, 4.6 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Koolaire KDT1700A within the 48 contiguous states.
From The Manufacturer
Ice Kube Machine, cube style, air-cooled, self-contained condenser, 48"W, production capacity up to 1652 lb/24 hours at 70°/50° (1326 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, full dice size cubes, R410a refrigerant, NSF, cULus, CE (replaces KD-1350A & KD-1800A)
Koolaire KDT1700A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Koolaire |
| 24 Hr. Production (lb) | 1652 |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 35.5 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R410A |
| Series | Ice Kube |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 48 |
| Weight | 292.00 |
