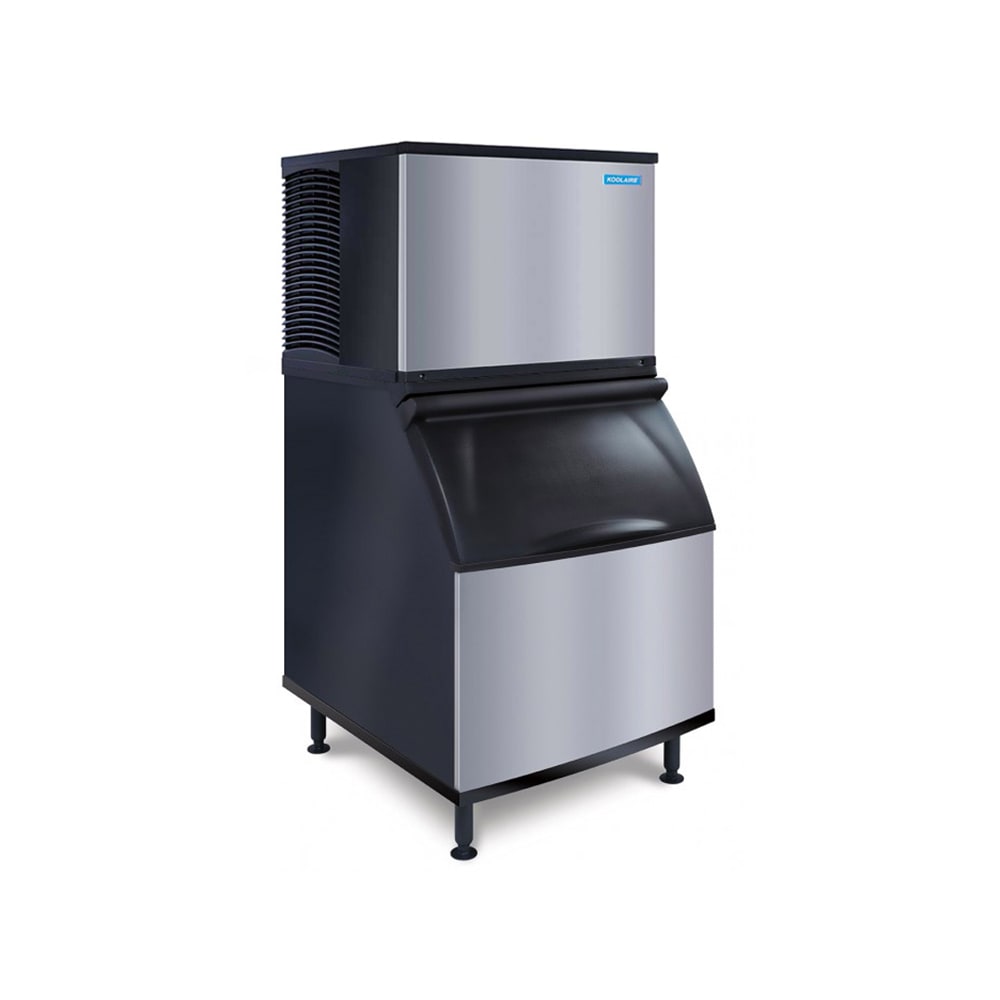

Koolaire KDP0500W-161/K400 478 lb KDT Series Full Cube Ice Machine w/ Bin - 365 lb Storage, Water Cooled, 115v
$5,797.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Selected Ice Type: Full Cube
Koolaire KDP0500W-161/K400 Description
The Koolaire KDP0500W-161/K400 ice maker can produce 478 pounds of ice when ambient air and incoming water reach specific temperatures, but the amount of ice likely to be produced in the average kitchen is 420 pounds. Water that runs over the evaporator plate to freeze into ice first goes through the food zone. This area is susceptible to scale buildup, so it needs to be cleaned often. Components in the food zone are removable to support the cleaning process. The head's exterior has a smudge- and corrosion-resistant finish.
Once ice has formed on the evaporator plate, it is warmed and released into the bin. The Koolaire KDP0500W-161/K400 ice bin holds 365 pounds of ice, and to prevent it from quickly melting, the door to the bin has been foam insulated. It stays open while operators scoop ice to free up their hands. A holder for the scoop sits inside the bin to keep it from touching the ice, so contaminants are less likely to spread. This bin also has a corrosion-resistant exterior finish with black side panels.
- 478-lb. ice production capacity
- Corrosion-resistant exterior finish
- Food zone is accessible after 2 screws and the door are removed
- Food zone has white plastic that can be cleaned up quickly
- Removable distribution tube, floats, pump, trough, and water shield
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- Uses R290 refrigerant
- Ice deflector is required
- 5,300 average BTU; 6,100 maximum BTU
- Required ambient air temperature: 40-110 degrees F
- Required incoming water temperature: 40-90 degrees F
- Required incoming water pressure: 20-80 PSI
- Required top and side clearance: 8 in.
- Required rear clearance: 5 in.
- Water curtain must be closed and the toggle switch set on "ice"
- Water purge cycle removes trough water
- Evaporator plate is chilled by refrigerant lines
- Water is frozen when the evaporator plate is cold
- Ice thickness float switch shuts off the water flow
- Harvest float switch measures the ice sheet's thickness and shuts off the water cooling the refrigerant lines
- Refrigerant lines warm the evaporator plate to release ice cubes
- 365-lb. storage capacity
- 290-lb. AHRI-certified storage capacity
- 12.3-cu.-ft. storage space
- 4 adjustable legs lift the unit off the ground
- Door stays open to facilitate scooping
- Scoop holder in the bin prevents the scoop from touching ice when not in use
- Foam-insulated door retains cold air
- Corrosion-resistant exterior finish
- Black side panels
-
Ice Maker
-
30 in. W x 24 in. D x 21.5 in. H
-
12 A, 4.4 kW
-
115 V/60 Hz/1 ph
-
Ice Bin
-
30 in. W x 34 in. D x 38 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Koolaire KDP0500W-161/K400 within the 48 contiguous states.
From The Manufacturer
Ice Kube Machine, cube style, water-cooled, self-contained condenser, 30" W x 24" D x 21.5" H, production capacity up to 478 lb/24 hours at 70°/50° (419 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, dice size cubes, R290 refrigerant, NSF, cULus, CE, ENERGY STAR®
Ice Storage Bin, with top-hinged front opening door, 365 lb ice storage application capacity, for top-mounted ice maker, includes internal scoop holder & scoop, polyethylene interior, PVC coated laminated exterior, 6" adjustable legs, NSF, AHRI
Koolaire KDP0500W-161/K400 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Koolaire |
| 24 Hr. Production (lb) | 478 |
| Access | Lift Up Door |
| Also Known As | KDT0500W/K400 |
| Bin Capacity (lb) | 365 |
| Compressor Type | Water Cooled |
| Depth (in) | 34 |
| Height (in) | 53.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | KDT Series |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 254.00 |
