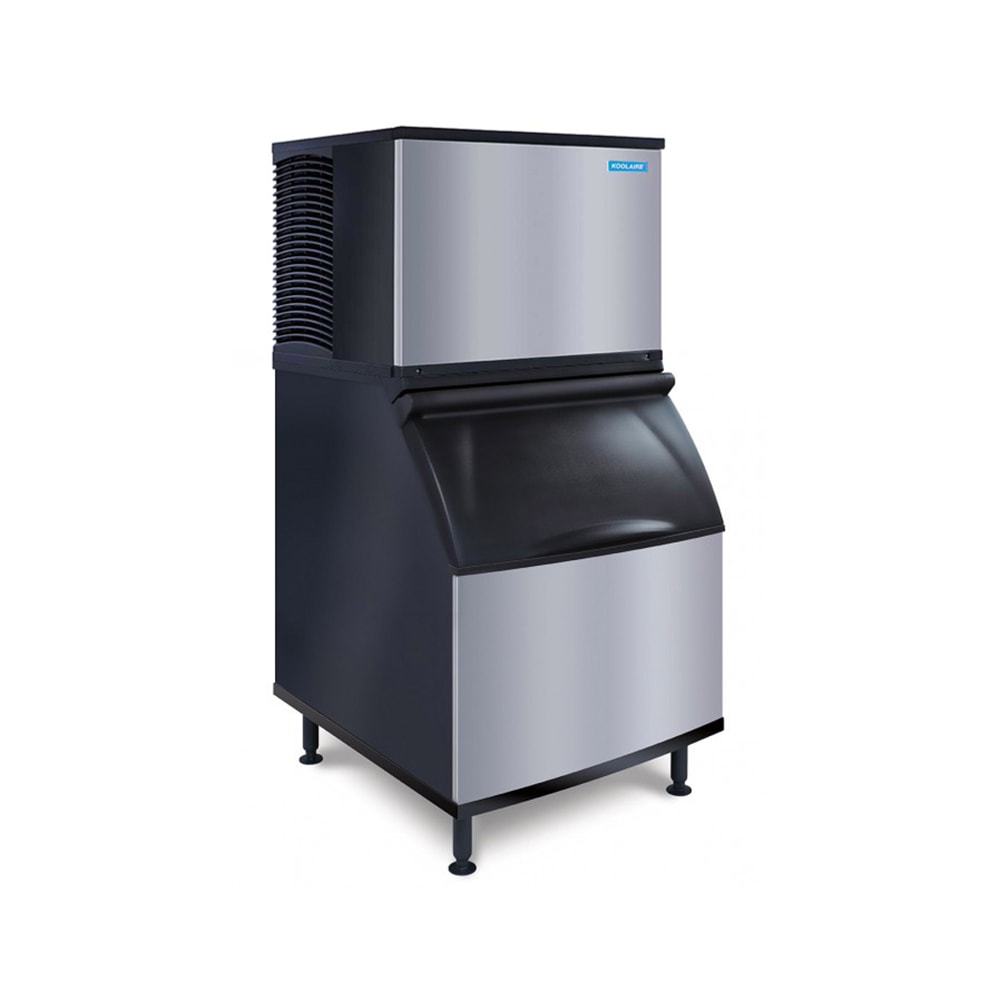

Koolaire KDP0500A-161/K400 502 lb KDT Series Full Cube Ice Machine w/ Bin - 365 lb Storage, Air Cooled, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$5,630.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Selected Ice Type: Full Cube
Koolaire KDP0500A-161/K400 Description
If air and water conditions are at ideal temperatures, the Koolaire KDP0500A-161/K400 ice maker with bin can produce 502 pounds daily. It makes full-cube ice, each cube measuring 0.875 inch by 0.875 inch by 0.875 inch. These cubes are large and slow melting, so they are ideal for drinks in restaurants and bars. An air-cooled condenser blows cold air over the refrigerant coils to cool the liquid, which then cools the evaporator plate. When the plate is cooled, water on it freezes to form ice.
Components in the ice maker that come in contact with water and ice are located in the food zone, which is accessible behind the lift-off door and has white plastic components. This material resists corrosion and shows dirt and slime buildup, so users know when cleaning is needed. To simplify cleaning, some of the components are removable.
As much as 365 pounds of ice can be stored in the Koolaire KDP0500A-161/K400 ice machine with bin. Door insulation keeps cold air around the ice, so it will not melt quickly; this also prevents condensation from accumulating. With the stay-open design, this door is not in the way when operators use the 82-ounce scoop.
- 502-lb. maximum daily ice production
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- Air-cooled condenser
- R290 refrigerant
- Food zone is accessible with 2 removable screws and lift-off door
- Plastic components in the food zones are white, showing buildup when cleaning is needed
- Trough, distribution tube, floats, pump, and water shield are removable from the food zone
- Exterior construction is similar to stainless steel to hide fingerprints and resist corrosion
- Required incoming water pressure: 20-80 PSI
- Required incoming water temperature: 40-90 degrees F
- Required ambient air temperature: 40-110 degrees F
- 365-lb. application capacity
- 12.3-cu.-ft. AHRI-certified capacity
- 82-oz. ice scoop with holder
- Door has a stay-open design for convenient scooping
- Foam insulation in the door traps cold air to slow melting
- Stainless steel-like exterior
- Black side panels match ice machine head
- Adjustable legs
- Ice Maker
- 30 in. W x 34 in. D x 24 in. H
- 12.7 A, 5.4 kW
- 115 V/60 Hz/1 ph
- Bin
- 30 in. W x 34 in. D x 32 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Koolaire KDP0500A-161/K400 within the 48 contiguous states.
From The Manufacturer
Ice Kube Machine, cube style, air-cooled, self-contained condenser, 30" W x 24" D x 21.5" H, production capacity up to 502 lb/24 hours at 70°/50° (391 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, dice size cubes, R290 refrigerant, NSF, cULus, CE, ENERGY STAR®
Ice Storage Bin, with top-hinged front opening door, 365 lb ice storage application capacity, for top-mounted ice maker, includes internal scoop holder & scoop, polyethylene interior, PVC coated laminated exterior, 6" adjustable legs, NSF, AHRI
Koolaire KDP0500A-161/K400 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Koolaire |
| 24 Hr. Production (lb) | 502 |
| Access | Lift Up Door |
| Also Known As | KDT0500A/K400 |
| Bin Capacity (lb) | 365 |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 53.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | KDT Series |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 247.00 |
